10 Inch Coaxial Speaker Professional Speaker Driver 250WRMS 10
10 Inch Coaxial Speaker Professional Speaker Driver 250WRMS 10
10 Inch Coaxial Speaker Professional Speaker Driver 250WRMS 10
10 Inch Coaxial Speaker Professional Speaker Driver 250WRMS 10
10 Inch Coaxial Speaker Professional Speaker Driver 250WRMS 10
10 Inch Coaxial Speaker Professional Speaker Driver 250WRMS 10

10 Inch Coaxial Speaker Professional Speaker Driver 250WRMS 10" Speaker

Spu:
1454243194
Inquiry
  • Overview
  • Recommended Products
Product Description
product 10 inch coaxial speaker professional speaker driver 250wrms 10 speaker-0


Features :


- 500W continuous program power capacity
- 95dB sensitivity
- 48hz-20khz Frequency response
- Single magnet design
- Titanium diaphragm for HF driver

- 25mm(1") HF throat size
- 2" LF VC + 1.7" HF VC
- Replacement diaphragm for HF , Titanium

Speccification :

Specification
Nominal diameter
250/10
mm/inch
Nominal impedance
8
ohm
Min impedance LF
5.2
ohm
Min impedance HF
6
ohm
Frequency response
48-20k
Hz
Dispersion angle
70
°
Magnet size
145x25
mm
Magnet material
Ferrite
Specification LF
Sensitivity (1w/1m)
95
dB
Nominal power handling
250
Watts
Continuous power handling
500
Watts
Voice coil diameter
50/2 "
mm/ inch
Winding material
Copper
Cone material
Paper
Surround material
Cloth
Specification HF
Throat size
25/1
mm/inch
Sensitivity (1w/1m)
107
dB
Nominal power handling
50
Watts
Continuous power handling
100
Watts
Voice coil diameter
44/1.7
mm/inch
Diaphragm
Titanium
T/S Parameter
Fs
48.4
Hz
Re
5.2
Ω
Qes
0.47
Qts
0.45
Qms
9.58
Vas
58.3
L
Rms
1.0
kg/s
Cms
0.35
mm/N
Mms
31.1
gr
BI
10.3
N/A
Rp
73.5
Ω
Lp
37.9
mH
Cp
513.4
uF
Le
0.6
mH
Xmax
6.5
mm
Mounting information
Overall diameter
263/10.35
mm/inch
Bolt Circle diameter
251/9.88
mm/inch
Baffle Cutout diameter
231/9.09
mm/inch
Total Depth
146.5/5.76
mm/inch
Mounting depth
138/5.43
Flange thickness
8.5/0.33
mm/inch
Shipping information
Net weight
4.25
KG
Shipping weight
5
KG
Shipping box
290x290x175
mm
Related Products
product 10 inch coaxial speaker professional speaker driver 250wrms 10 speaker-1
product 10 inch coaxial speaker professional speaker driver 250wrms 10 speaker-2
product 10 inch coaxial speaker professional speaker driver 250wrms 10 speaker-3

8" Pro Coaxial speaker

12" Pro Coaxial speaker

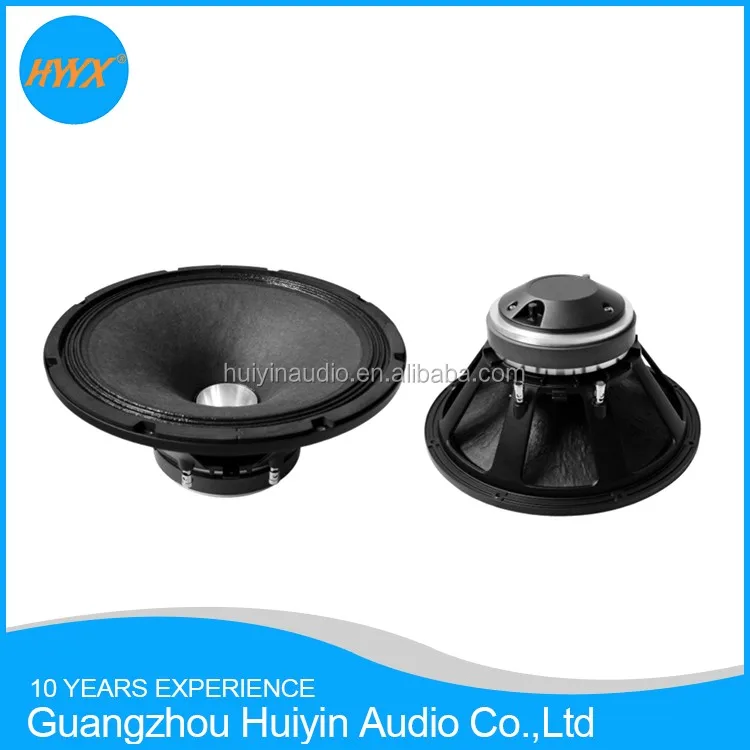

15" Pro Coaxial speaker
