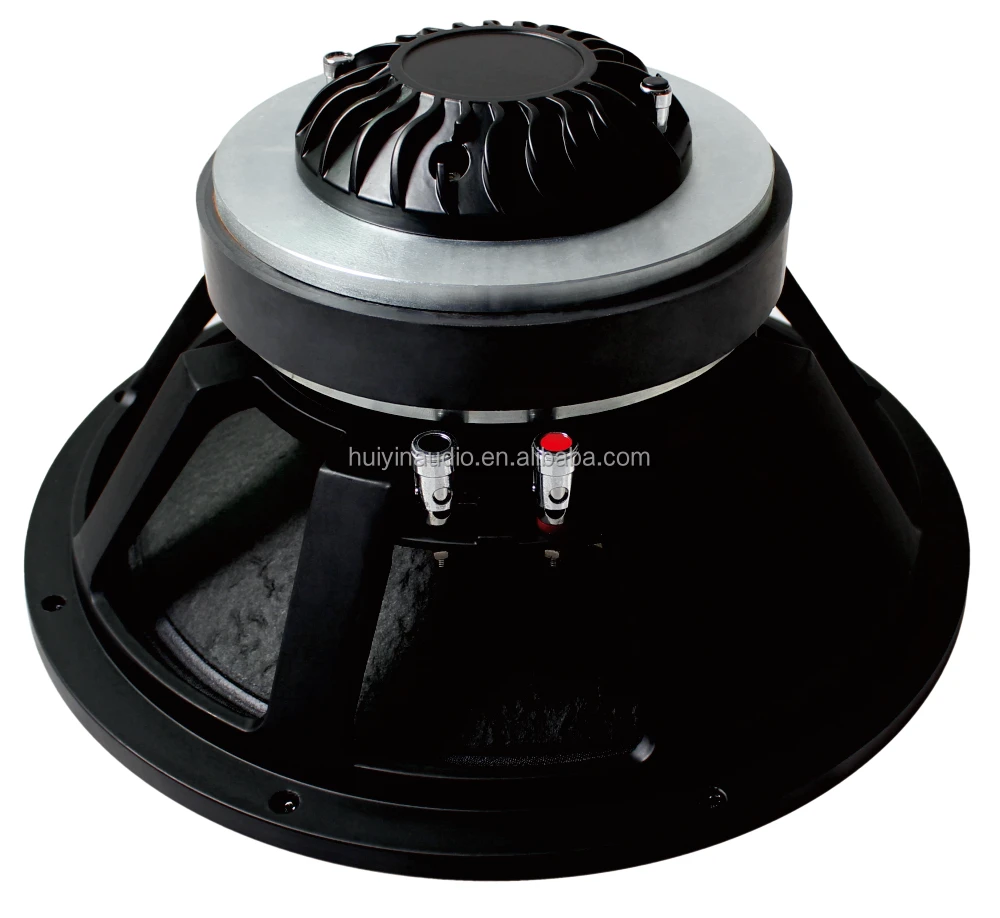

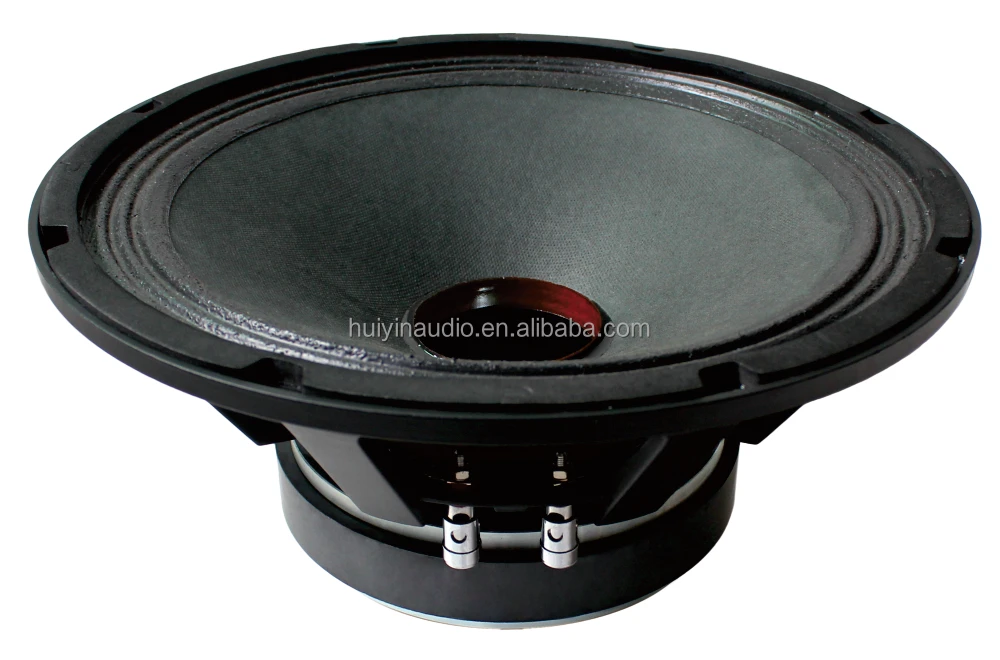

12" Coaxial Speaker As Monitor Speaker System 12 Inch Speakers

Spu:
60500225086
Inquiry
  • Overview
  • Recommended Products
Product Description

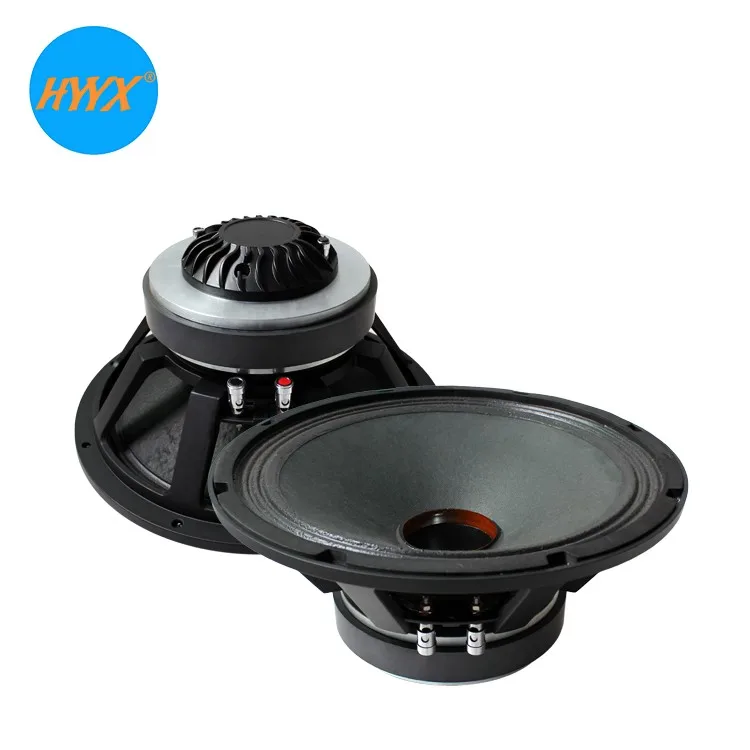

product 12 coaxial speaker as monitor speaker system 12 inch speakers-0


Features :

- 12 inch coaxial speaker for surround speaker or monitor speaker
- 300W RMS power handling, 600W Max power
- 97dB sensitivity 1w/1m
- 55hz-20khz Frequency response
- Single magnet design
- Titanium diaphragm for HF driver

- 25mm(1") HF throat size
- 2.5 inch VC for woofer speaker


Speccification :

Specification
Nominal diameter
300/12
mm/inch
Nominal impedance
8
ohm
Min impedance LF
5.2
ohm
Min impedance HF
6
ohm
Frequency response
55-20k
Hz
Magnet size
170x25
mm
Magnet material
Ferrite
Specification LF
Sensitivity (1w/1m)
97
dB
Nominal power handling
300
Watts
Continuous power handling
600
Watts
Voice coil diameter
65/2.5 "
mm/ inch
Winding material
Copper
Cone material
Paper
Surround material
Cloth
Specification HF
Throat size
25/1
mm/inch
Sensitivity (1w/1m)
107
dB
Nominal power handling
50
Watts
Continuous power handling
100
Watts
Voice coil diameter
44/1.7
mm/inch
Diaphragm
Titanium
T/S Parameter
Fs
55
Hz
Re
5.2
Ω
Qes
0.60
Qts
0.57
Qms
12.63
Vas
83.0
L
Rms
1.1
kg/s
Cms
0.21
mm/N
Mms
39.8
gr
BI
11.0
N/A
Rp
69.2
Ω
Lp
24.1
mH
Cp
781.6
uF
Le
0.6
mH
Xmax
6.5
mm

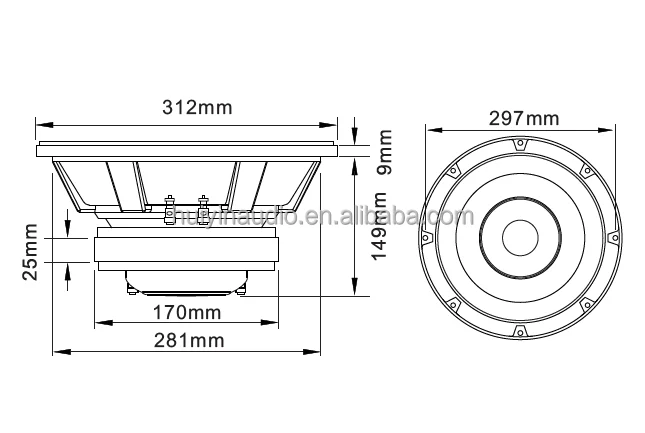

Mounting information
Overall diameter
312/12.3
mm/inch
Bolt Circle diameter
297/11.7
mm/inch
Baffle Cutout diameter
281/11.07
mm/inch
Depth
158/6.22
mm/inch
Flange thickness
9/0.355
mm/inch
Shipping information
Net weight
6
KG
Shipping weight
6.7
KG
Shipping box
350x350x185
mm
