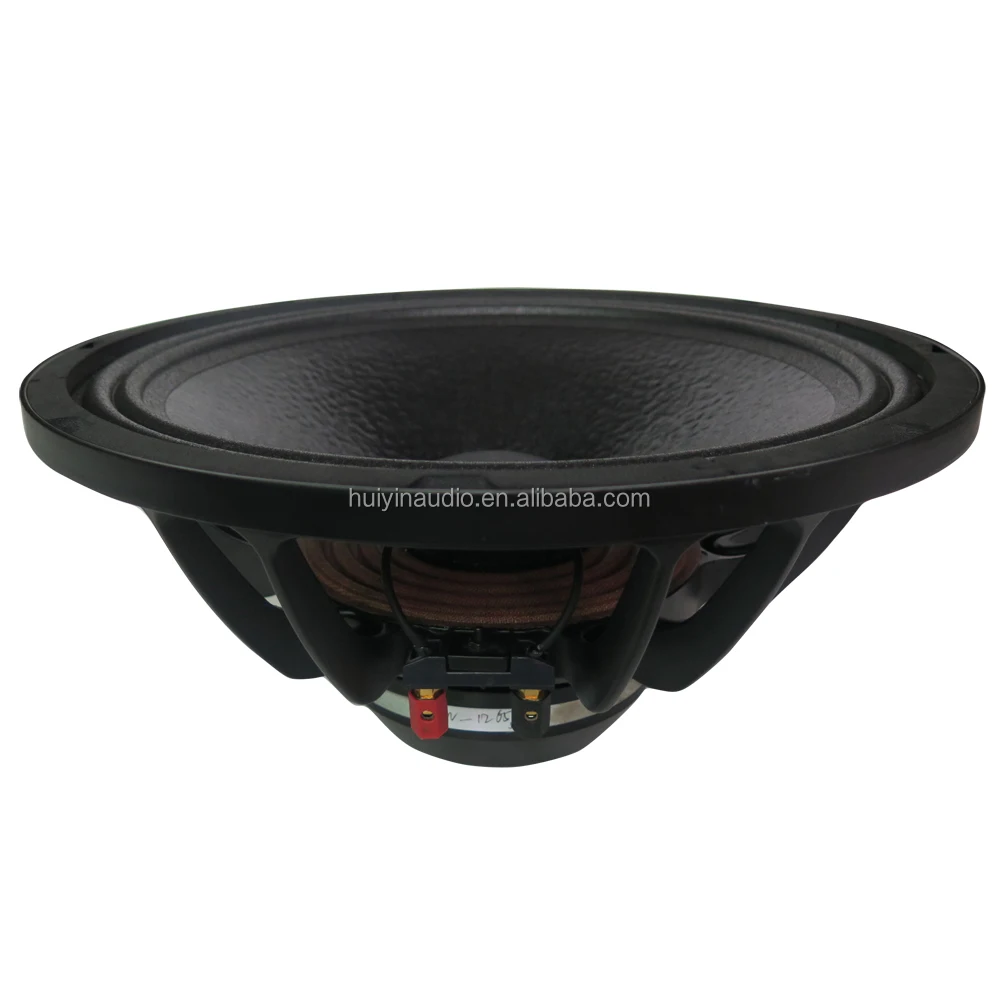

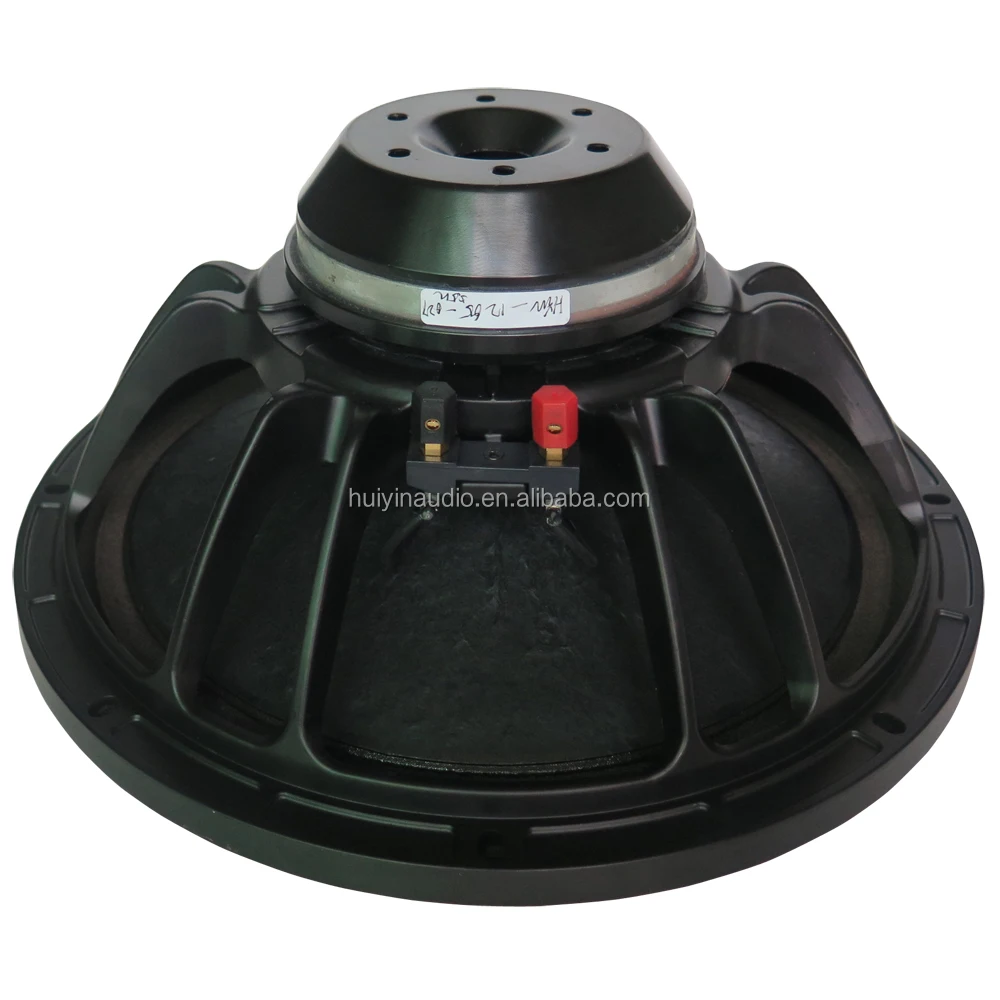

12 Inch Neo Speaker Driver Professional Loudspeaker Woofer Speaker 100dB

12 Inch Neo Speaker Driver Professional Loudspeaker Woofer Speaker 100dB

Spu:

60689833817

Overview
Recommended Products

Product Description

product 12 inch neo speaker driver professional loudspeaker woofer speaker 100db-0

This 12 inch Neodymium woofer Speakers offers outstanding efficiency , high sensitivity 100dB(1w/1m). Its very high power handling(400WRMS ) and Xmax capabilities make it suitable for any pro audio speaker enclosure, including LINE ARRAY SPEAKER SYSTEM.

Specification

Features :

_{- 12 inch Neodymium woofer speaker}

_{- 350}WRMS power handling , 700W max power handling

_{- 100dB sensitivity 1W/1M}

_{- 50hz-5khz Frequency response}

_{- Neodymium magnet}

_{- 2.5 inch/ 65mm copper voice coil}

_{- Paper cone and cloth surround}

Speccification :

Specification
Nominal diameter	300/12	mm/inch
Nominal impedance	8	ohm
Min impedance	5.2	ohm
Frequency response	50-5k	Hz
Magnet material	Neodymium
Sensitivity (1w/1m)	100	dB
RMS power handling	350	Watts
Continuous power handling	1200	Watts
Voice coil diameter	65/2.5	mm/ inch
Winding material	Copper
Cone material	Paper
Surround material	Cloth
T/S Parameter
Fs	48.2	Hz
Re	5.2	Ω
Qes	0.74
Qts	0.69
Qms	10.23
Vas	98.2	L
Rms	1.3	kg/s
Cms	0.25	mm/N
Mms	43.8	gr
BI	9.9	N/A
Rp	61.9	Ω
Lp	21.5	mH
Cp	1023.9	uF
Le	1.1	mH
Xmax	8	mm
Mounting information
Overall diameter	316/12.44	mm/inch
Bolt Circle diameter	302/11.9	mm/inch
Baffle Cutout diameter	285/11.22	mm/inch
Total Depth	140.5/5.5	mm/inch
Flange thickness	13/0.51	mm/inch
Shipping information
Net weight	4	KG
Shipping weight	4.6	KG
Shipping box	340x340x170	mm
