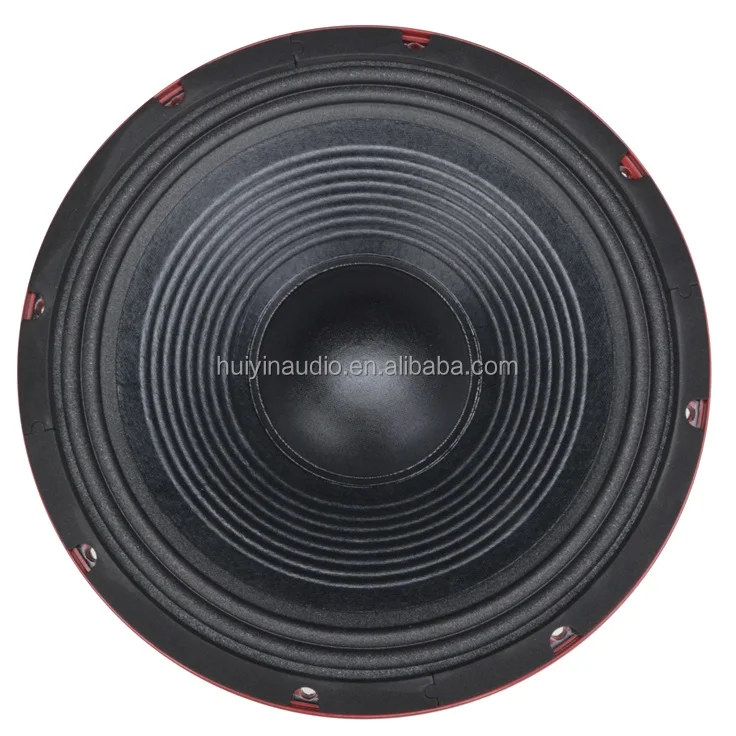

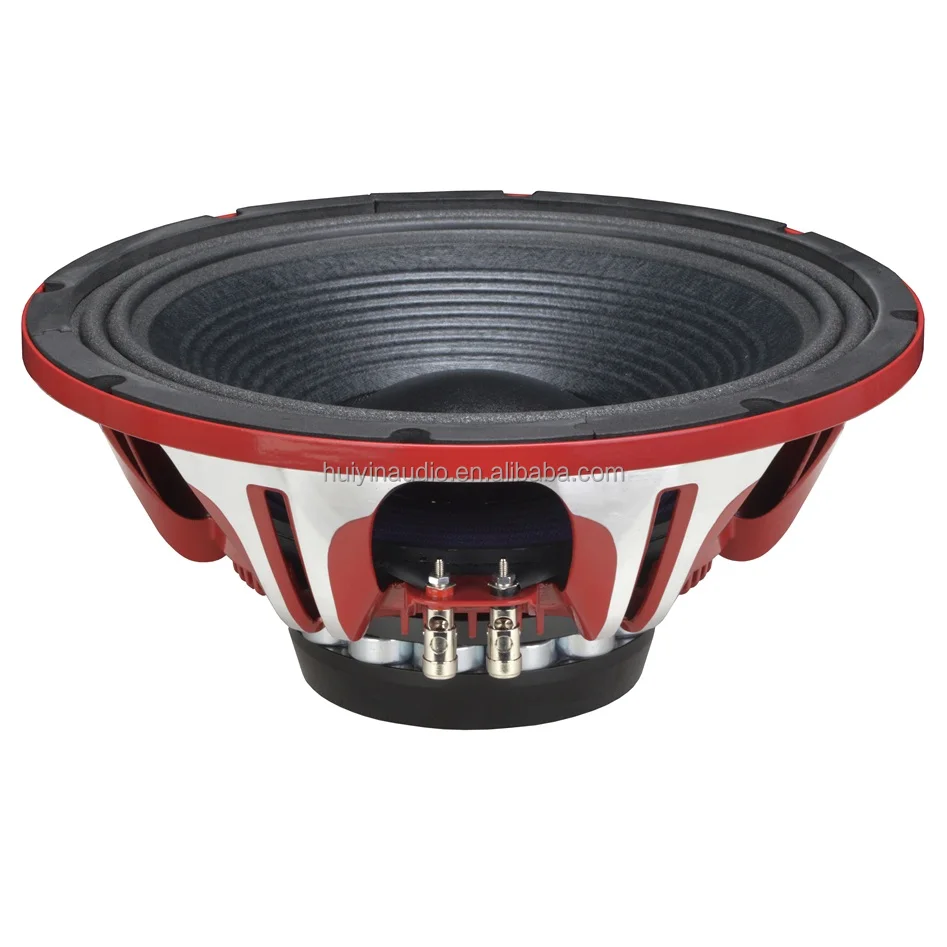

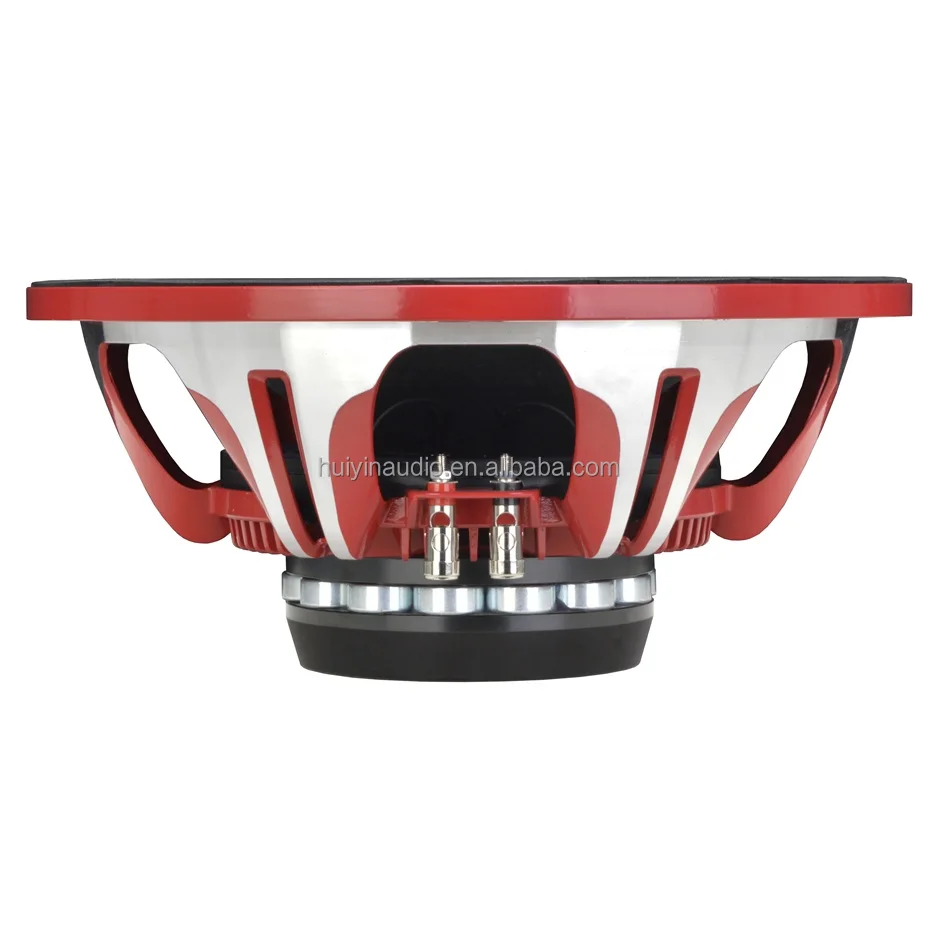

12 Inch Neodymium Woofer Speaker 1275-138N 3Inch Voice Coil 500W RMS Paper Cone Aluminium Coil Midbass Line Array Stage

Spu:

1601614773673

General Information

12 inch speaker

12 inch woofer

12 inch subwoofer

12 inch bass speaker

12 inch neodymium woofer speaker

3 inch voice coil

500W RMS

1000W MAX

101dB Sensitivity

Frequency Range 43Hz-2.8KHz

3.5mm Xmax

Aluminium round wire inside and outside 1 layer

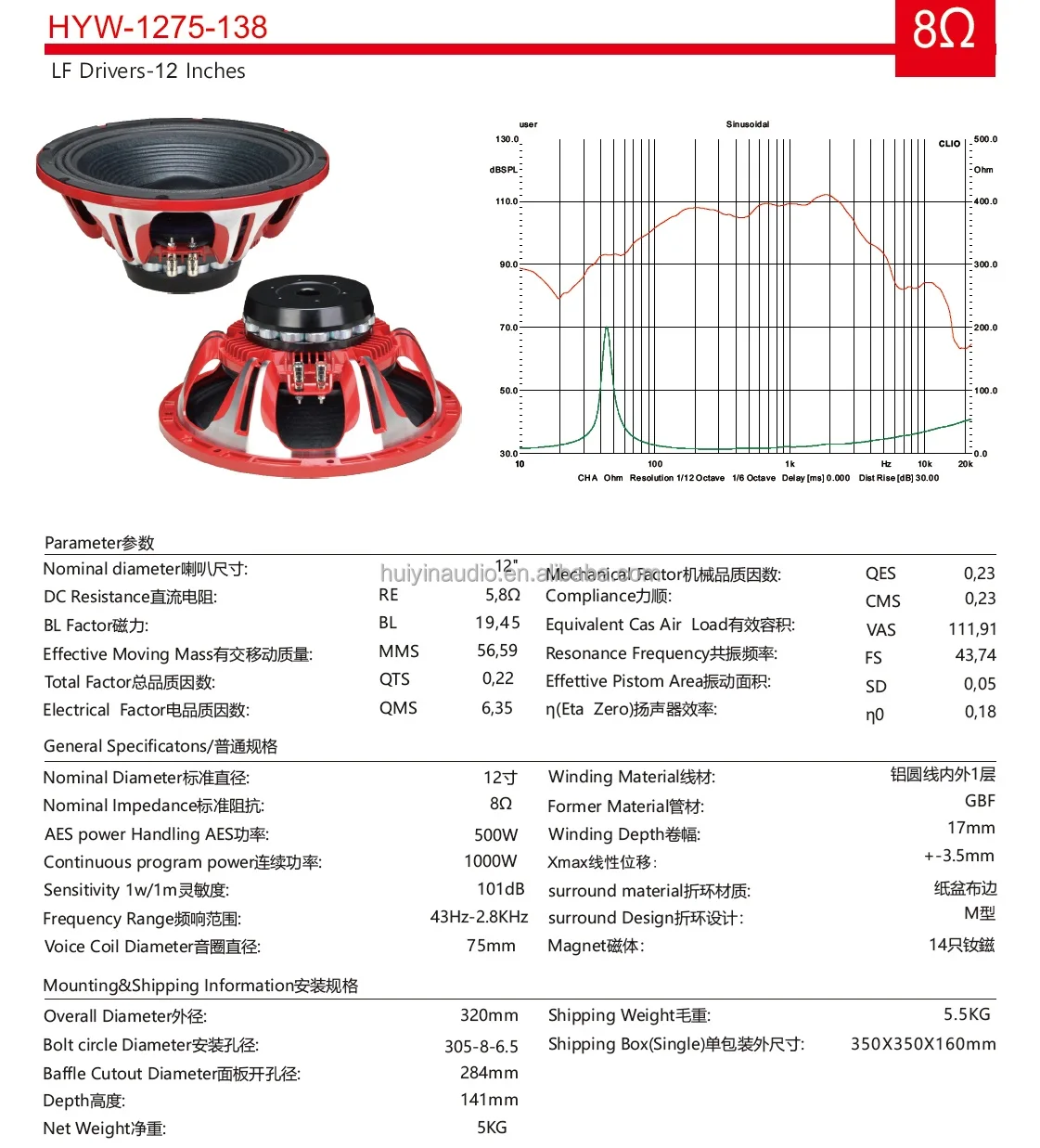

Product Paramenters

*Model Number*	*HYW-1275-138N*
*Parameters*
Nominal diameter	12"
DC Resistance/ RE	5.8Ω
BL Factor/ BL	19,45
Effective Moving Mass/ MMS	56,59
Total Factor/ QTS	0,22
Electrical Factor/ QMS	6,35
Mechanical Factor/ QES	0,23
Compliance/ CMS	0,23
Equivalent Cas Air Load/ VAS	111,91
Resonance Frequency/ FS	43,74
Effettive Pistom Area/ SD	0,05
Eta Zero/ η0	0,18
*General Specificatons*
Nominal Diameter	12 Inch
Nominal Impedance	8Ω
AES power Handling	500W
Continuous program power	1000W
Sensitivity 1w/1m	101dB
Frequency Range	43Hz-2.8KHz
Voice Coil Diameter	75mm
Winding Material	Aluminium round wire inside and outside 1 layer
Former Material	GBF
Winding Depth	17mm
Magnetic Gap Depth	+/-3.5mm
Surround material	Paper Cone + Cloth Surround
Surround Design	M

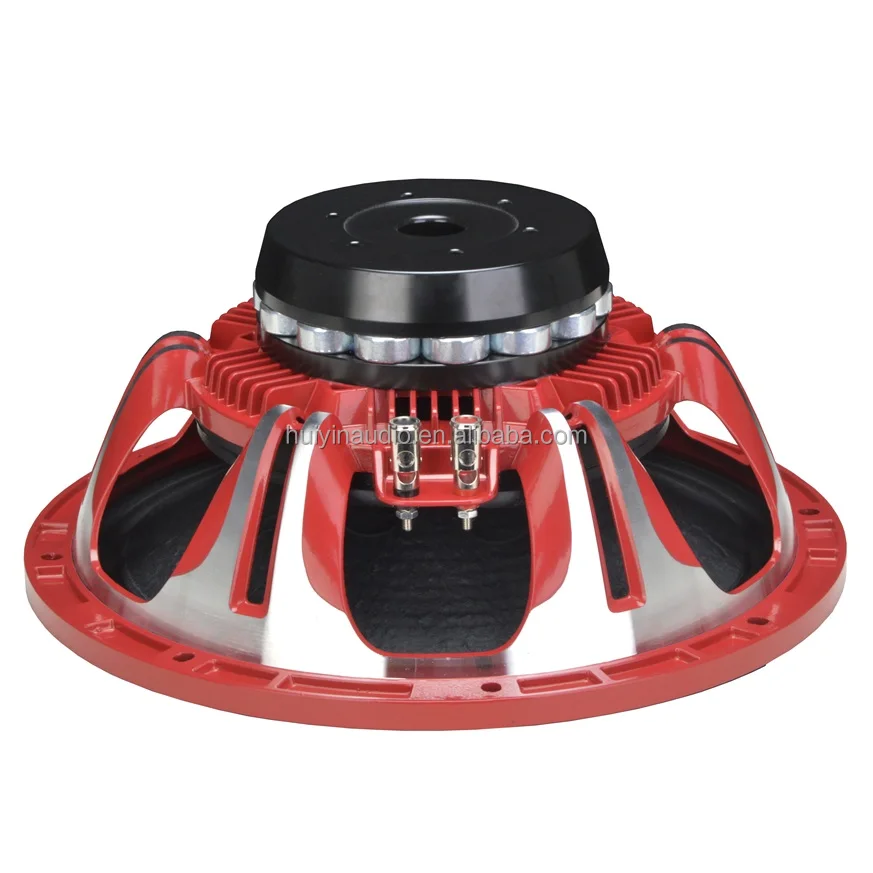

Magnet	251014pcs Neodymium Magnets
*Mounting & Shipping Information*
Overall Diameter	320mm
Bolt circle Diameter	305-8-6.5
Baffle Cutout Diameter	284mm
Depth	141mm
Net Weight	5.0KG
Shipping Weight	5.5KG
Shipping Box	35X35X17CM
