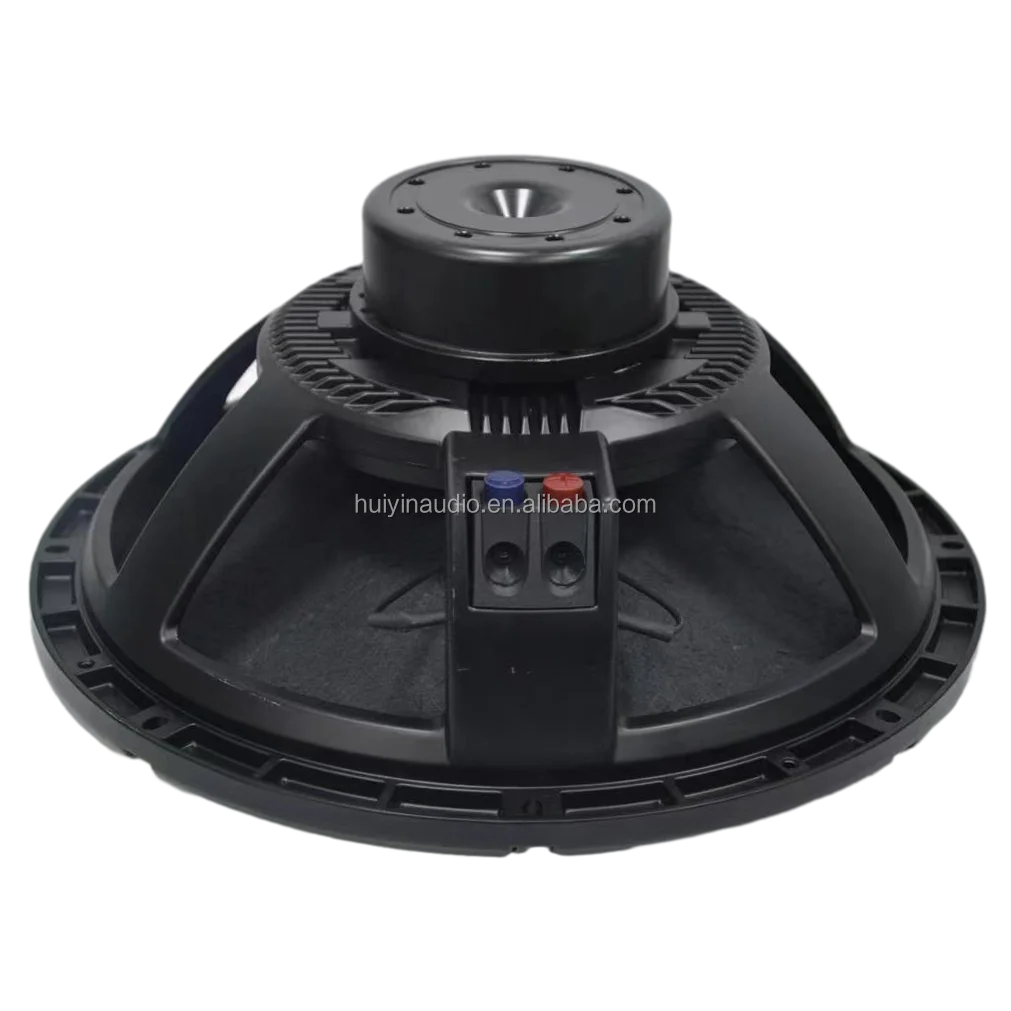

12 Inch Paper Cone Neo Magnet Bass 1286-003 Sound Product Line Array Speaker Woofer for Pro Audio Line Array Spealker
Spu:
1600820923864
- Overview
- Recommended Products
Product Description
This 12 inch Neodymium woofer Speakers offers outstanding efficiency , high sensitivity 97dB. Its very high power handling(500WRMS)
Specification
Features :
- 12 inch woofer speaker with neodymium magnet
- 1000W max power capacity / 500WRMS
- 97dB sensitivity 1W/1M
- 50hz-2khz Frequency response
- Neodymium magnet
- 3.5 inch/86 mm copper voice coil
Specification :
Specification |
||||
Nominal diameter |
300/12 |
mm/inch |
||
Nominal impedance |
8 |
ohm |
||
Min impedance |
5.6 |
ohm |
||
Frequency response |
50-2k |
Hz |
||
Magnet material |
Neodymium |
|||
Sensitivity (1w/1m) |
97 |
dB |
||
RMS power handling |
500 |
Watts |
||
Continuous power handling |
1000 |
Watts |
||
Voice coil diameter |
86/3.5 |
mm/ inch |
||
Winding material |
CCAW |
|||
Cone material |
Paper |
|||
Surround material |
Cloth |
|||
T/S Parameter |
||||
Fs |
52 |
Hz |
||
Re |
5.8 |
Ω |
||
Qes |
0.34 |
|||
Qts |
0.32 |
|||
Qms |
4.44 |
|||
Vas |
50.9 |
L |
||
Cms |
0.12 |
mm/N |
||
Mms |
70.25 |
gr |
||
BL |
20.4 |
N/A |
||
Mounting information |
||||
Overall diameter |
320 |
mm/inch |
||
Bolt Circle diameter |
299 |
mm/inch |
||
Baffle Cutout diameter |
280 |
mm/inch |
||
Depth |
148 |
mm/inch |
||
Shipping information |
||||
Net weight |
5 |
KG |
||
Shipping weight |
6.5 |
KG |
||
Shipping box |
340x340x170 |
mm |
||
