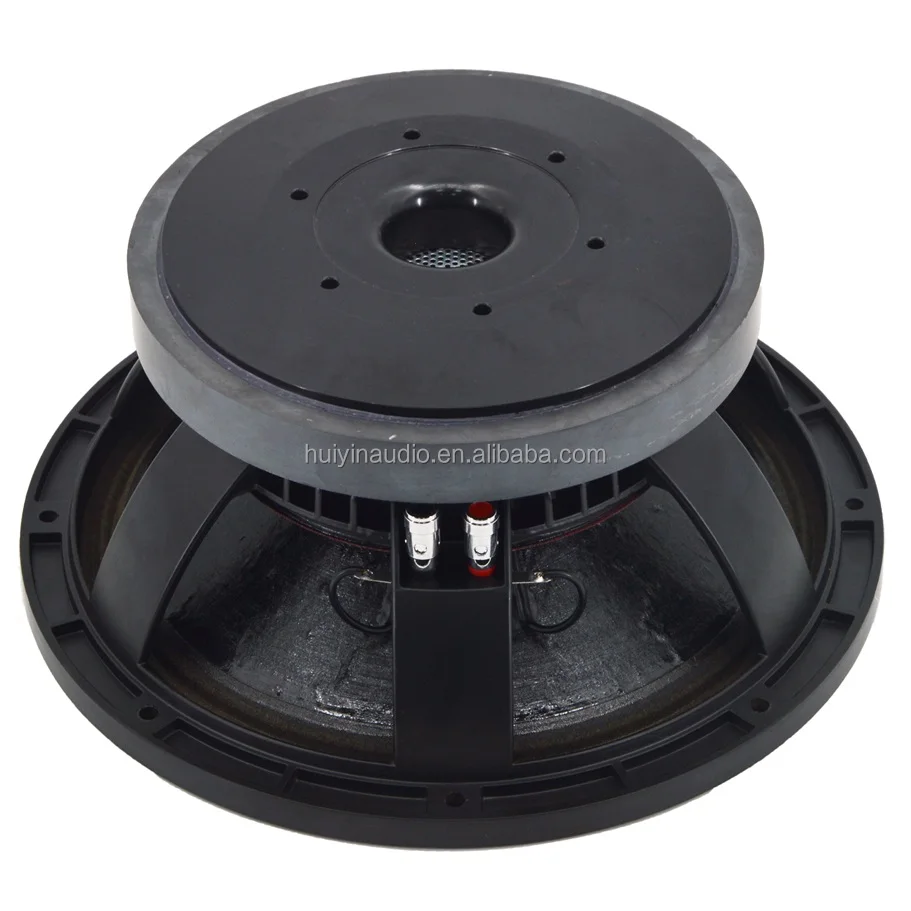

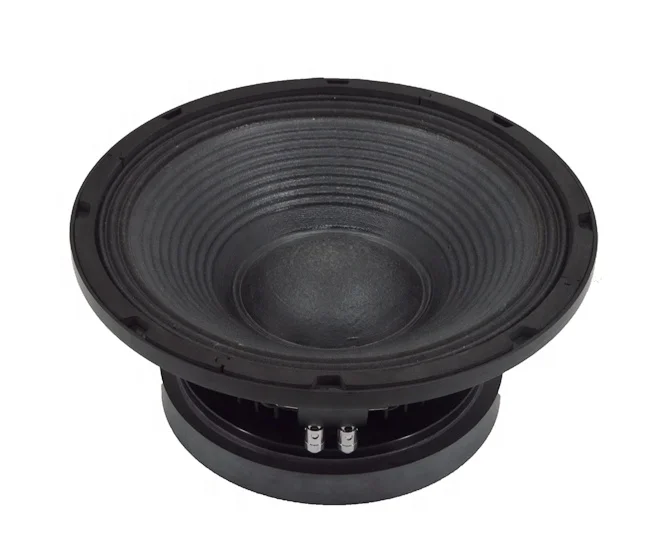

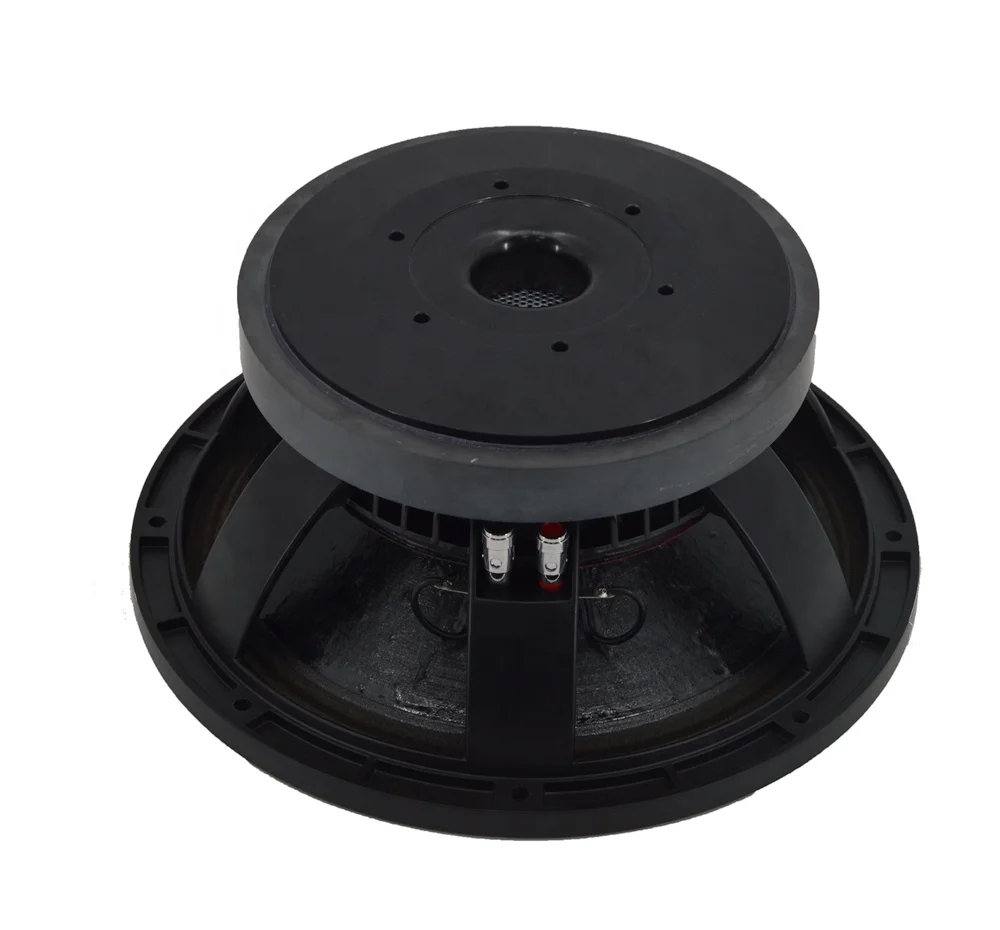

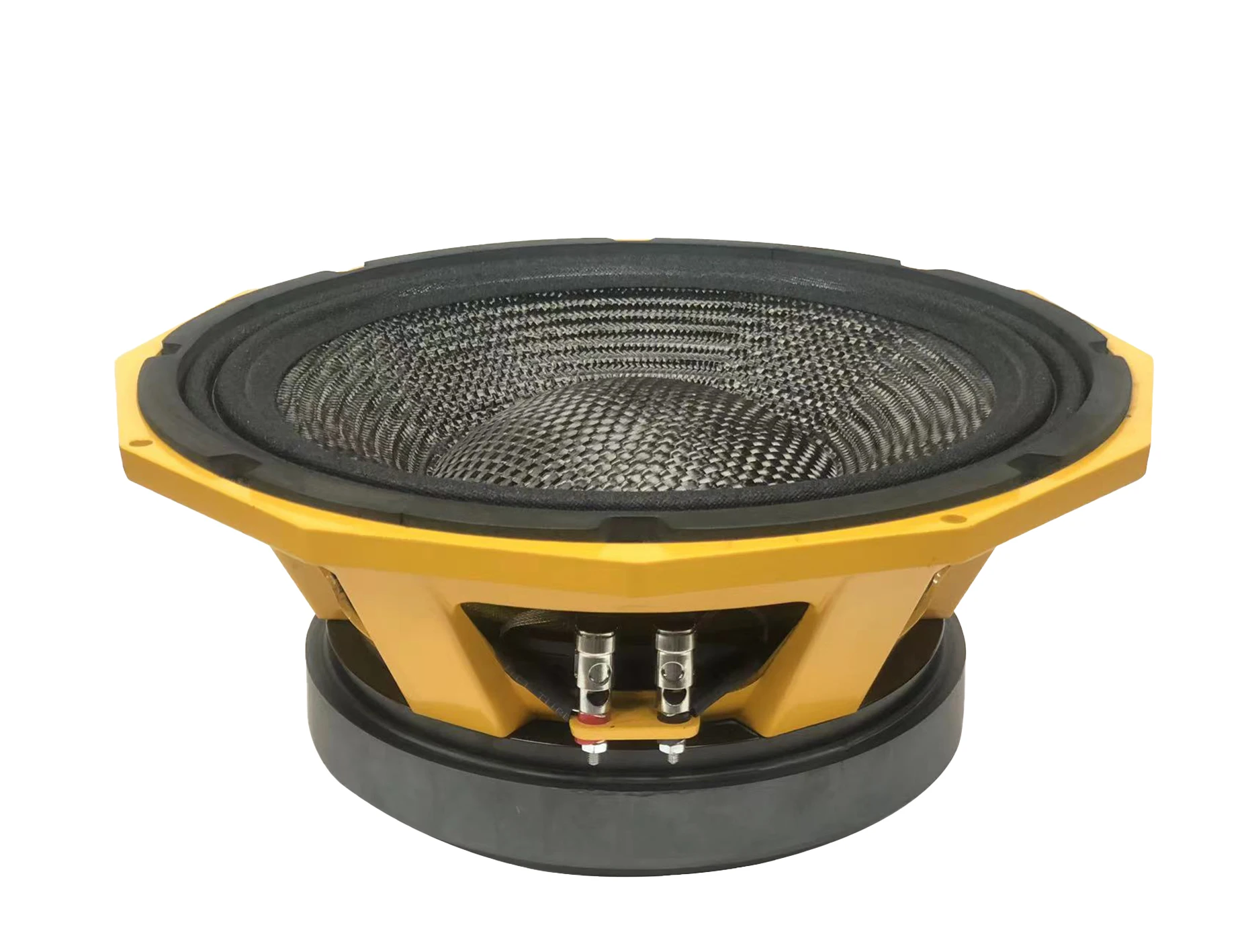

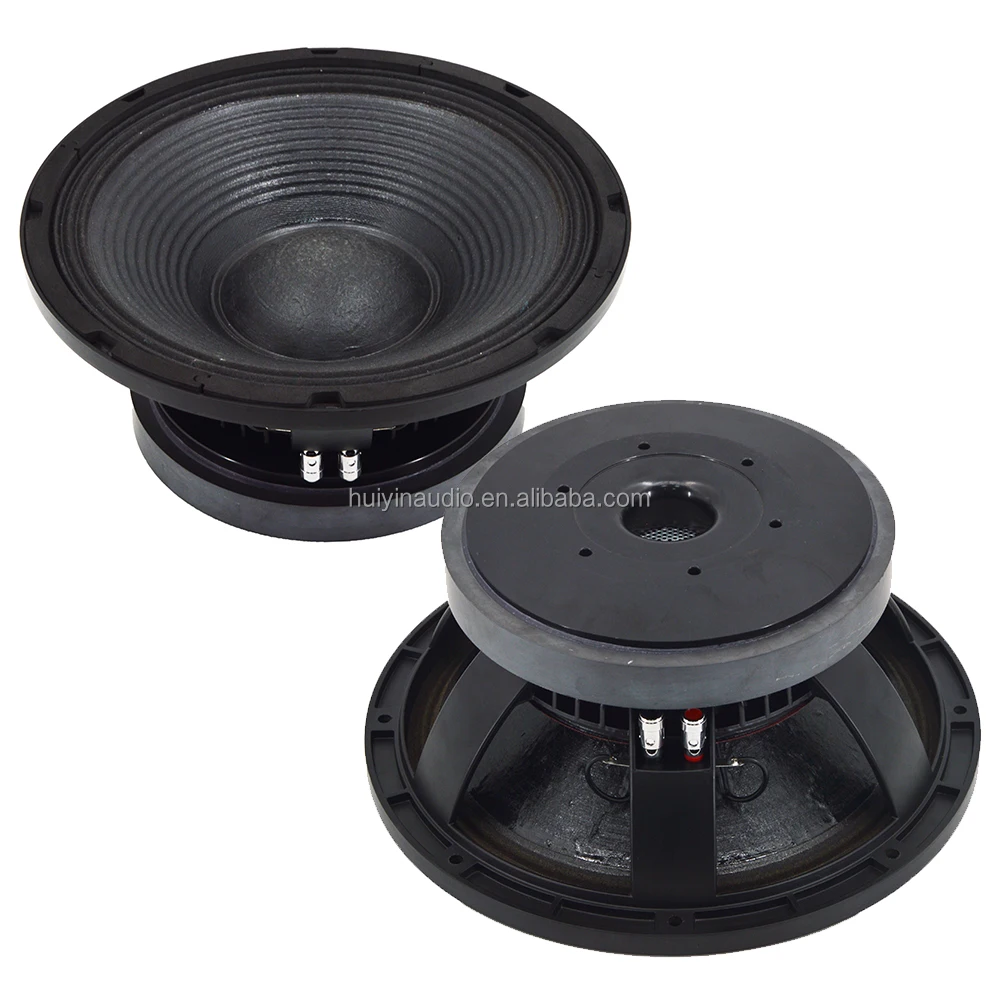

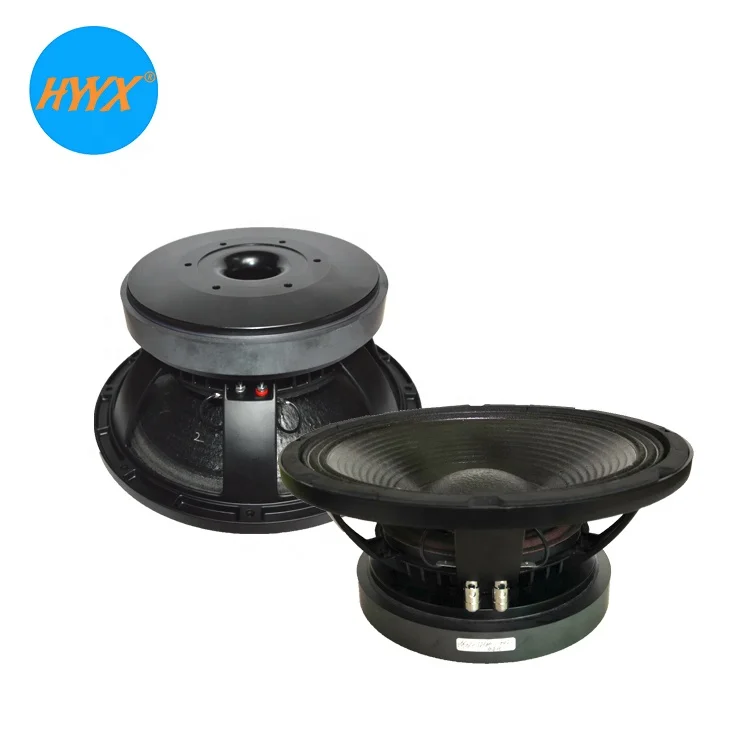

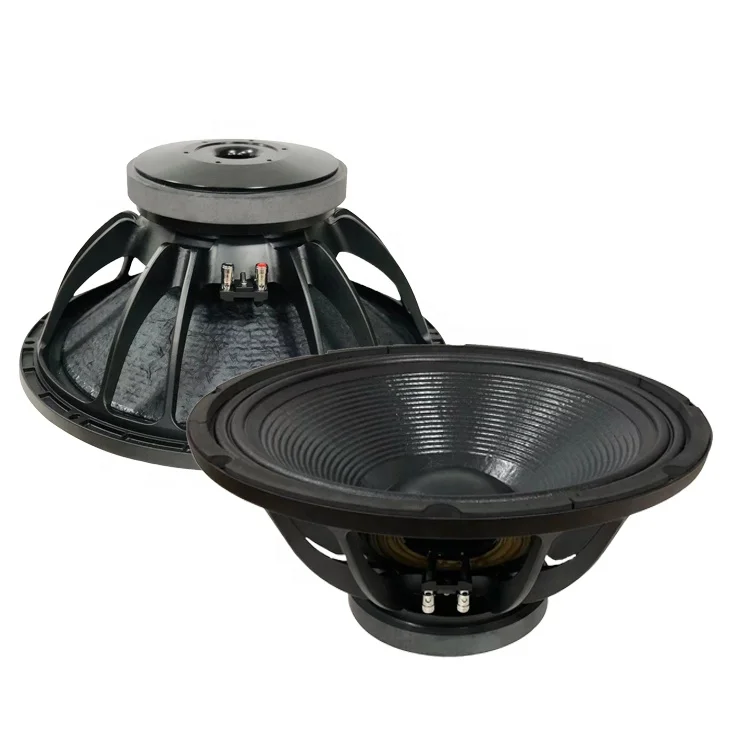

12 Inch Powerful Pro Audio Midbass Speaker 600WRMS 12100-002 Woofer Active & Passive Material
Spu:
60712093711
- Overview
- Recommended Products
Product Description
Features :
- Professional 12 inch woofer/Midbass speakers
- 600W RMS power handling
- 98dB sensitivity (1w/1m)
- 45hz-3.5khz frequency response
- 4" High temperature CCAW voice coil wire and fiberglass former
Specification |
||||
Nominal diameter |
300/12 |
mm/inch |
||
Nominal impedance |
8 |
ohm |
||
Min impedance LF |
5.2 |
ohm |
||
Frequency response |
45-3.5k |
Hz |
||
Magnet size |
220x25 |
mm |
||
Magnet material |
Ferrite |
|||
Sensitivity (1w/1m) |
98±3 |
dB |
||
Nominal power handling |
600 |
Watts |
||
Continuous power handling |
1200 |
Watts |
||
Voice coil diameter |
100/4 |
mm/ inch |
||
Winding material |
CCAW / Copper |
|||
Cone material |
Paper |
|||
Surround material |
Cloth |
|||
T/S Parameter |
||||
Fs |
66.5 |
Hz |
||
Re |
5.2 |
Ω |
||
Qes |
0.58 |
|||
Qts |
0.56 |
|||
Qms |
15.19 |
|||
Vas |
21.4 |
L |
||
Rms |
3.0 |
kg/s |
||
Cms |
0.05 |
mm/N |
||
Mms |
108.6 |
gr |
||
BI |
20.2 |
N/A |
||
Rp |
103.0 |
Ω |
||
Lp |
20.8 |
mH |
||
Cp |
546.7 |
uF |
||
Le |
1.0 |
mH |
||
Xmax (one-way) |
9 |
mm |
||
Mounting information |
||||
Overall diameter |
312/12.28 |
mm/inch |
||
Bolt Circle diameter |
295/11.6 |
mm/inch |
||
Baffle Cutout diameter |
279/10.98 |
mm/inch |
||
Total Depth |
139/5.5 |
mm/inch |
||
Flange thickness |
12/0.47 |
mm/inch |
||
Shipping information |
||||
Net weight |
10.28 |
KG |
||
Shipping weight |
11.5 |
KG |
||
Shipping box |
330X330X170 |
mm |
||
