12 inch Professional speakers , woofer , Pro midbass speaker 900W RMS,98dB
12 inch Professional speakers , woofer , Pro midbass speaker 900W RMS,98dB
12 inch Professional speakers , woofer , Pro midbass speaker 900W RMS,98dB
12 inch Professional speakers , woofer , Pro midbass speaker 900W RMS,98dB
12 inch Professional speakers , woofer , Pro midbass speaker 900W RMS,98dB
12 inch Professional speakers , woofer , Pro midbass speaker 900W RMS,98dB
12 inch Professional speakers , woofer , Pro midbass speaker 900W RMS,98dB
12 inch Professional speakers , woofer , Pro midbass speaker 900W RMS,98dB

12 inch Professional speakers , woofer , Pro midbass speaker 900W RMS,98dB

Spu:
60717013533
Inquiry
  • Overview
  • Recommended Products
Product Description

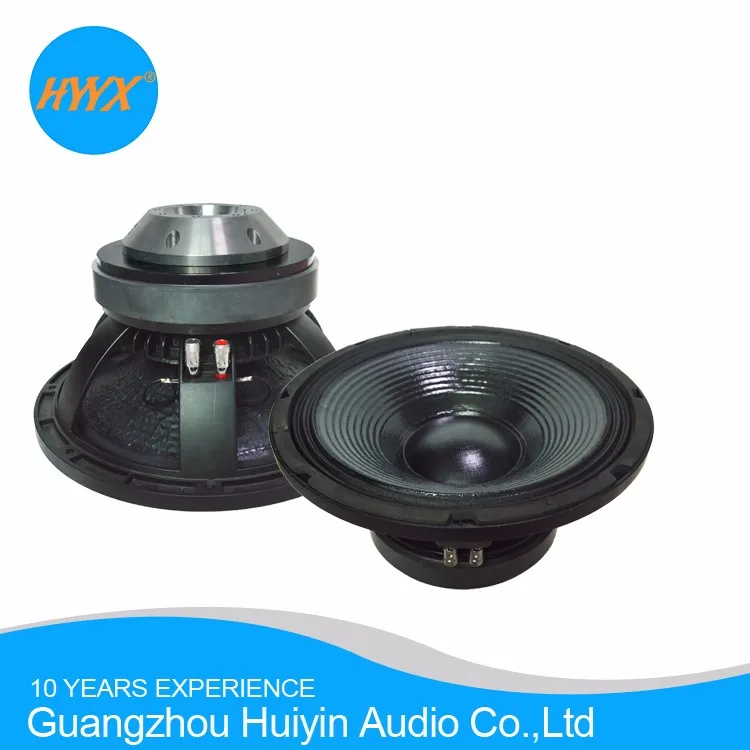

product 12 inch professional speakers woofer pro midbass speaker 900w rms98db-0

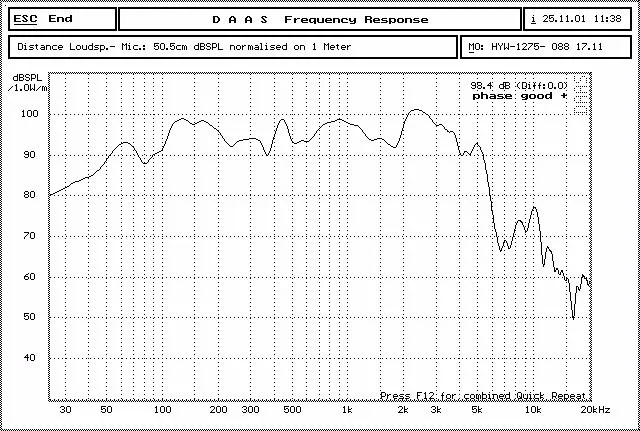

product 12 inch professional speakers woofer pro midbass speaker 900w rms98db-1


Features :


- Powerful 12 inch woofer/Midbass speakers for pro audio
- Dual voice coil design allow higher SPL and higher rms power handling, 900WRMS power handling,        98dB Sensitivity .
- 40hz-6khz Frequency response
- 3" inside/outside double CCAW voice coil
- Strong cone with nice roll to allow enough power handling
- 10/12/15/18 inch are all available

Specification
Nominal diameter
300/12
mm/inch
Nominal impedance
8
ohm
Min impedance LF
5.2
ohm
Frequency response
40-6k
Hz
Magnet size
190x25
mm
Magnet material
Ferrite Y30
Sensitivity (1w/1m)
98
dB
RMS power handling
900
Watts
Continuous power handling
1800
Watts
Voice coil diameter
75/3
mm/ inch
Winding material
CCAW
Cone material
Strong Paper
Surround material
Cloth
T/S Parameter
Fs
46.8
Hz
Re
5.8
Ω
Qes
0.42
Qts
0.38
Qms
4.23
Vas
57.6
L
Rms
5.9
kg/s
Cms
0.14
mm/N
Mms
85.5
gr
BI
18.7
N/A
Le
0.6
mH
Xmax (one-way)
15
mm
Mounting information
Overall diameter
321/12.3
mm/inch
Bolt Circle diameter
295/11.6
mm/inch
Baffle Cutout diameter
279/10.98
mm/inch
Total Depth
143/5.1
mm/inch
Flange thickness
13/0.5
mm/inch
Shipping information
Net weight
8.46
KG
Shipping weight
10
KG
Shipping box
350x350x170
mm
