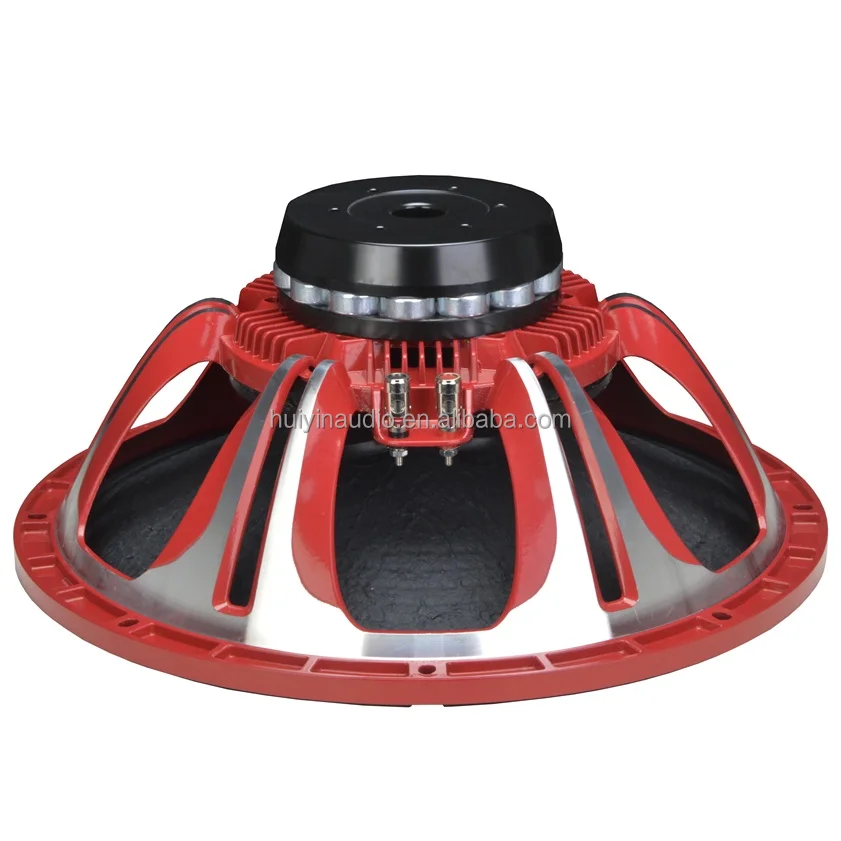

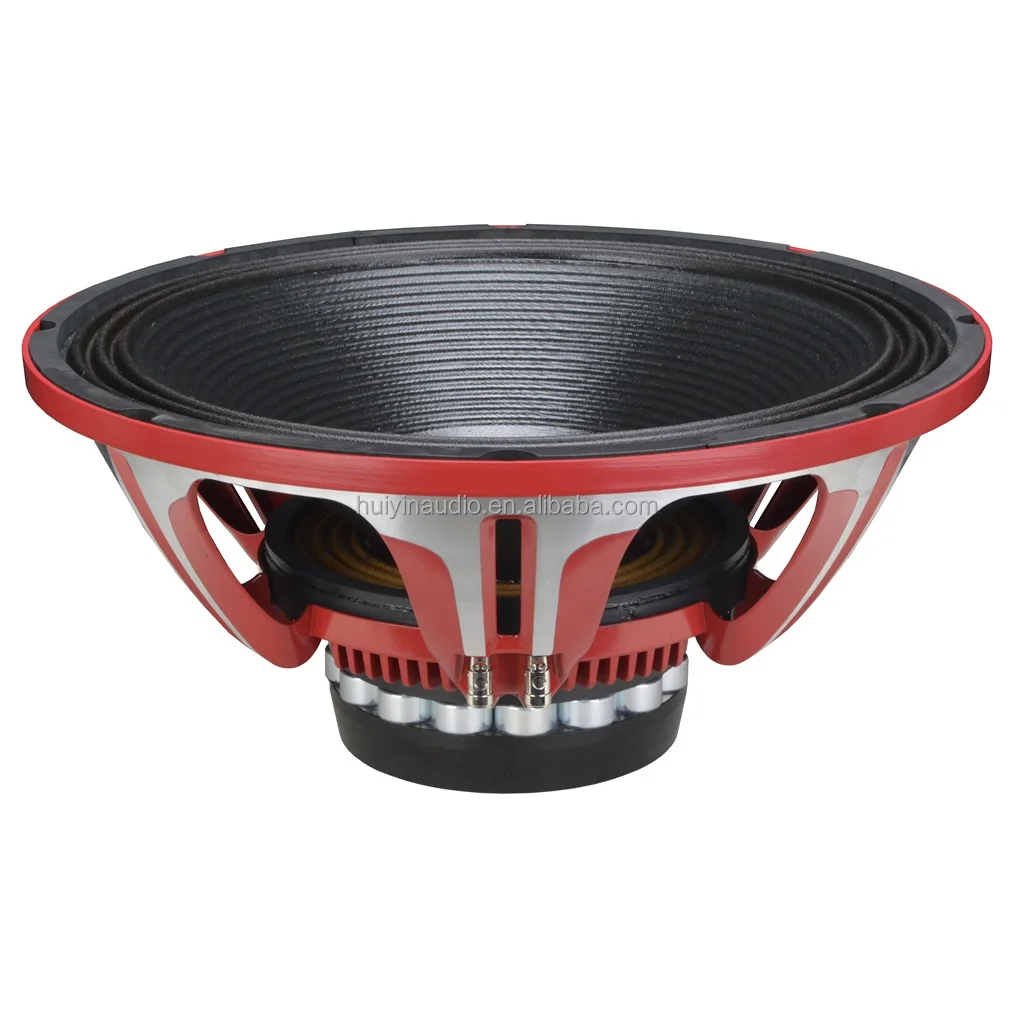

1200W RMS 18 Inch Subwoofer with Neodymium Magnets 18115-023N 5 Inch Voice Coil Treated Paper Cone Bass Speaker for Line Array

Spu:

1601614840184

General Information

18 inch subwoofer

active subwoofer 18 inch

18 inch bass speaker

18 inch neodymium woofer speaker

5 inch voice coil

1200W RMS

2400W MAX

105dB Sensitivity SPL

Frequency Range 31Hz-2KHz

Xmax 7mm

Aluminium round wire inside and outside 1 layer

10 inch/ 12 inch/ 15 inch/ 18 inch are all available

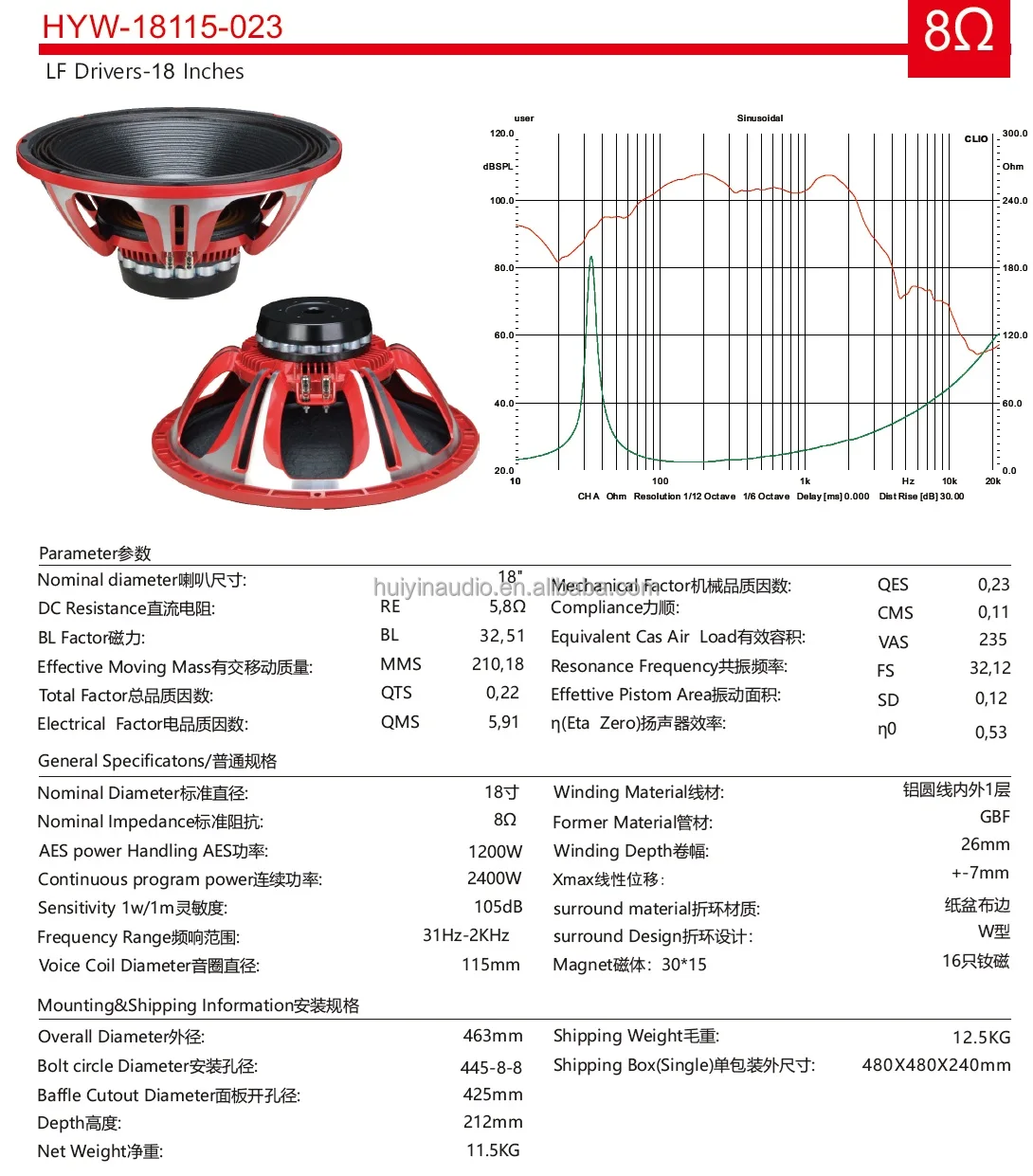

Product Paramenters

*Model Number*	*HYW-18115-023N*
*Parameters*
Nominal diameter	18"
DC Resistance/ RE	5.8Ω
BL Factor/ BL	32,51
Effective Moving Mass/ MMS	210,18
Total Factor/ QTS	0,22
Electrical Factor/ QMS	5,91
Mechanical Factor/ QES	0,23
Compliance/ CMS	0,11
Equivalent Cas Air Load/ VAS	235
Resonance Frequency/ FS	32,12
Effettive Pistom Area/ SD	0,12
Eta Zero/ η0	0,53
*General Specificatons*
Nominal Diameter	15 Inch
Nominal Impedance	8Ω
AES power Handling	1200W
Continuous program power	2400W
Sensitivity 1w/1m	105dB
Frequency Range	31Hz-2KHz
Voice Coil Diameter	115mm voice coil/ 5 inch voice coil
Winding Material	Aluminium round wire inside and outside 1 layer
Former Material	GBF
Winding Depth	26mm
Magnetic Gap Depth	7mm
Surround material	Treated Paper Cone + Cloth Surround
Surround Design	M
Magnet	251016pcs Neodymium Magnets
*Mounting & Shipping Information*
Overall Diameter	463mm
Bolt circle Diameter	445-8-8
Baffle Cutout Diameter	425mm
Depth	212mm
Net Weight	11.5KG
Shipping Weight	12.5KG
Shipping Box	48X48X24CM
