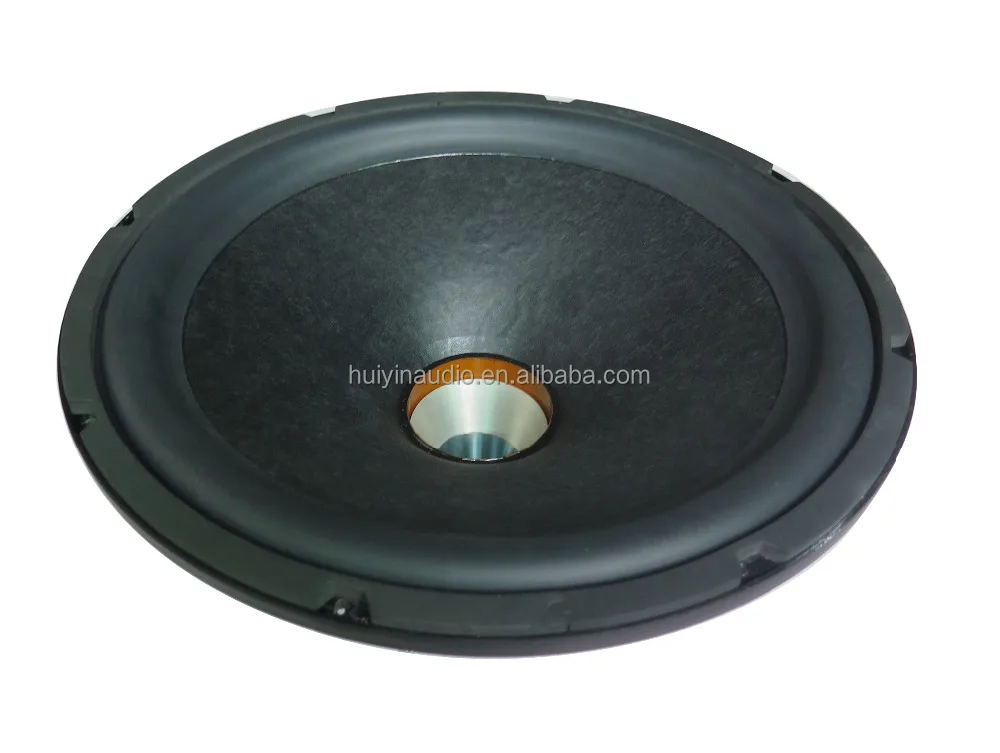

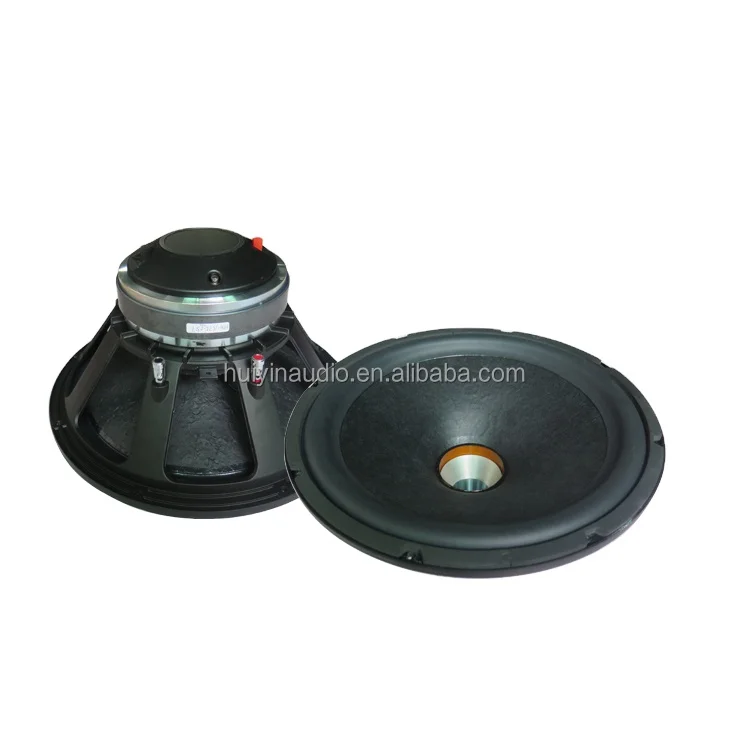

15 Inch HiFi Coaxial Home Audio Speaker 1575-057 Powered 400WRMS for Line Array 15 Inch Coaxial Powered Speaker
Spu:
60495738519
- Overview
- Recommended Products
Product Description
Features :
- 800W continuous program power capacity
- 94dB sensitivity
- 25hz-20khz Frequency response
- Single magnet design
- Titanium diaphragm for HF driver
- 25mm(1") HF throat size
- 3" LF VC + 3" HF VC
- Replacement diaphragm for HF , Titanium or Polyester
- Rubber surround design , ideal for HiFi home audio system .
Specification |
||||
21Nominal diameter |
360/15 |
mm/inch |
||
Nominal impedance |
8 |
ohm |
||
Min impedance LF |
5.2 |
ohm |
||
Min impedance HF |
6 |
ohm |
||

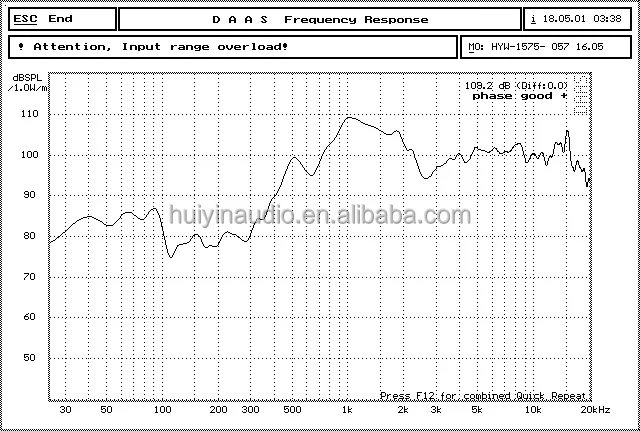

Frequency response |
25-20k |
Hz |
||
Dispersion angle |
70 |
° |
||
Magnet size |
190x25 |
mm |
||
Magnet material |
Ferrite |
|||
Specification LF |
||||
Sensitivity (1w/1m) |
94 |
dB |
||
Nominal power handling |
400 |
Watts |
||
Continuous power handling |
800 |
Watts |
||
Voice coil diameter |
75/3 " |
mm/ inch |
||
Winding material |
Copper |
|||
Cone material |
Paper |
|||
Surround material |
Rubber |
|||
Specification HF |
||||
Throat size |
25/1 |
mm/inch |
||
Sensitivity (1w/1m) |
108 |
dB |
||
Nominal power handling |
80 |
Watts |
||
Continuous power handling |
160 |
Watts |
||
Voice coil diameter |
75/3 |
mm/inch |
||
Diaphragm |
Titanium / Polyester |
|||
T/S Parameter |
||||
Fs |
33.6 |
Hz |
||
Re |
5.2 |
Ω |
||
Qes |
0.56 |
|||
Qts |
0.53 |
|||
Qms |
11.73 |
|||
Vas |
210.8 |
L |
||
Rms |
2.0 |
kg/s |
||
Cms |
0.20 |
mm/N |
||
Mms |
110.0 |
gr |
||
BI |
14.7 |
N/A |
||
Rp |
80.5 |
Ω |
||
Lp |
43.9 |
mH |
||
Cp |
978.6 |
uF |
||
Le |
1.0 |
mH |
||
Xmax |
8 |
mm |
||
Mounting information |
||||
Overall diameter |
389/15.31 |
mm/inch |
||
Bolt Circle diameter |
372/14.64 |
mm/inch |
||
Baffle Cutout diameter |
352/13.85 |
mm/inch |
||
Depth |
199/7.83 |
mm/inch |
||
Flange thickness |
11/0.43 |
mm/inch |
||
Shipping information |
||||
Net weight |
9.2 |
KG |
||
Shipping weight |
10 |
KG |
||
Shipping box |
410x410x220 |
mm |
||
