15 Inch Professional Coaxial Speaker Monitor Speaker Coaxial Speaker 15
15 Inch Professional Coaxial Speaker Monitor Speaker Coaxial Speaker 15
15 Inch Professional Coaxial Speaker Monitor Speaker Coaxial Speaker 15
15 Inch Professional Coaxial Speaker Monitor Speaker Coaxial Speaker 15
15 Inch Professional Coaxial Speaker Monitor Speaker Coaxial Speaker 15
15 Inch Professional Coaxial Speaker Monitor Speaker Coaxial Speaker 15
15 Inch Professional Coaxial Speaker Monitor Speaker Coaxial Speaker 15
15 Inch Professional Coaxial Speaker Monitor Speaker Coaxial Speaker 15

15 Inch Professional Coaxial Speaker Monitor Speaker Coaxial Speaker 15"

Spu:
60499815721
Inquiry
  • Overview
  • Recommended Products
Product Description
product 15 inch professional coaxial speaker monitor speaker coaxial speaker 15-0


Features :


- 800W continuous program power capacity
- 96dB sensitivity 1w/1m
- 32hz-20khz Frequency response
- Single magnet design
- Titanium / Polyester diaphragm for HF driver

- 38mm(1.5") HF throat size
- 3" LF VC + 3" HF VC
- Replacement diaphragm for HF , Titanium or Polyester

Speccification :

Specification
Nominal diameter
360/15
mm/inch
Nominal impedance
8
ohm
Min impedance LF
5.2
ohm
Min impedance HF
6
ohm
Frequency response
32-20k
Hz
Dispersion angle
70
°
Magnet size
190x25
mm
Magnet material
Ferrite
Specification LF
Sensitivity (1w/1m)
96
dB
Nominal power handling
400
Watts
Continuous power handling
800
Watts
Voice coil diameter
75/3 "
mm/ inch
Winding material
Copper
Cone material
Paper
Surround material
Cloth
Specification HF
Throat size
38/1.5
mm/inch
Sensitivity (1w/1m)
108
dB
Nominal power handling
80
Watts
Continuous power handling
160
Watts
Voice coil diameter
75/3
mm/inch
Diaphragm
Titanium / Polyester
T/S Parameter
Fs
32.2
Hz
Re
5.2
Ω
Qes
0.59
Qts
0.50
Qms
10.27
Vas
215.4
L
Rms
2.3
kg/s
Cms
0.21
mm/N
Mms
116.2
gr
BI
14.4
N/A
Rp
58.5
Ω
Lp
39.1
mH
Cp
1160.8
uF
Le
0.6
mH
Xmax
6.5
mm

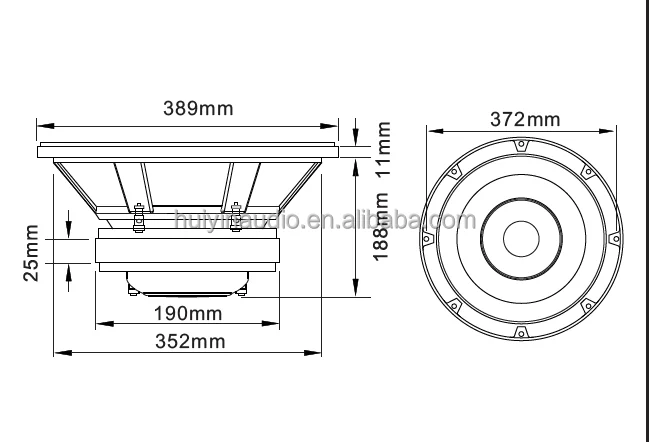

Mounting information
Overall diameter
389/15.32
mm/inch
Bolt Circle diameter
372/14.65
mm/inch
Baffle Cutout diameter
352/13.9
mm/inch
Depth
199/7.84
mm/inch
Flange thickness
11/0.44
mm/inch
Shipping information
Net weight
9
KG
Shipping weight
10
KG
Shipping box
410x410x230
mm
Related Products
product 15 inch professional coaxial speaker monitor speaker coaxial speaker 15-1
product 15 inch professional coaxial speaker monitor speaker coaxial speaker 15-2
product 15 inch professional coaxial speaker monitor speaker coaxial speaker 15-3

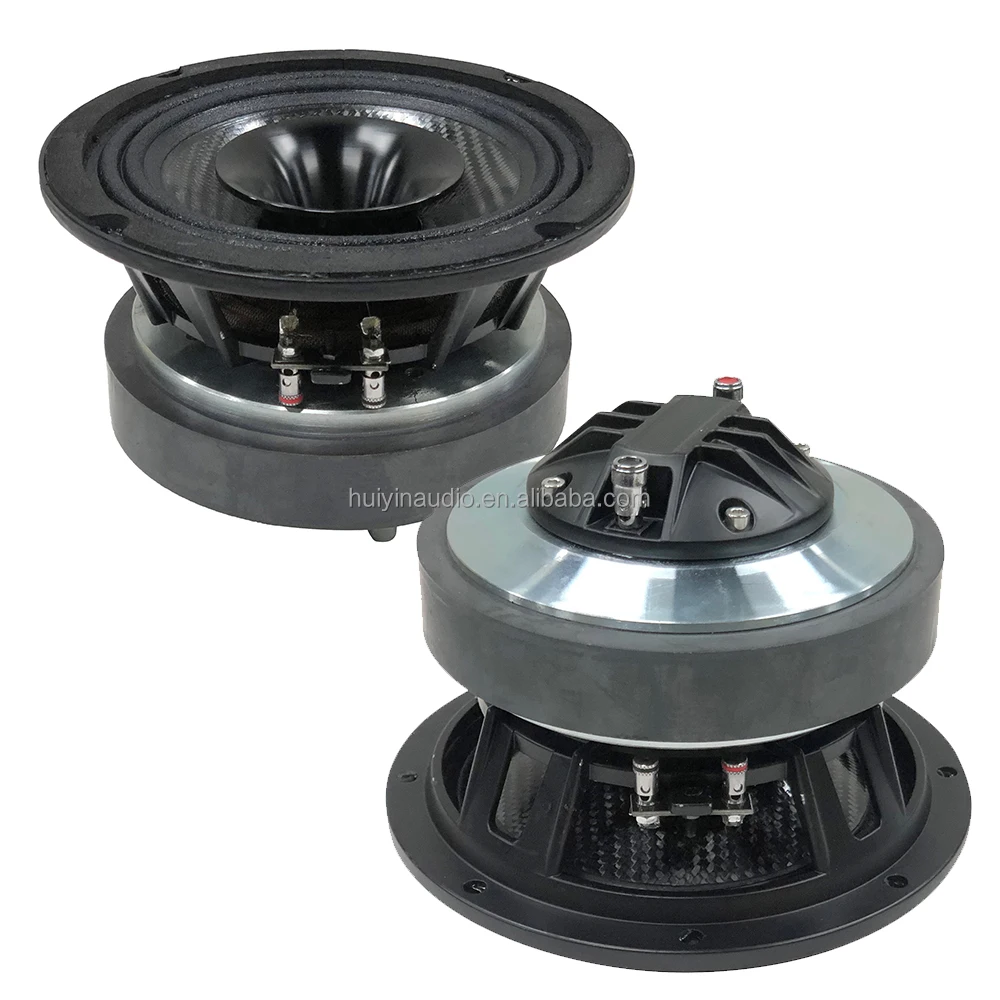

6.5" Professional Coaxial speaker
