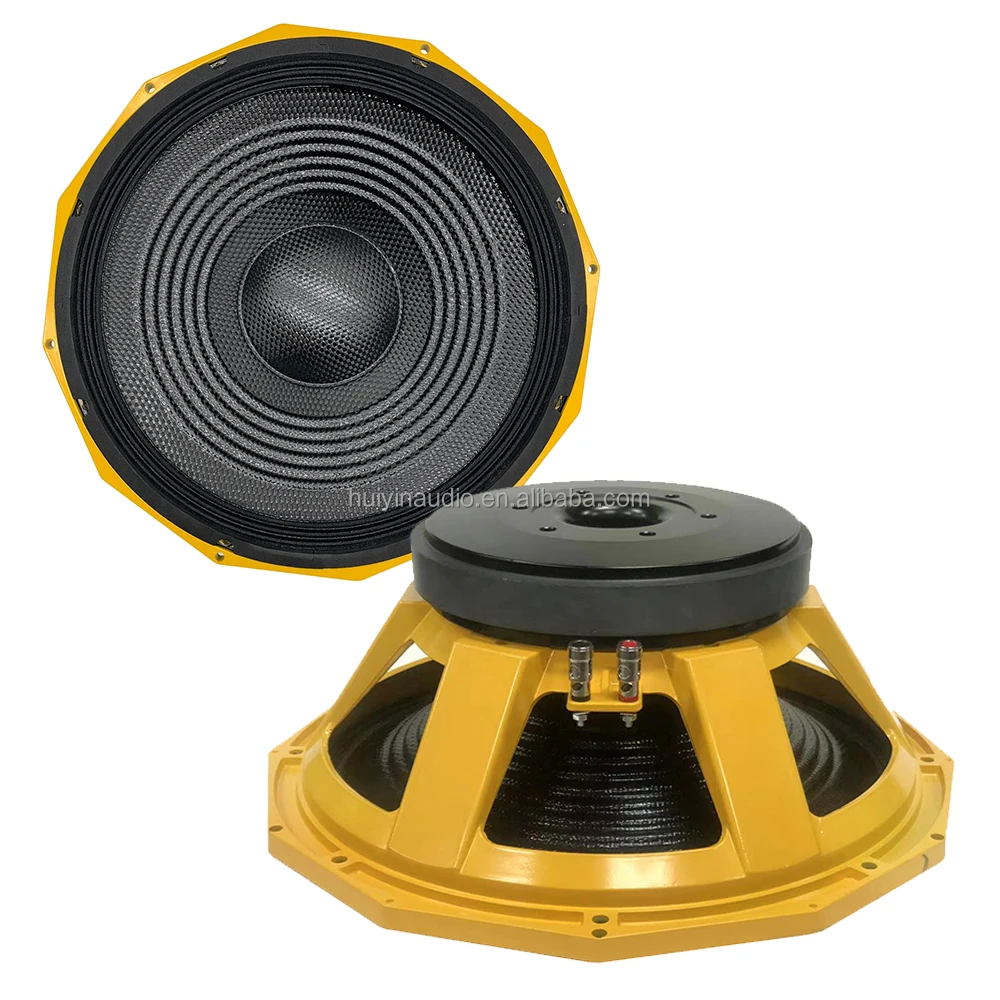

15 Inch Woofer Sound System Speakers 15100-048 Carbon Cone Driver Pro Audio Line Array 47Hz-3KHz Frequency Response 98dB
- Overview
- Recommended Products
Product Description
Features :
- High-power 15 inch woofer with 4 inch voice coil
- Big magnet size220x25mm
- Carbon cone and carbon dust caps
- 47hz-3khz frequency response
Specification |
||||
Nominal diameter |
380/15 |
mm/inch |
||
Nominal impedance |
8 |
ohm |
||
Min impedance LF |
5.2 |
ohm |
||
Frequency response |
47-3k |
Hz |
||
Magnet size |
220x25 |
mm |
||
Magnet material |
Ferrite Y30 |
|||
Sensitivity (1w/1m) |
98 |
dB |
||
RMS power handling |
650 |
Watts |
||
Continuous power handling |
1300 |
Watts |
||
Voice coil diameter |
100/5 |
mm/ inch |
||
Winding material |
Copper |
|||
Cone material |
Carbon fiber |
|||
Surround material |
Cloth |
|||
T/S Parameter |
||||
Fs |
47 |
Hz |
||
Re |
5.8 |
Ω |
||
Qes |
0.54 |
|||
Qts |
0.51 |
|||
Qms |
9.38 |
|||
Vas |
70.31 |
L |
||
Cms |
0.06 |
mm/N |
||
Mms |
170 |
gr |
||
BL |
22 |
N/A |
||
Mounting information |
||||
Overall diameter |
407 |
mm/inch |
||
Bolt Circle diameter |
395 |
mm/inch |
||
Baffle Cutout diameter |
353 |
mm/inch |
||
Total Depth |
165 |
mm/inch |
||
Shipping information |
||||
Net weight |
10 |
KG |
||
Shipping weight |
12 |
KG |
||
Shipping box |
420x420x220 |
mm |
||
