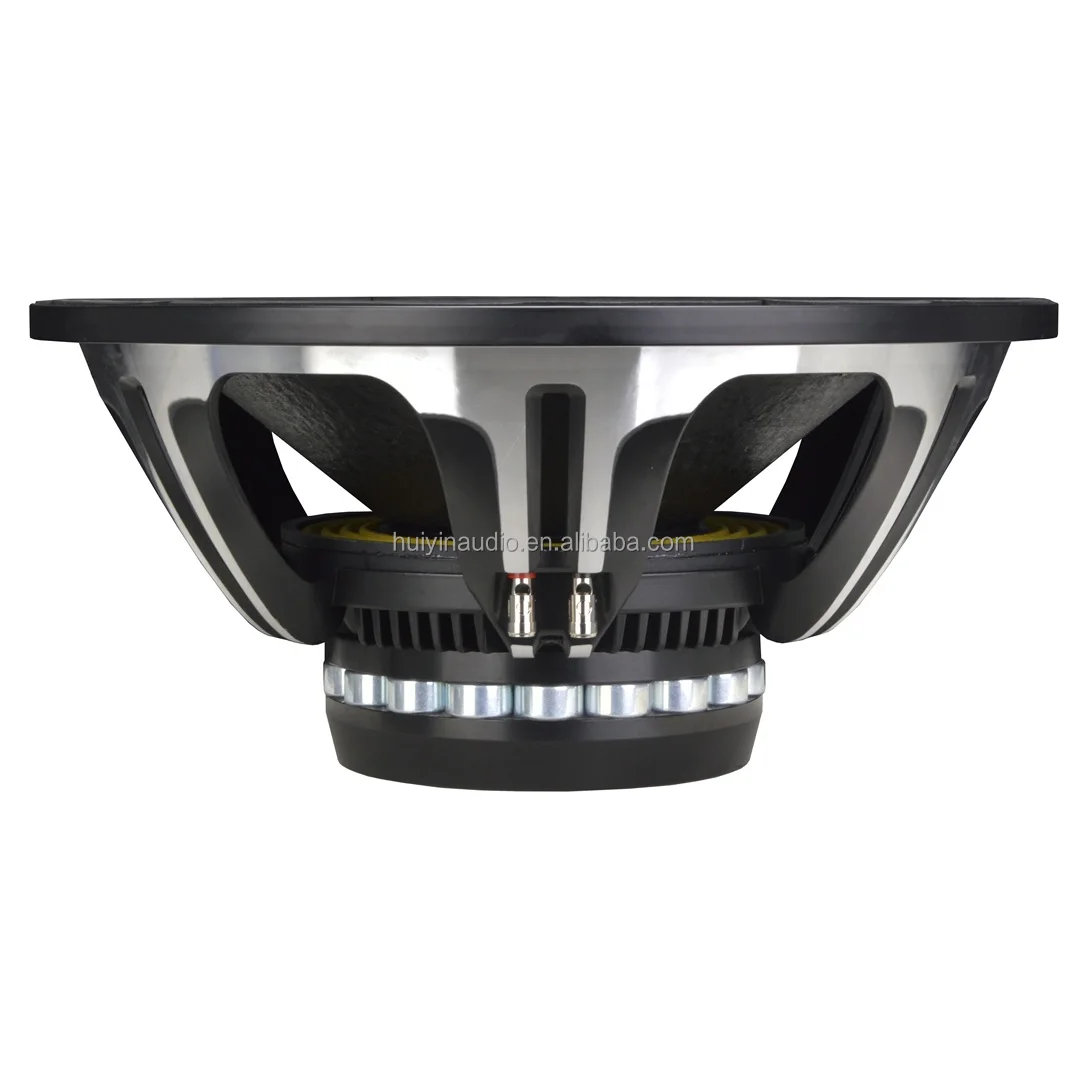

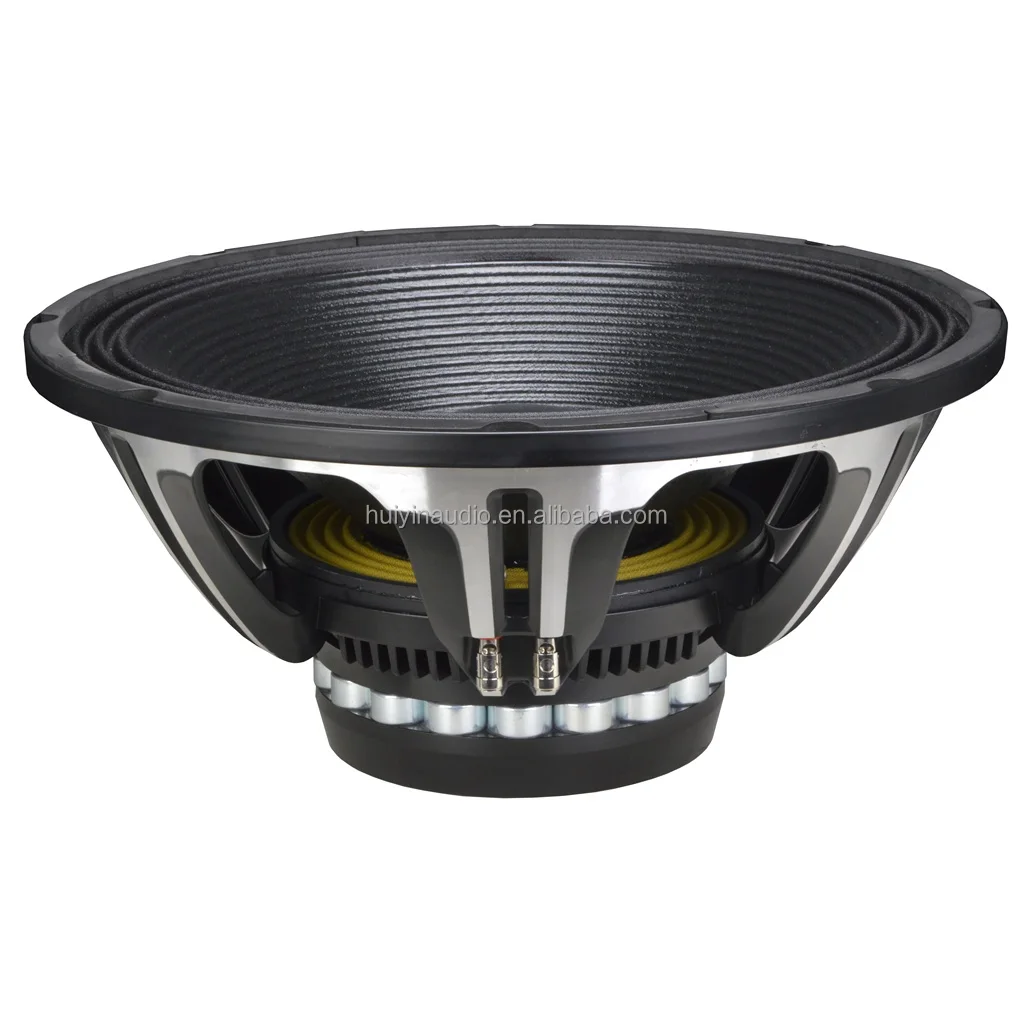

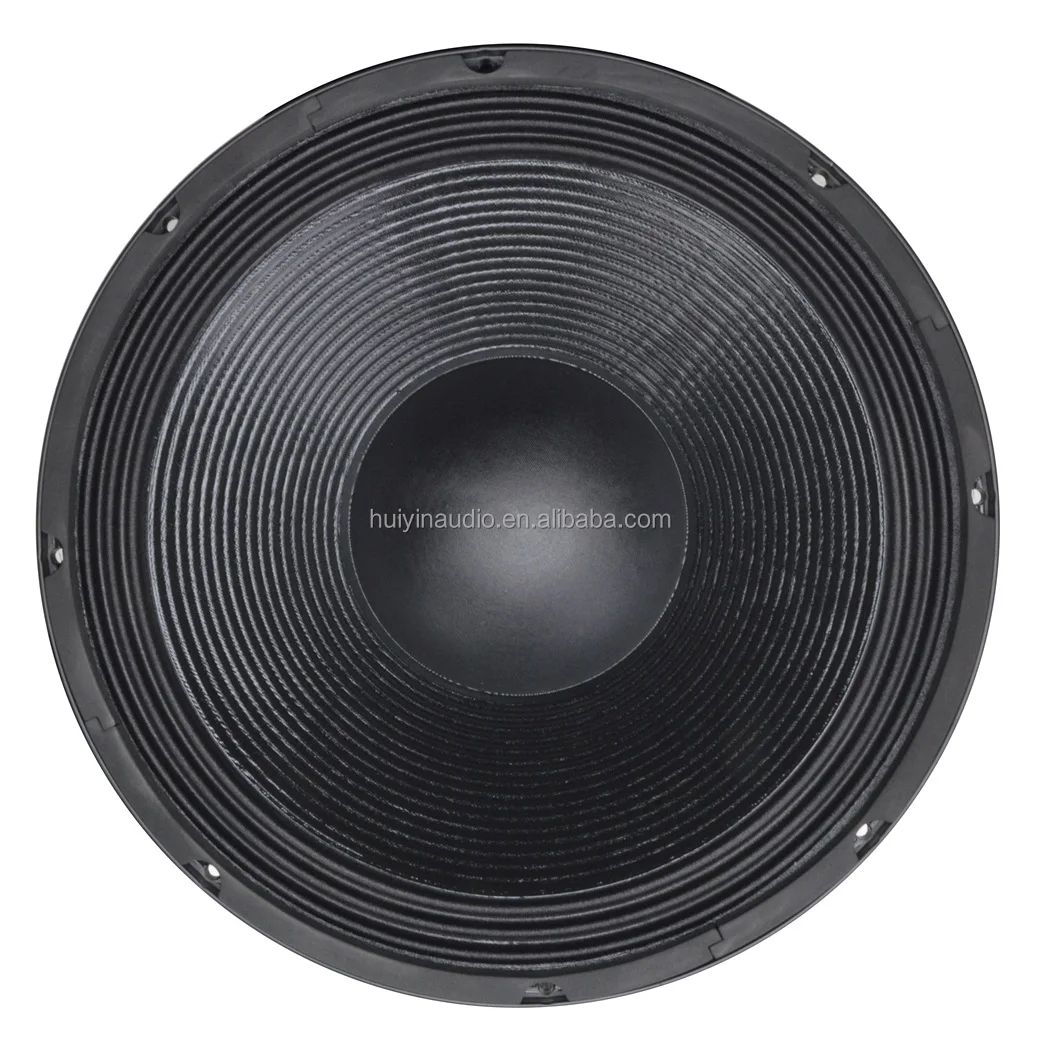

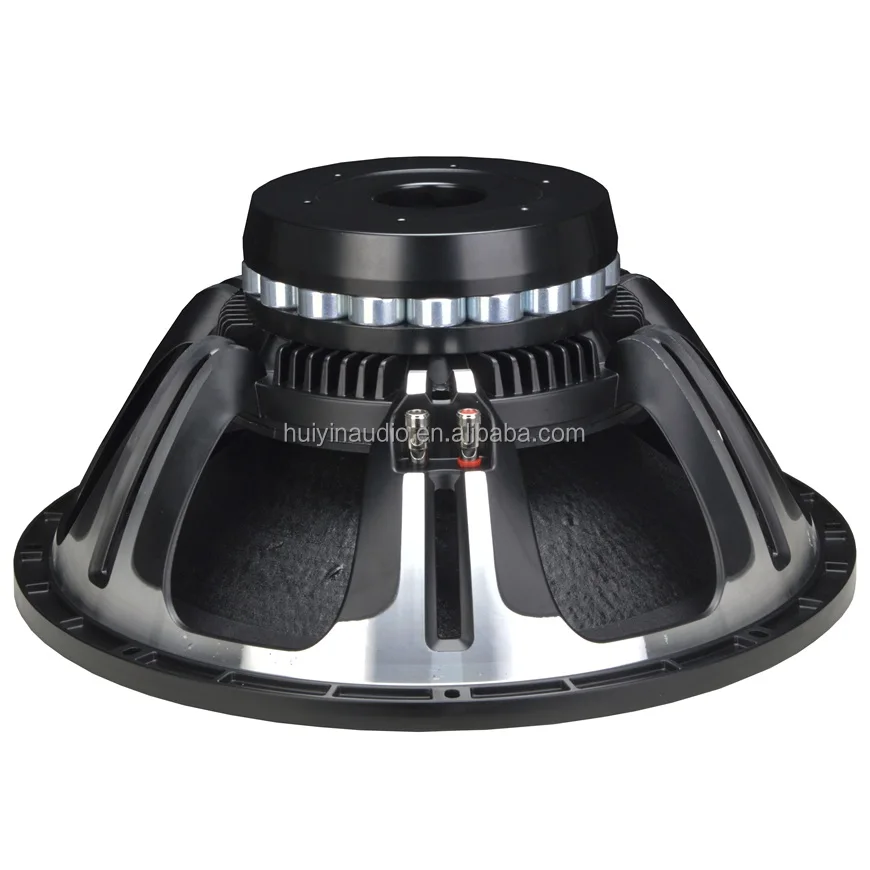

1500W RMS 18 Inch Subwoofer 18135-002N with Neodymium Magnets 5.5 Inch Voice Coil Treated Paper Cone Bass for Line Array

Spu:

1601614776545

General Information

18 inch subwoofer

active subwoofer 18 inch

18 inch bass speaker

18 inch neodymium woofer speaker

5.5 inch voice coil

1500W RMS

3000W MAX

105dB Sensitivity SPL

Frequency Range 30Hz-500Hz

Xmax 6mm

Aluminium round wire inside and outside 1 layer

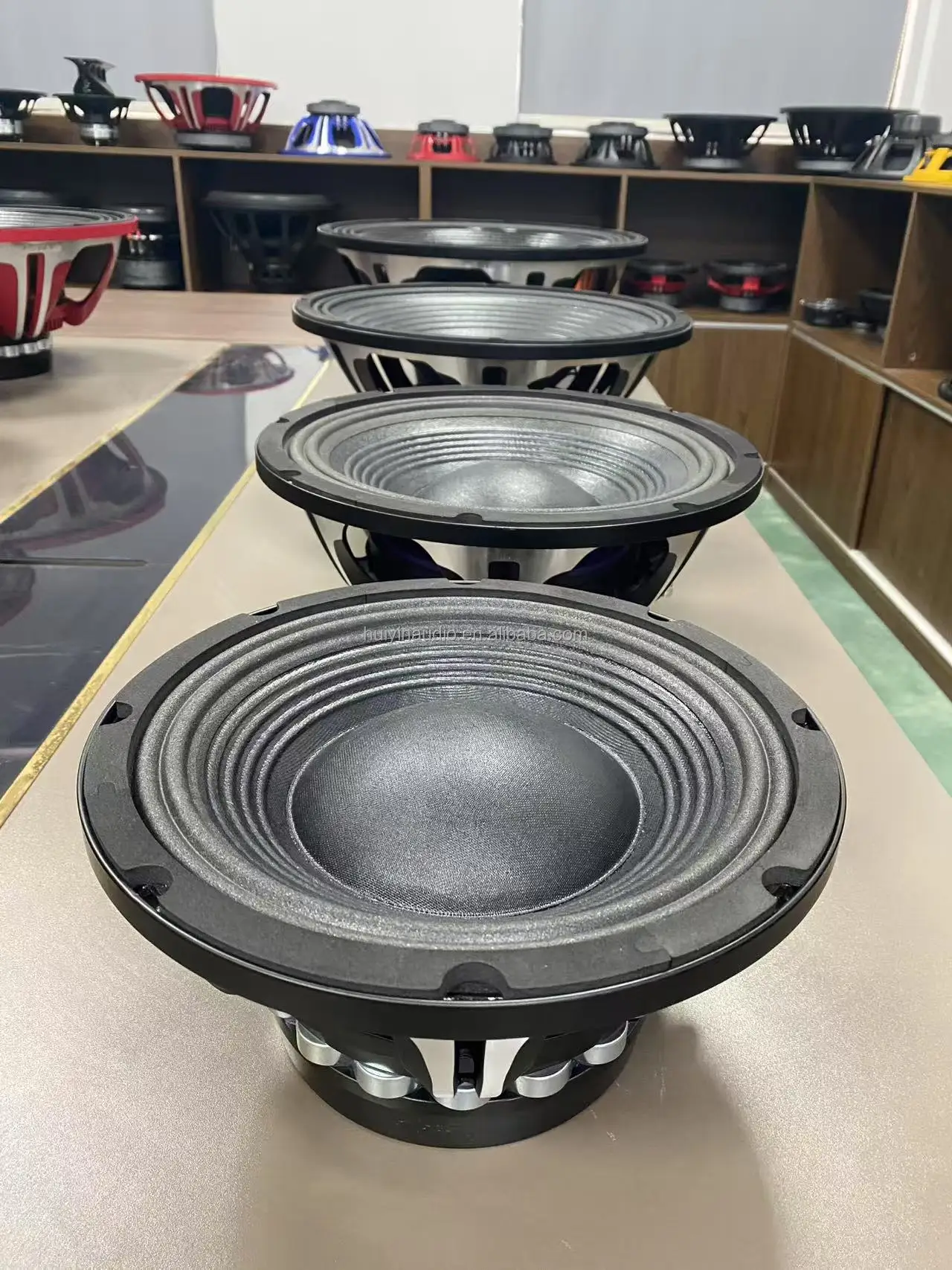

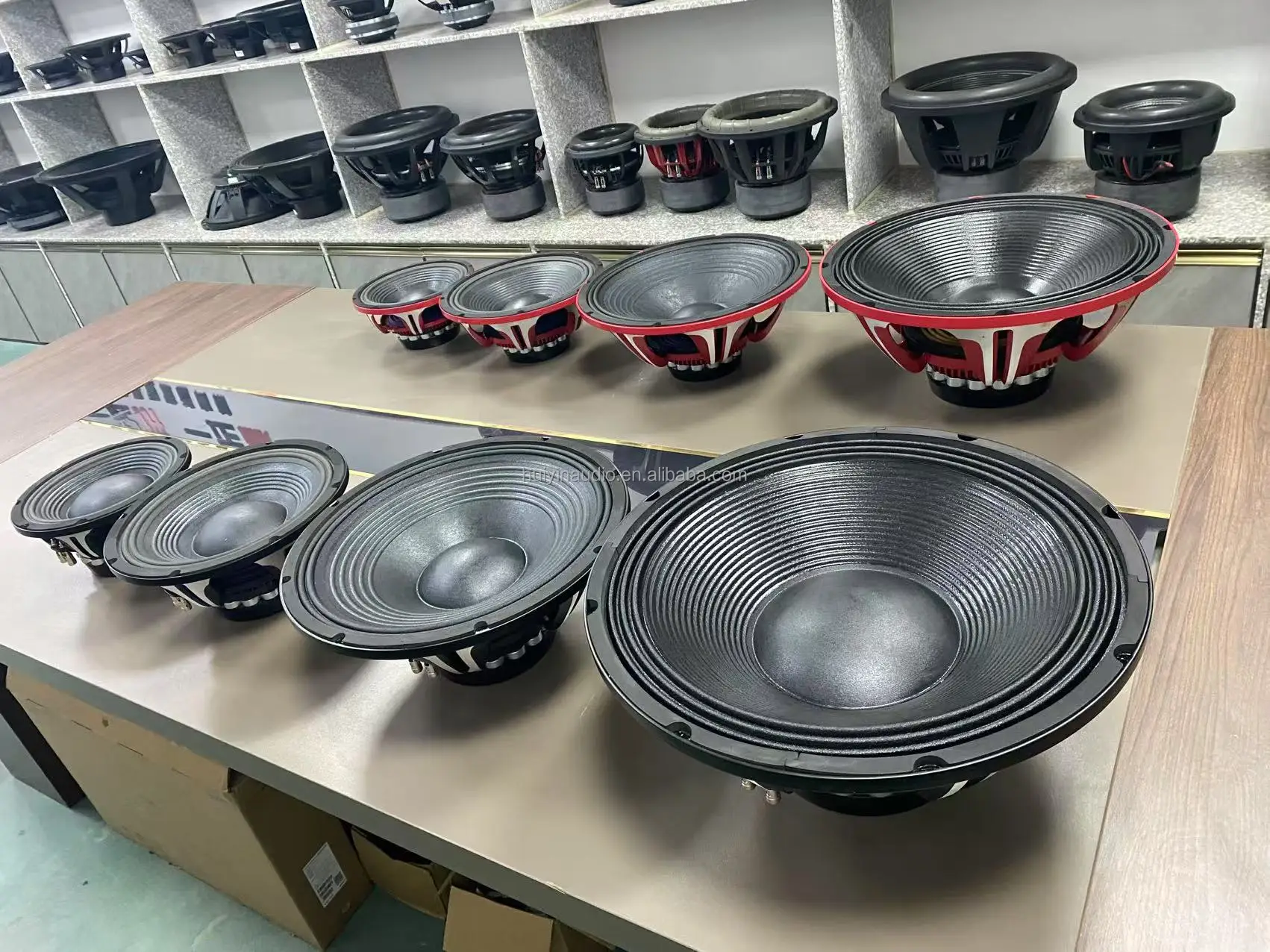

10 inch/ 12 inch/ 15 inch/ 18 inch are all available

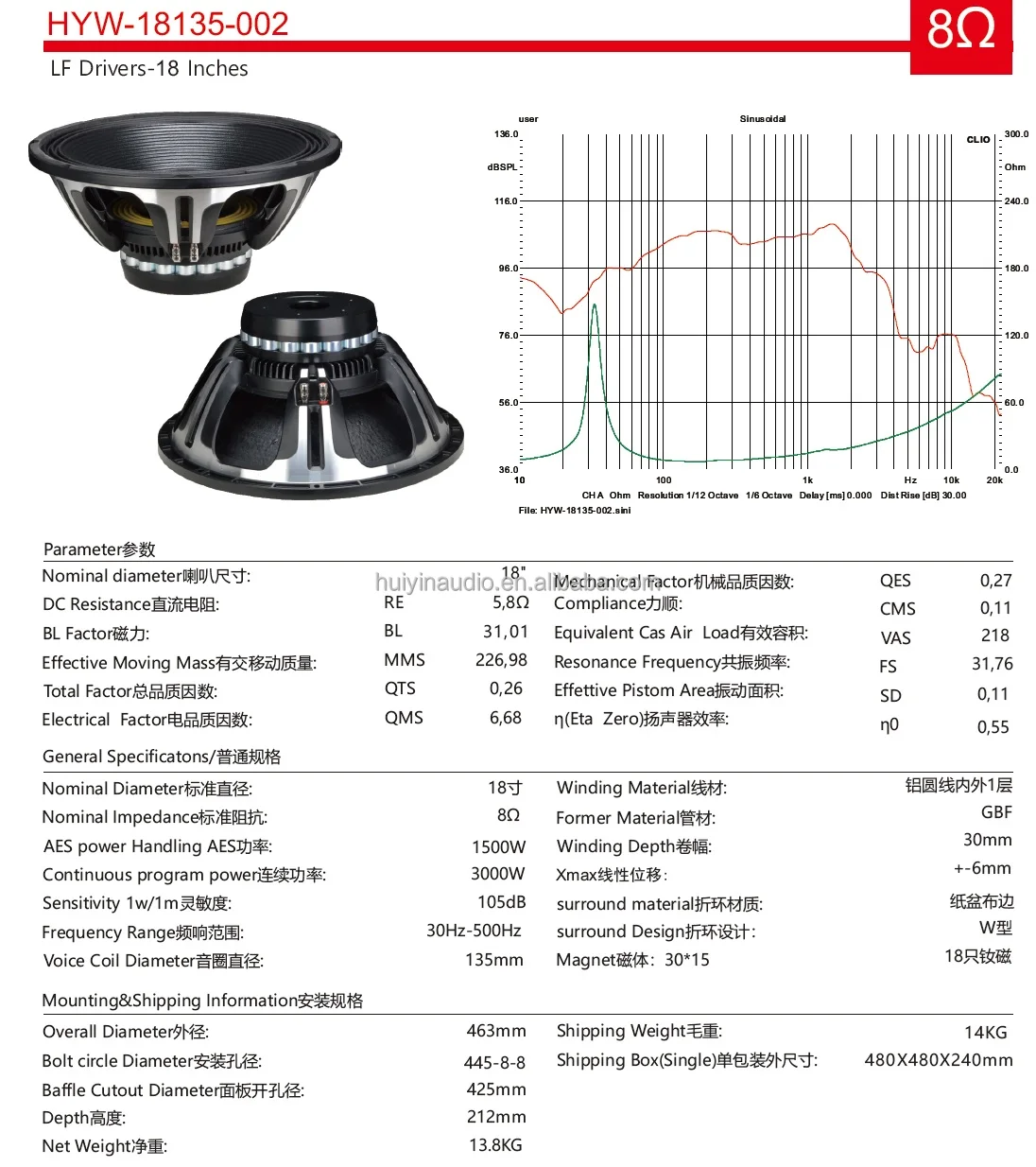

Product Paramenters

*Model Number*	*HYW-18135-002N*
*Parameters*
Nominal diameter	18"
DC Resistance/ RE	5.8Ω
BL Factor/ BL	31,01
Effective Moving Mass/ MMS	226,98
Total Factor/ QTS	0,26
Electrical Factor/ QMS	6,68
Mechanical Factor/ QES	0,27
Compliance/ CMS	0,11
Equivalent Cas Air Load/ VAS	218
Resonance Frequency/ FS	31,76
Effettive Pistom Area/ SD	0,11
Eta Zero/ η0	0,55
*General Specificatons*
Nominal Diameter	18 Inch
Nominal Impedance	8Ω
AES power Handling	1500W
Continuous program power	3000W
Sensitivity 1w/1m	105dB
Frequency Range	30Hz-2KHz
Voice Coil Diameter	135mm voice coil/ 5.5 inch voice coil
Winding Material	Aluminium round wire inside and outside 1 layer
Former Material	GBF
Winding Depth	30mm
Magnetic Gap Depth	6mm
Surround material	Treated Paper Cone + Cloth Surround
Surround Design	M
Magnet	251018pcs Neodymium Magnets
*Mounting & Shipping Information*
Overall Diameter	463mm
Bolt circle Diameter	445-8-8
Baffle Cutout Diameter	425mm
Depth	212mm
Net Weight	13.8KG
Shipping Weight	14.8KG
Shipping Box	48X48X24CM
