1575-076 Big Horn 15 Inch Coaxial Speaker 1000W MAX 190mm Ferrite Magnet Full Range 2 Way Coaxial Speaker for Stage Monitor
1575-076 Big Horn 15 Inch Coaxial Speaker 1000W MAX 190mm Ferrite Magnet Full Range 2 Way Coaxial Speaker for Stage Monitor
1575-076 Big Horn 15 Inch Coaxial Speaker 1000W MAX 190mm Ferrite Magnet Full Range 2 Way Coaxial Speaker for Stage Monitor
1575-076 Big Horn 15 Inch Coaxial Speaker 1000W MAX 190mm Ferrite Magnet Full Range 2 Way Coaxial Speaker for Stage Monitor
1575-076 Big Horn 15 Inch Coaxial Speaker 1000W MAX 190mm Ferrite Magnet Full Range 2 Way Coaxial Speaker for Stage Monitor
1575-076 Big Horn 15 Inch Coaxial Speaker 1000W MAX 190mm Ferrite Magnet Full Range 2 Way Coaxial Speaker for Stage Monitor
1575-076 Big Horn 15 Inch Coaxial Speaker 1000W MAX 190mm Ferrite Magnet Full Range 2 Way Coaxial Speaker for Stage Monitor
1575-076 Big Horn 15 Inch Coaxial Speaker 1000W MAX 190mm Ferrite Magnet Full Range 2 Way Coaxial Speaker for Stage Monitor
1575-076 Big Horn 15 Inch Coaxial Speaker 1000W MAX 190mm Ferrite Magnet Full Range 2 Way Coaxial Speaker for Stage Monitor
1575-076 Big Horn 15 Inch Coaxial Speaker 1000W MAX 190mm Ferrite Magnet Full Range 2 Way Coaxial Speaker for Stage Monitor
1575-076 Big Horn 15 Inch Coaxial Speaker 1000W MAX 190mm Ferrite Magnet Full Range 2 Way Coaxial Speaker for Stage Monitor
1575-076 Big Horn 15 Inch Coaxial Speaker 1000W MAX 190mm Ferrite Magnet Full Range 2 Way Coaxial Speaker for Stage Monitor

1575-076 Big Horn 15 Inch Coaxial Speaker 1000W MAX 190mm Ferrite Magnet Full Range 2 Way Coaxial Speaker for Stage Monitor

Spu:
1600892392707
Inquiry
  • Overview
  • Recommended Products
Products Description

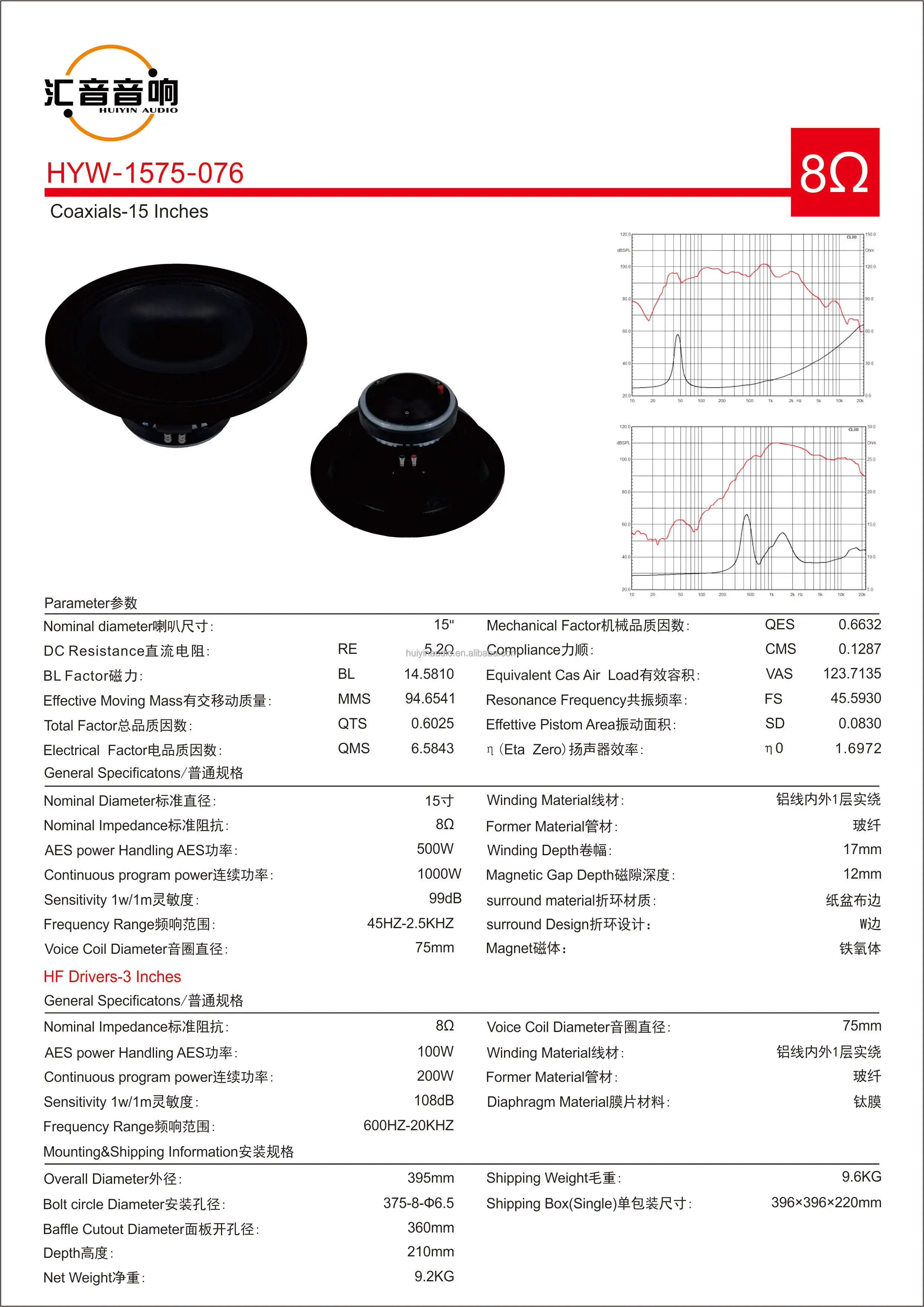

Model
HYW-1575-076
Item
15 inch coaxial speaker
Mid Range General Specificatons
Nominal Diameter
15 inch
Nominal Impedance
8 ohm
AES power Handling
500w
Continuous program power
1000w
Sensitivity 1w/1m
99dB

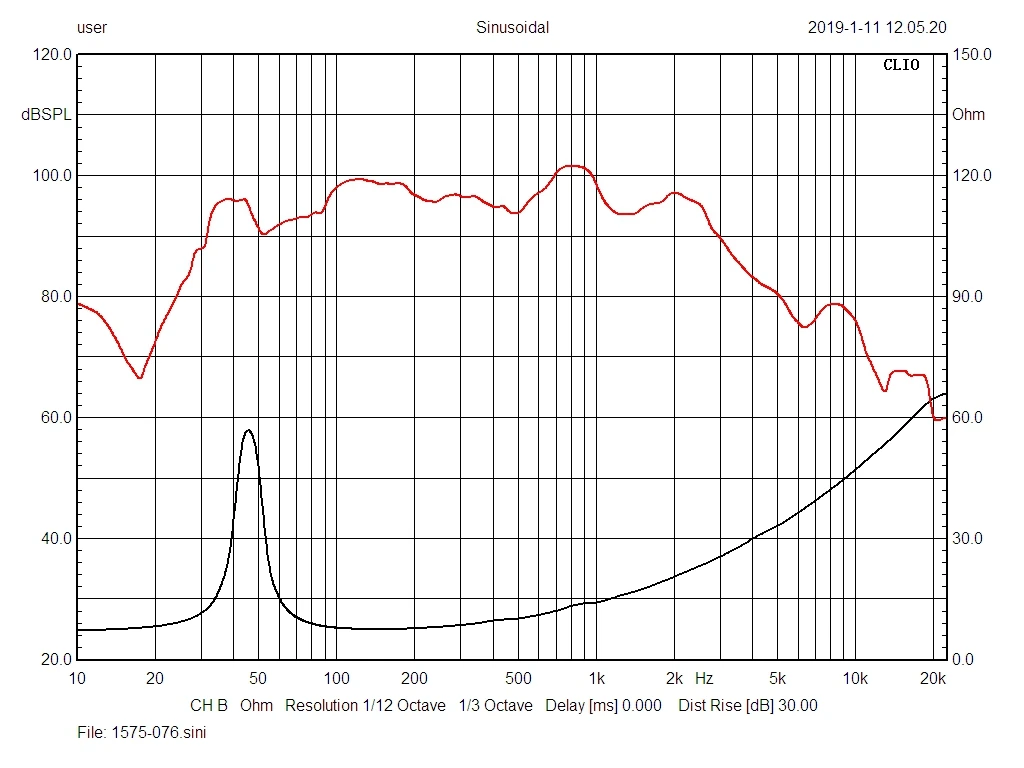

Frequency Response
45HZ-2.5KHZ
Voice Coil Diameter
75mm
Winding Material
CCAW
Former Material
glass fiber
Winding Depth
17MM
Magnet
Ferrite Magnet
HF Compression Driver General Specificatons
Nominal Impedance
8 ohm
AES power Handling
100w
Continuous program power
200w
Sensitivity 1w/1m
108dB

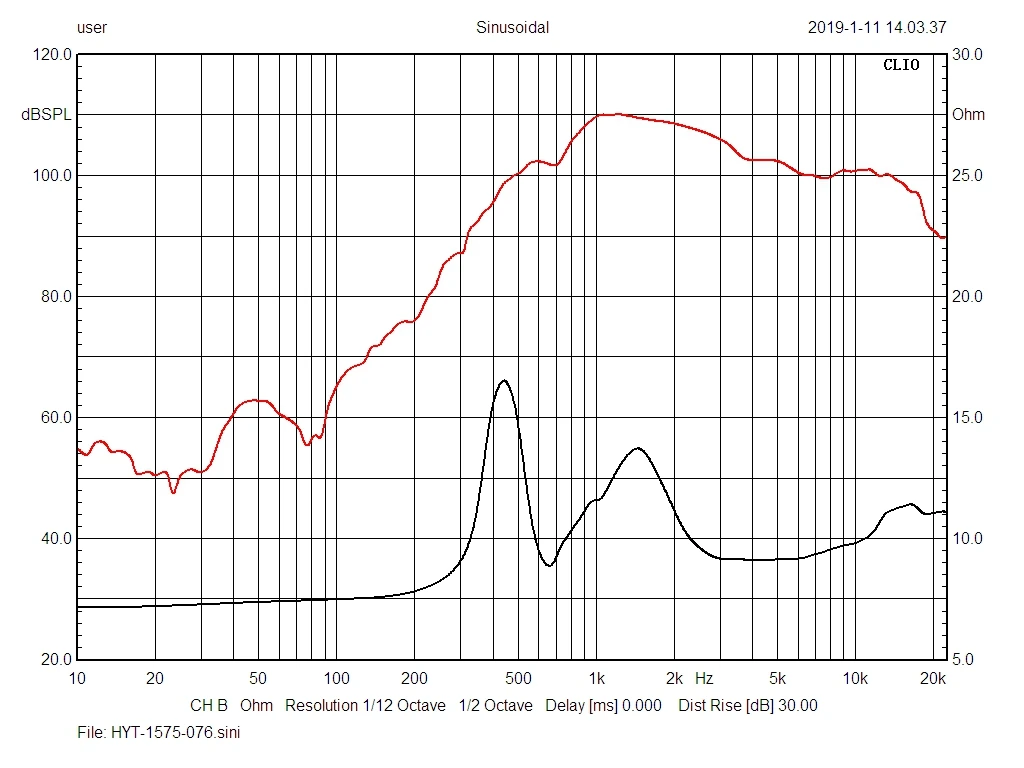

Frequency Range
600HZ-20KHZ
Voice Coil Diameter
75mm
Winding Material
CCAW
Former Material
glass fiber
Diaphragm Material
titanium film
Package
Net Weight
9.2KG
Gross Weight
9.6KG
Dimension(WxDxH)
40X40X22CM
Details Images
product 1575 076 big horn 15 inch coaxial speaker 1000w max 190mm ferrite magnet full range 2 way coaxial speaker for stage monitor-0
product 1575 076 big horn 15 inch coaxial speaker 1000w max 190mm ferrite magnet full range 2 way coaxial speaker for stage monitor-1
product 1575 076 big horn 15 inch coaxial speaker 1000w max 190mm ferrite magnet full range 2 way coaxial speaker for stage monitor-2
product 1575 076 big horn 15 inch coaxial speaker 1000w max 190mm ferrite magnet full range 2 way coaxial speaker for stage monitor-3
product 1575 076 big horn 15 inch coaxial speaker 1000w max 190mm ferrite magnet full range 2 way coaxial speaker for stage monitor-4
product 1575 076 big horn 15 inch coaxial speaker 1000w max 190mm ferrite magnet full range 2 way coaxial speaker for stage monitor-5
product 1575 076 big horn 15 inch coaxial speaker 1000w max 190mm ferrite magnet full range 2 way coaxial speaker for stage monitor-6
product 1575 076 big horn 15 inch coaxial speaker 1000w max 190mm ferrite magnet full range 2 way coaxial speaker for stage monitor-7
product 1575 076 big horn 15 inch coaxial speaker 1000w max 190mm ferrite magnet full range 2 way coaxial speaker for stage monitor-8
Company Profile
VR
product 1575 076 big horn 15 inch coaxial speaker 1000w max 190mm ferrite magnet full range 2 way coaxial speaker for stage monitor-9
Certifications
product 1575 076 big horn 15 inch coaxial speaker 1000w max 190mm ferrite magnet full range 2 way coaxial speaker for stage monitor-10
Customer Photos
product 1575 076 big horn 15 inch coaxial speaker 1000w max 190mm ferrite magnet full range 2 way coaxial speaker for stage monitor-11
product 1575 076 big horn 15 inch coaxial speaker 1000w max 190mm ferrite magnet full range 2 way coaxial speaker for stage monitor-12
Product Category
product 1575 076 big horn 15 inch coaxial speaker 1000w max 190mm ferrite magnet full range 2 way coaxial speaker for stage monitor-13
Packaging & Delivery
product 1575 076 big horn 15 inch coaxial speaker 1000w max 190mm ferrite magnet full range 2 way coaxial speaker for stage monitor-14
product 1575 076 big horn 15 inch coaxial speaker 1000w max 190mm ferrite magnet full range 2 way coaxial speaker for stage monitor-15
product 1575 076 big horn 15 inch coaxial speaker 1000w max 190mm ferrite magnet full range 2 way coaxial speaker for stage monitor-16
product 1575 076 big horn 15 inch coaxial speaker 1000w max 190mm ferrite magnet full range 2 way coaxial speaker for stage monitor-17
product 1575 076 big horn 15 inch coaxial speaker 1000w max 190mm ferrite magnet full range 2 way coaxial speaker for stage monitor-18
product 1575 076 big horn 15 inch coaxial speaker 1000w max 190mm ferrite magnet full range 2 way coaxial speaker for stage monitor-19
