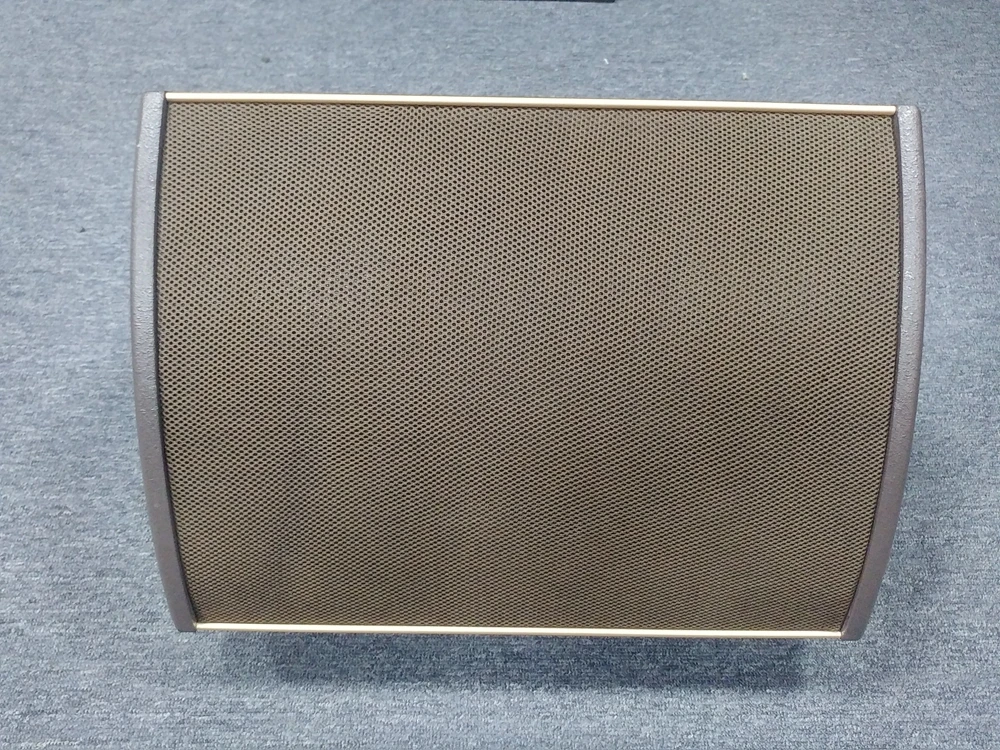

- CA15 is with 2-way coaxial speaker inside, trapeziod design as monitor speaker
- Solves the problem of the transmission path difference between the conventional speaker units, make the near-field listening timbre is uniform and consistent.
- 15” Paper cone woofer together with 1.5” titanium compression driver, high sound quality
- Two angles, 55° and 35° to meet the requirements as monitor speakers
- Nominal coverage 90°(H)×60°(V)

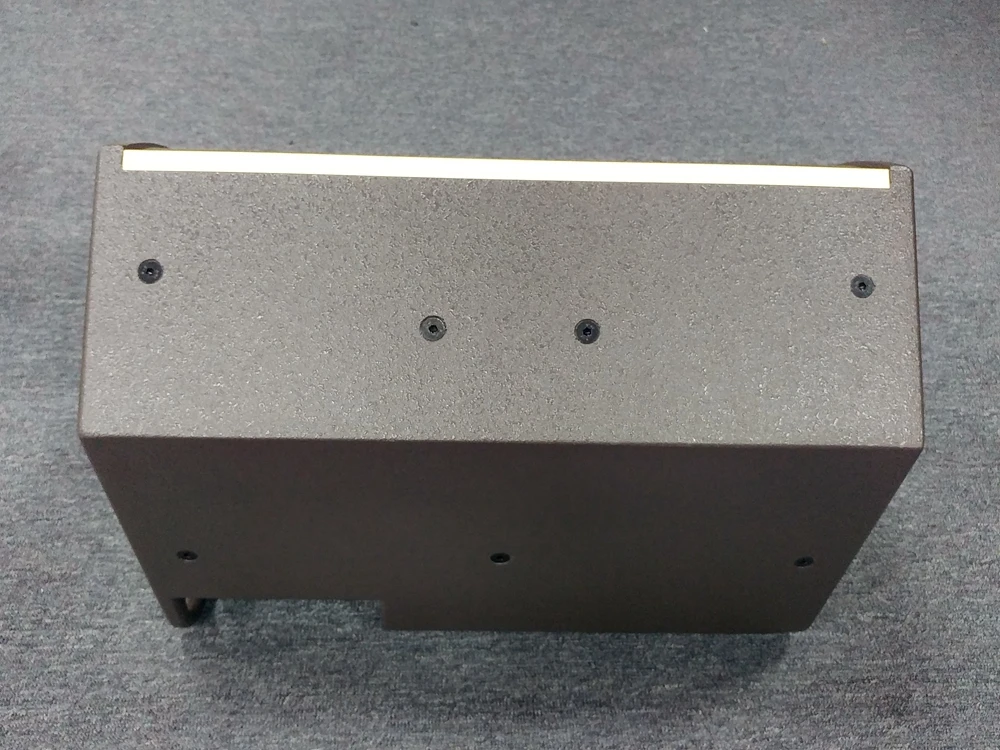

- 19×M10 Fittings, easy installation , and with base on the bottom
12/15inch 2-way coaxial loudspeaker AS MONITOR
Application:
Features :
Specification :
Specification | |
Model No. |
CA15 |
Frequency response: |
50Hz-20KHz |
Sensitivity ( 1W/1m ) : |
100 dB |
Nominal Impedance: |
8 Ω |
Power Rating: |
500W RMS |
LF speaker driver : |
1×15" LF with 3 inch voice coil |
HF speaker driver : |
1×1.5" HF driver with 3 inch Voice coil |
Nominal coverage(HxV): |
90°×60° |
Max SPL: |
126dB( Continuous) / 132dB(Peak) |
Suspension Hardware: |
19×M10 Fittings, Base |
Connectors: |
2 NL4MP connector 1+1 |
Dimensions (W×D×H) : |
545 x 380 x 410(mm) |
Net weight: |
23kg |
Dimension :
12/15 inch 2-way coaxial loudspeaker CA15
