18 Inch Neodymium Speaker18150-008 Sub Woofer Speaker Neodymium Carbon Speaker for Line Array Speakers
Spu:
1600100532910
- Overview
- Recommended Products
Product Description

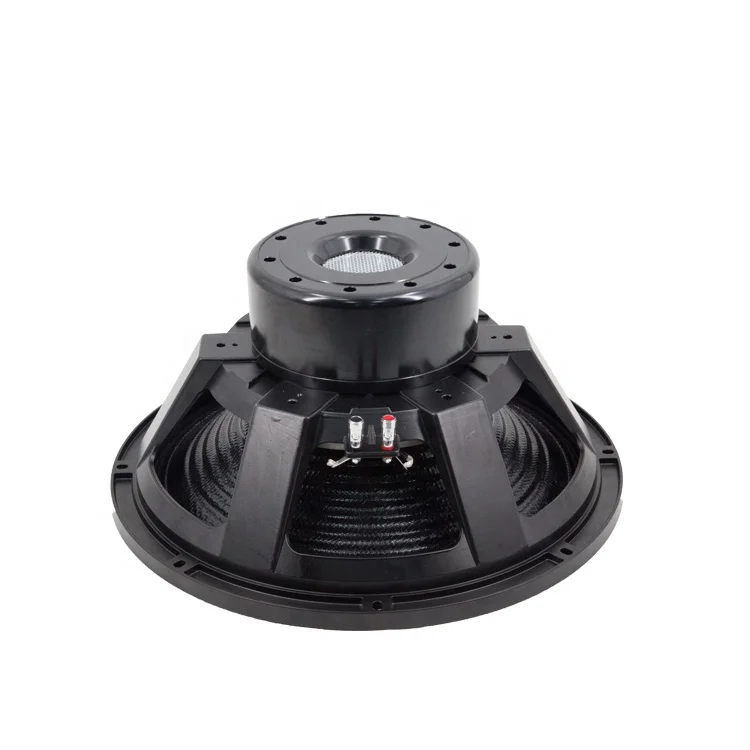

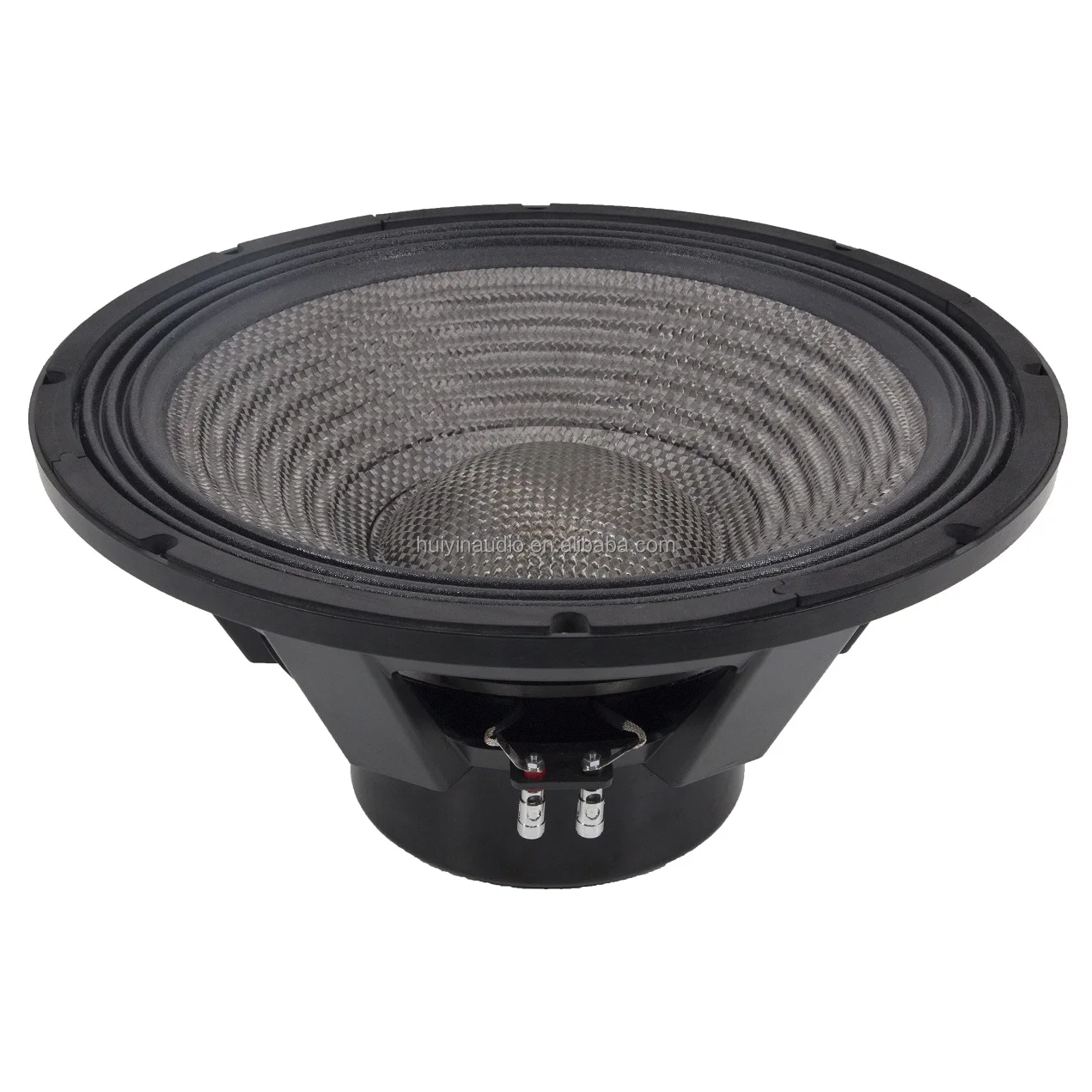

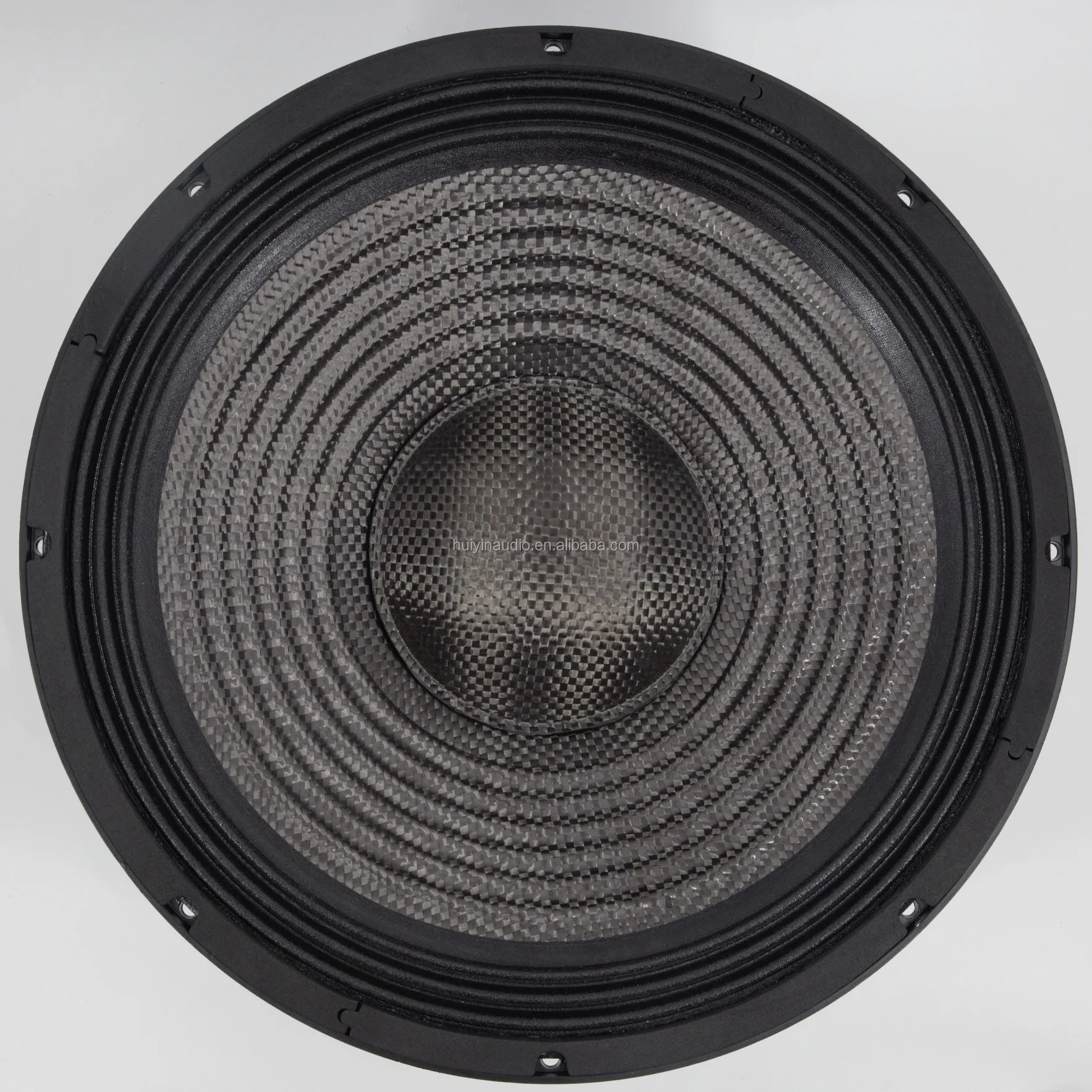

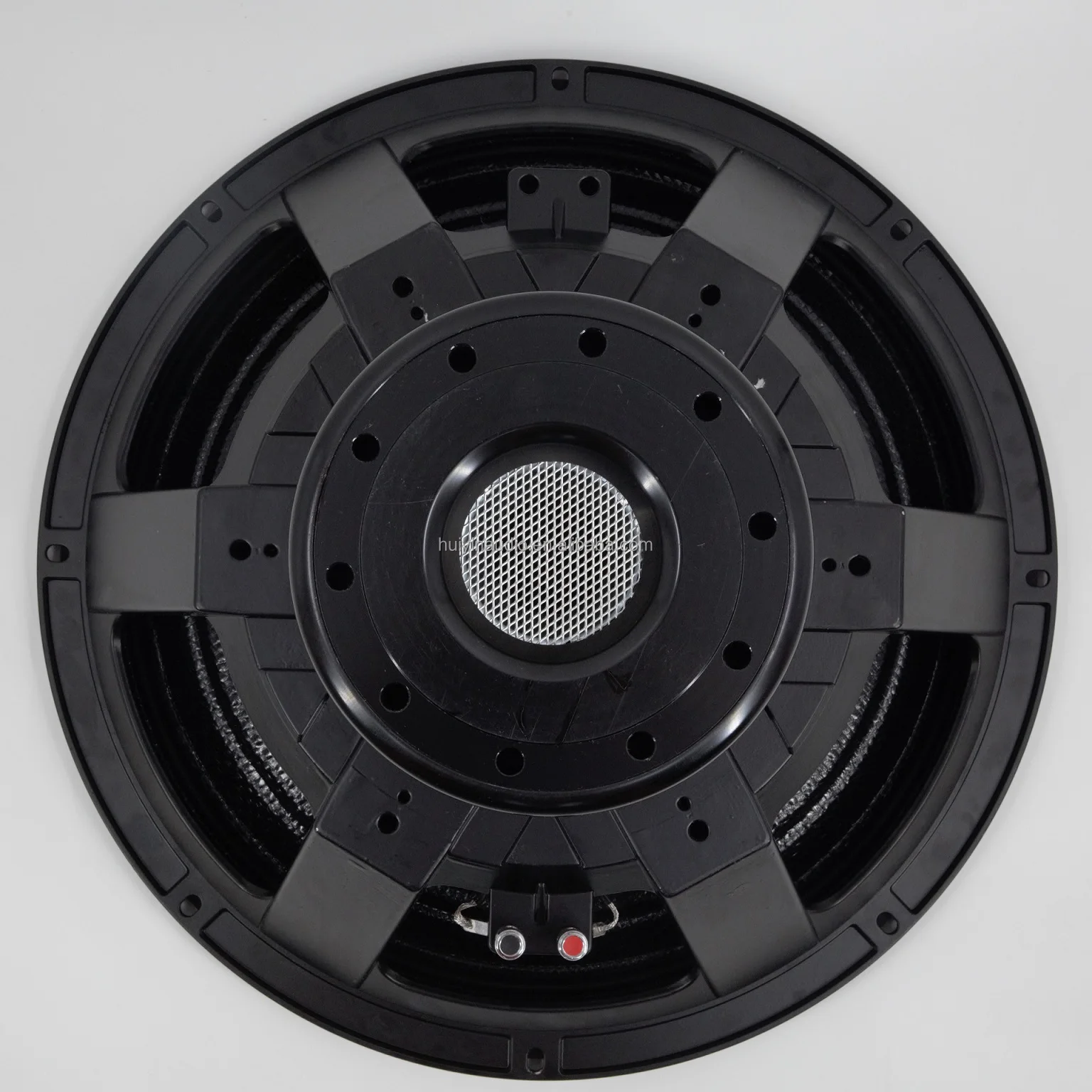

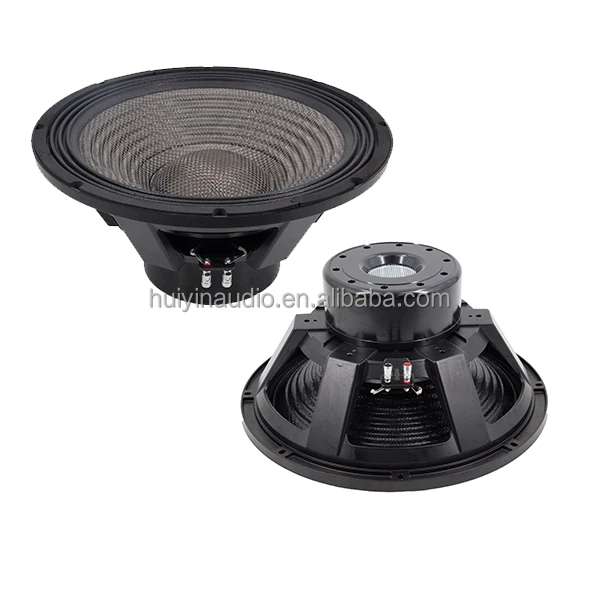

This 18 inch Neodymium woofer Speakers offers outstanding efficiency , high sensitivity 102dB. Its very high power handling(1500W RMS ) and Xmax capabilities make it suitable for any pro audio speaker enclosure, including LINE ARRAY SPEAKER SYSTEM.
Specification
Features :
- 18 inch subwoofer speaker with neodymium magnet and carbon cone
- 3000W max power capacity / 1500W RMS
- 102dB sensitivity 1W/1M
- 30hz-1.5khz Frequency response
- Neodymium magnet
- 6 inch/150mm copper voice coil
Specification :
Specification |
||||
Nominal diameter |
460/18 |
mm/inch |
||
Nominal impedance |
8 |
ohm |
||
Min impedance |
5.2 |
ohm |
||
Frequency response |
30-1.5k |
Hz |
||
Magnet material |
Neodymium |
|||
Sensitivity (1w/1m) |
102 |
dB |
||
RMS power handling |
2500 |
Watts |
||
Continuous power handling |
5000 |
Watts |
||
Voice coil diameter |
150/6 |
mm/ inch |
||
Winding material |
Copper |
|||
Cone material |
Carbon |
|||
Surround material |
Cloth |
|||
T/S Parameter |
||||
Fs |
49 |
Hz |
||
Re |
5.8 |
Ω |
||
Qes |
0.40 |
|||
Qts |
0.38 |
|||
Qms |
6.68 |
|||
Vas |
70.8 |
L |
||
Rms |
14.3 |
kg/s |
||
Cms |
0.038 |
mm/N |
||
Mms |
310 |
gr |
||
BL |
37 |
N/A |
||
Mounting information |
||||
Overall diameter |
465 |
mm/inch |
||
Bolt Circle diameter |
442 |
mm/inch |
||
Baffle Cutout diameter |
425 |
mm/inch |
||
Depth |
220 |
mm/inch |
||
Shipping information |
||||
Net weight |
17.1 |
KG |
||
Shipping weight |
19 |
KG |
||
Shipping box |
490x490x250 |
mm |
||
