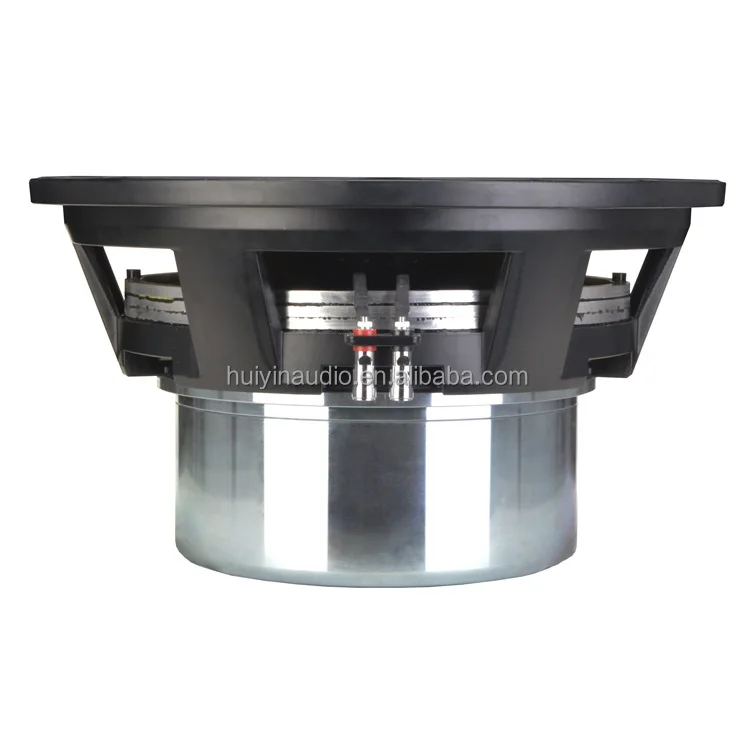

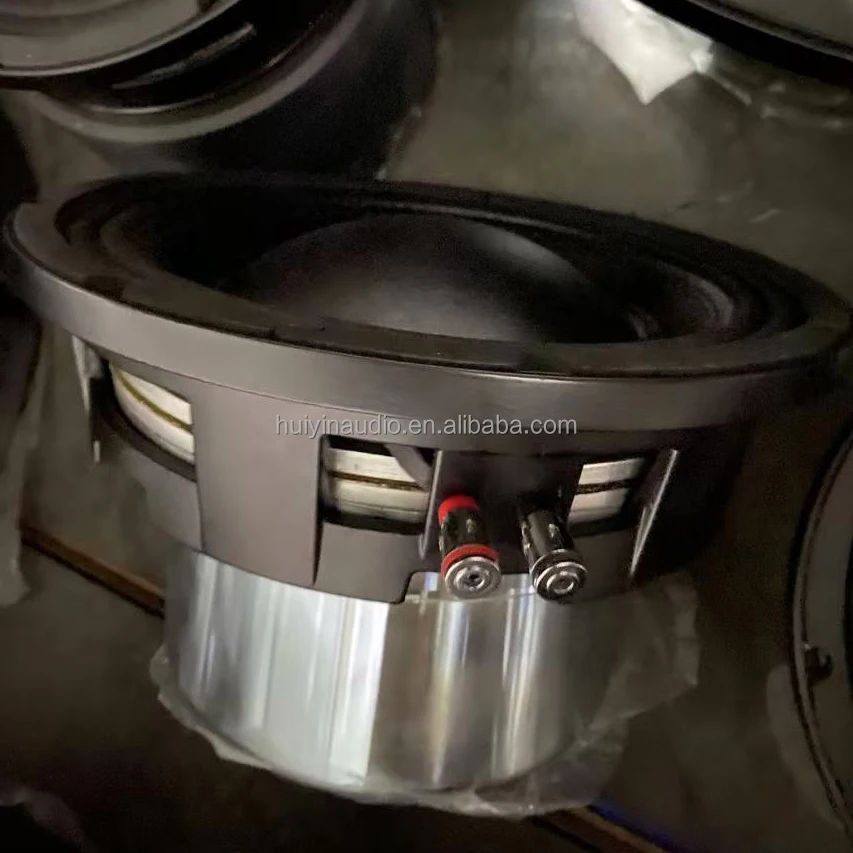

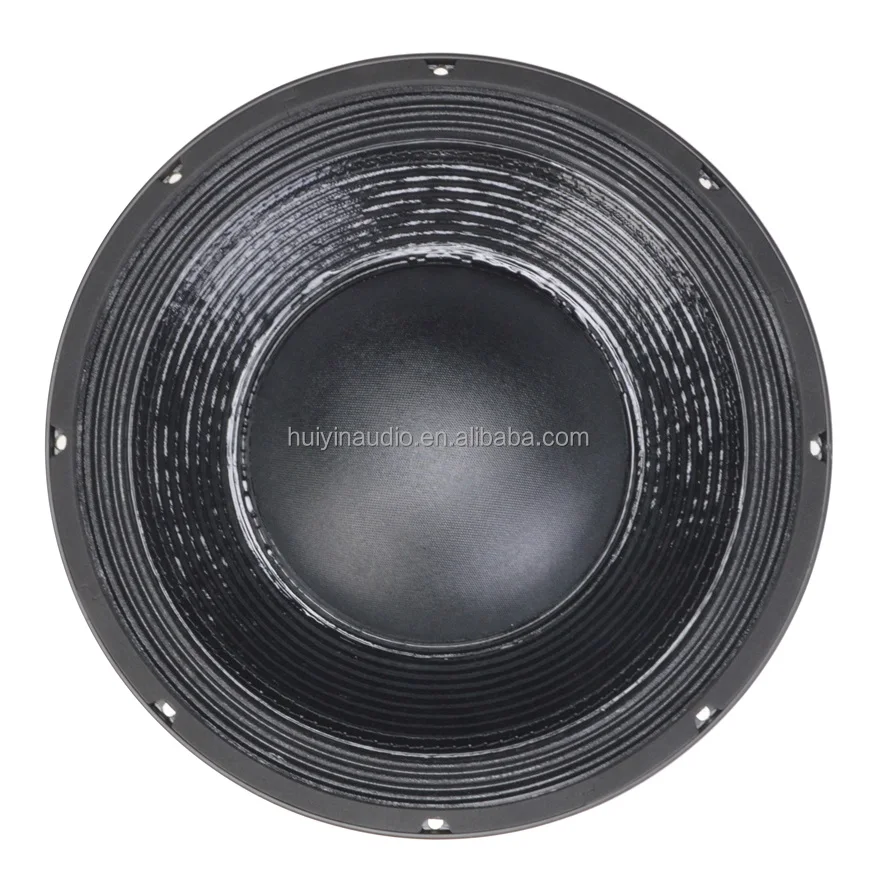

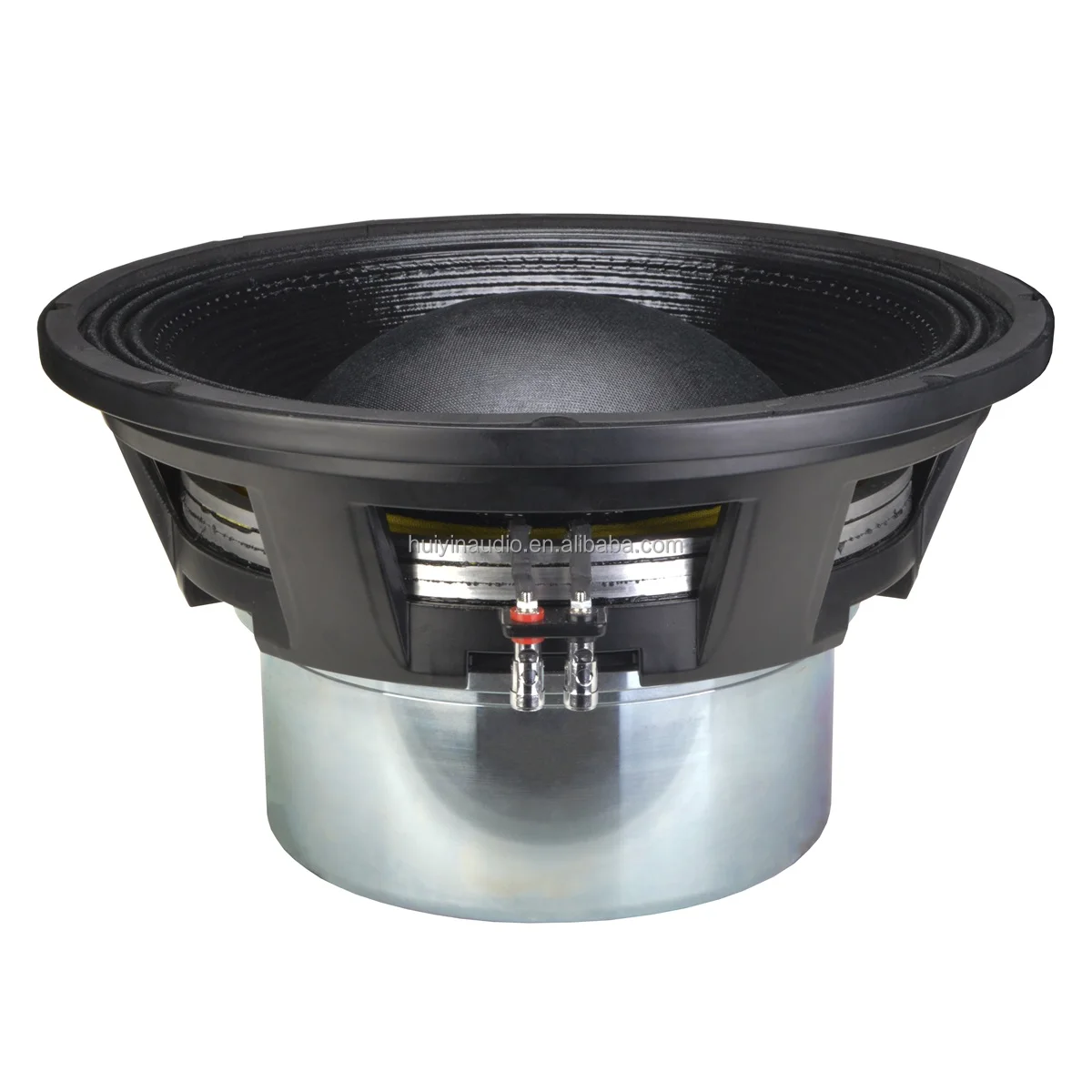

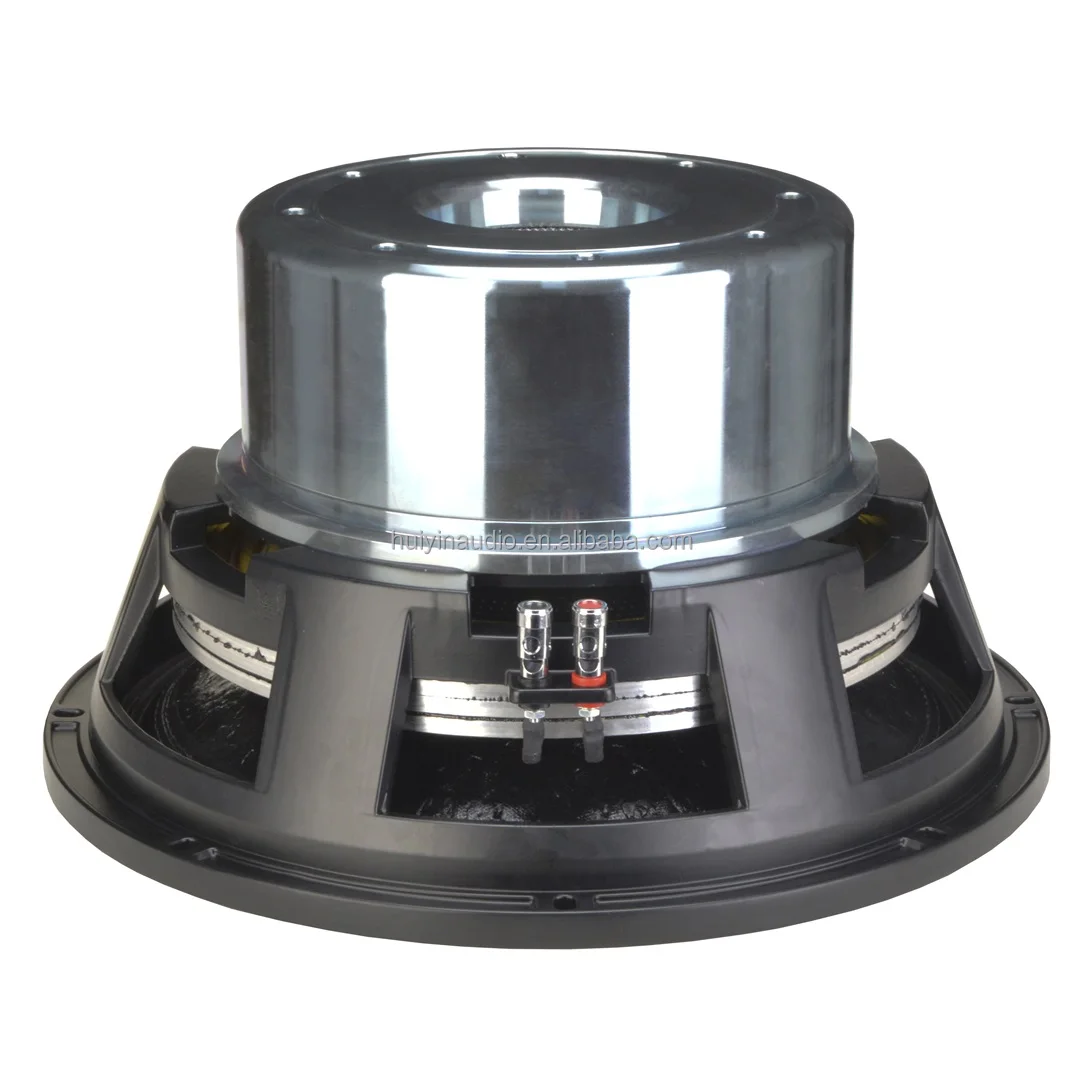

3000W RMS Power 15 Inch High End Subwoofer for Line Array N40SH Neodymium 7 Inch Voice Coil 4 8 Ohm 15 Inch Subwoofer 15180-001N

Spu:

1601320378555

General Information

15 inch subwoofer

15 inch speaker

15 inch mid range speaker

65HZ-1500HZ

104dB

7 inch voice coil

3000w rms power

6000w max power

neodymium magnet

neo magnet

N40SH

paper cone

triple spiderr / 3 layer spiders

2 ohm, 4 ohm, 8 ohm, 16 ohm

professional audio sound system

8 inch, 10 inch, 12 inch, 15 inch, 18 inch etc are all available

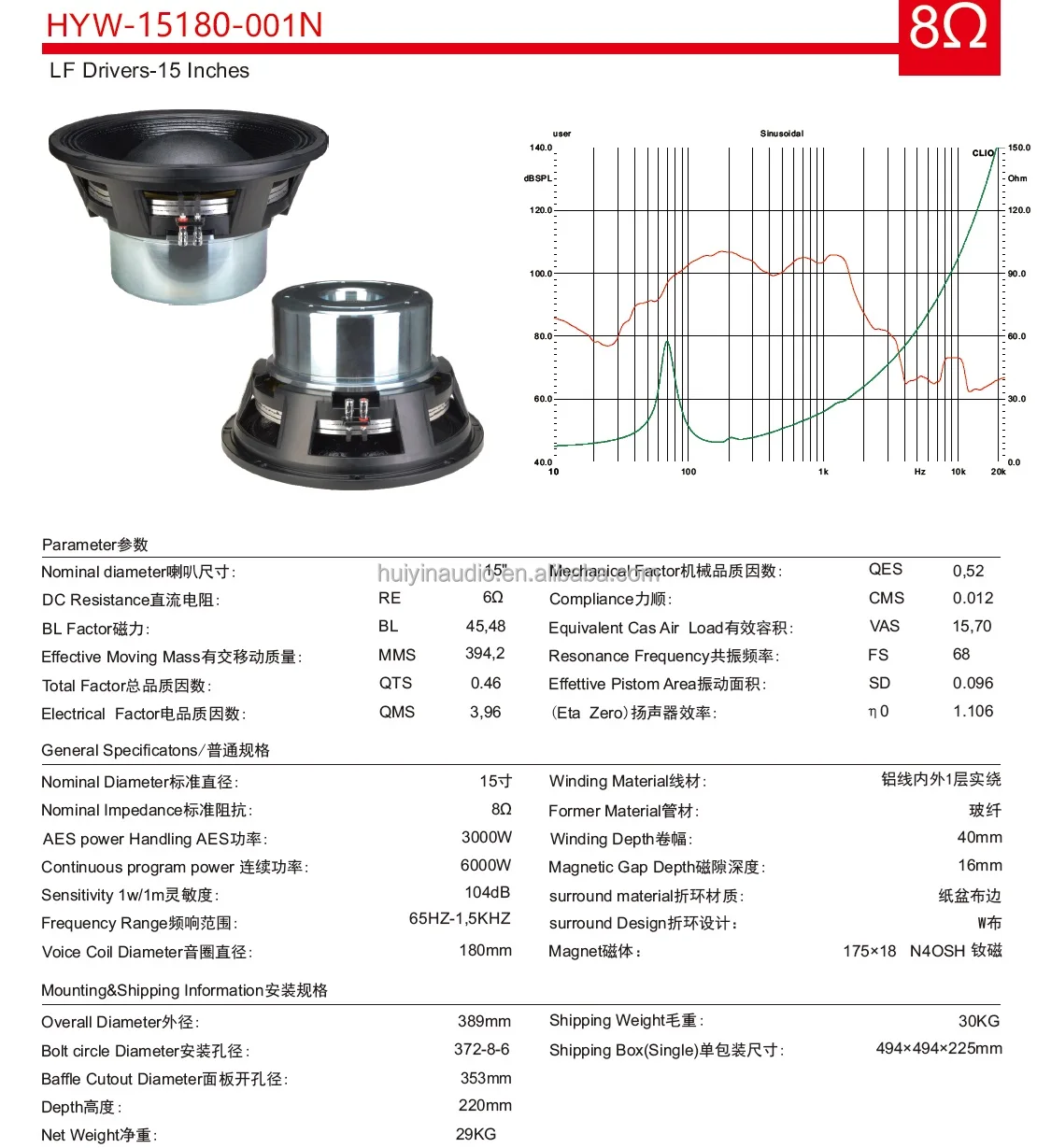

Product Paramenters

*Model Number*	*HYW-15180-001N*
*Parameters*
Nominal diameter	15"
DC Resistance/ RE	6Ω
BL Factor/ BL	45.48
Effective Moving Mass/ MMS	394.2
Total Factor/ QTS	0.46
Electrical Factor/ QMS	3.96
Mechanical Factor/ QES	0.52
Compliance/ CMS	0.012
Equivalent Cas Air Load/ VAS	15.7
Resonance Frequency/ FS	68
Effettive Pistom Area/ SD	0.096
Eta Zero/ η0	1.106
*General Specificatons*
Nominal Diameter	15 inch
Nominal Impedance	8 Ohm
AES power Handling	3000W
Continuous program power	6000W
Sensitivity 1w/1m	104dB
Frequency Range	65hz-1500hz
Voice Coil Diameter	180mm / 7 inch voice coil
Winding Material	Inner and outer aluminium wire 1 layer
Former Material	Glass fibre
Winding Depth	40mm
Magnetic Gap Depth	16mm
Surround material	Paper cone + Cloth edge
Surround Design	W type
Magnet	175X18MM N4OSH Neodymium Magnet
*Mounting & Shipping Information*
Overall Diameter	389mm
Bolt circle Diameter	372-8-6
Baffle Cutout Diameter	353mm
Depth	220mm
Net Weight	29kg
Shipping Weight	30kg
Shipping Box	50X50X23CM
