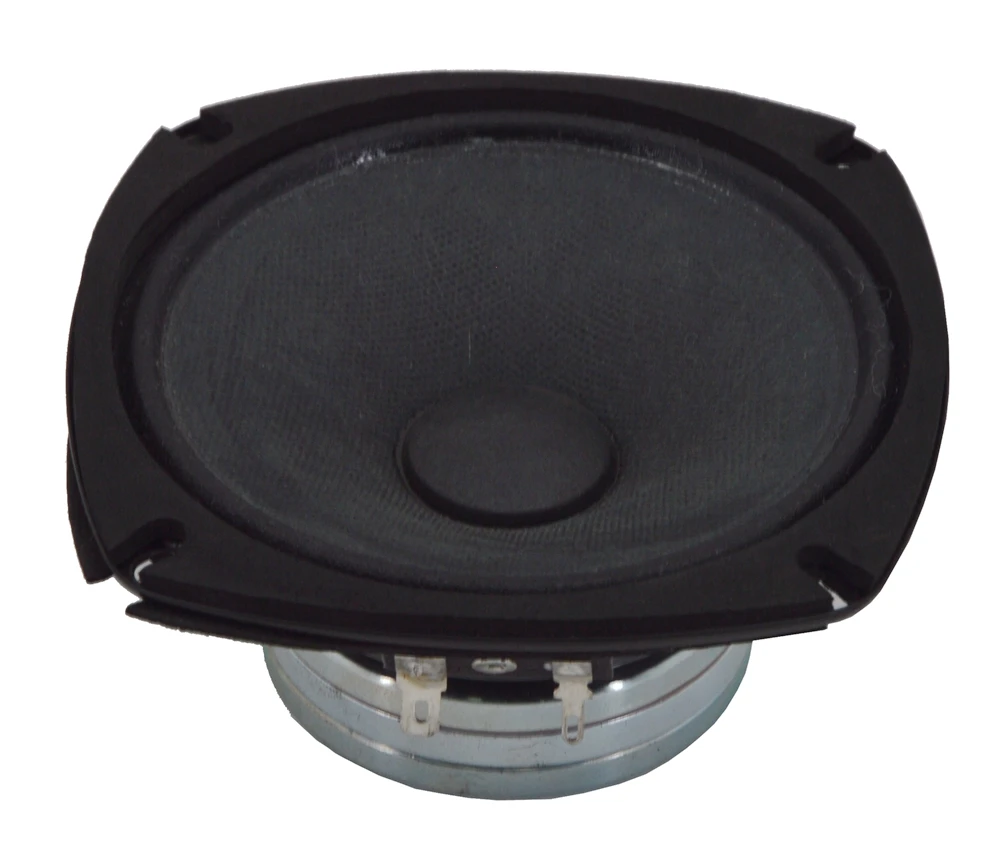

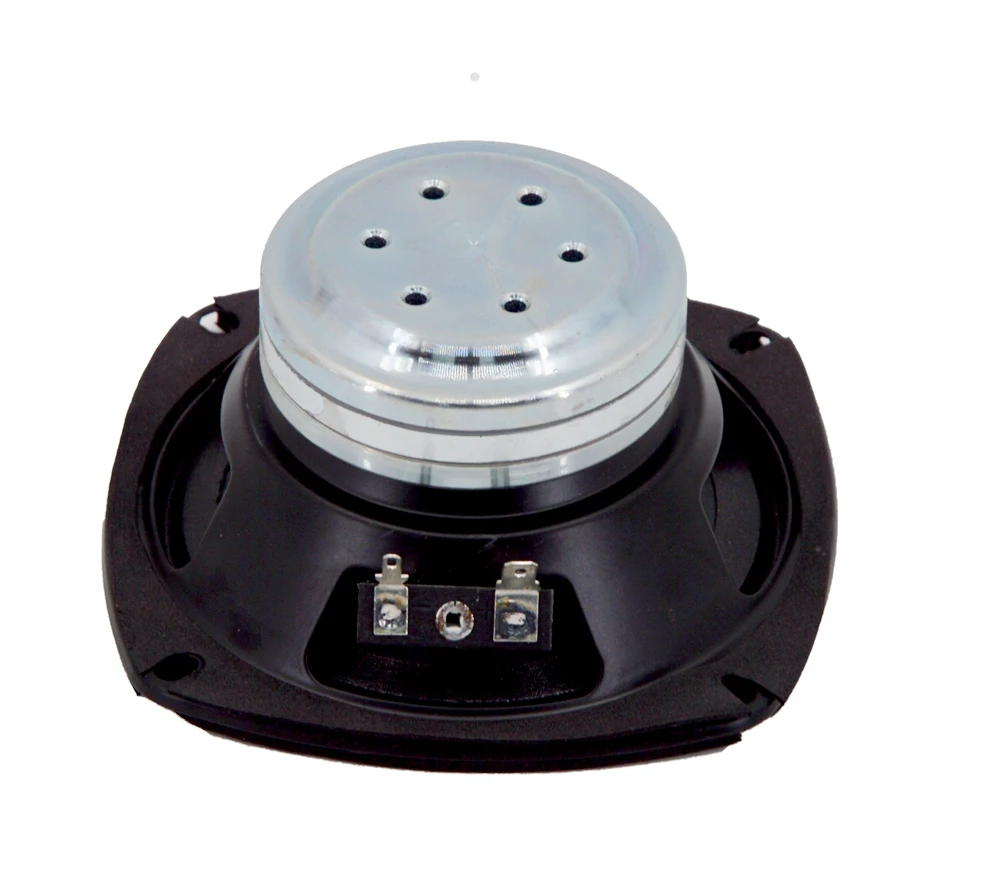

4.5 Inch Neodymium Full Range Column Loudspeaker 425-094 Computer Stage Home Theatre 50W Output Power 8ohm Metal Battery Phones
Spu:
62075654815
- Overview
- Recommended Products
Specification
Features :
4.5 inch neodymium speakers for column loudspeakers or other full range loudspeakers
95dB sensitivity 1W/1M
50W RMS, 100W Max power handling
100hz-15khz Frequency response
Neodymium magnet
1 inch/ 25 mm ccaw voice coil
Speccification :
Specification |
||||
Nominal diameter |
100/4.5 |
mm/inch |
||
Nominal impedance |
8 |
ohm |
||
Min impedance |
5.2 |
ohm |
||
Frequency response |
100-15k |
Hz |
||
Magnet material |
Neodymium |
|||
Sensitivity (1w/1m) |
95 |
dB |
||
RMS power handling |
50 |
Watts |
||
Continuous power handling |
100 |
Watts |
||
Voice coil diameter |
25/1 |
mm/ inch |
||
Winding material |
CCAW |
|||
Cone material |
Paper |
|||
Surround material |
Cloth |
|||
T/S Parameter |
||||
Fs |
128 |
Hz |
||
Re |
5.2 |
Ω |
||
Qes |
0.36 |
|||
Qts |
0.32 |
|||
Qms |
3.2 |
|||
Vas |
2.96 |
L |
||
Rms |
0.92 |
kg/s |
||
Cms |
0.42 |
mm/N |
||
Mms |
3.61 |
gr |
||
BL |
7.5 |
N/A |
||
dBSPL |
94.5 |
dB |
||
Mounting information |
||||
Overall diameter |
114/4.5 |
mm/inch |
||
Bolt Circle diameter |
120/4.72 |
mm/inch |
||
Baffle Cutout diameter |
102/4 |
mm/inch |
||
Depth |
50/2 |
mm/inch |
||
Shipping information |
||||
Net weight |
0.5KG |
KG |
||
Shipping weight |
0.8KG |
KG |
||
Shipping box |
120x120x50 |
mm |
||
