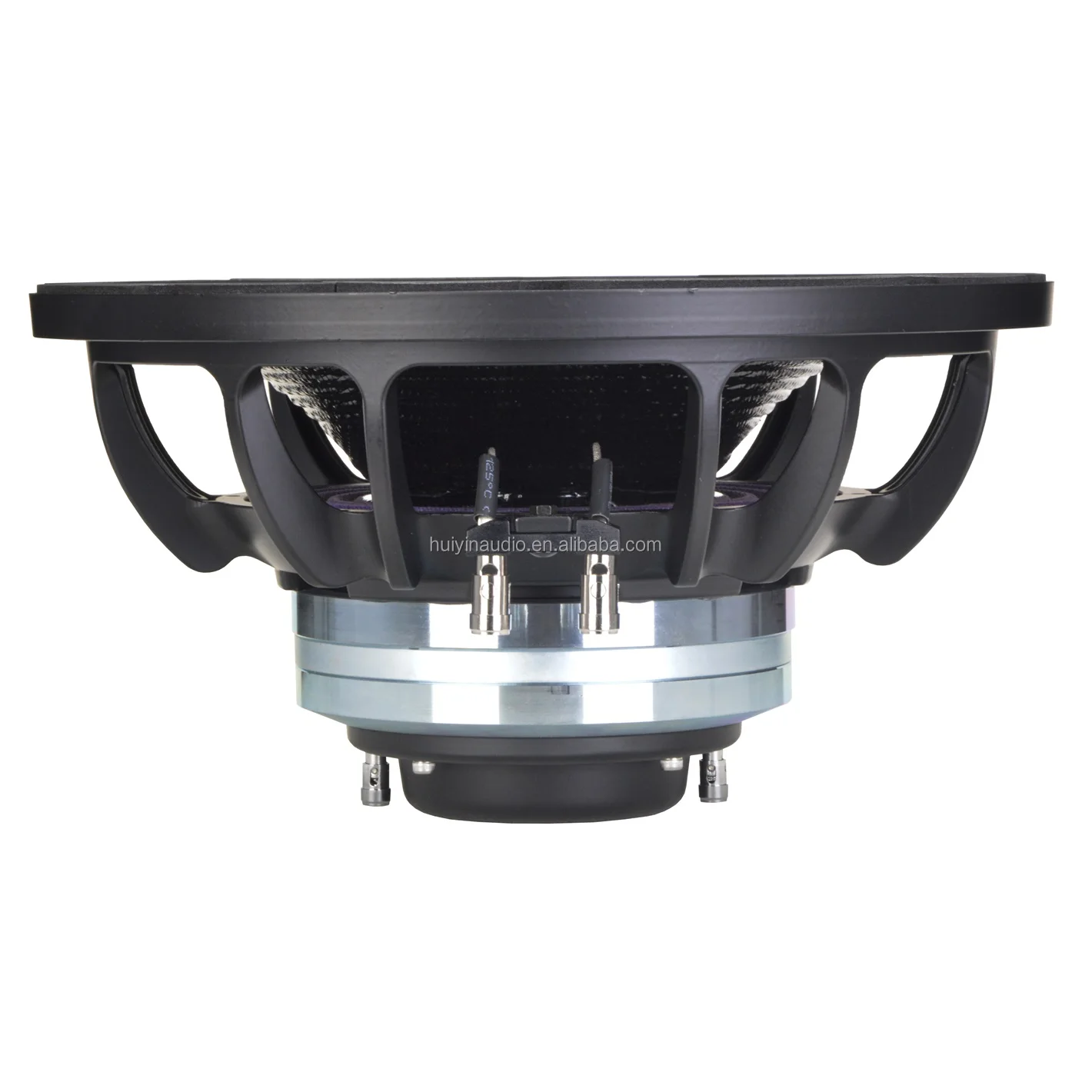

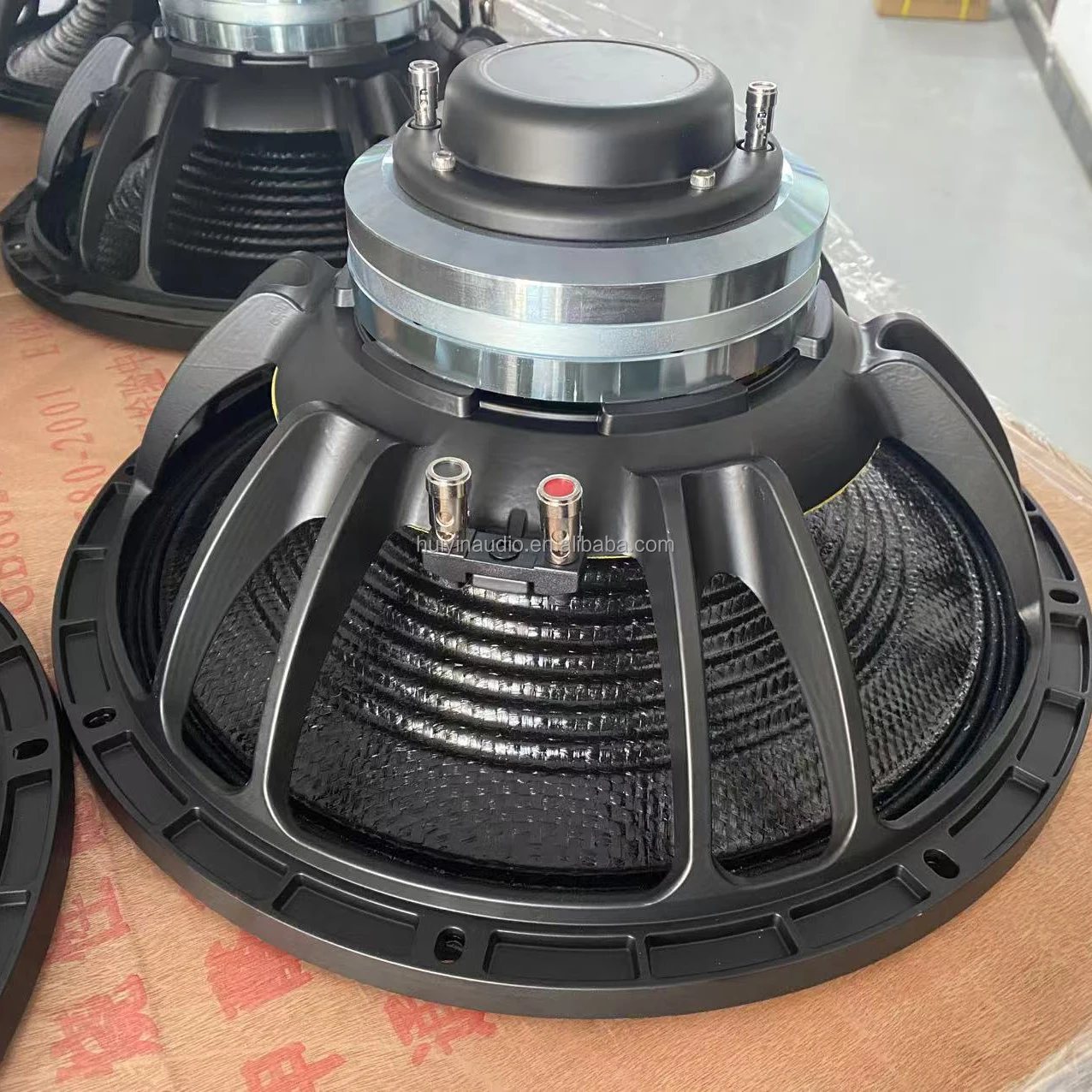

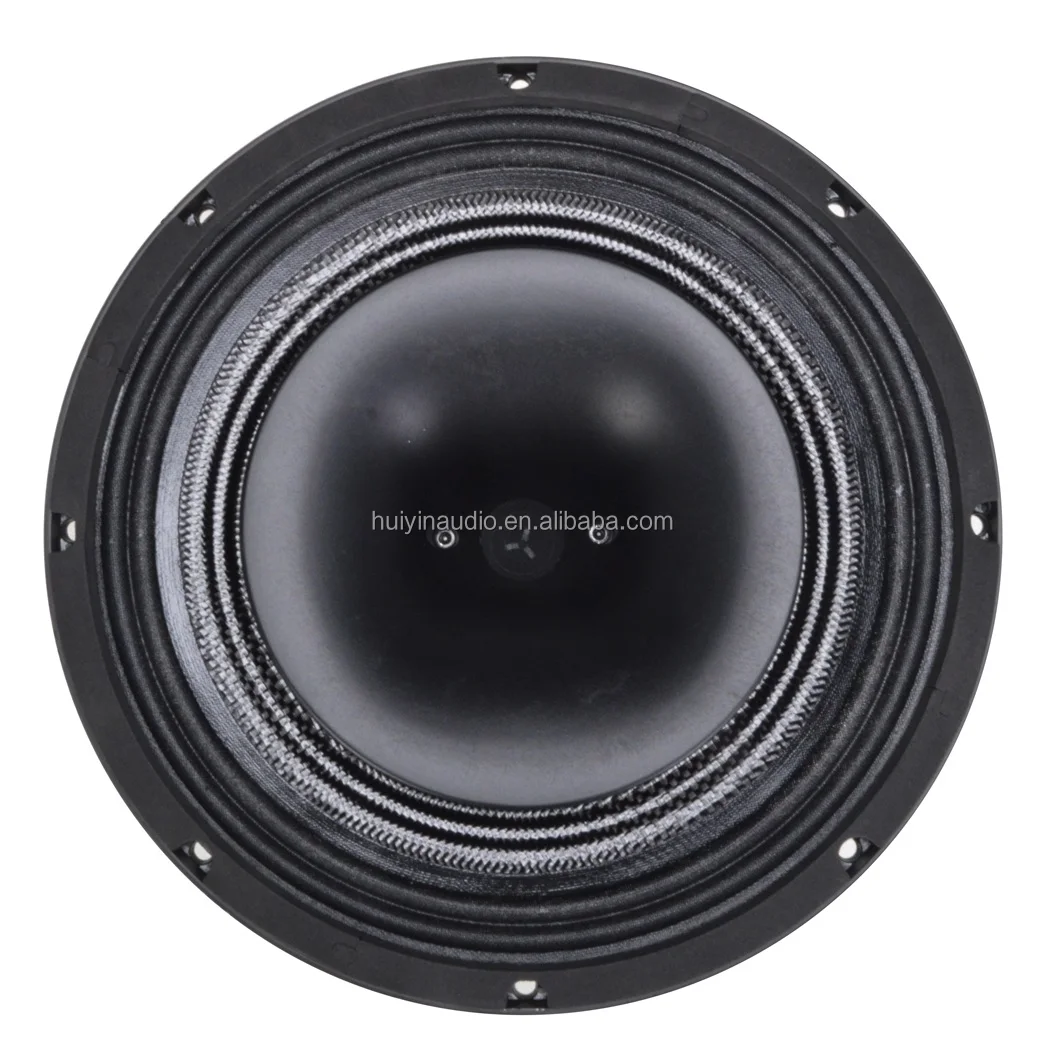

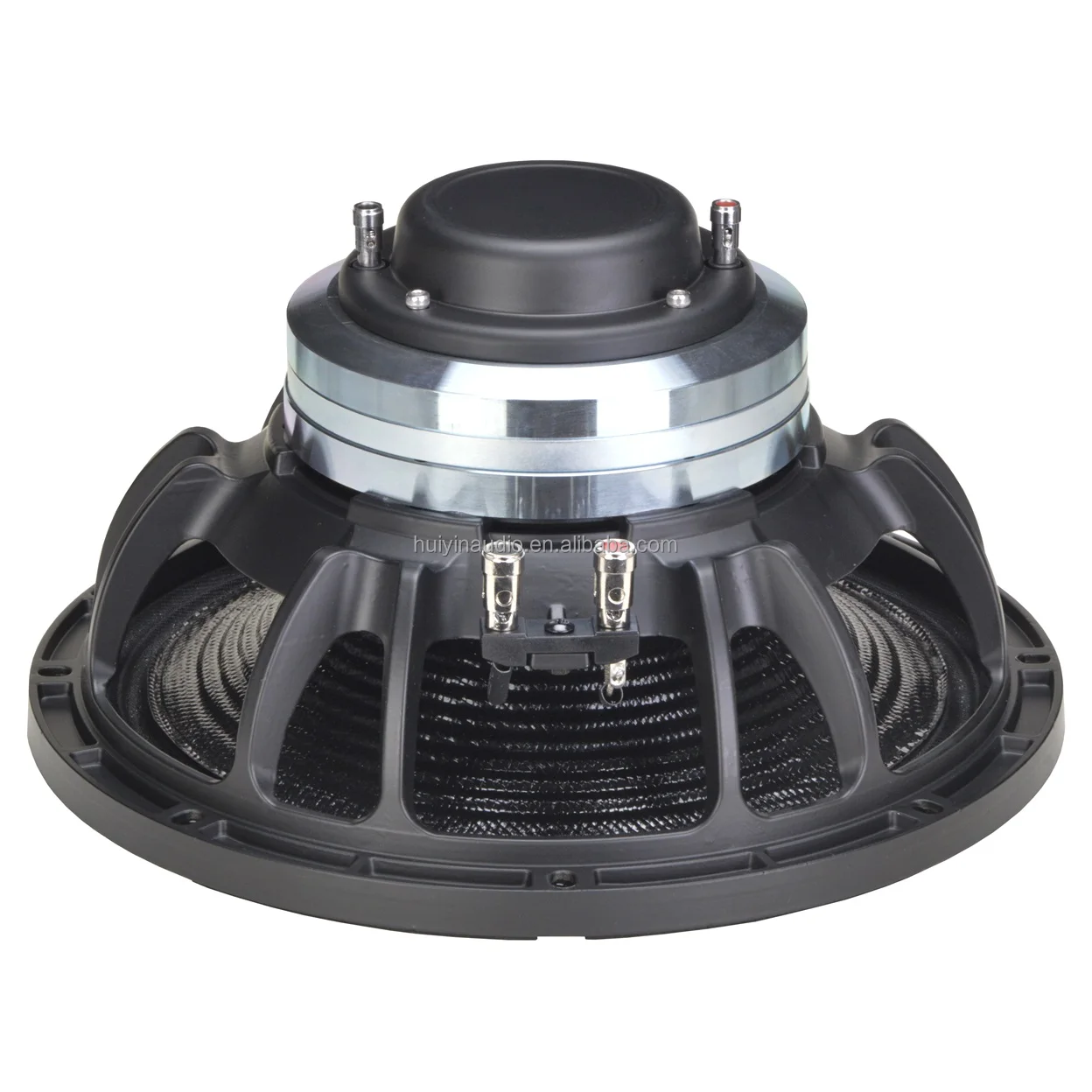

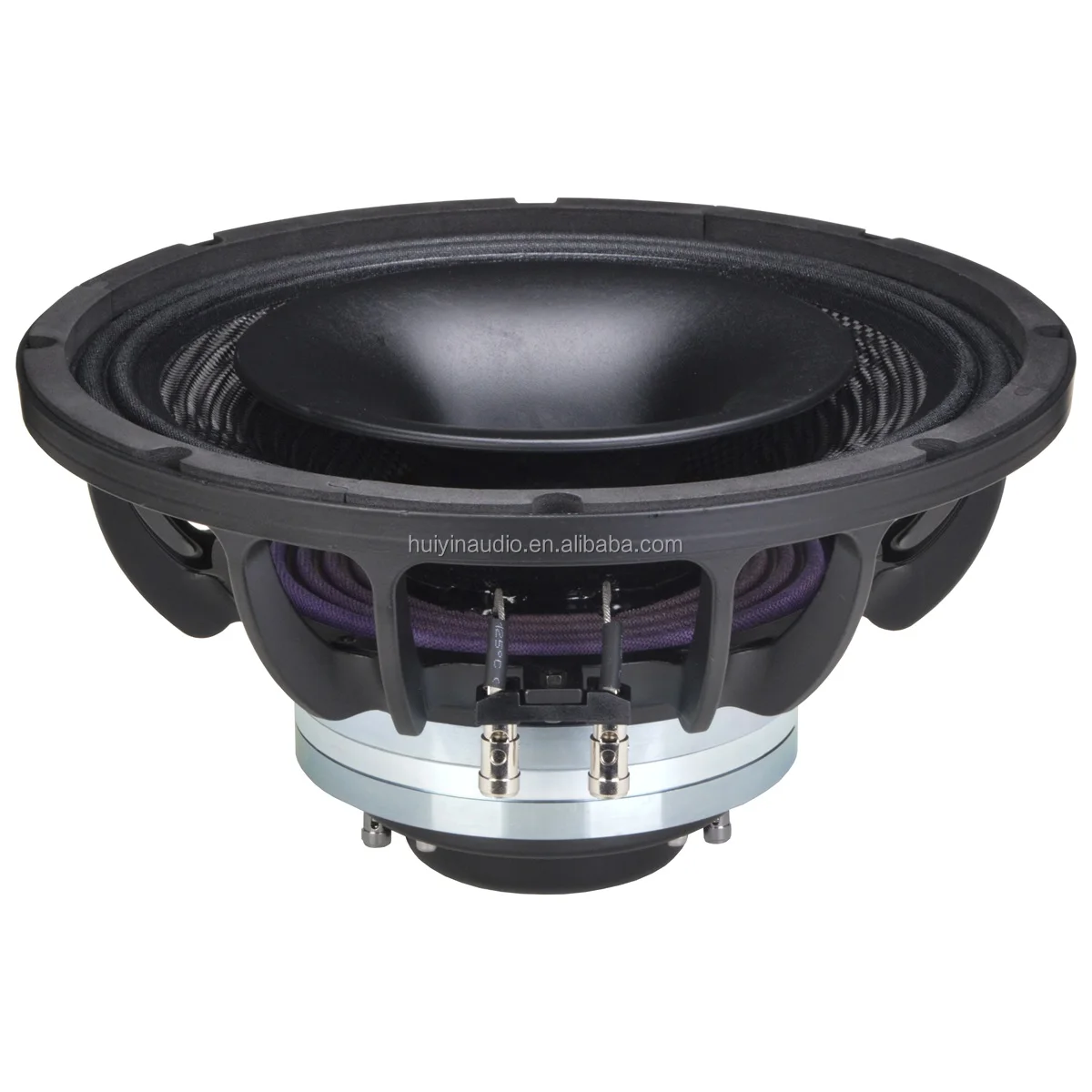

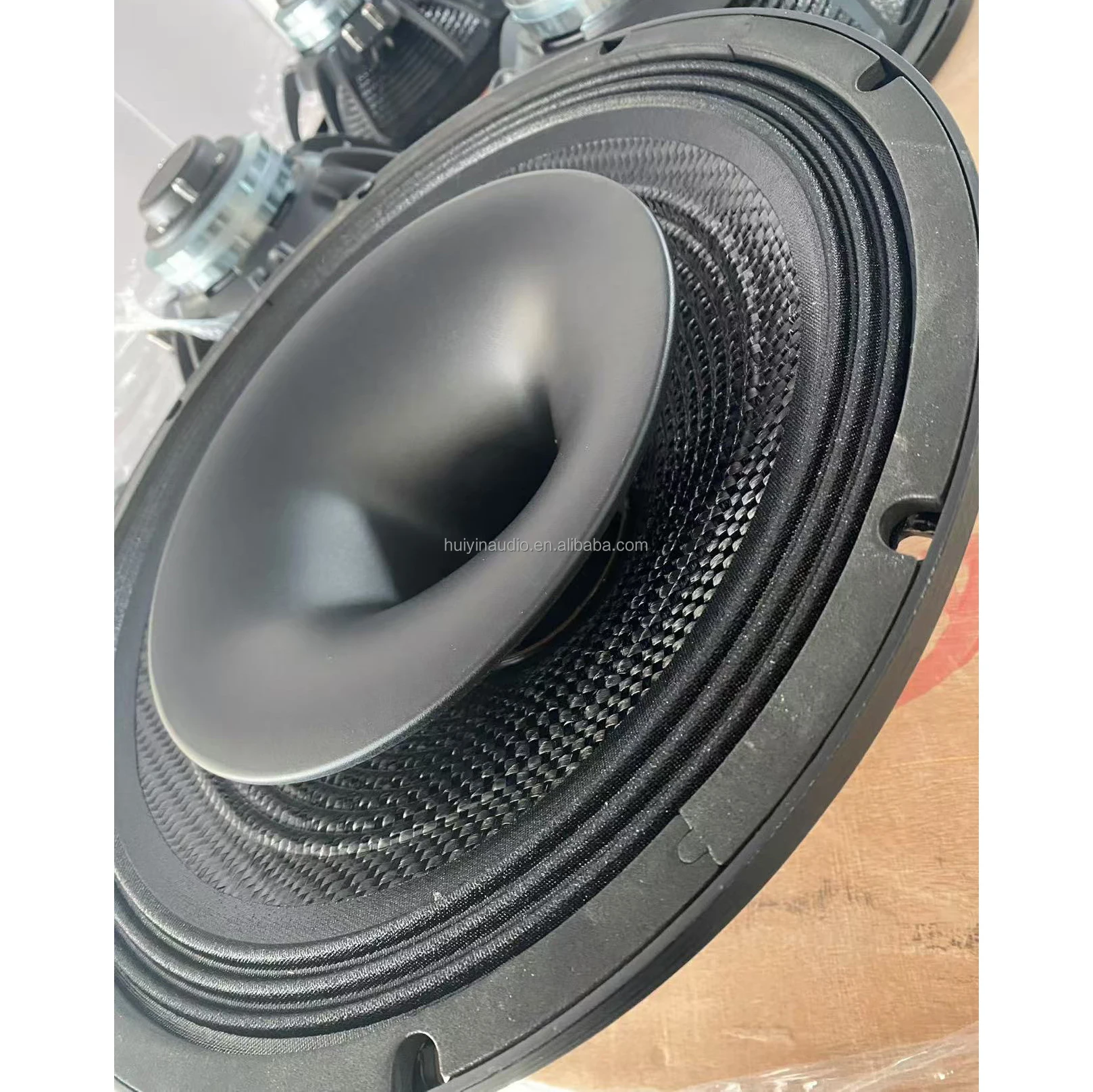

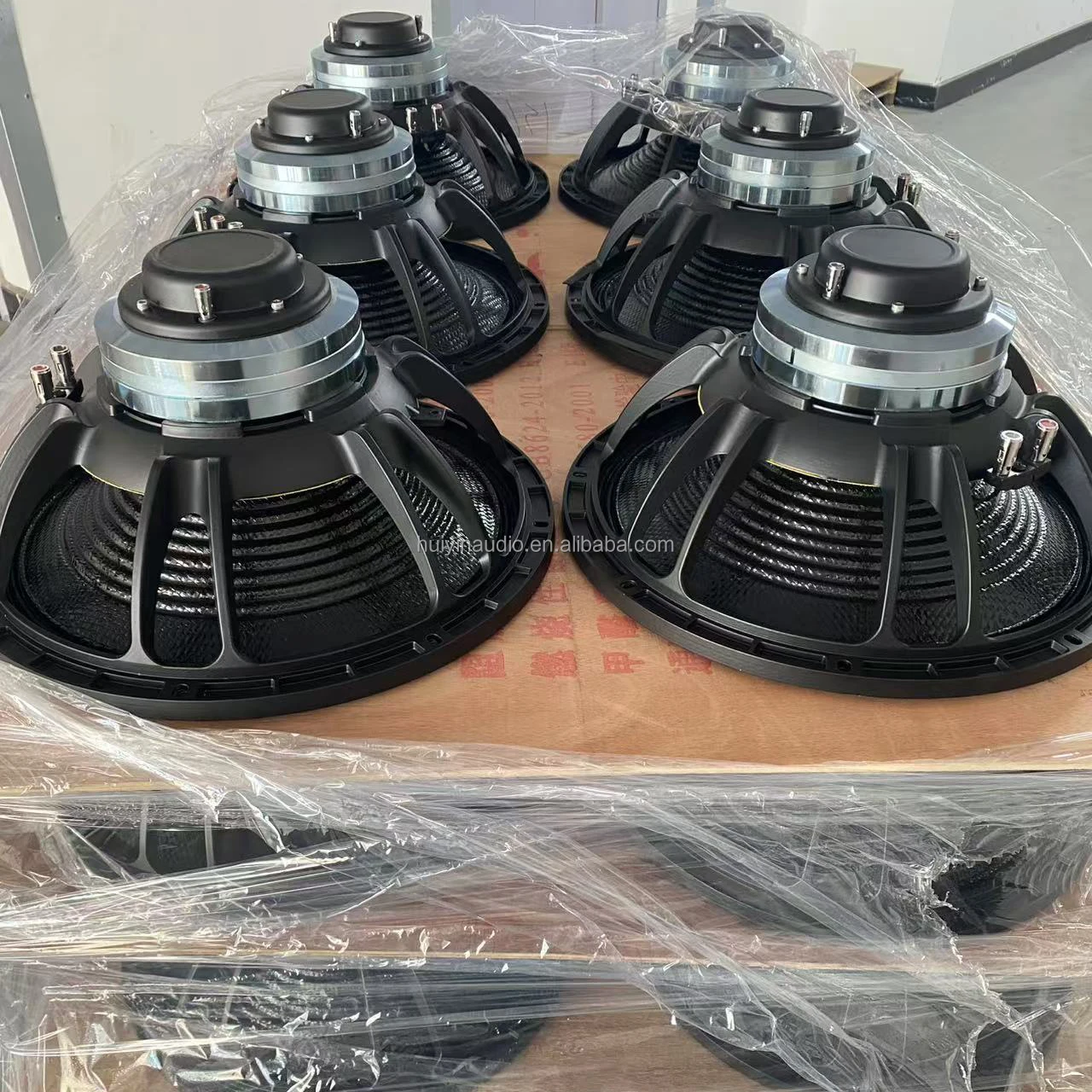

500W RMS 12 Inch Coaxial Speaker with Carbon Fiber Cone 3 Inch HF Driver Coaxial Full Range Speaker for PA Audio, 12100-033

Spu:

1601356368831

General Information

12 inch speaker

12 inch coaxial speaker
12 inch woofer
3 inch tweeter

3 inch hf driver
LF woofer: 55HZ-3KHZ

HF driver: 500HZ-20KHZ

4 inch voice coil
500w rms power
1000w peak power
neodymium magnet

neo magnet
N38H
carbon fiber cone

2 ohm, 4 ohm, 8 ohm, 16 ohm
professional audio sound system

12 inch, 15 inch, are available

Product Paramenters

*Model Number*	*HYW-12150-001N*
*Parameters*
Nominal diameter	12"
DC Resistance/ RE	6Ω
BL Factor/ BL	17.07
Effective Moving Mass/ MMS	64.13
Total Factor/ QTS	0.42
Electrical Factor/ QMS	6.6748
Mechanical Factor/ QES	0.4635
Compliance/ CMS	0.1182
Equivalent Cas Air Load/ VAS	54.1245
Resonance Frequency/ FS	57.79
Effettive Pistom Area/ SD	0.0573
Eta Zero/ η0	1.836
*12 Inch Woofer - General Specificatons*
Nominal Diameter	12 inch
Nominal Impedance	8 ohm
AES power Handling	500W RMS
Continuous program power	1000W PEAK
Sensitivity 1w/1m	98dB
Frequency Range	55HZ-3KHZ
Voice Coil Diameter	100mm / 4 inch voice coil
Winding Material	Inner and outer aluminium wire 1 layer
Former Material	Glass fibre
Winding Depth	22mm
Magnetic Gap Depth	14mm
Surround material	Carbon fiber cone + Cloth edge
Surround Design	W Type
Magnet	156x110x10MM N38H Neodymium Magnet
*3 Inch HF Driver - General Specificatons*
Nominal Impedance	8 Ohm
AES power Handling	100W
Continuous program power	200W
Sensitivity 1w/1m	110dB
Frequency Range	500HZ-20KHZ
Voice Coil Diameter	75mm / 3 Inch
Winding Materia	Aluminium flat wire outer 2 layers
Former Material	Glass fibre
Diaphragm Material	Titanium film

*Mounting & Shipping Information*
Overall Diameter	310mm
Bolt circle Diameter	300-8-Ф8.5
Baffle Cutout Diameter	280mm
Depth	166mm
Net Weight	6.3KG
Shipping Weight	6.5KG
Shipping Box	315×315×169mm
