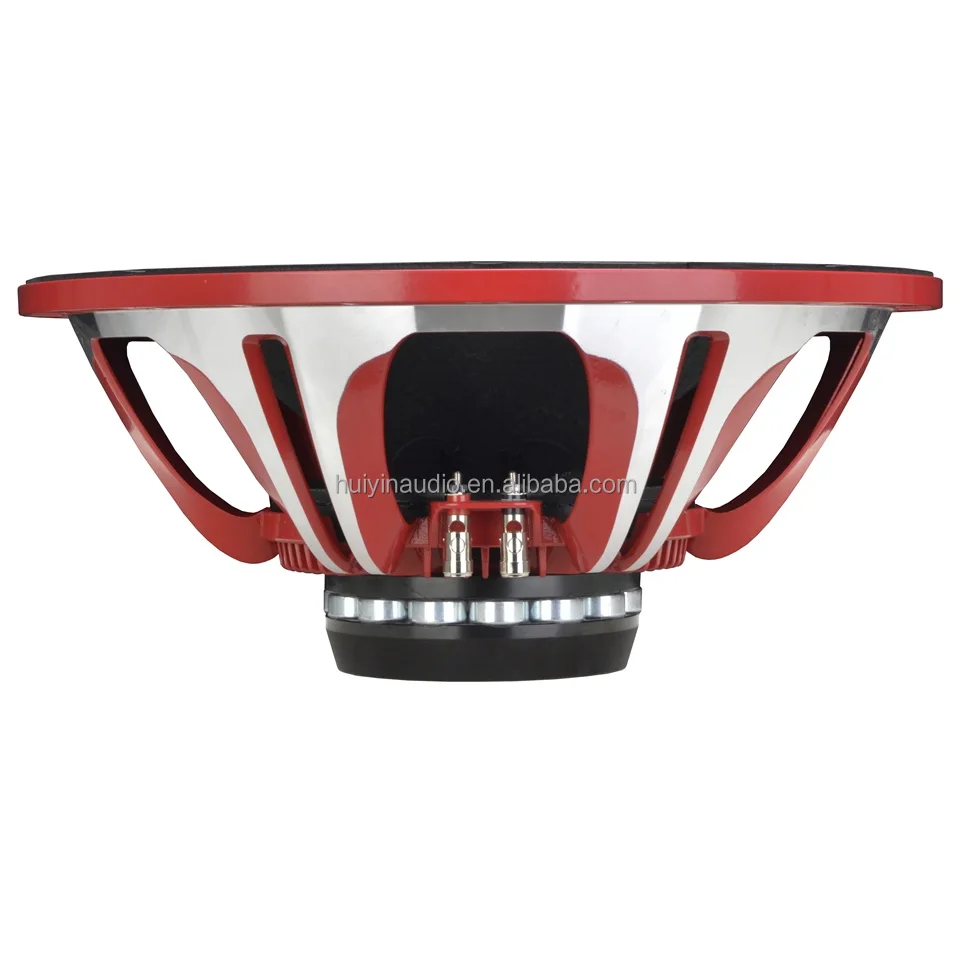

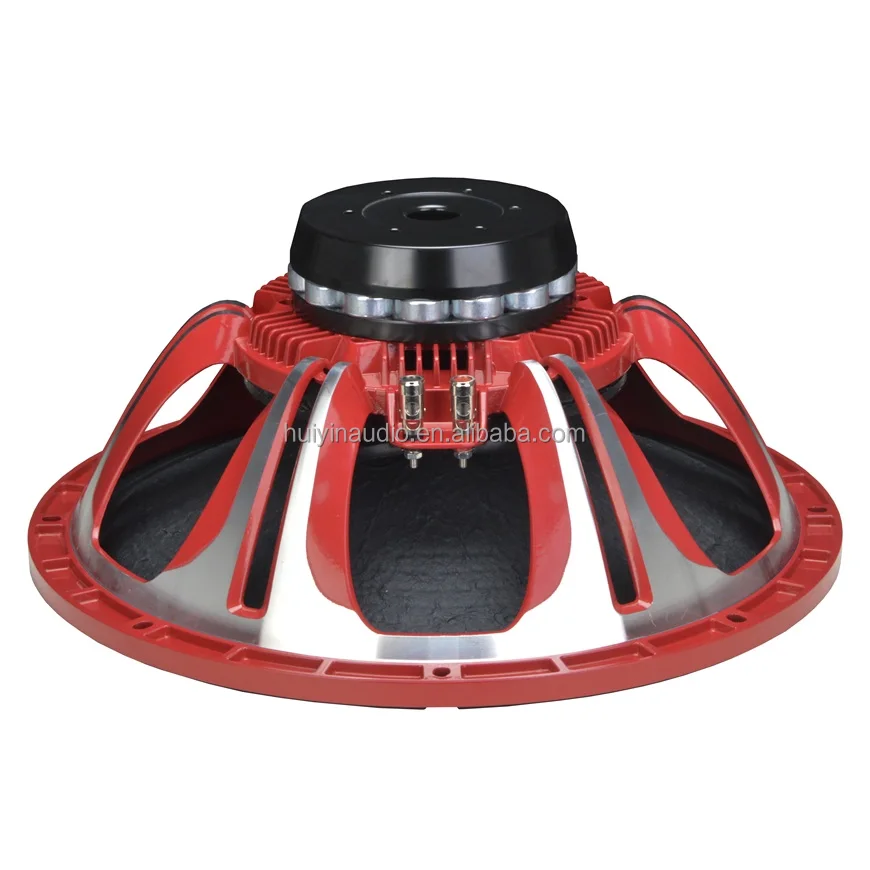

550W RMS 15 Inch Neodymium Woofer Professional Stage Speaker 1575-090N 3 Inch Voice Coil Paper Cone Aluminium Coil Midbass Line

General Information

15 inch speaker

15 inch woofer

15 inch subwoofer

15 inch bass speaker

15 inch neodymium woofer speaker

3 inch voice coil

550W RMS

1100W MAX

102dB Sensitivity

Frequency Range 47Hz-3KHz

3mm Xmax

Aluminium round wire inside and outside 1 layer

Product Paramenters

*Model Number*	*HYW-1575-090N*
*Parameters*
Nominal diameter	15"
DC Resistance/ RE	5.8Ω
BL Factor/ BL	19,42
Effective Moving Mass/ MMS	86,14
Total Factor/ QTS	0,36
Electrical Factor/ QMS	4,64
Mechanical Factor/ QES	0,39
Compliance/ CMS	0,13
Equivalent Cas Air Load/ VAS	166,99
Resonance Frequency/ FS	47,16
Effettive Pistom Area/ SD	0,09
Eta Zero/ η0	0,35
*General Specificatons*
Nominal Diameter	15 Inch
Nominal Impedance	8Ω
AES power Handling	550W
Continuous program power	1100W
Sensitivity 1w/1m	102dB
Frequency Range	47Hz-3KHz
Voice Coil Diameter	75mm voice coil/ 3 inch voice coil
Winding Material	Aluminium round wire inside and outside 1 layer
Former Material	GBF
Winding Depth	17mm
Magnetic Gap Depth	+/-3mm
Surround material	Paper Cone + Cloth Surround
Surround Design	M
Magnet	251014pcs Neodymium Magnets
*Mounting & Shipping Information*
Overall Diameter	394mm
Bolt circle Diameter	380-8-6.5
Baffle Cutout Diameter	356mm
Depth	169mm
Net Weight	5.5KG
Shipping Weight	6.0KG
Shipping Box	42X42X18CM
