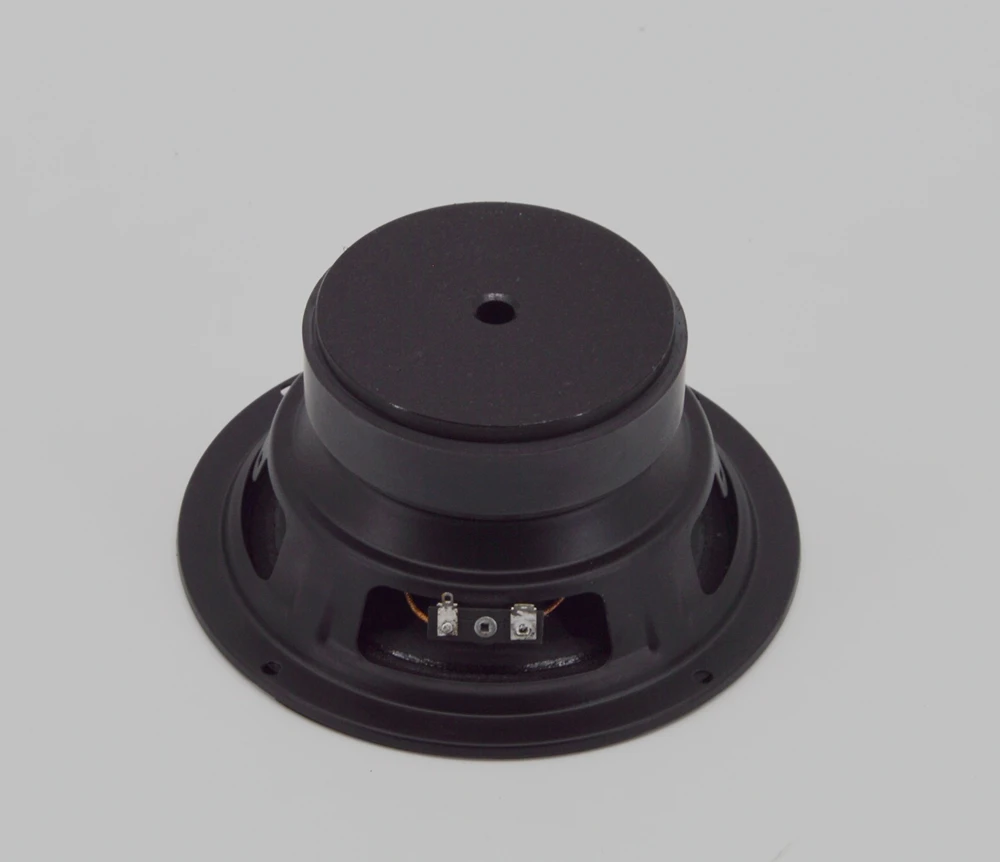

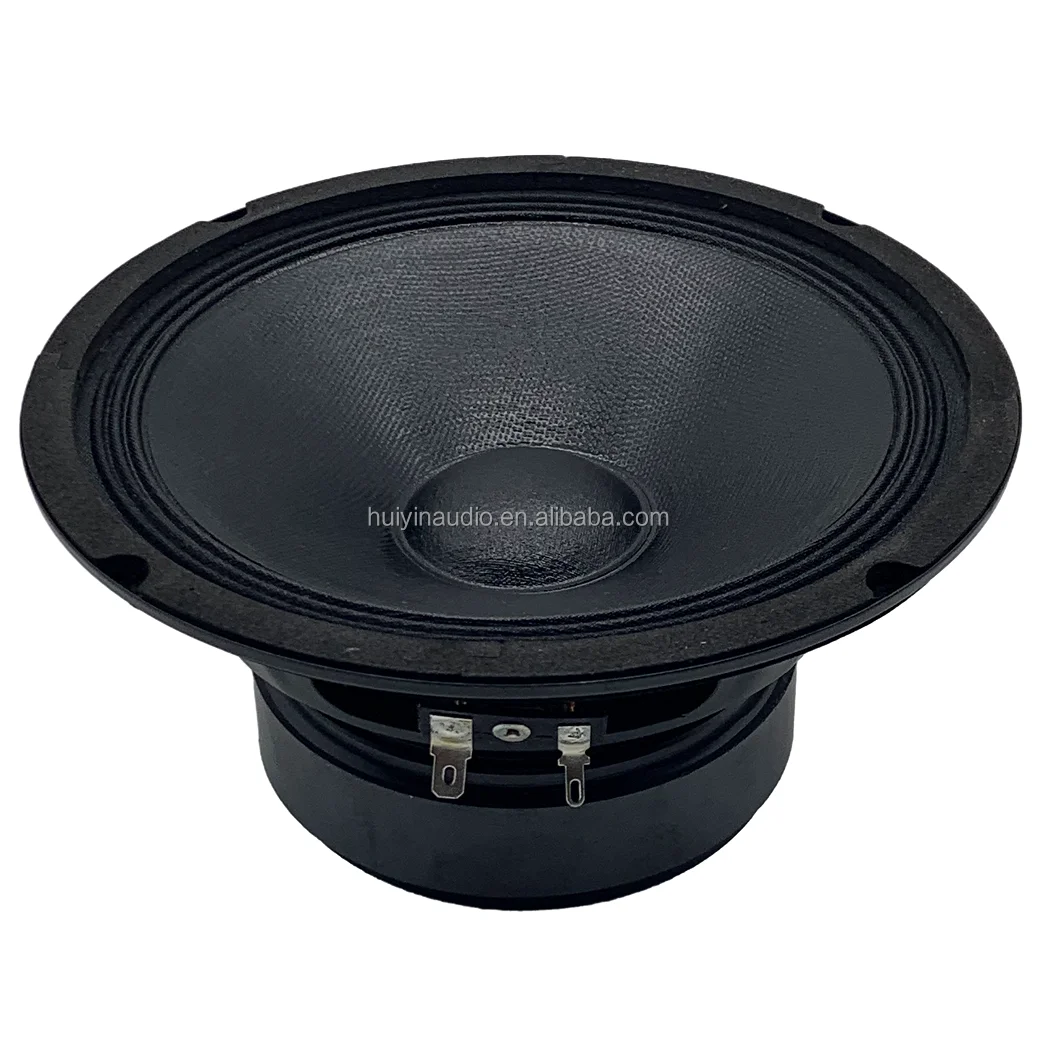

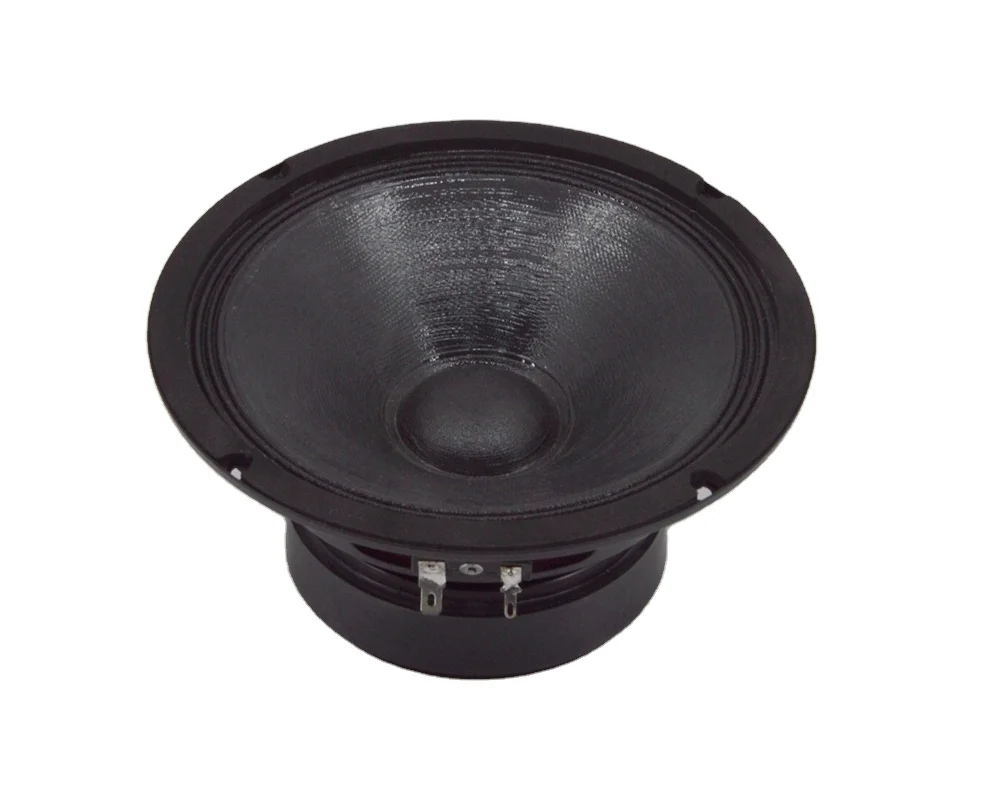

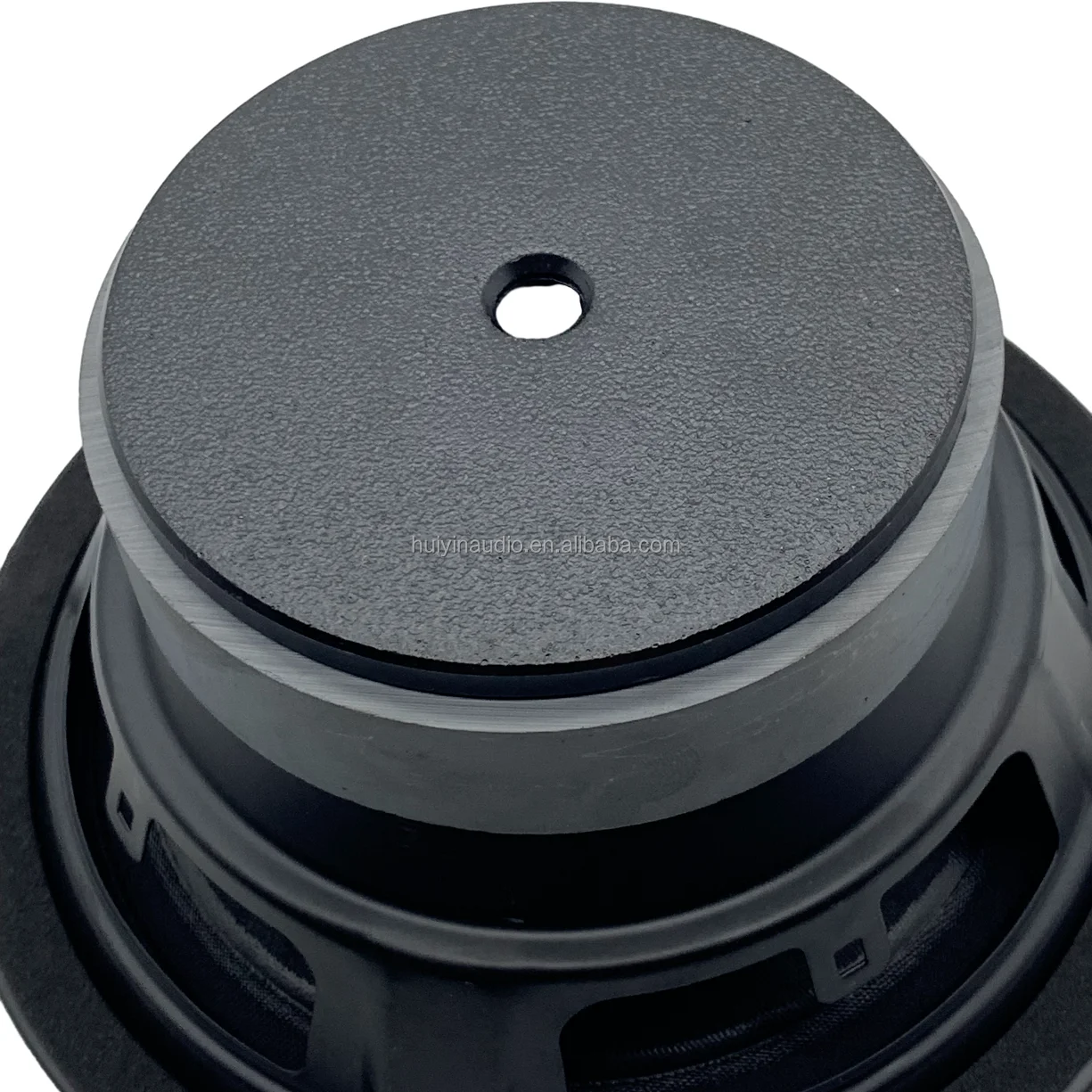

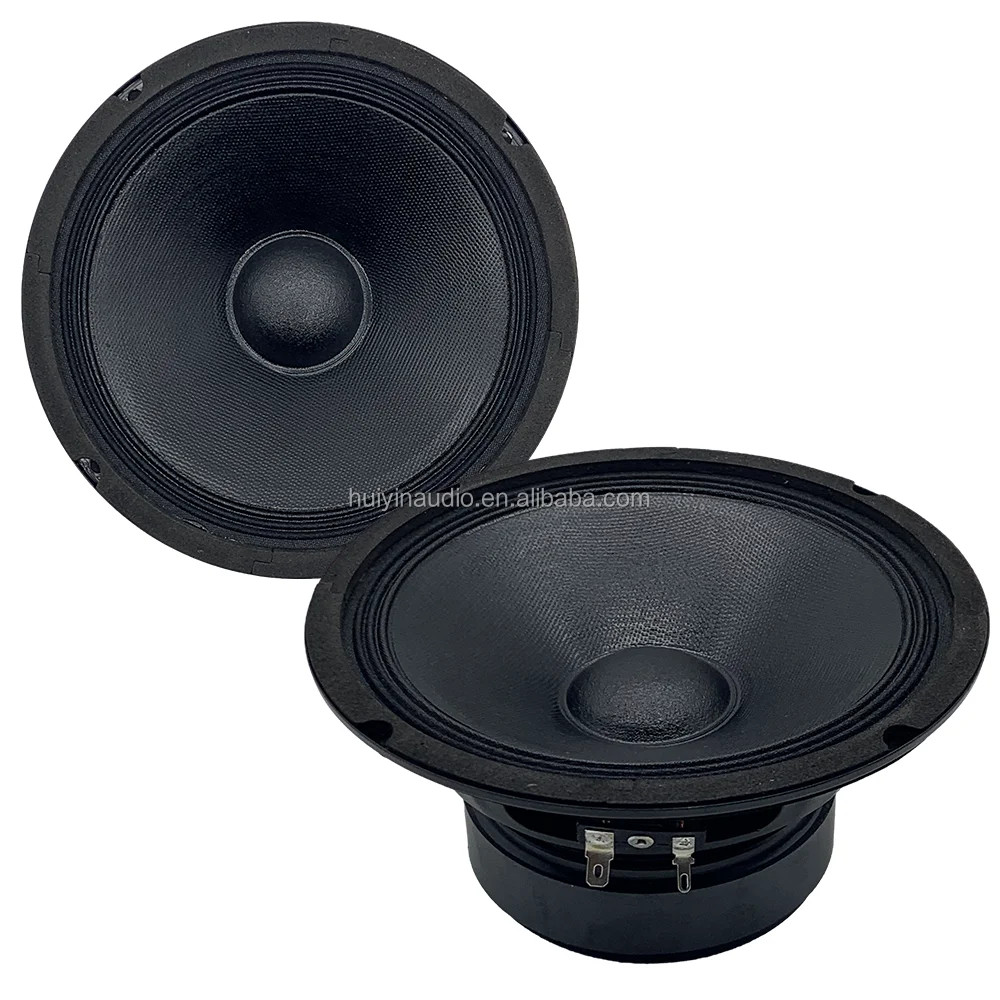

6.5 Inch Cheap Passive Car Speaker 635-119 Loud Sound Midrange with 8 Ohm Impedance Metal Shell
- Overview
- Recommended Products
Product Description
This 6.5 inch mid range Speaker is designed for pure mid range requirements, high sensitivity 92dB 1w/1m.
Specification
Features :
- 6.5 inch mid range speakers for professional audio or car audio
- Light paper cone for high efficiency requested usage
- 94dB sensitivity 1W/1M
- 120WRMS, 240W Max power handling
- 90hz-8khz Frequency response
- Ferrite magnet
- 1.4 inch/ 35mm copper voice coil
- Steel basket for economical speakers demand
Specification :
Specification |
||||
Nominal diameter |
160/6.5 |
mm/inch |
||
Nominal impedance |
8 |
ohm |
||
Min impedance |
5.2 |
ohm |
||
Frequency response |
90-8k |
Hz |
||
Magnet material |
Ferrite |
|||
Sensitivity (1w/1m) |
94 |
dB |
||
RMS power handling |
120 |
Watts |
||
Continuous power handling |
240 |
Watts |
||
Voice coil diameter |
35/1.4 |
mm/ inch |
||
Winding material |
Copper |
|||
Cone material |
Paper |
|||
Surround material |
Cloth |
|||
T/S Parameter |
||||
Fs |
113 |
Hz |
||
Re |
7.2 |
Ω |
||
Qes |
0.8985 |
|||
Qts |
0.6898 |
|||
Qms |
2.97 |
|||
Vas |
5.39 |
L |
||
Rms |
0.6 |
kg/s |
||
Cms |
0.31 |
mm/N |
||
BI |
7.7 |
N/A |
||
Shipping information |
||||
Net weight |
1.46 KG |
KG |
||
Shipping weight |
2 KG |
KG |
||
Shipping box |
200x200x100 |
mm |
||
