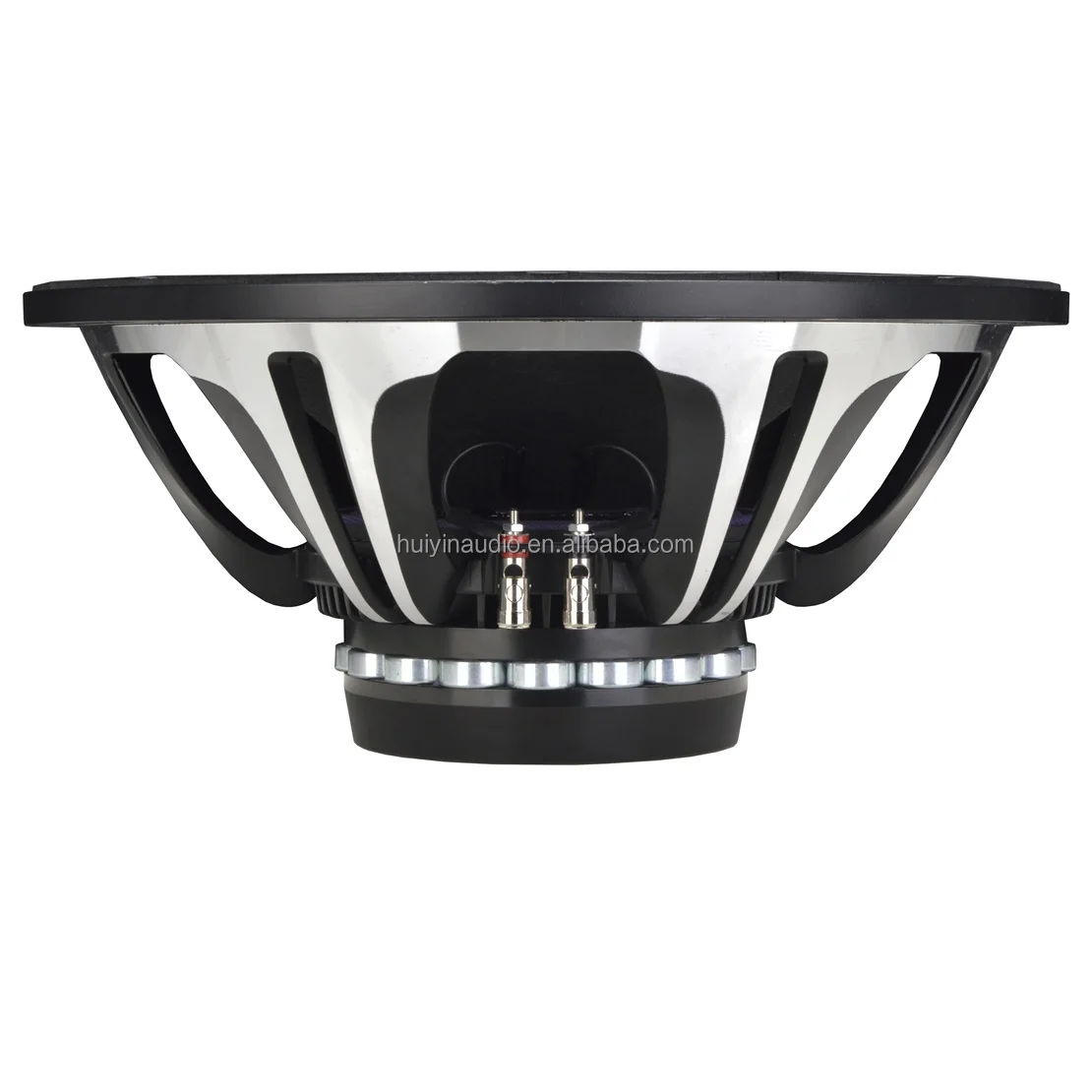

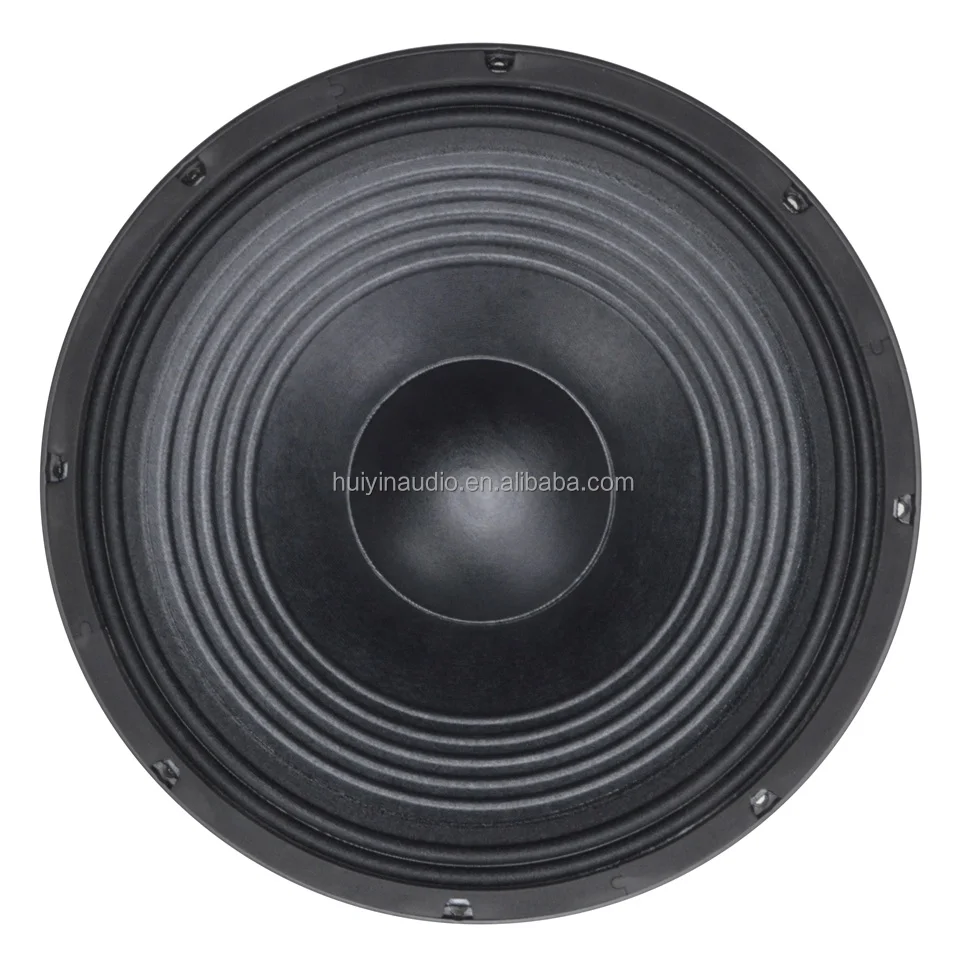

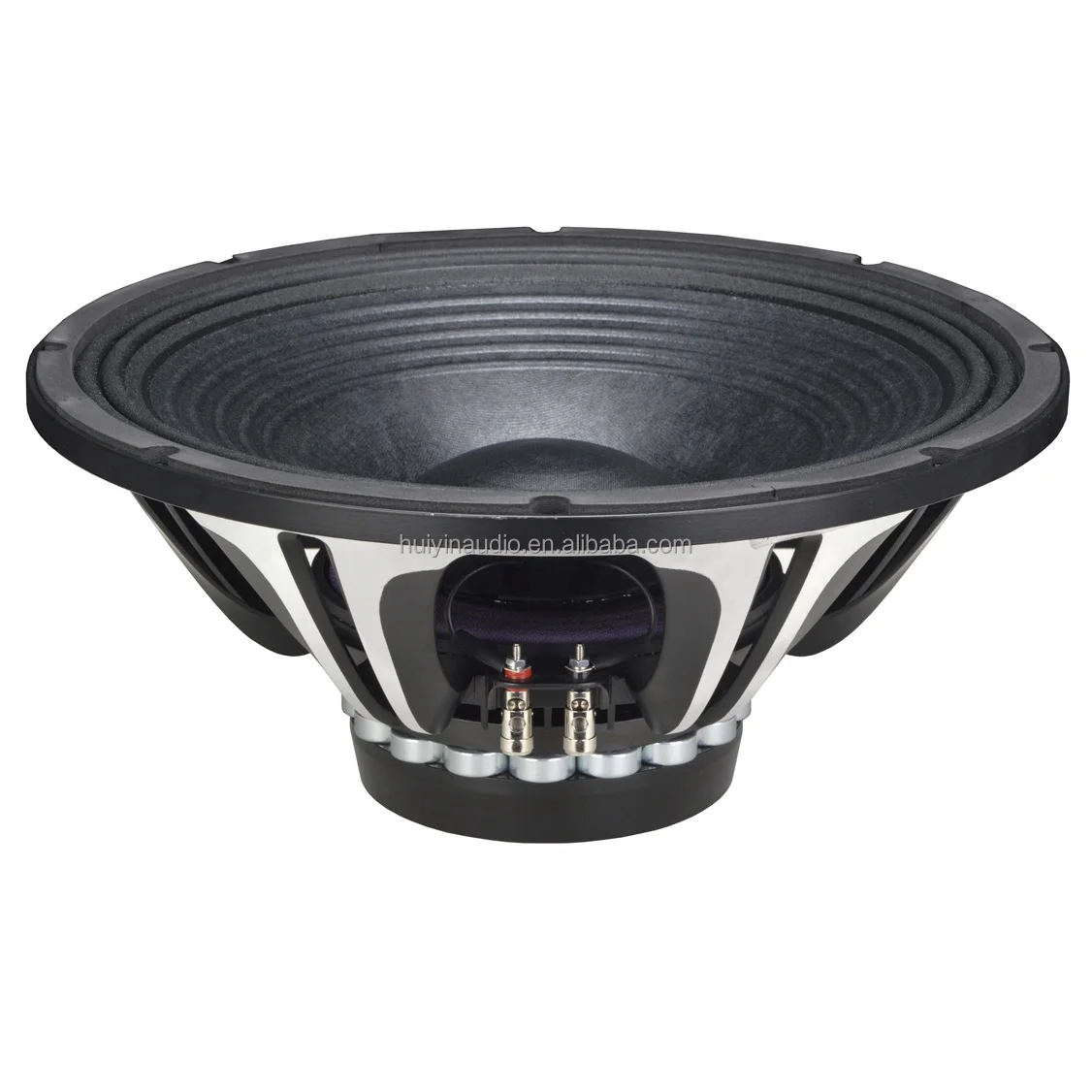

700W RMS 15 Inch Neodymium Subwoofer Speaker 15100-062N 4 Inch Voice Coil Treated Paper Cone Bass Speaker for Line Array

Spu:

1601614740153

General Information

15 inch subwoofer speaker

15 inch woofer speaker

15 inch subwoofers

15 inch bass speaker

15 inch neodymium woofer speaker

4 inch voice coil

700W RMS

1400W MAX

103dB Sensitivity

Frequency Range 47Hz-3KHz

3mm Xmax

Aluminium round wire inside and outside 1 layer

10 inch/ 12 inch/ 15 inch/ 18 inch are all available

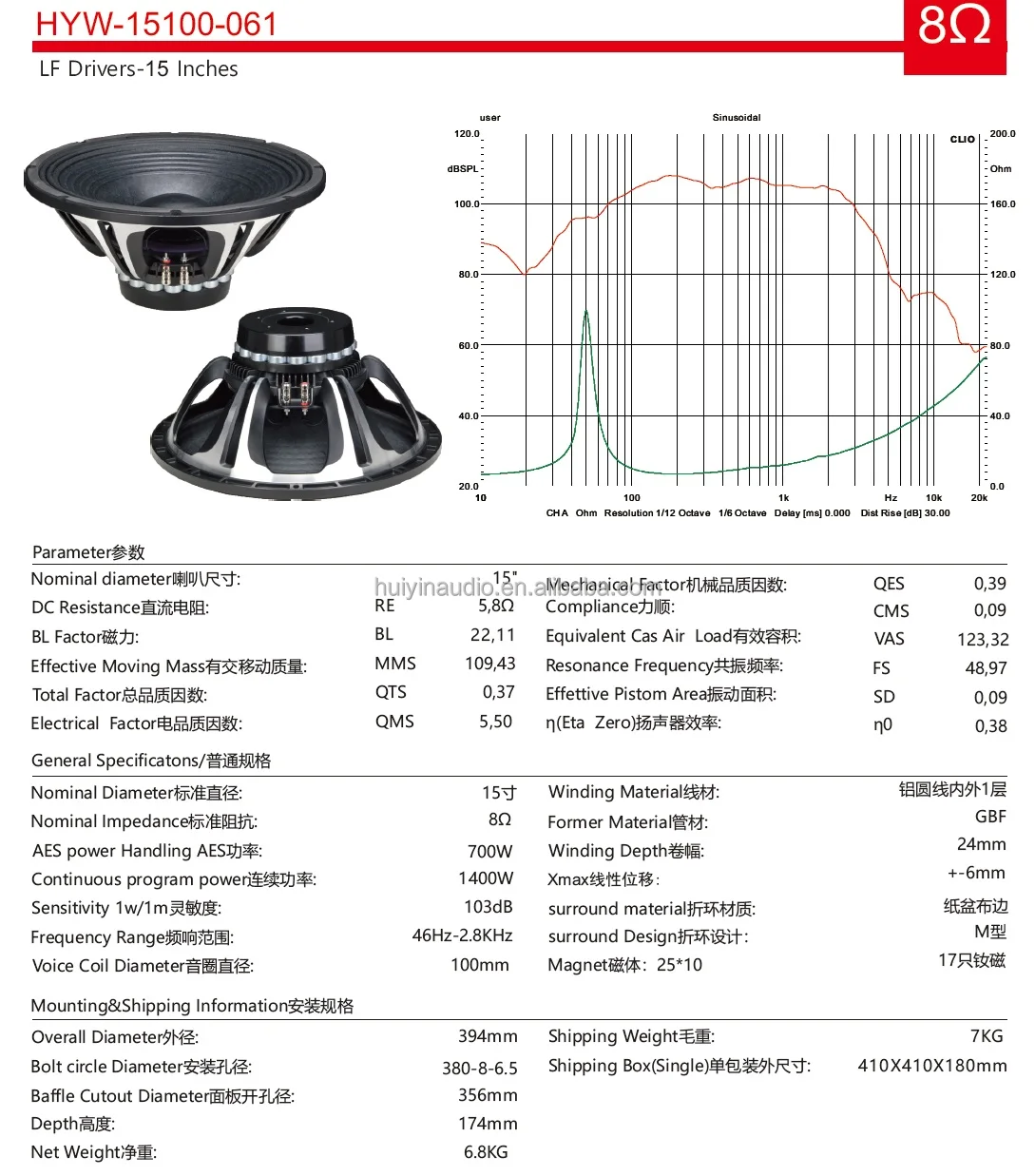

Product Paramenters

*Model Number*	*HYW-15100-061N*
*Parameters*
Nominal diameter	15"
DC Resistance/ RE	5.8Ω
BL Factor/ BL	22,11
Effective Moving Mass/ MMS	109,43
Total Factor/ QTS	0,37
Electrical Factor/ QMS	5,50
Mechanical Factor/ QES	0,39
Compliance/ CMS	0.09
Equivalent Cas Air Load/ VAS	123,32
Resonance Frequency/ FS	48,97
Effettive Pistom Area/ SD	0,09
Eta Zero/ η0	0,38
*General Specificatons*
Nominal Diameter	15 Inch
Nominal Impedance	8Ω
AES power Handling	700W
Continuous program power	1400W
Sensitivity 1w/1m	103dB
Frequency Range	46Hz-2.8KHz
Voice Coil Diameter	100mm voice coil/ 4 inch voice coil
Winding Material	Aluminium round wire inside and outside 1 layer
Former Material	GBF
Winding Depth	24mm
Magnetic Gap Depth	+/- 6mm
Surround material	Treated Paper Cone + Cloth Surround
Surround Design	M
Magnet	251017pcs Neodymium Magnets
*Mounting & Shipping Information*
Overall Diameter	394mm
Bolt circle Diameter	380-8-6.5
Baffle Cutout Diameter	356mm
Depth	174mm
Net Weight	6.8KG
Shipping Weight	7.0KG
Shipping Box	42X42X18CM
