8 Inch Guitar Speaker 850-046 Coaxial Speaker Portable Speaker Driver High SPL 97dB Light Weight

8 Inch Guitar Speaker 850-046 Coaxial Speaker Portable Speaker Driver High SPL 97dB Light Weight

Spu:

60629548747

Overview
Recommended Products

Product Description

product 8 inch guitar speaker 850 046 coaxial speaker portable speaker driver high spl 97db light weight-0

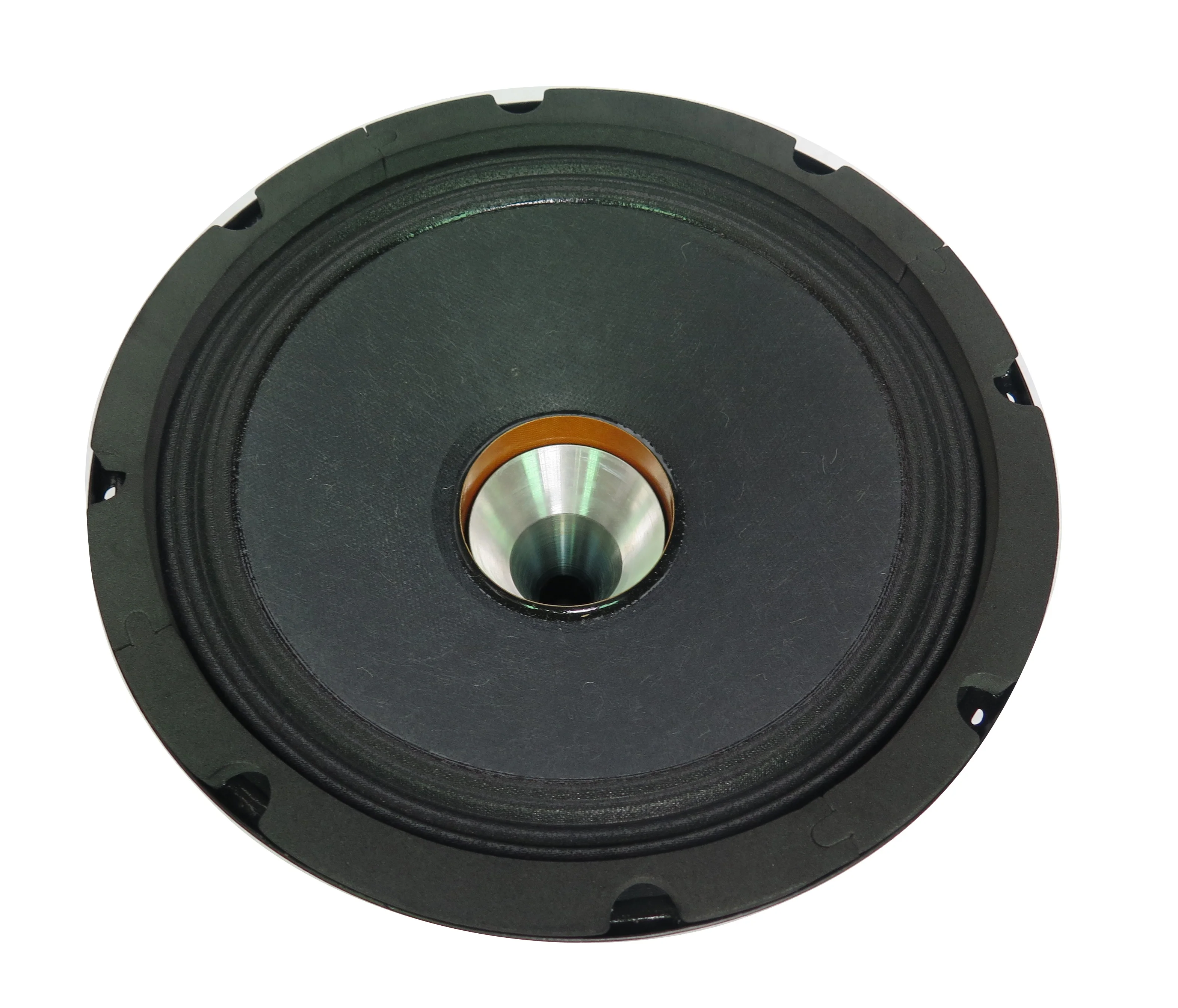

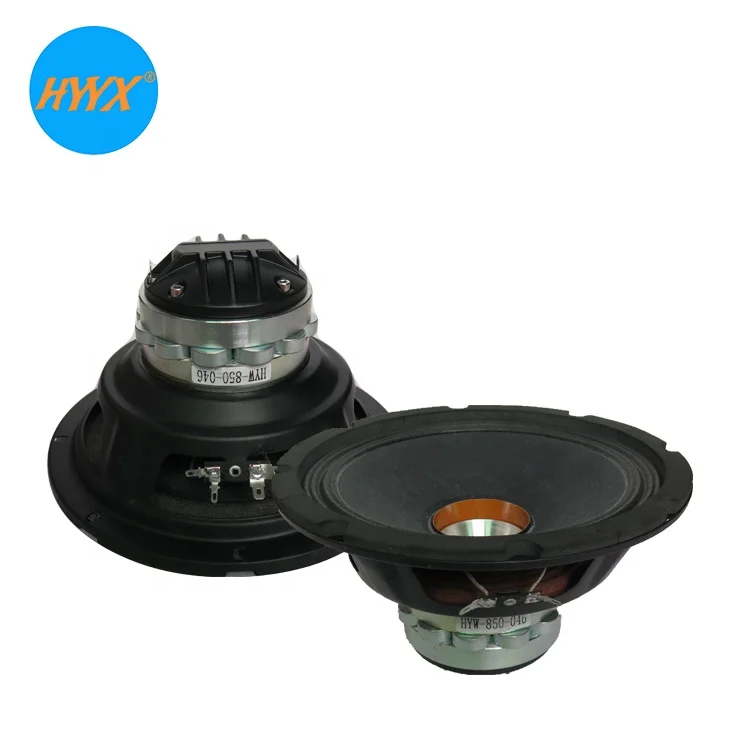

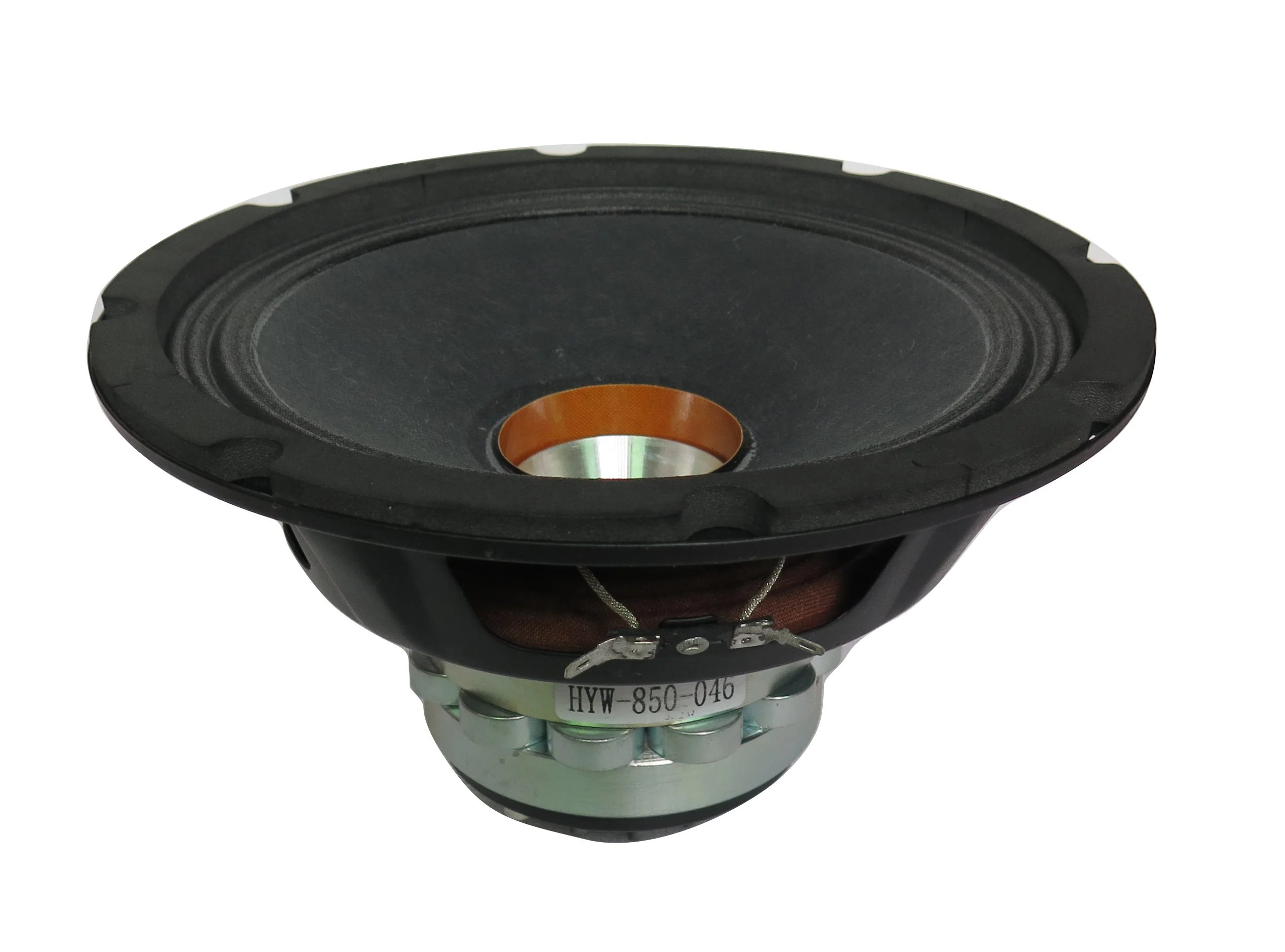

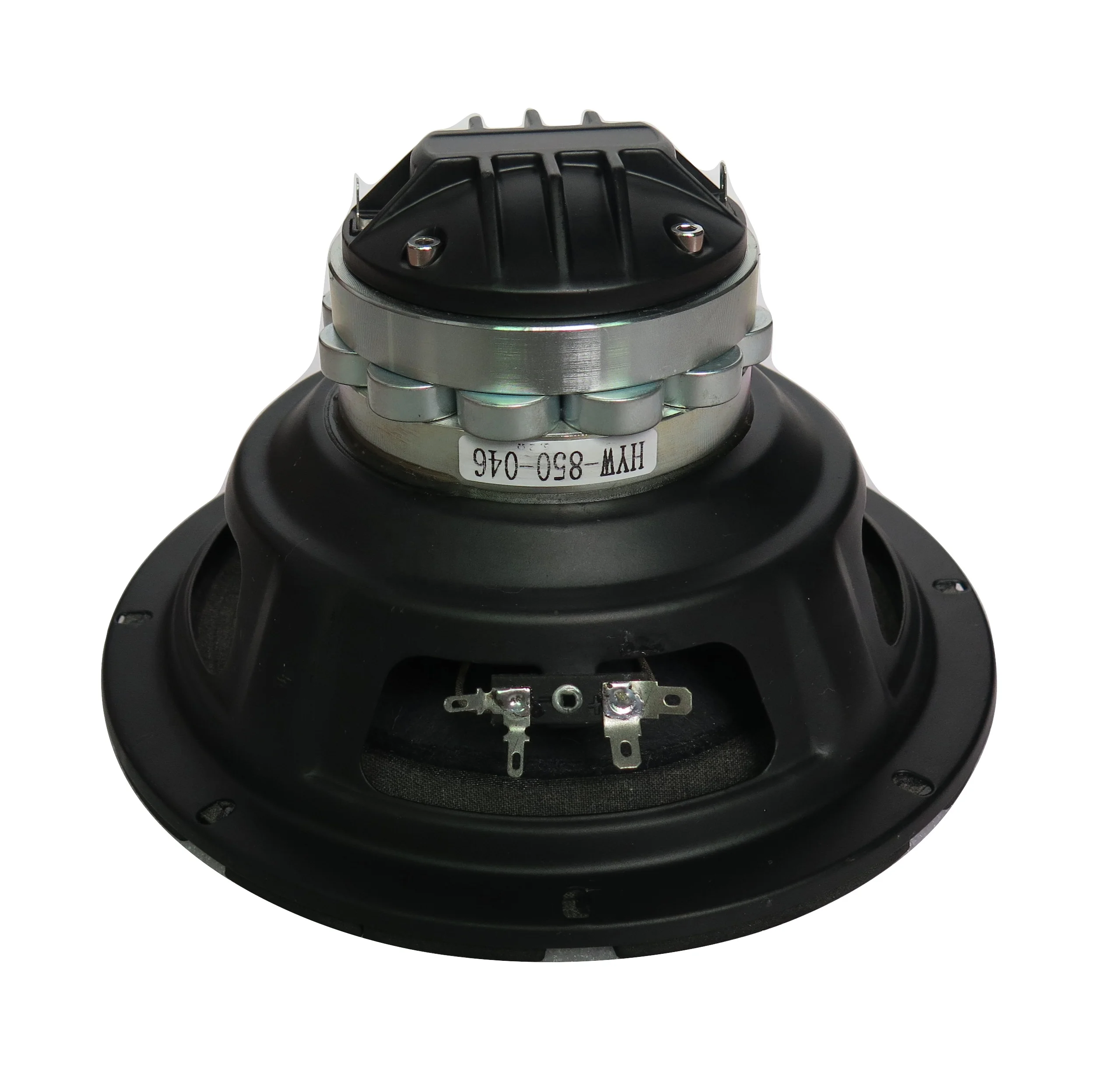

This 8 inch Neodymium coaxial Speakers offers outstanding efficiency , high sensitivity 97dB. Low weight makes it suitable for Portable speaker system, Guitar speakers and other speaker system with limited weight .

Specification

Features :

_{1, 8 inch coaxial loudspeaker with 46-20,000Hz frequency response}

_{2, 150Wrms power handling and 97dB sensitivity 1w/1m
3, 2 inch /50mm high temperature copper voice coil wound
4, Steel frame and neodymium magnet
5, Compact, lightweight neodymium compression driver
6, Ideal model for portable speaker system, Guitarspeakers and other speaker system with limited weight
7, More size for choice ( 5", 6.5" , 8" . 10", 12" and 15" )}

Specification
Nominal diameter	200/8	mm/inch
Nominal impedance	8/4	ohm
Min impedance	5.2/3.6	ohm
Frequency response	46-20k	Hz
Magnet material	Neodymium
Sensitivity (1w/1m)	97	dB
RMS power handling	150	Watts
Continuous power handling	600	Watts
LF Voice coil diameter	50/2	mm/ inch
Winding material	Copper
Cone material	Paper
Surround material	Cloth
HF driver VC size	35mm/ 1.4 inch
HF driver diaphragm	Titanium
T/S Parameter
Fs	46.7	Hz
Re	5.2	Ω
Qes	0.33
Qts	0.32
Qms	10.7
Vas	32.9	L
Rms	0.6	kg/s
Cms	0.51	mm/N
Mms	22.6	gr
BI	10.2	N/A
Rp	114.6	Ω
Lp	58.1	mH
Cp	437.5	uF
Le	0.8	mH
Xmax	6	mm
Mounting information
Overall diameter	210/8.26	mm/inch
Bolt Circle diameter	198/7.75	mm/inch
Baffle Cutout diameter	184/7.24	mm/inch
Total Depth	117/4 .6	mm/inch
Flange thickness	5/1.96	mm/inch
Shipping information
Net weight	1.9	KG
Shipping weight	2.5	KG
Shipping box	240x240x150	mm
