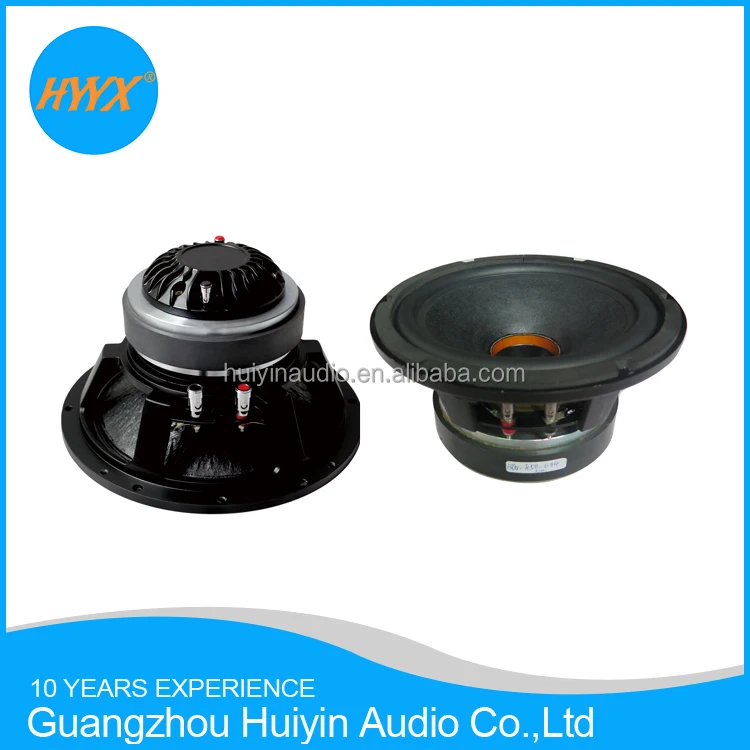

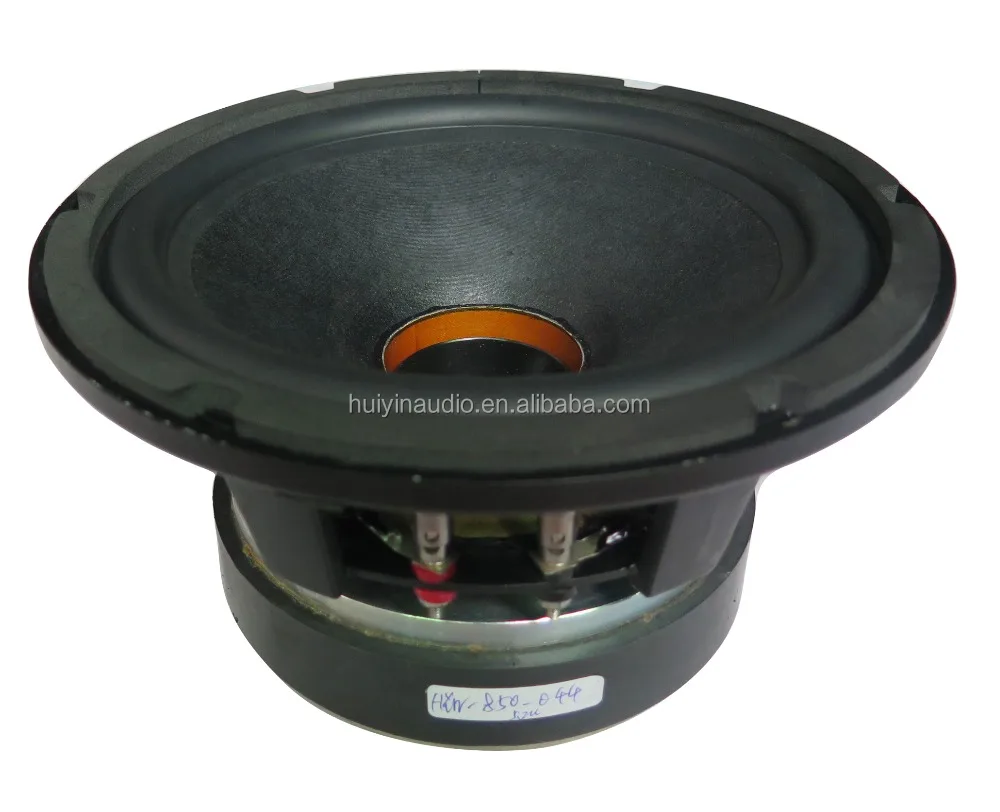

8-Inch HiFi Coaxial Home Audio Speaker 850-044 with 250WRMS for Line Array Use 8 Inch HiFi Coaxial Speaker
Spu:
60517066421
- Overview
- Recommended Products
Product Description
Features :
- 500W continuous program power capacity
- 91dB sensitivity
- 50hz-20khz Frequency response
- Single magnet design
- Titanium diaphragm for HF driver
- 25mm(1") HF throat size
- 2" LF VC + 1.7" HF VC
- Replacement diaphragm for HF , Titanium or Polyester
- Rubber surround design , ideal for HiFi home audio system .
Specification |
||||
21Nominal diameter |
210/8 |
mm/inch |
||
Nominal impedance |
8 |
ohm |
||
Min impedance LF |
5.2 |
ohm |
||
Min impedance HF |
6 |
ohm |
||

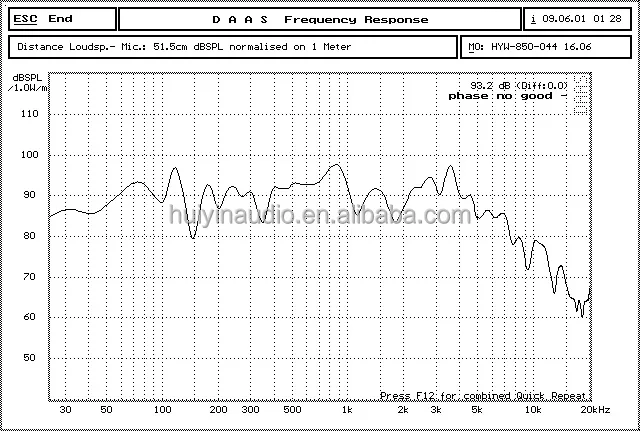

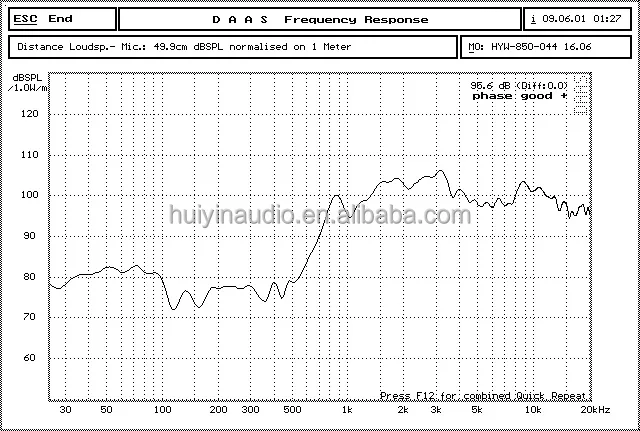

Frequency response |
50-20k |
Hz |
||
Dispersion angle |
70 |
° |
||
Magnet size |
145x25 |
mm |
||
Magnet material |
Ferrite |
|||
Specification LF |
||||
Sensitivity (1w/1m) |
91 |
dB |
||
Nominal power handling |
250 |
Watts |
||
Continuous power handling |
500 |
Watts |
||
Voice coil diameter |
50/2 " |
mm/ inch |
||
Winding material |
Copper |
|||
Cone material |
Paper |
|||
Surround material |
Rubber |
|||
Specification HF |
||||
Throat size |
25/1 |
mm/inch |
||
Sensitivity (1w/1m) |
107 |
dB |
||
Nominal power handling |
50 |
Watts |
||
Continuous power handling |
100 |
Watts |
||
Voice coil diameter |
44/1.7 |
mm/inch |
||
Diaphragm |
Titanium / Polyester |
|||
T/S Parameter |
||||
Fs |
51.2 |
Hz |
||
Re |
5.2 |
Ω |
||
Qes |
0.55 |
|||
Qts |
0.53 |
|||
Qms |
14.00 |
|||
Vas |
29.3 |
L |
||
Rms |
0.5 |
kg/s |
||
Cms |
0.47 |
mm/N |
||
Mms |
20.5 |
gr |
||
BI |
7.9 |
N/A |
||
Rp |
87.8 |
Ω |
||
Lp |
29.0 |
mH |
||
Cp |
654.2 |
uF |
||
Le |
0.5 |
mH |
||
Xmax |
6.5 |
mm |
||

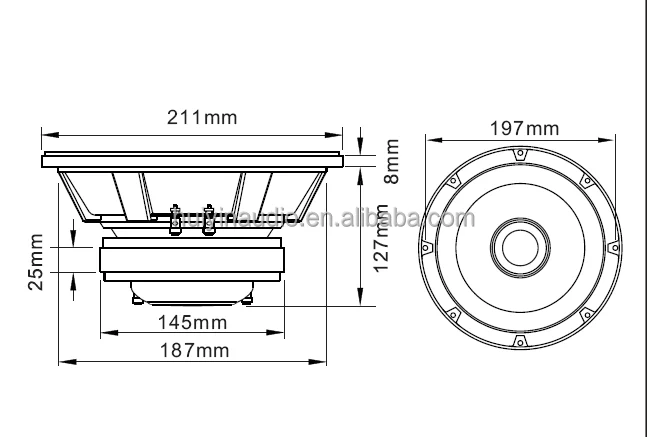

Mounting information |
||||
Overall diameter |
211/8.3 |
mm/inch |
||
Bolt Circle diameter |
197/7.8 |
mm/inch |
||
Baffle Cutout diameter |
187/7.4 |
mm/inch |
||
Depth |
127/5 |
mm/inch |
||
Flange thickness |
8/3.15 |
mm/inch |
||
Shipping information |
||||
Net weight |
4.1 |
KG |
||
Shipping weight |
4.7 |
KG |
||
Shipping box |
250x250x165 |
mm |
||
