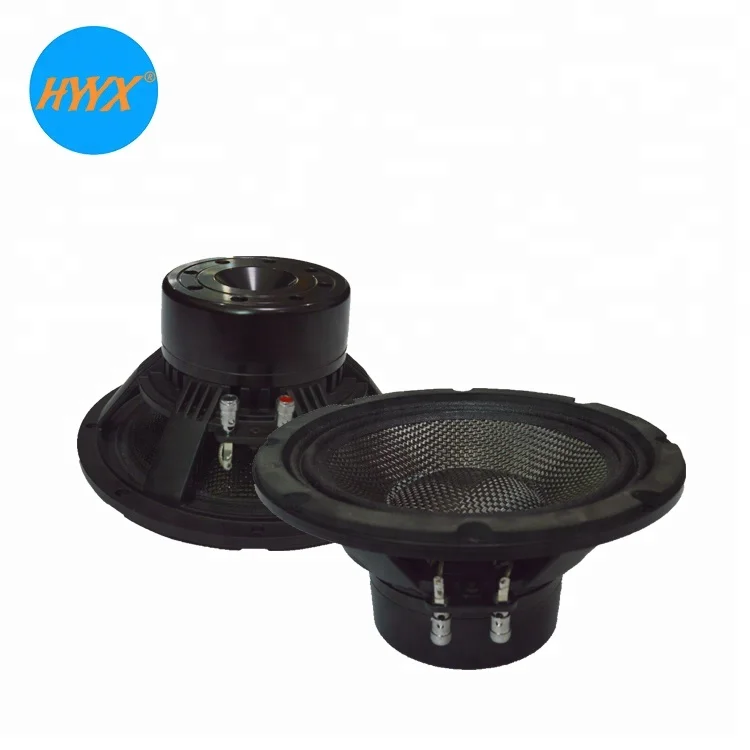

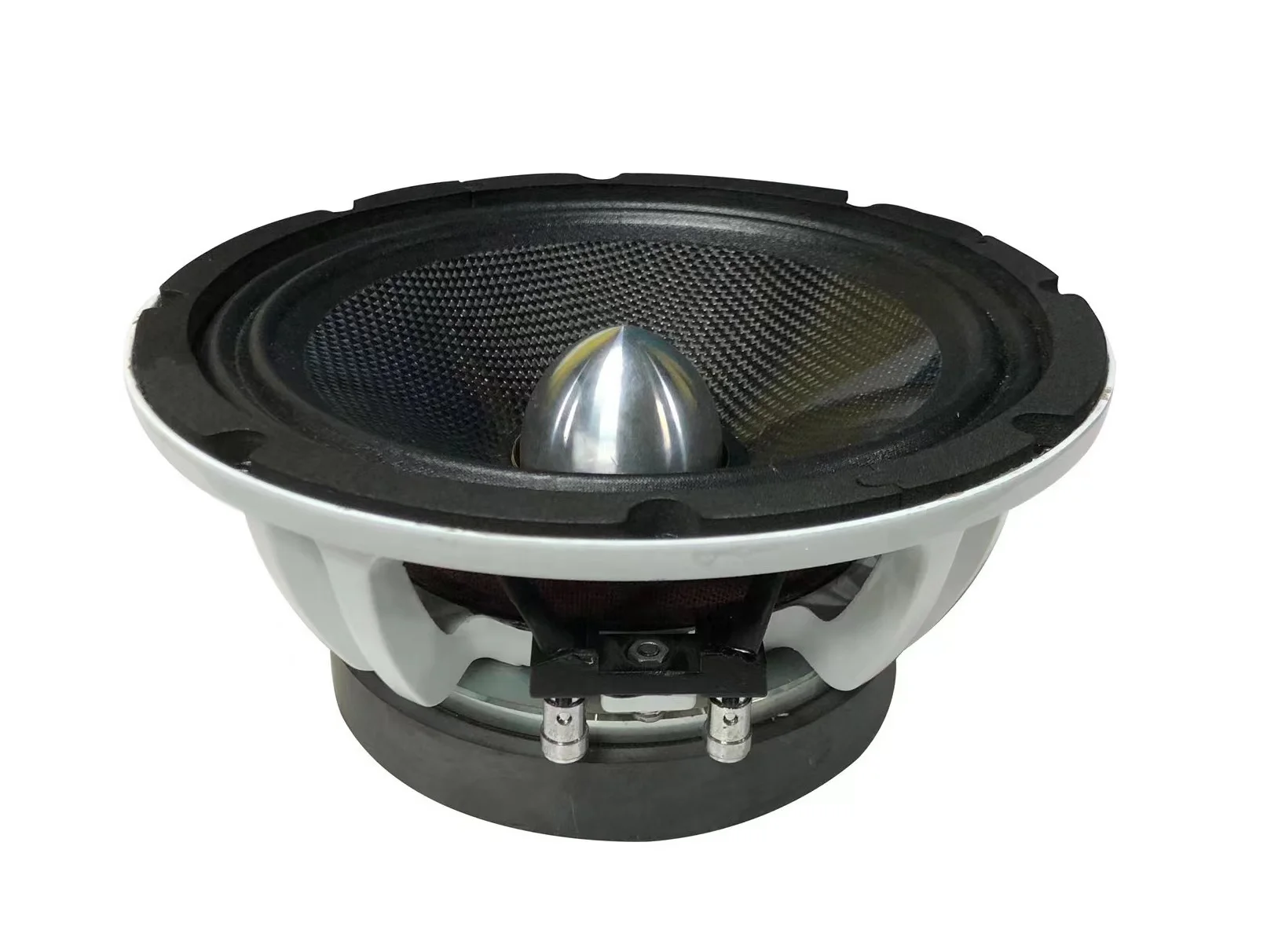

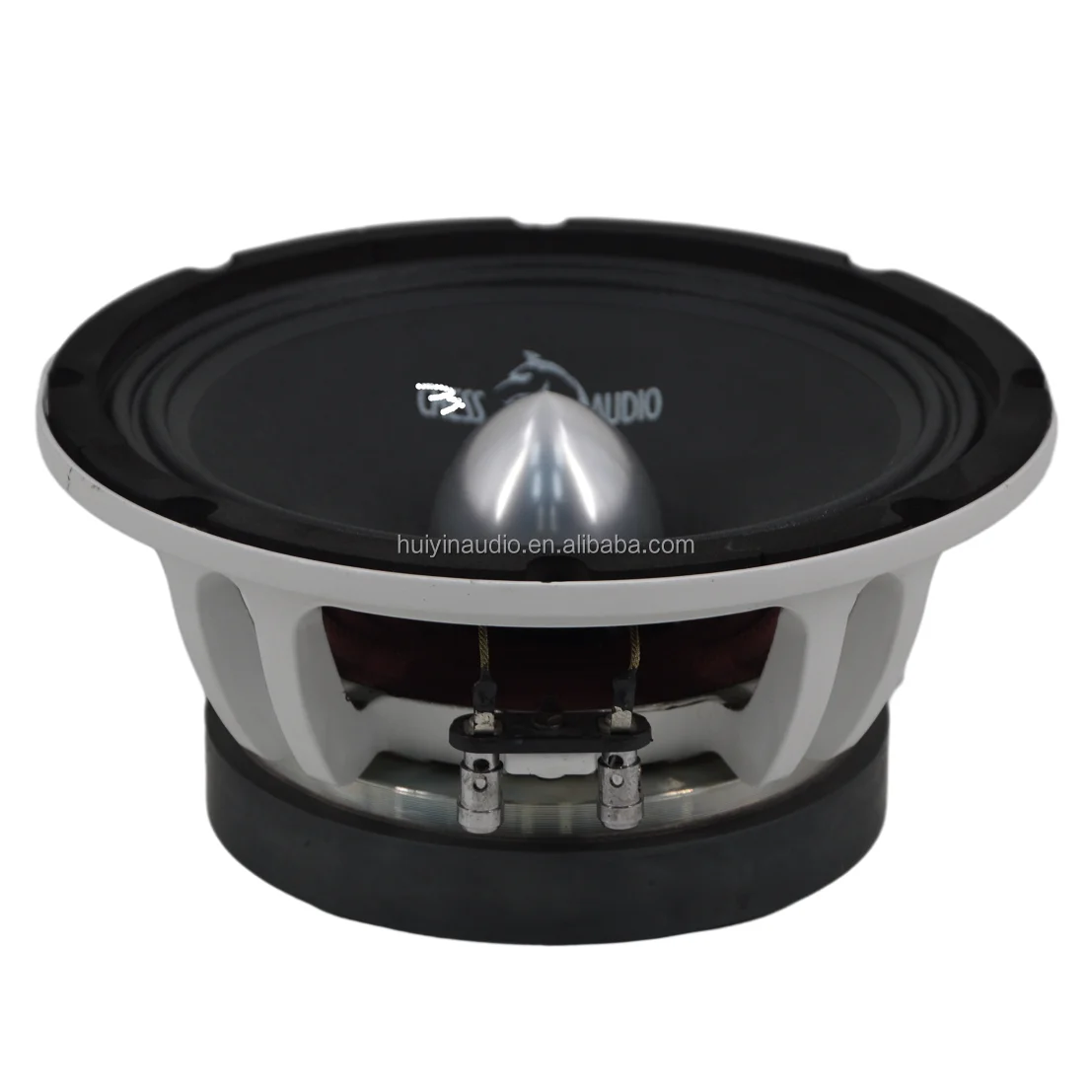

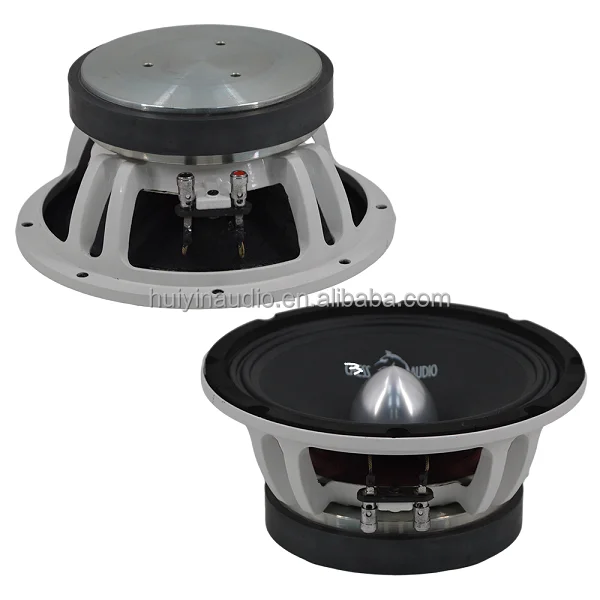

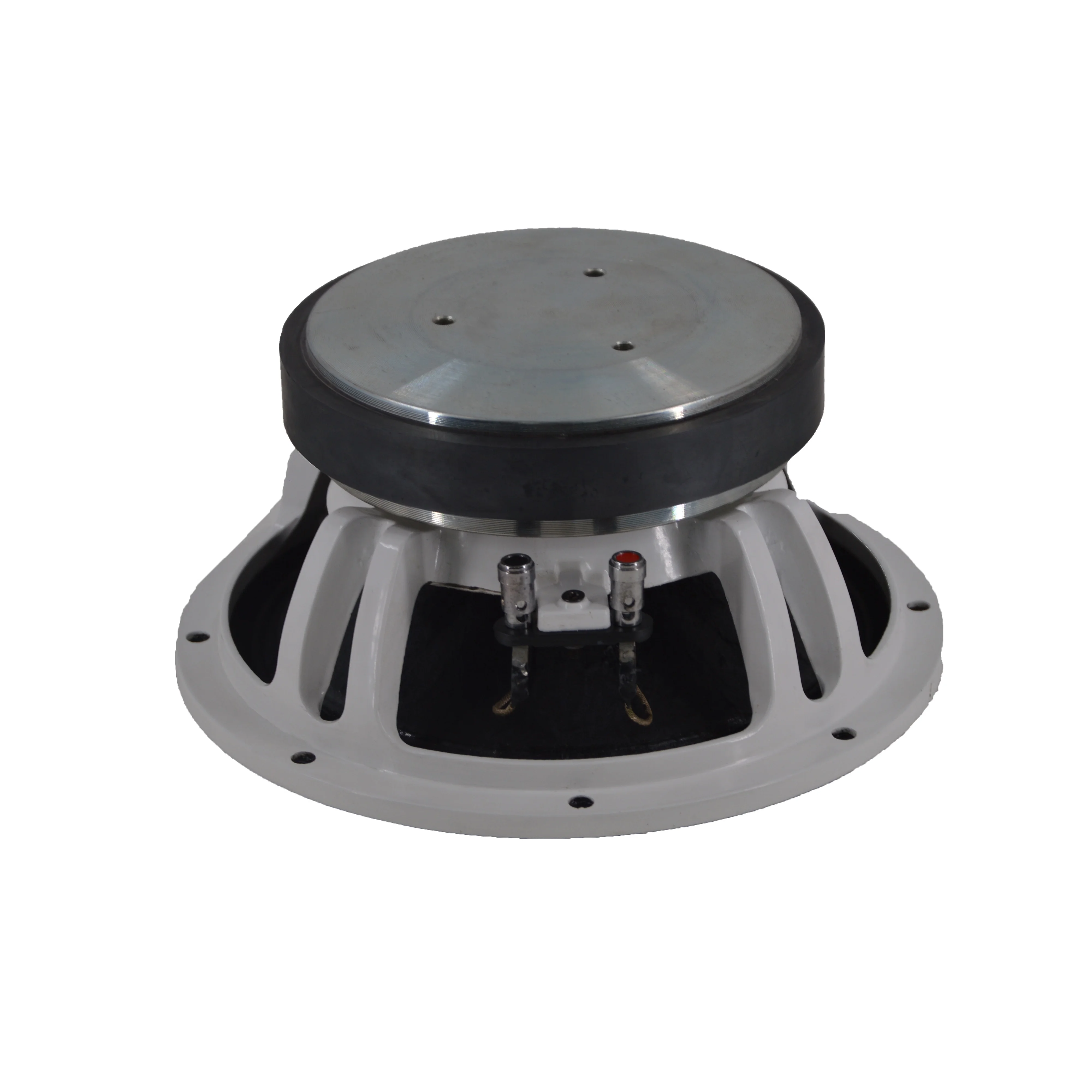

8 Inch Midbass Speaker850-047 for Pro Audio Midrange Speaker With Bullet for Subwoofer Car Audio
- Overview
- Recommended Products
Product Description
This 8 inch midrange Speakers offers outstanding efficiency , high sensitivity 97dB. Its very high power handling(250W RMS ) and Xmax capabilities(6mm) make it suitable for any pro audio speaker enclosure.
Specification
Features :
- 8 inch midrange speakers for professional audio
- 97dB sensitivity 1W/1M
- 250W RMS , 500W Max power handling
- 72hz-4khz Frequency response
- Ferrite magnet
- 2 inch/ 50mm copper voice coil
Specification :
Specification |
||||
Nominal diameter |
200/8 |
mm/inch |
||
Nominal impedance |
8/4 |
ohm |
||
Min impedance |
5.2/3.6 |
ohm |
||
Frequency response |
72-4k |
Hz |
||
Magnet material |
Ferrite |
|||
Sensitivity (1w/1m) |
97 |
dB |
||
RMS power handling |
250 |
Watts |
||
Continuous power handling |
500 |
Watts |
||
Voice coil diameter |
50/2 |
mm/ inch |
||
Winding material |
Copper |
|||
Cone material |
Paper |
|||
Surround material |
Cloth |
|||
T/S Parameter |
||||
Fs |
72 |
Hz |
||
Re |
5.2 |
Ω |
||
Qes |
0.37 |
|||
Qts |
0.35 |
|||
Qms |
6.2 |
|||
Vas |
15.37 |
L |
||
Cms |
0.24 |
mm/N |
||
Mms |
20.19 |
gr |
||
BI |
9.36 |
N/A |
||
Mounting information |
||||
Overall diameter |
211 |
mm |
||
Bolt Circle diameter |
196 |
mm |
||
Baffle Cutout diameter |
185 |
mm |
||
Depth |
100 |
mm |
||
Flange thickness |
8/0.31 |
mm |
||
Shipping information |
||||
Net weight |
4.4 |
KG |
||
Shipping weight |
5.2 |
KG |
||
Shipping box |
240x240x130 |
mm |
||
