8 Inch Midbass Speaker865-009 Pro Audio Speaker Big Power Midrange Speaker 8 Inch
Spu:
62282755232
- Overview
- Recommended Products
Specification
Features :
- 8 inch woofer speaker
- 350WRMS, 700WMax power
- 98dB sensitivity 1W/1M

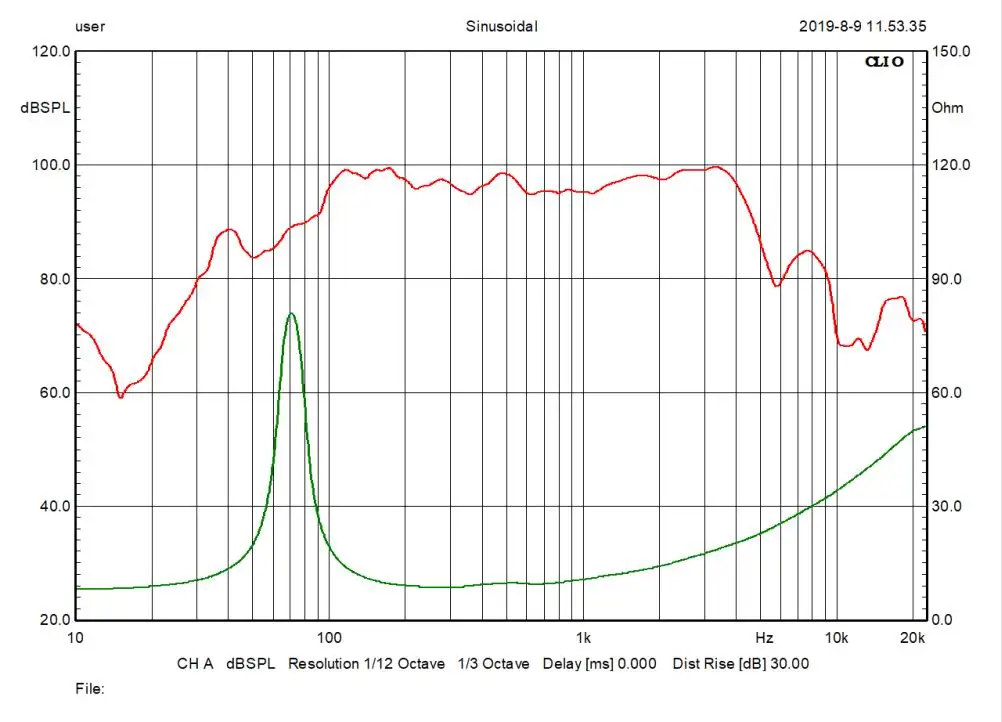

- 70hz-4.5khz Frequency response
- 2.5 inch voice coil CCAW wire
Speccification :
Specification |
||||
Nominal diameter |
200/8 |
mm/inch |
||
Nominal impedance |
8 |
ohm |
||
Min impedance |
5.6 |
ohm |
||
Frequency response |
70-4.5k |
Hz |
||
Magnet material |
Ferrite |
|||
Sensitivity (1w/1m) |
98 |
dB |
||
RMS power handling |
350 |
Watts |
||
Continuous power handling |
700 |
Watts |
||
Voice coil diameter |
65/2.5 |
mm/ inch |
||
Winding material |
CCAW |
|||
Cone material |
Paper |
|||
Surround material |
Cloth |
|||
T/S Parameter |
||||
Fs |
71 |
Hz |
||
Re |
5.8 |
Ω |
||
Qes |
0.45 |
|||
Qts |
0.42 |
|||
Qms |
5.77 |
|||
Vas |
13.6 |
L |
||
Rms |
1.7 |
kg/s |
||
Cms |
0.22 |
mm/N |
||
Mms |
22.3 |
gr |
||
BL |
11.3 |
N/A |
||
Mounting information |
||||
Overall diameter |
225/8.8 |
mm/inch |
||
Bolt Circle diameter |
208/8.2 |
mm/inch |
||
Baffle Cutout diameter |
186/7.3 |
mm/inch |
||
Depth |
100/3.9 |
mm/inch |
||
Shipping information |
||||
Net weight |
3.6 |
KG |
||
Shipping weight |
4.2 |
KG |
||
Shipping box |
220x220x110 |
mm |
||
