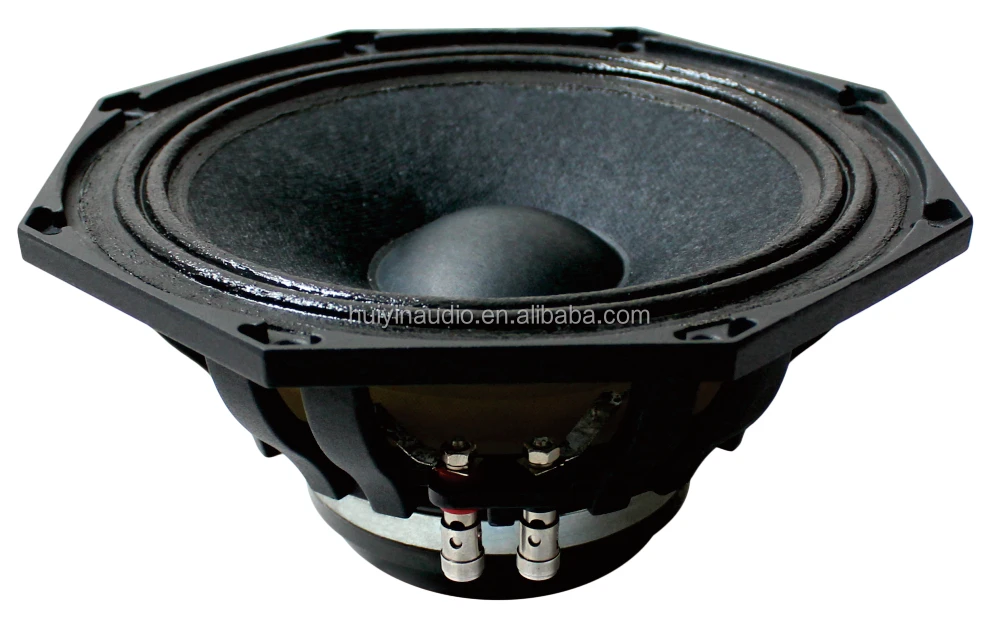

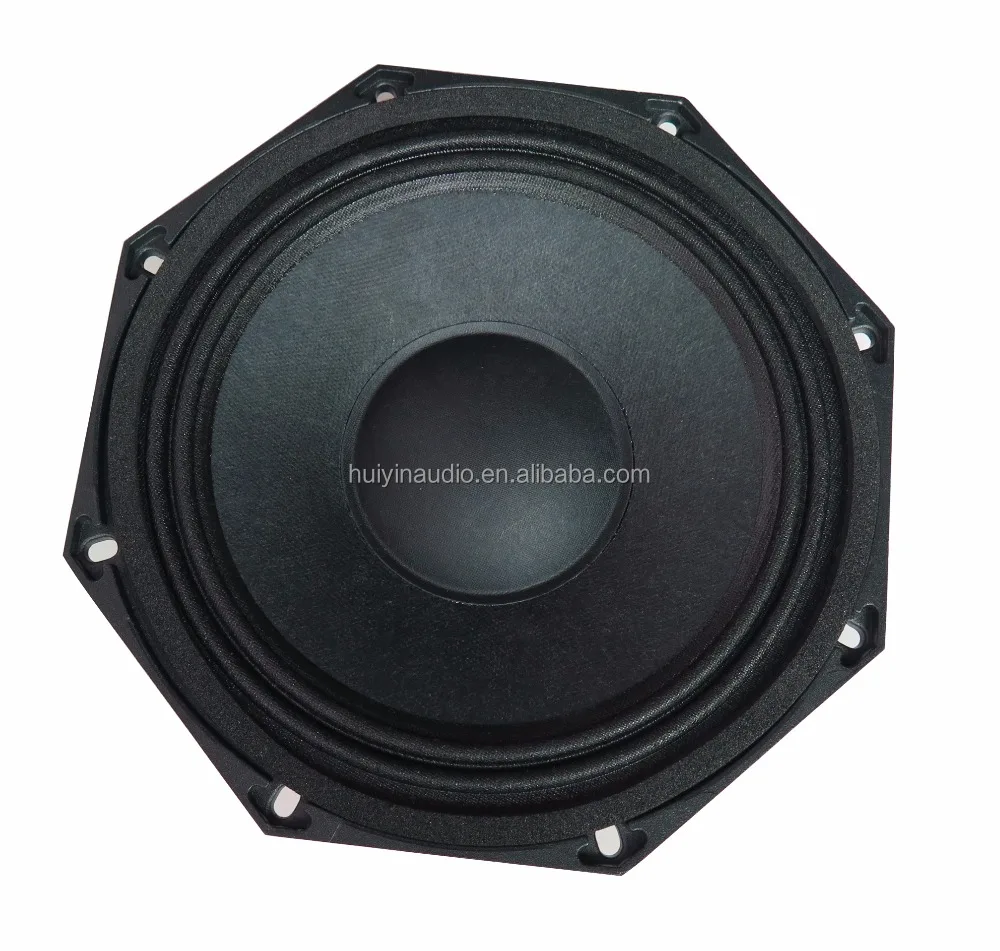

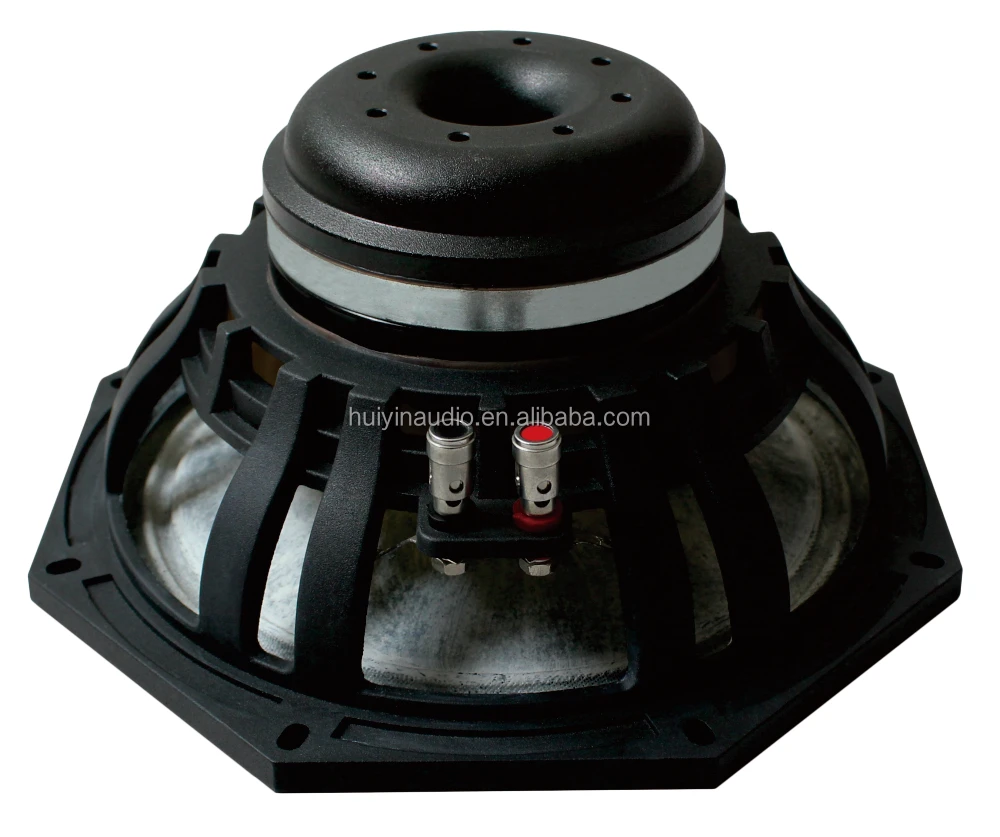

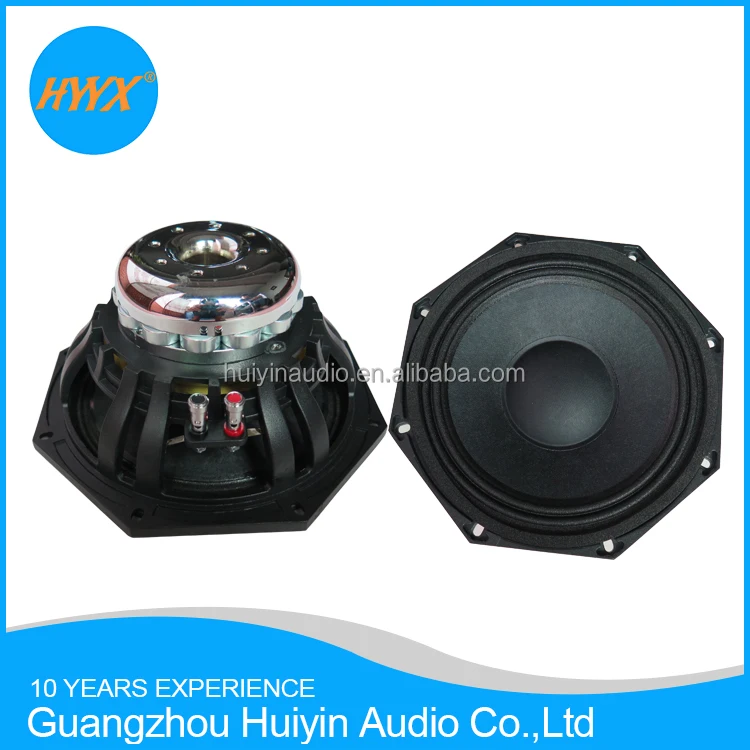

8-Inch Professional Audio PA Midrange Driver 850-037 with Paper Cone Subwoofer RMS 150W 850-037Neodymium Midrange Speaker
Spu:
60514358269
- Overview
- Recommended Products
Product Description
Features :
- 300W continuous program power capacity, 150W RMS power handling
- 97dB sensitivity , Neodymium magnet , high efficiency
- 100hz-5khz Frequency response
- 2" High temperature Copper VC
- Ideal for high quality 3-way speaker system .
Specification |
||||
Nominal diameter |
200/8 |
mm/inch |
||
Nominal impedance |
8 |
ohm |
||
Min impedance LF |
5.2 |
ohm |
||
Min impedance HF |
6 |
ohm |
||
Frequency response |
100-5k |
Hz |
||
Magnet size |
100 |
mm |
||
Magnet material |
Neodymium |
|||
Sensitivity (1w/1m) |
97 |
dB |
||
Nominal power handling |
150 |
Watts |
||
Continuous power handling |
300 |
Watts |
||
Voice coil diameter |
50/2 |
mm/ inch |
||
Winding material |
Copper |
|||
Cone material |
Paper |
|||
Surround material |
Cloth |
|||
T/S Parameter |
||||
Fs |
117 |
Hz |
||
Re |
5.2 |
Ω |
||
Qes |
0.37 |
|||
Qts |
0.34 |
|||
Qms |
3.52 |
|||
Vas |
7.9 |
L |
||
Rms |
3.1 |
kg/s |
||
Cms |
0.12 |
mm/N |
||
Mms |
14.9 |
gr |
||
BI |
12.4 |
N/A |
||
Rp |
54.6 |
Ω |
||
Lp |
20.4 |
mH |
||
Cp |
181.4 |
uF |
||
Le |
0.3 |
mH |
||
Xmax (one-way) |
3 |
mm |
||
Mounting information |
||||
Overall diameter |
208/8.16 |
mm/inch |
||
Bolt Circle diameter |
208/8.16 |
mm/inch |
||
Baffle Cutout diameter |
185/7.28 |
mm/inch |
||
Total Depth |
105/4.13 |
mm/inch |
||
Mounting depth |
97/3.81 |
|||
Flange thickness |
8/0.31 |
mm/inch |
||
Shipping information |
||||
Net weight |
2.3 |
KG |
||
Shipping weight |
3 |
KG |
||
Shipping box |
230x230x130 |
mm |
||
