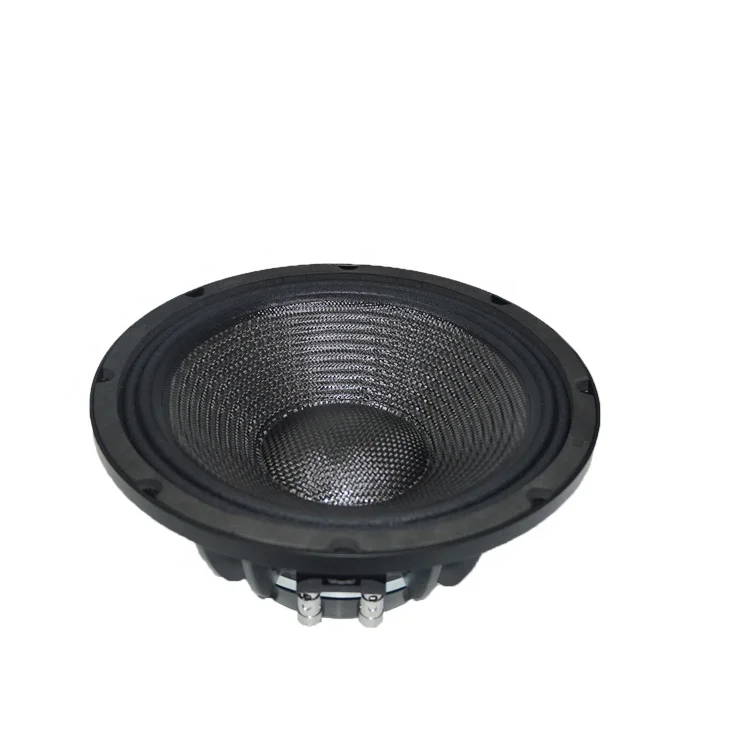

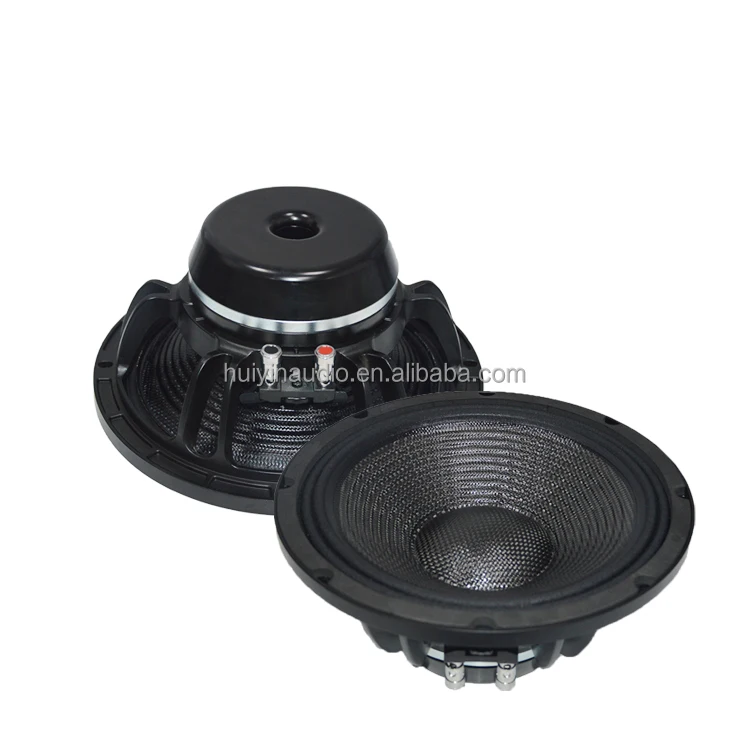

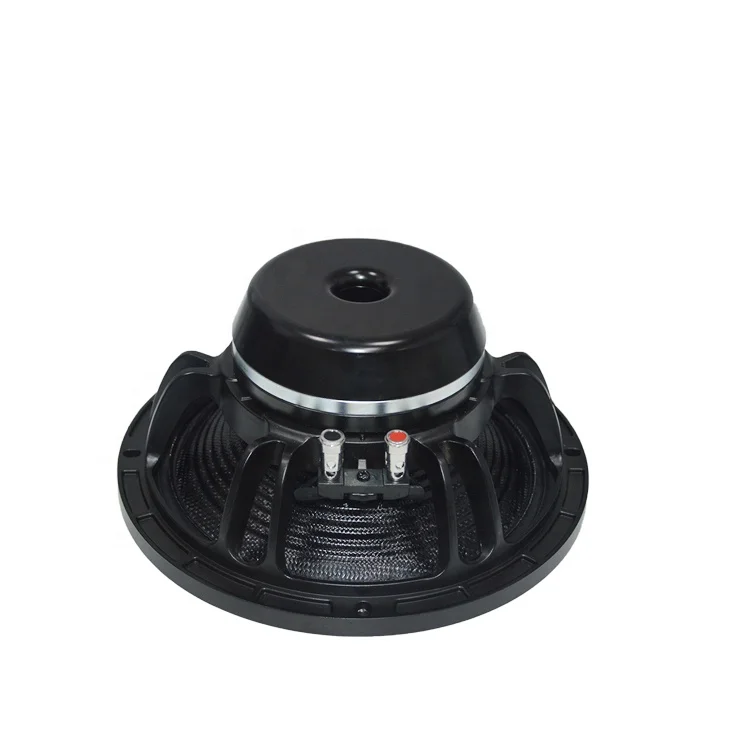

Big Power 10 Inch LF Driver with Carbon Cone Neodymium Magnet pa Speaker Outdoor Speaker Unit
Spu:
1600775212795
- Overview
- Recommended Products
Product Description
This 10 inch Neodymium woofer Speakers offers outstanding efficiency , high sensitivity 97dB. Its very high power handling(400W RMS ) make it suitable for any pro audio speaker enclosure, including LINE ARRAY SPEAKER SYSTEM.
Specification
Features :
- 1600W continuous program power capacity / 400W RMS
- 97dB sensitivity 1W/1M
- 74hz-2khz Frequency response
- Neodymium magnet
- 3 inch/75mm ccaw voice coil

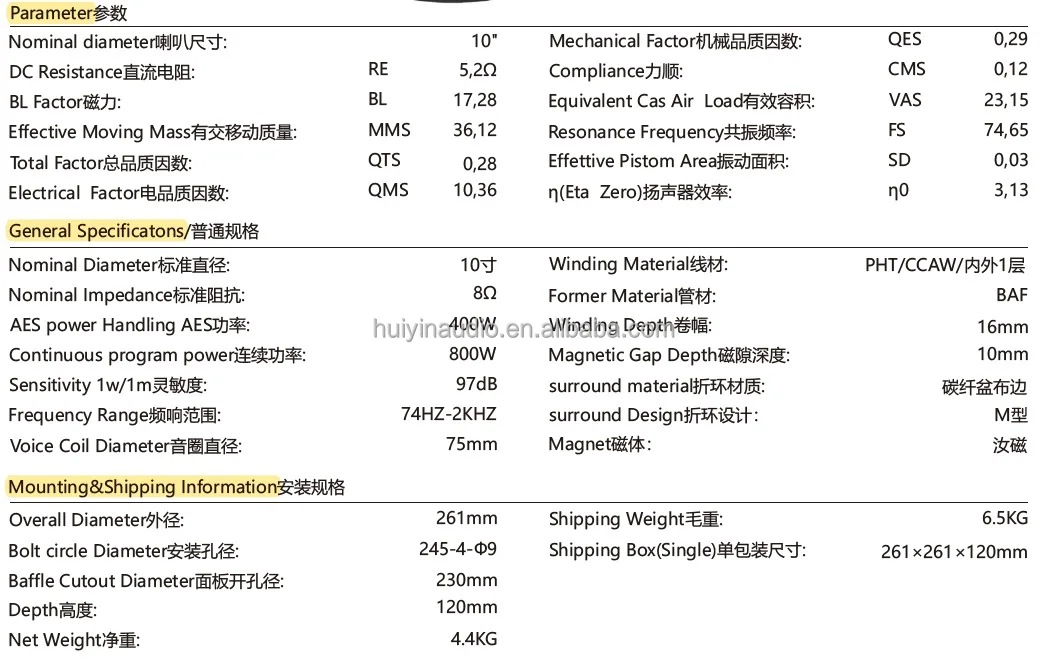

Specification :
Specification |
||||
Nominal diameter |
260/10 |
mm/inch |
||
Nominal impedance |
8 |
ohm |
||
Min impedance |
5.2 |
ohm |
||
Frequency response |
74-2k |
Hz |
||
Magnet material |
Neodymium |
|||
Sensitivity (1w/1m) |
97 |
dB |
||
RMS power handling |
400 |
Watts |
||
Continuous power handling |
1600 |
Watts |
||
Voice coil diameter |
75/3 |
mm/ inch |
||
Winding material |
CCAW |
|||
Cone material |
Carbon |
|||
Surround material |
Cloth |
|||
Dust cap material |
Carbon |
|||
T/S Parameter |
||||
Fs |
74 |
Hz |
||
Re |
5.2 |
Ω |
||
Qes |
0.29 |
|||
Qts |
0.28 |
|||
Qms |
10.36 |
|||
Vas |
23.15 |
L |
||
Cms |
0.1258 |
mm/N |
||
Mms |
36.12 |
gr |
||
BL |
17.28 |
N/A |
||
Mounting information |
||||
Overall diameter |
261 |
mm/inch |
||
Bolt Circle diameter |
245 |
mm/inch |
||
Baffle Cutout diameter |
230 |
mm/inch |
||
Depth |
120 |
mm/inch |
||
Shipping information |
||||
Net weight |
4.4 |
KG |
||
Shipping weight |
5.5 |
KG |
||
Shipping box |
300x300x200 |
mm |
||
