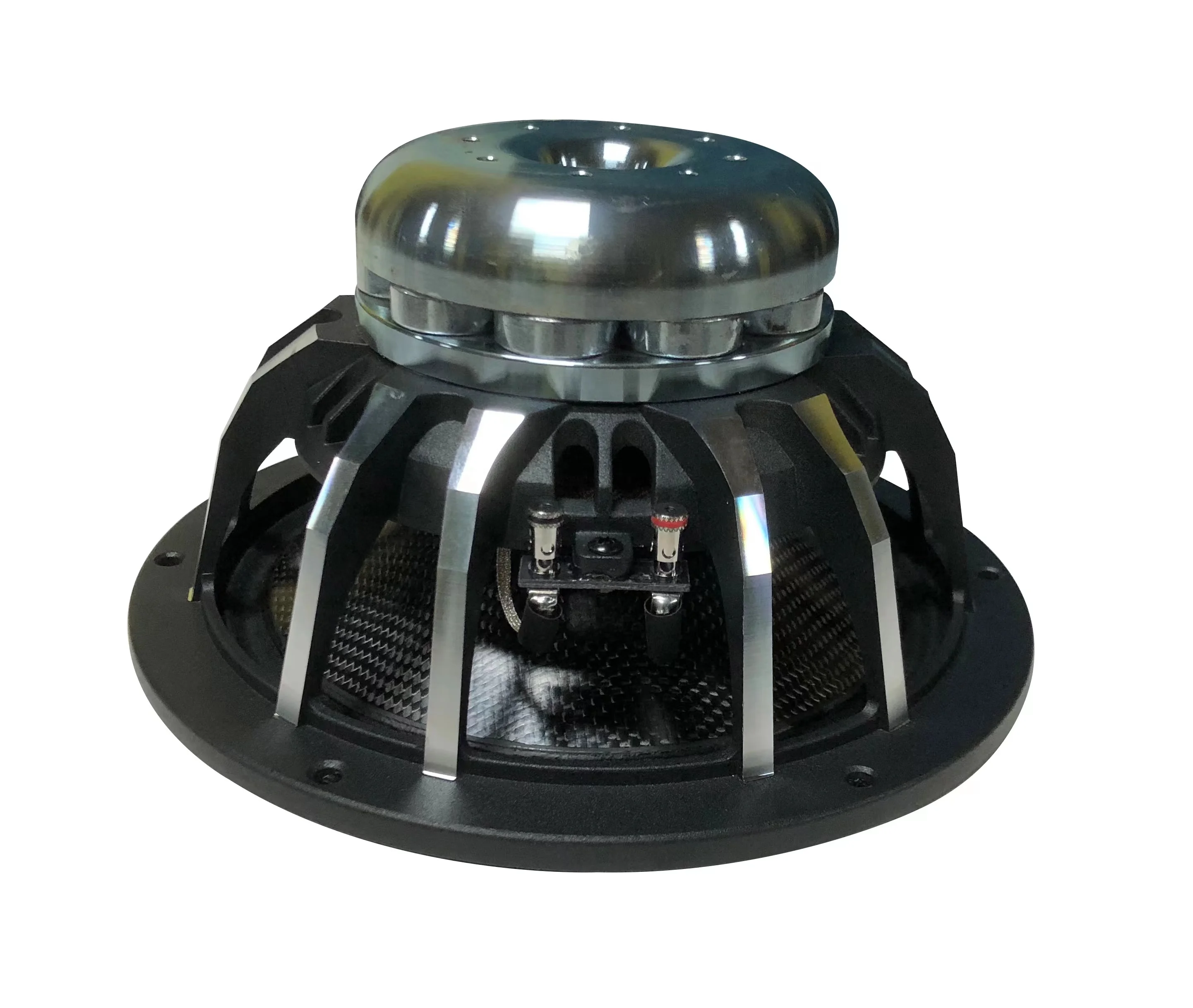

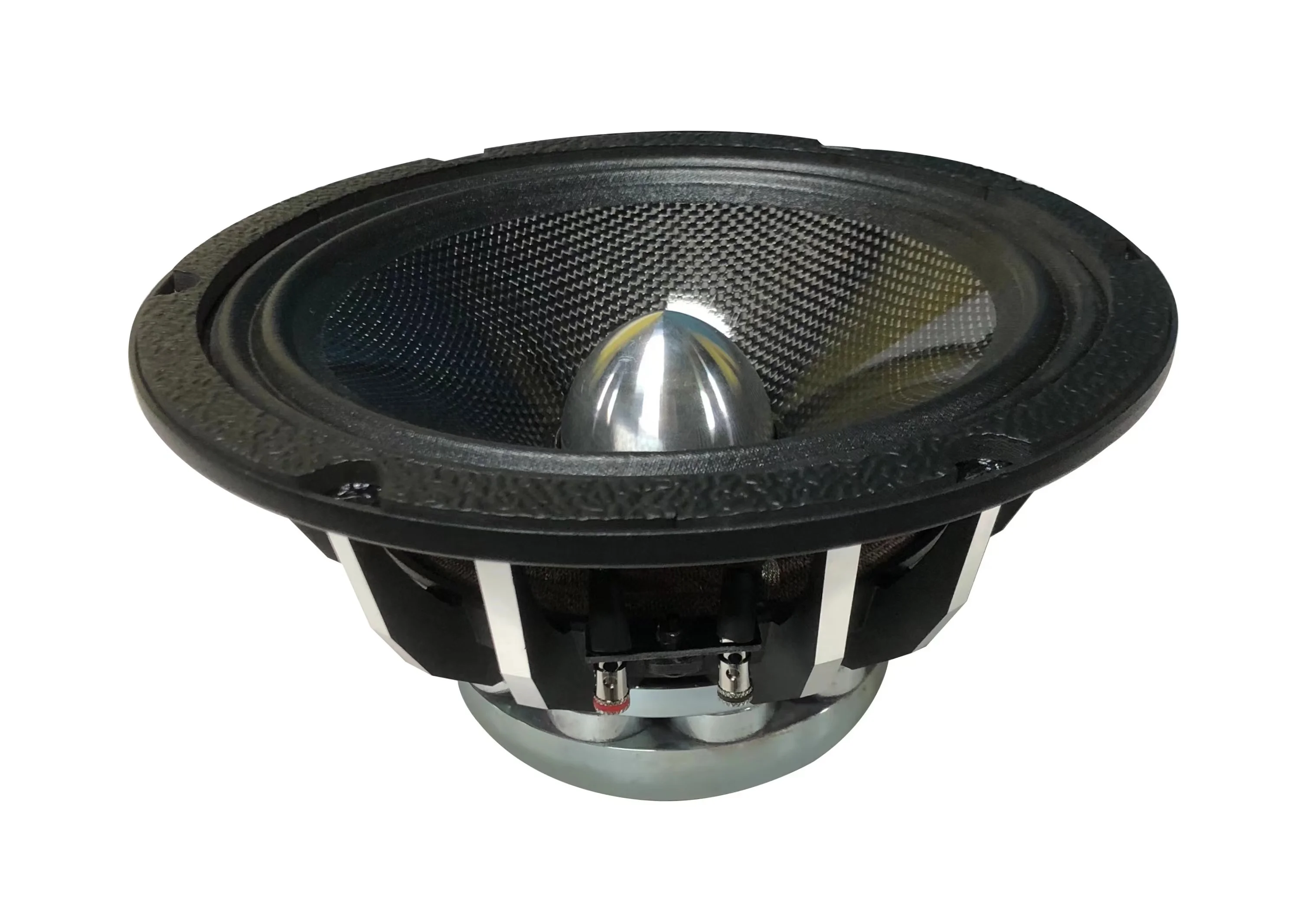

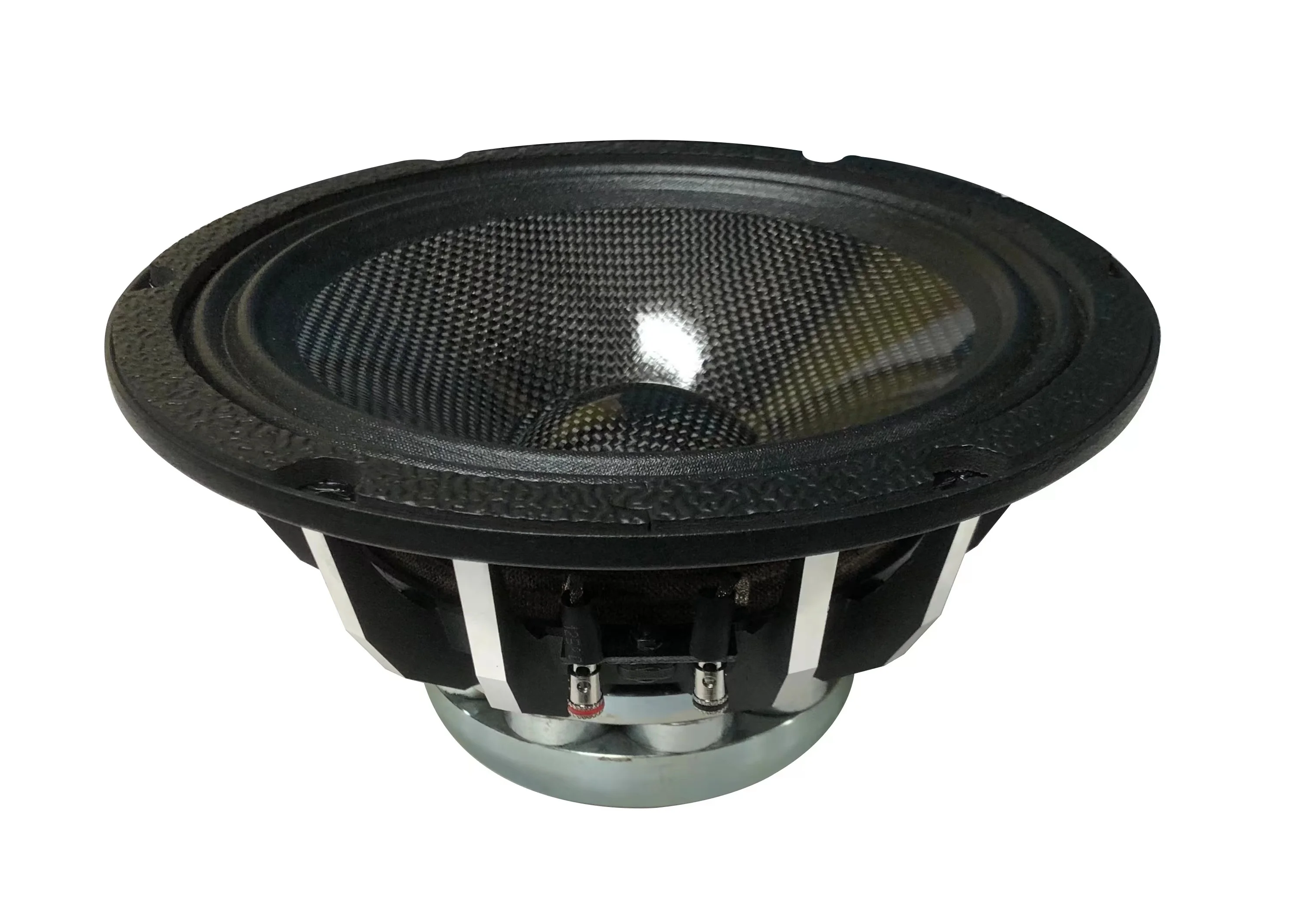

Customized 8 Inch High Quality Speaker Neodymium Speaker Car Audio Speaker
Spu:
1600613514663
- Overview
- Recommended Products
Product Description
Specification
Features :
8 inch neodymium midrange speaker
100dB sensitivity 1w/1m
250wrms, 500wmax power handling
70hz-8khz frequency response
Neodymium magnet
2 inch/50 mm voice coil
Specification :
Specification |
||||
Nominal diameter |
200/8 |
mm/inch |
||
Nominal impedance |
4 |
ohm |
||
Min impedance |
3.6 |
ohm |
||
Frequency response |
70-8k |
Hz |
||
Magnet material |
Neodymium |
|||
Sensitivity (1w/1m) |
100 |
dB |
||
RMS power handling |
250 |
Watts |
||
Continuous power handling |
500 |
Watts |
||
Voice coil diameter |
50/2 |
mm/ inch |
||
Winding material |
Aluminum |
|||
Cone material |
Carbon |
|||
Surround material |
Cloth |
|||
T/S Parameter |
||||
Fs |
73 |
Hz |
||
Re |
3.6 |
Ω |
||
Qes |
0.16 |
|||
Qts |
0.15 |
|||
Qms |
2.45 |
|||
Vas |
18.75 |
L |
||
Cms |
0.28 |
mm/N |
||
Mms |
16.6 |
gr |
||
BI |
12.96 |
N/A |
||
dBSPL |
100 |
dB |
||
Mounting information |
||||
Overall diameter |
210 |
mm/inch |
||
Bolt Circle diameter |
197 |
mm/inch |
||
Baffle Cutout diameter |
180 |
mm/inch |
||
Depth |
108 |
mm/inch |
||
Shipping information |
||||
Net weight |
2.5KG |
KG |
||
Shipping weight |
3.5KG |
KG |
||
Shipping box |
240x240x130 |
mm |
||
