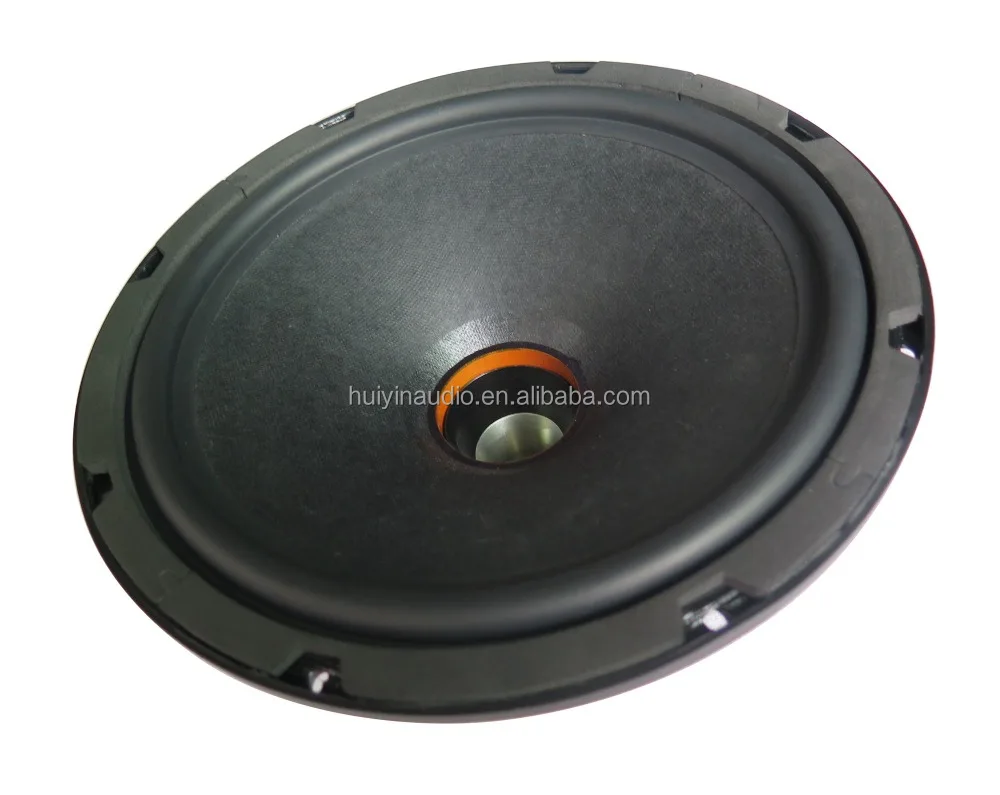

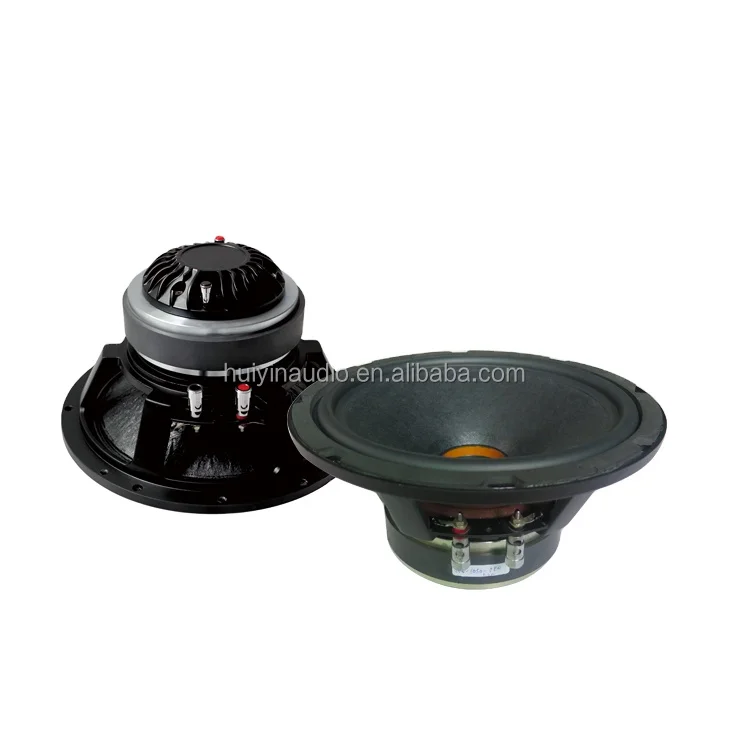

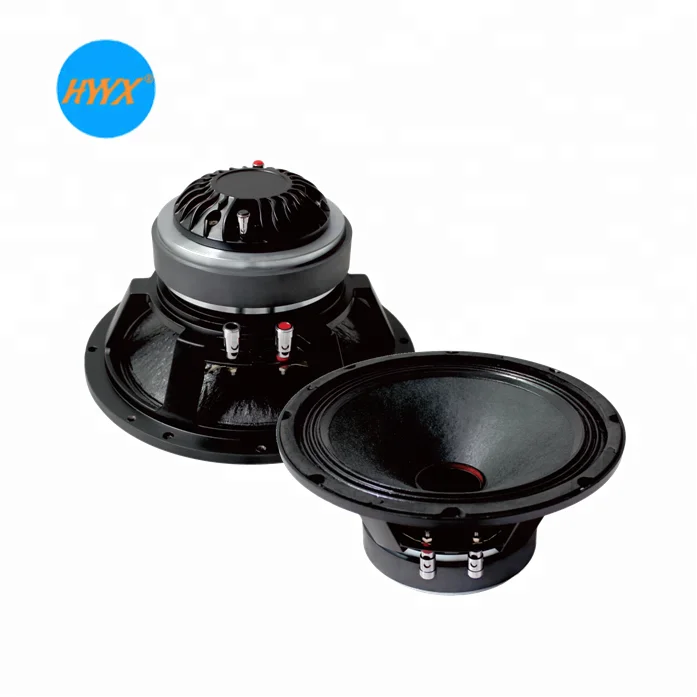

High Efficiency 10-Inch HiFi Coaxial Home Audio Speaker 300WRMS Line Array New 10 Inch High Efficiency Home Audio Speaker
- Overview
- Recommended Products
Product Description
Features :
- 600W continuous program power capacity
- 93dB sensitivity
- 30hz-20khz Frequency response
- Single magnet design
- Titanium diaphragm for HF driver
- 25mm(1") HF throat size
- 2" LF VC + 1.7" HF VC
- Replacement diaphragm for HF , Titanium or Polyester
- Rubber surround design , ideal for HiFi home audio system .
Specification |
||||
21Nominal diameter |
260/10 |
mm/inch |
||
Nominal impedance |
8 |
ohm |
||
Min impedance LF |
5.2 |
ohm |
||
Min impedance HF |
6 |
ohm |
||

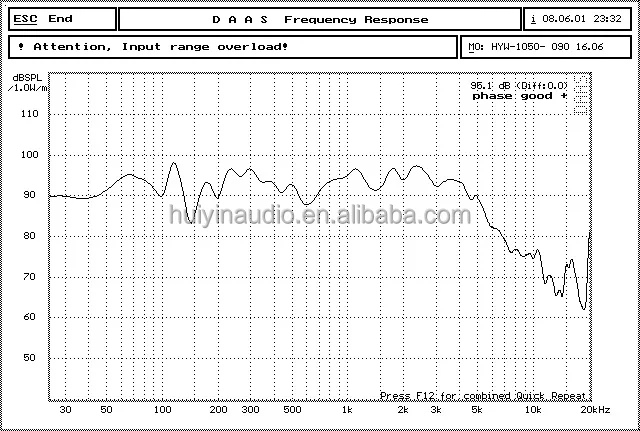

Frequency response |
30-20k |
Hz |
||
Dispersion angle |
70 |
° |
||
Magnet size |
145x25 |
mm |
||
Magnet material |
Ferrite |
|||
Specification LF |
||||
Sensitivity (1w/1m) |
93 |
dB |
||
Nominal power handling |
300 |
Watts |
||
Continuous power handling |
600 |
Watts |
||
Voice coil diameter |
50/2 " |
mm/ inch |
||
Winding material |
Copper |
|||
Cone material |
Paper |
|||
Surround material |
Rubber |
|||
Specification HF |
||||
Throat size |
25/1 |
mm/inch |
||
Sensitivity (1w/1m) |
107 |
dB |
||
Nominal power handling |
50 |
Watts |
||
Continuous power handling |
100 |
Watts |
||
Voice coil diameter |
44/1.7 |
mm/inch |
||
Diaphragm |
Titanium / Polyester |
|||
T/S Parameter |
||||
Fs |
31.9 |
Hz |
||
Re |
5.2 |
Ω |
||
Qes |
0.51 |
|||
Qts |
0.49 |
|||
Qms |
11.48 |
|||
Vas |
136.6 |
L |
||
Rms |
0.6 |
kg/s |
||
Cms |
0.74 |
mm/N |
||
Mms |
33.6 |
gr |
||
BI |
8.3 |
N/A |
||
Rp |
83.2 |
Ω |
||
Lp |
56.4 |
mH |
||
Cp |
897.5 |
uF |
||
Le |
0.5 |
mH |
||
Xmax |
7 |
mm |
||
Mounting information |
||||
Overall diameter |
263/10.35 |
mm/inch |
||
Bolt Circle diameter |
251/9.88 |
mm/inch |
||
Baffle Cutout diameter |
231/9.09 |
mm/inch |
||
Depth |
146.5/5.76 |
mm/inch |
||
Flange thickness |
8.5/0.33 |
mm/inch |
||
Shipping information |
||||
Net weight |
4.25 |
KG |
||
Shipping weight |
5 |
KG |
||
Shipping box |
280x280x175 |
mm |
||
