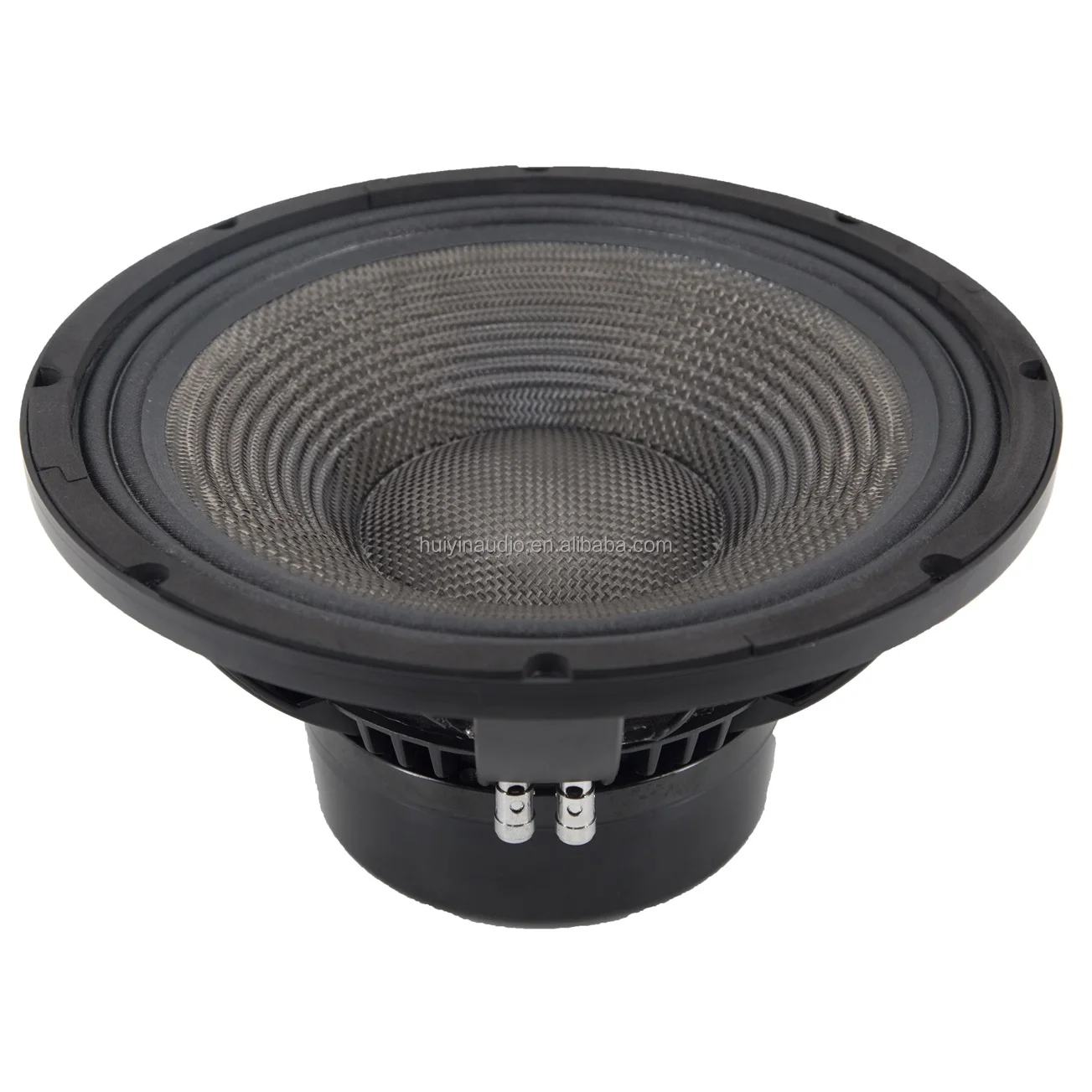

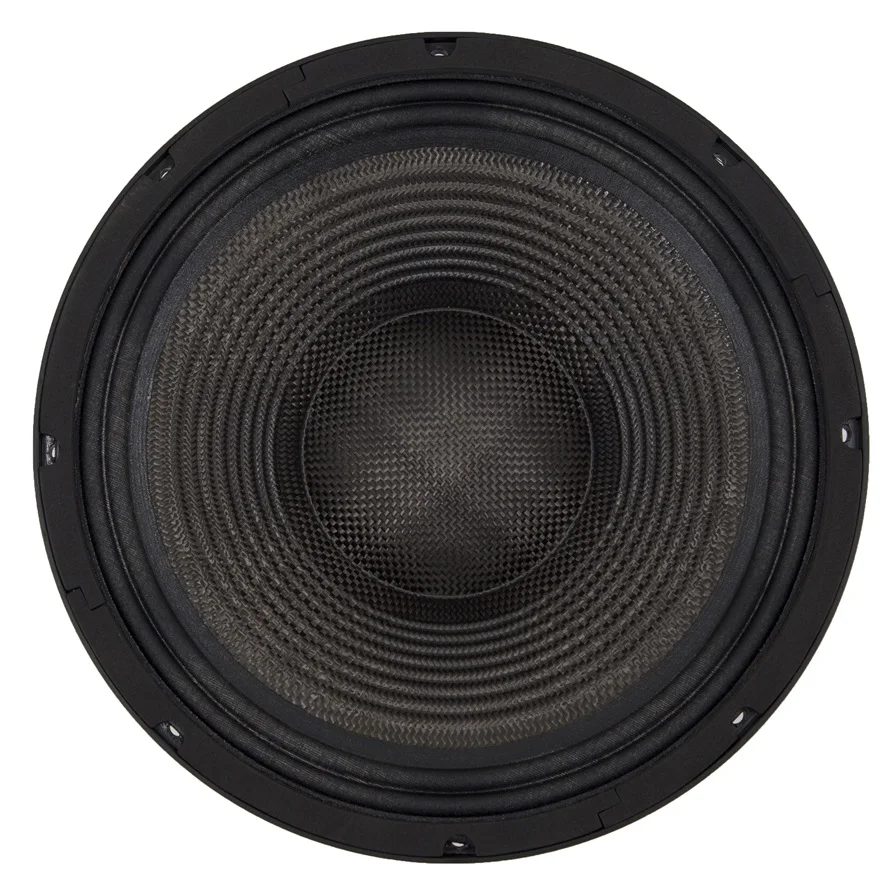

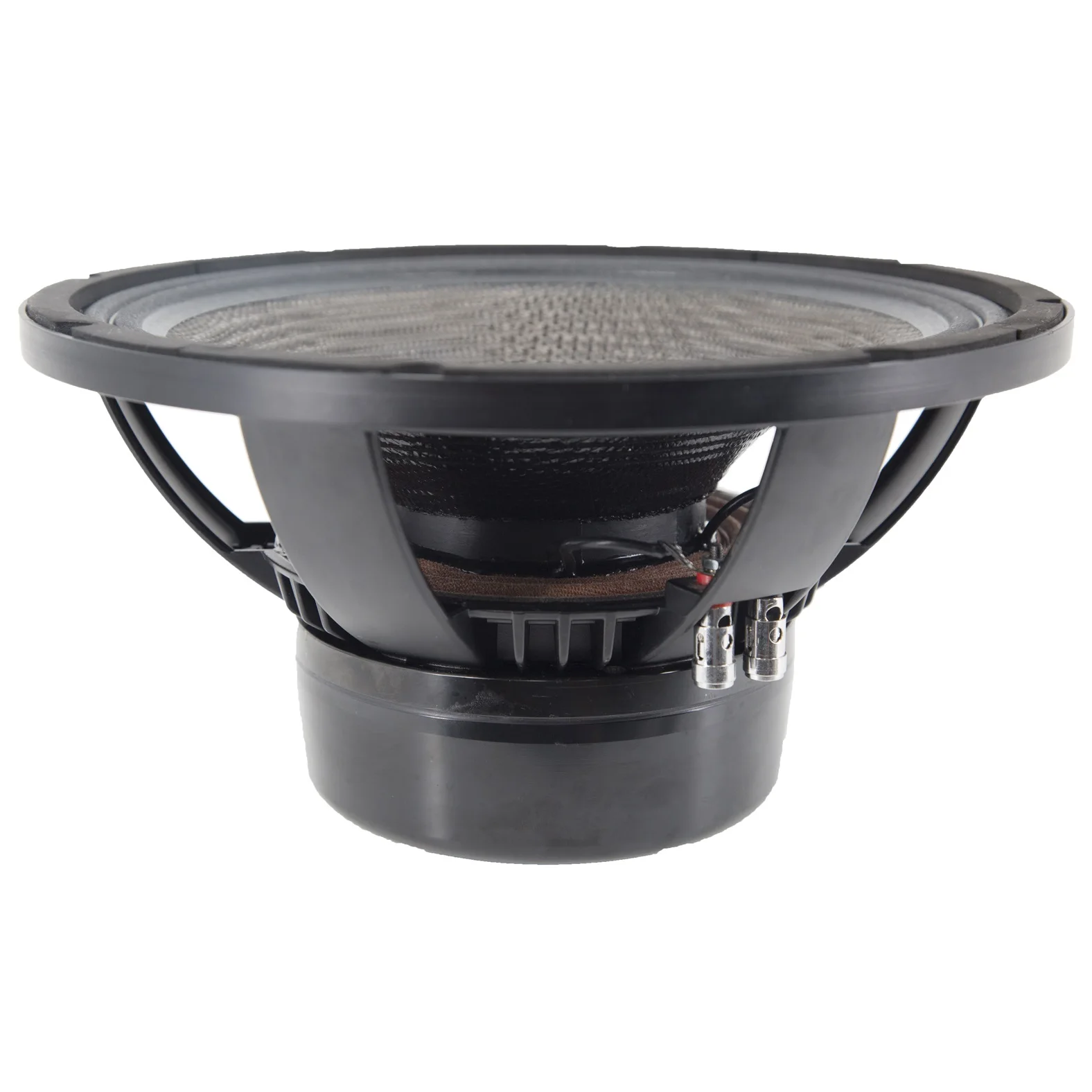

Low Price 12 Inch Midbass Speaker 800W RMS 8 Ohm 100dB Neodymium Motor Aluminum Cast Basket Metal Woofer Speaker 12100-011
Spu:
1600971951925
- Overview
- Recommended Products
- High Power Output: 600W RMS provides robust audio performance.
- Impressive Sensitivity: 100dB SPL ensures clear sound quality.
- Compact Design: 12-inch size offers space-saving installation options.
- Durability: 8-ohm impedance ensures reliable long-term use.
- Multiple Mounting Options: Ceiling, floor, tabletop, and wall mounts available.
PRODUCT HIGHLIGHTS

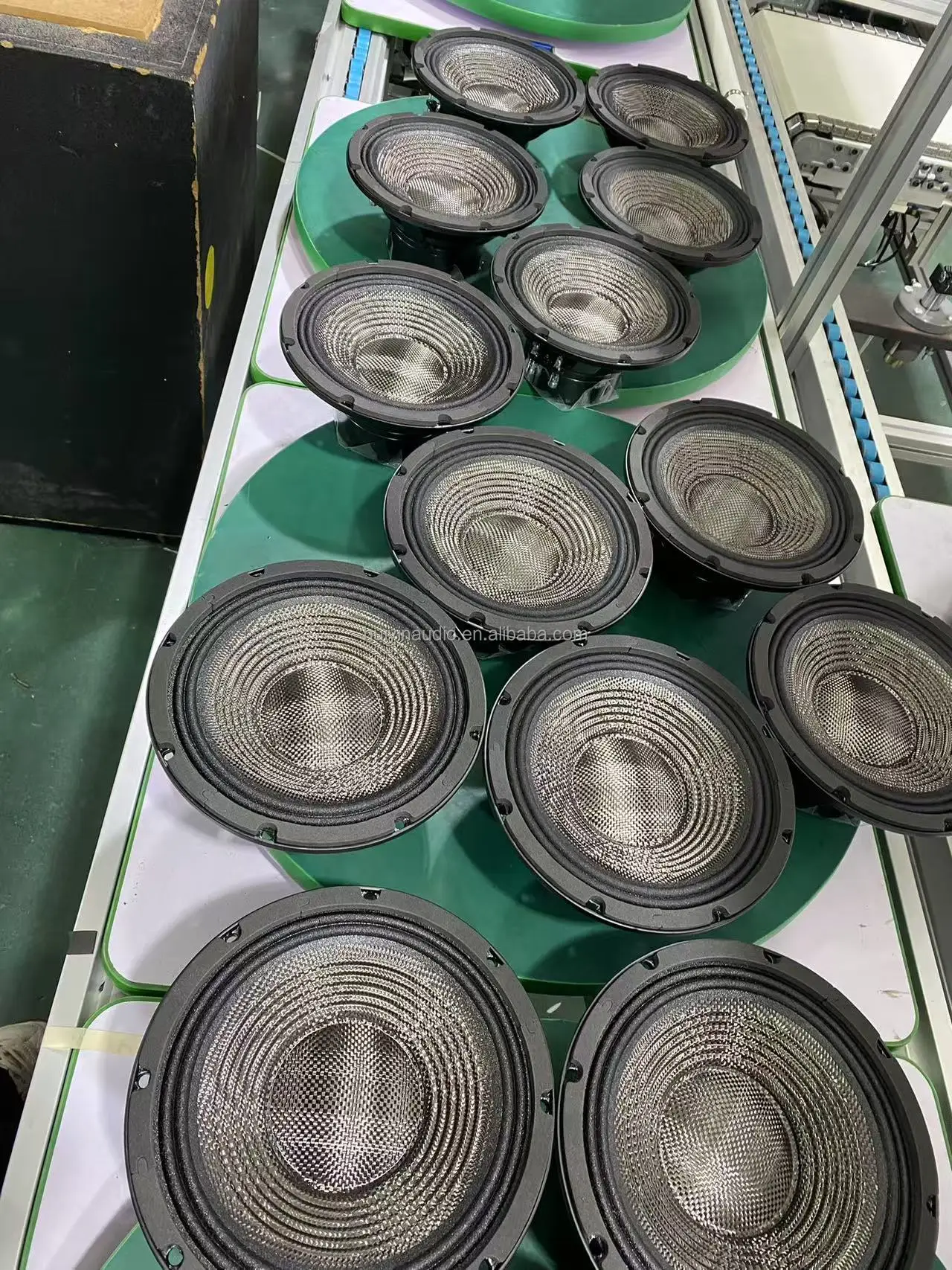

Guangdong Huiyin Audio Co., Ltd. is a professional speaker manufacturer in Guangzhou, China, specializing in midbass speakers with 10 years of experience, the company offers OEM/ODM services and strict quality control across material, production, and warehouse stages.
FAQs
What is the nominal impedance of this 12-inch speaker?
The nominal impedance is 8Ω, with a DC resistance (Re) of 5.2Ω, compatible with standard audio amplifiers for 8Ω loads.
What is the power handling capability of this driver?
It has an AES power handling of 600W and a continuous program power of 1200W, designed for professional audio systems requiring sustained high-output performance.
What is the sensitivity rating of this speaker?
The sensitivity is 100dB (1W/1m), which is very high for a 12-inch driver, allowing it to produce loud sound with relatively low amplifier power.
What is the recommended frequency response range?
The operating frequency range is 50Hz-2kHz, optimized for low frequency reproduction in subwoofers or bass-reflex systems.
What are the key installation dimensions for this driver?
Overall diameter: 312mm
Baffle cutout diameter: 285mm
Mounting bolt circle: 294mm (8x holes, 6.5mm diameter)
Depth height: 160mm
These specifications ensure proper fitting in standard 12-inch speaker enclosures.

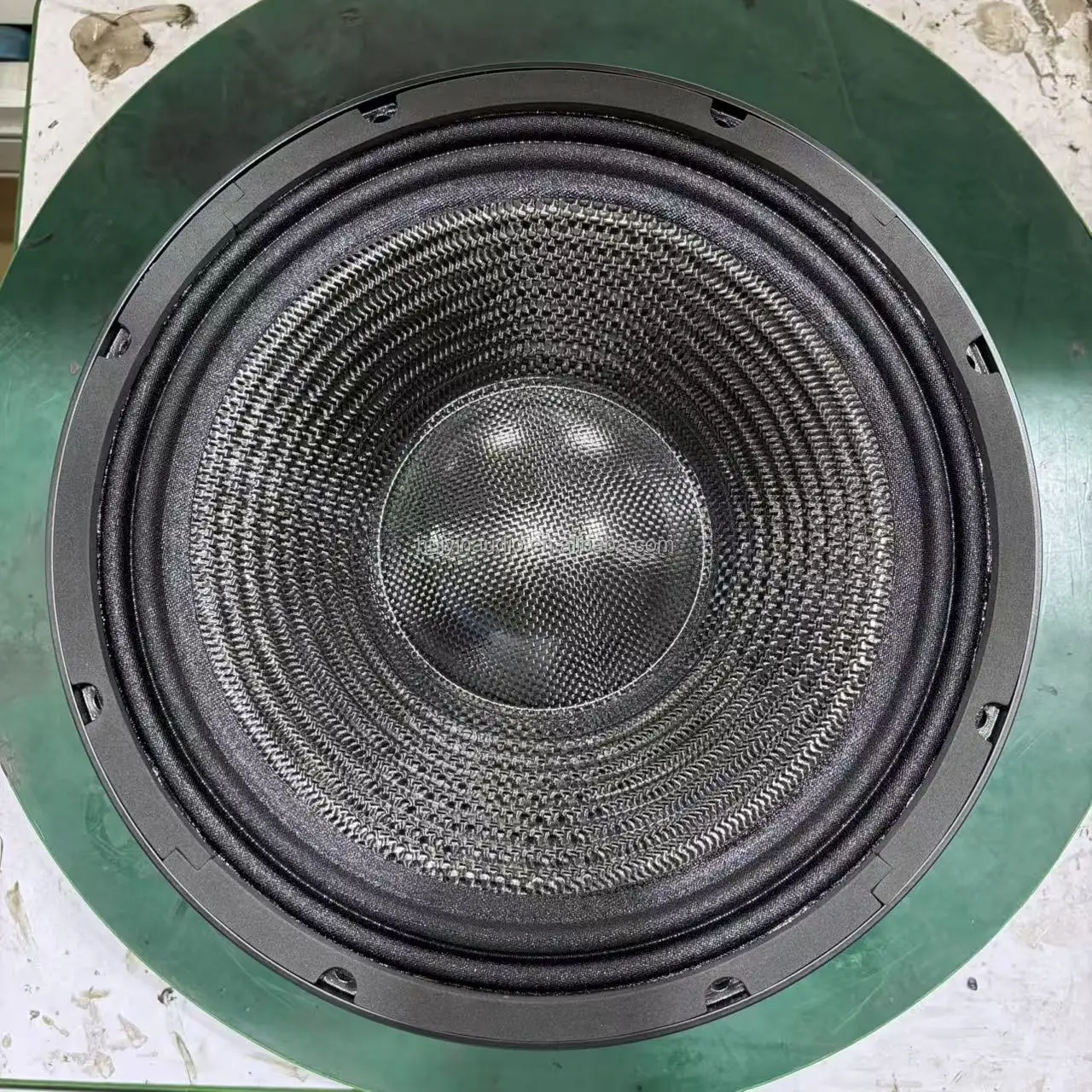

What materials are used in the voice coil and surround?
The voice coil uses copper wire (1 layer inner/outer) wound on a glass fiber (GF) former, with a winding depth of 23mm. The surround is made of carbon fiber edge W-cloth, offering durability and consistent performance.

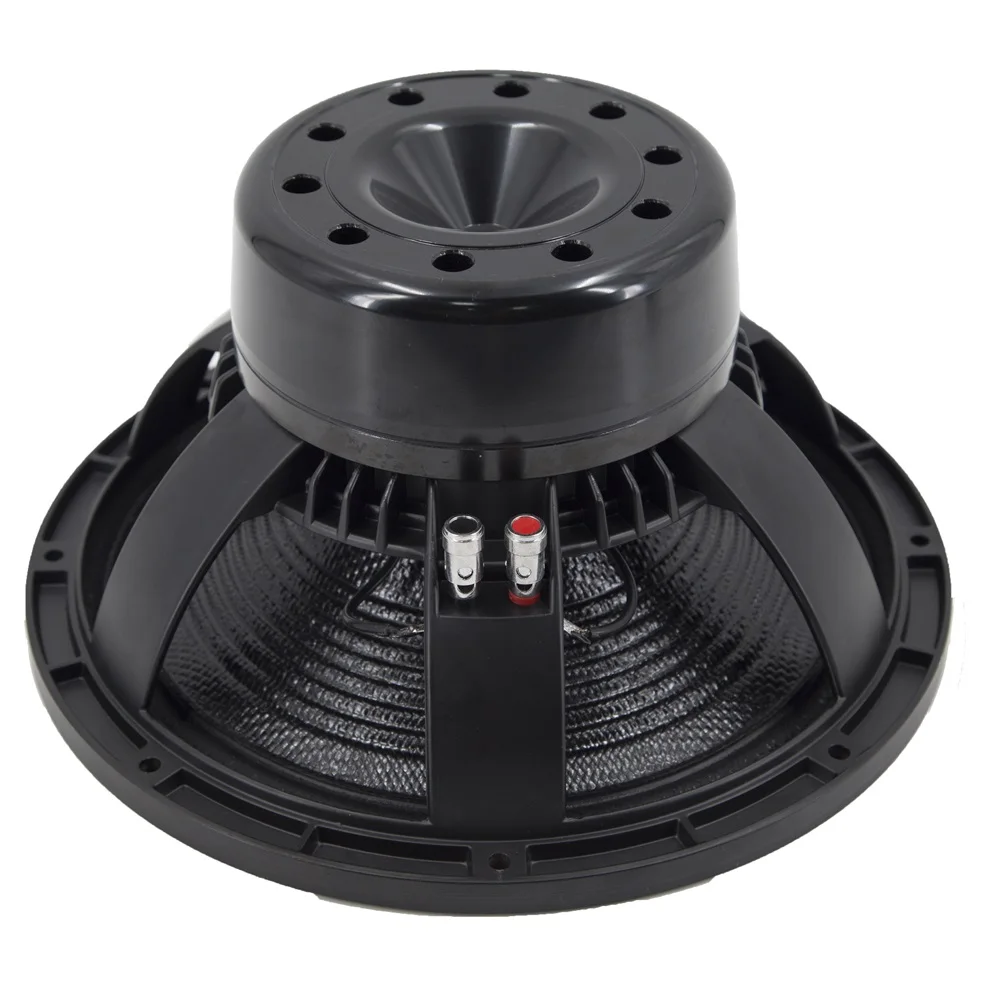

What type of magnet is used in this driver?
It uses an inner-mount neodymium magnet, which provides strong magnetic force while keeping the driver lightweight compared to traditional ferrite magnets.
What is the magnetic gap depth and what does it affect?
The magnetic gap depth is 15mm, which helps ensure stable voice coil movement and contributes to the driver's high power handling and low distortion performance.
