Neo 10 Inch High End Bass Speaker 3000W MAX 5 Inch Voice Coil New Design N40SH Class Professional Audio Video Lighting MAX 5

Spu:

1601320256885

General Information

10 inch speaker

10 inch subwoofer
10 inch mid speaker
10 inch bass speaker

10 inch mid range speaker
65Hz-2500Hz
5 inch voice coil
1500w rms power
3000w max power
neodymium magnet
neo magnet
N40SH

N4OSH
paper cone
2 ohm, 4 ohm, 8 ohm, 16 ohm
professional audio sound system

8 inch, 10 inch, 12 inch, 15 inch, 18 inch etc are all available

Product Paramenters

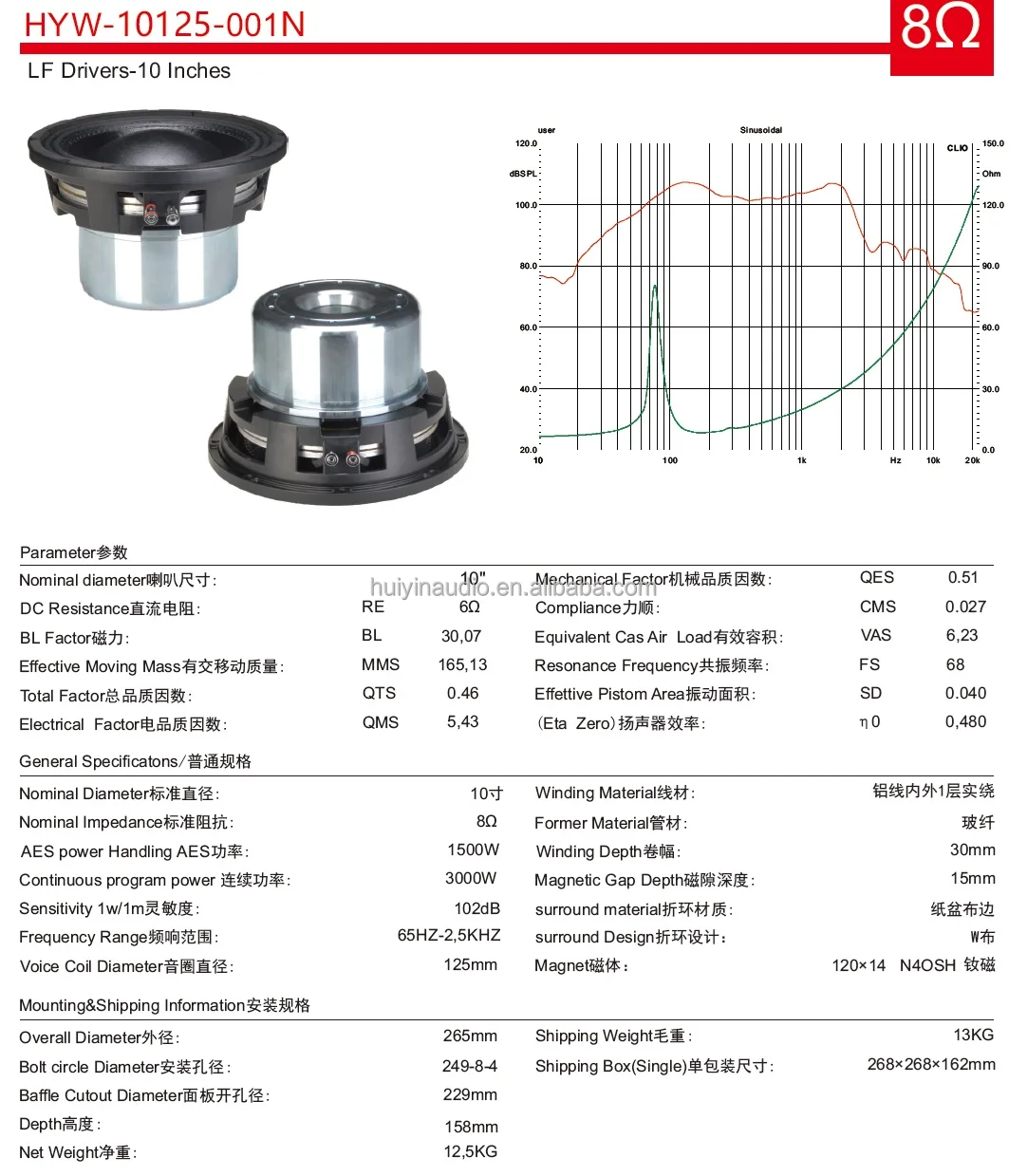

*Model Number*	*HYW-10125-001N*
*Parameters*
Nominal diameter	10"
DC Resistance/ RE	6Ω
BL Factor/ BL	30.07
Effective Moving Mass/ MMS	165.13
Total Factor/ QTS	0.46
Electrical Factor/ QMS	5.43
Mechanical Factor/ QES	0.51
Compliance/ CMS	0.027
Equivalent Cas Air Load/ VAS	6.23
Resonance Frequency/ FS	68
Effettive Pistom Area/ SD	0.04
Eta Zero/ η0	0.48
*General Specificatons*
Nominal Diameter	10 inch
Nominal Impedance	8 ohm
AES power Handling	1500W RMS
Continuous program power	3000W MAX
Sensitivity 1w/1m	102dB
Frequency Range	65Hz-2500Hz
Voice Coil Diameter	125mm / 5 inch voice coil
Winding Material	Inner and outer aluminium wire 1 layer
Former Material	Glass fibre
Winding Depth	30mm
Magnetic Gap Depth	15mm
Surround material	Paper cone + Cloth edge
Surround Design	W type
Magnet	120X14MM N40SH Neodymium Magnet
*Mounting & Shipping Information*
Overall Diameter	265mm
Bolt circle Diameter	249-8-4
Baffle Cutout Diameter	229mm
Depth	158mm
Net Weight	13kgs
Shipping Weight	14kgs
Shipping Box	27X27X16CM
