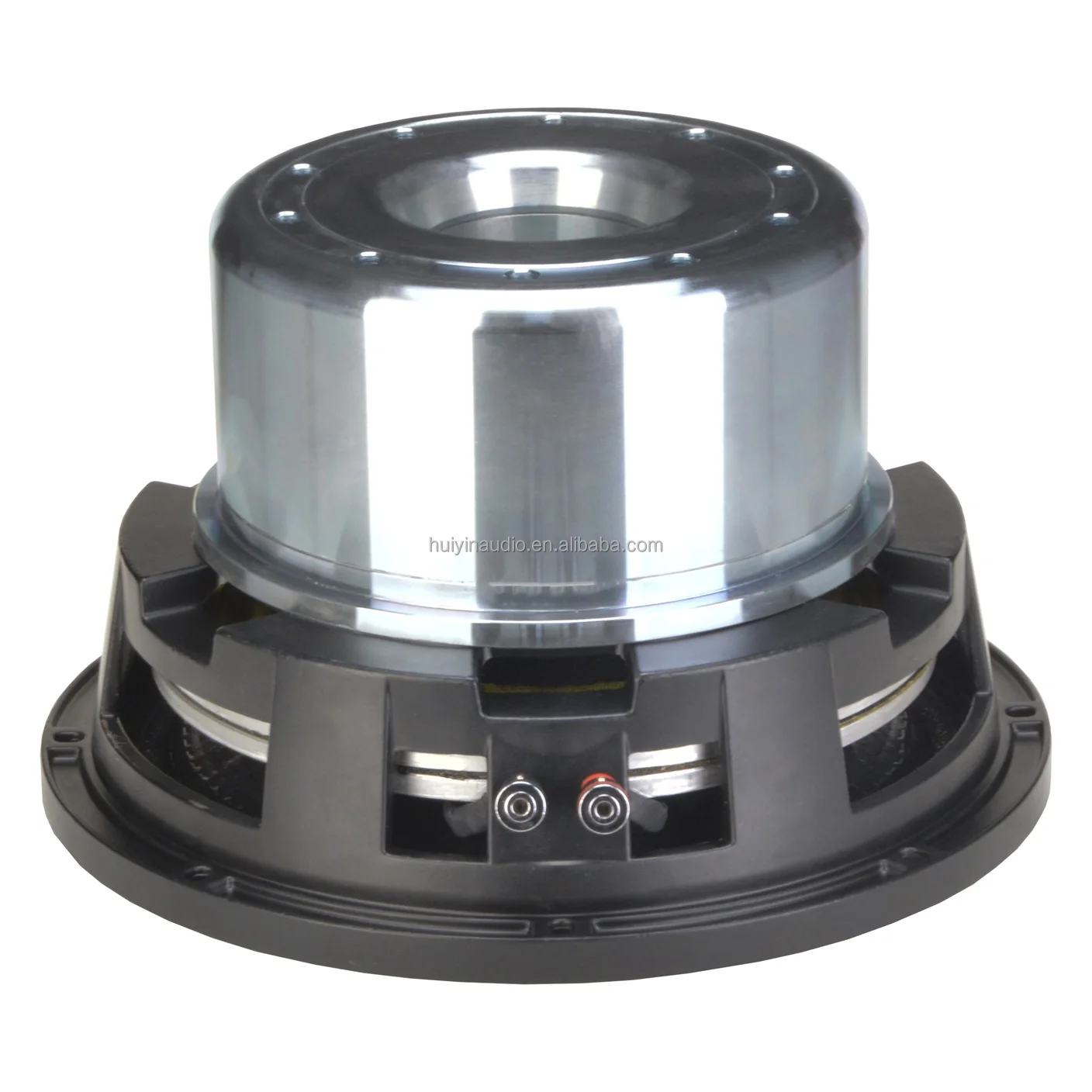

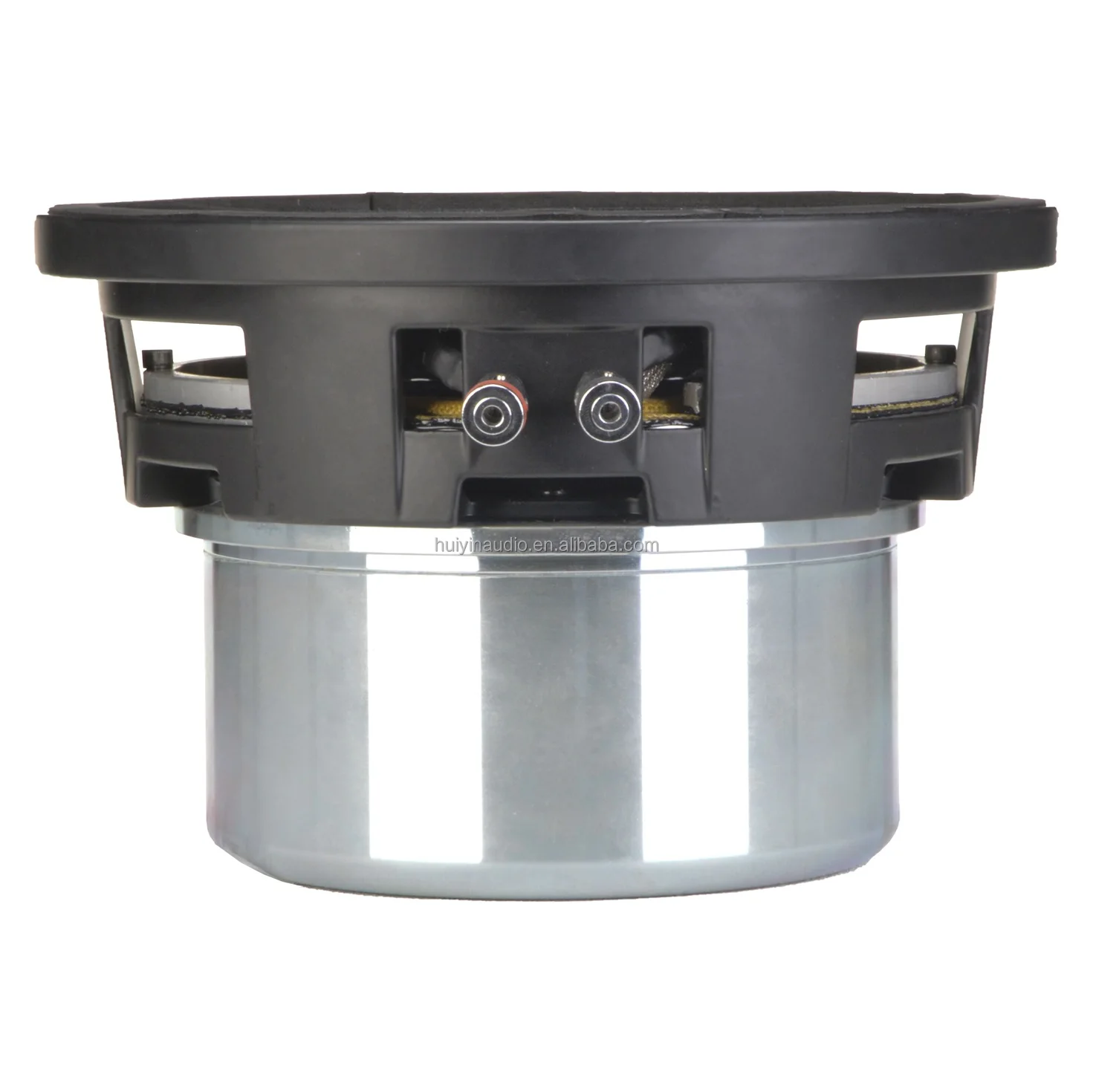

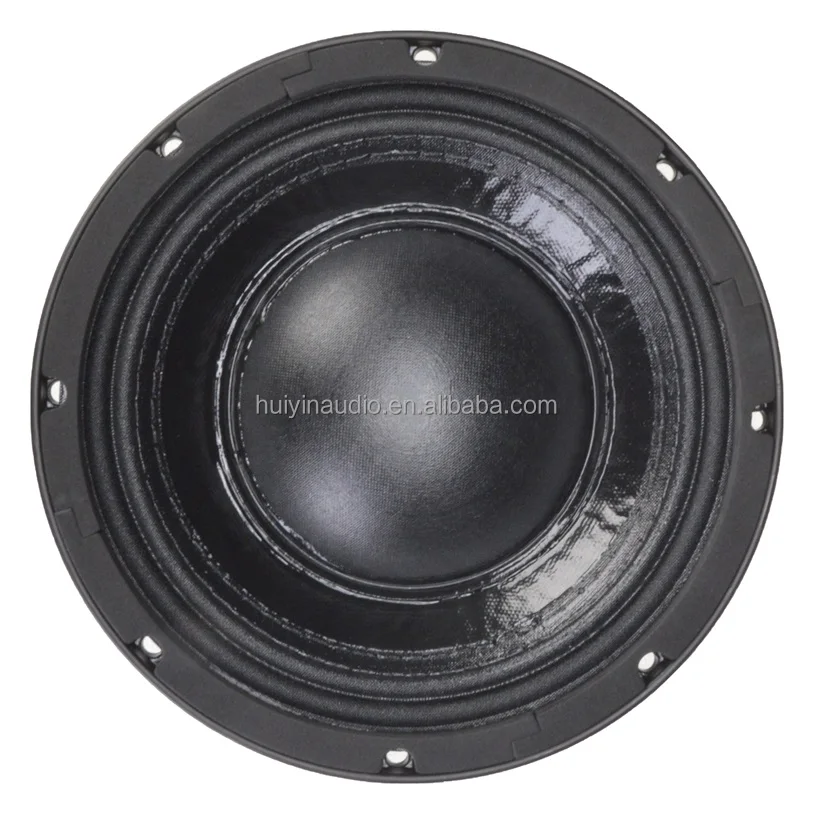

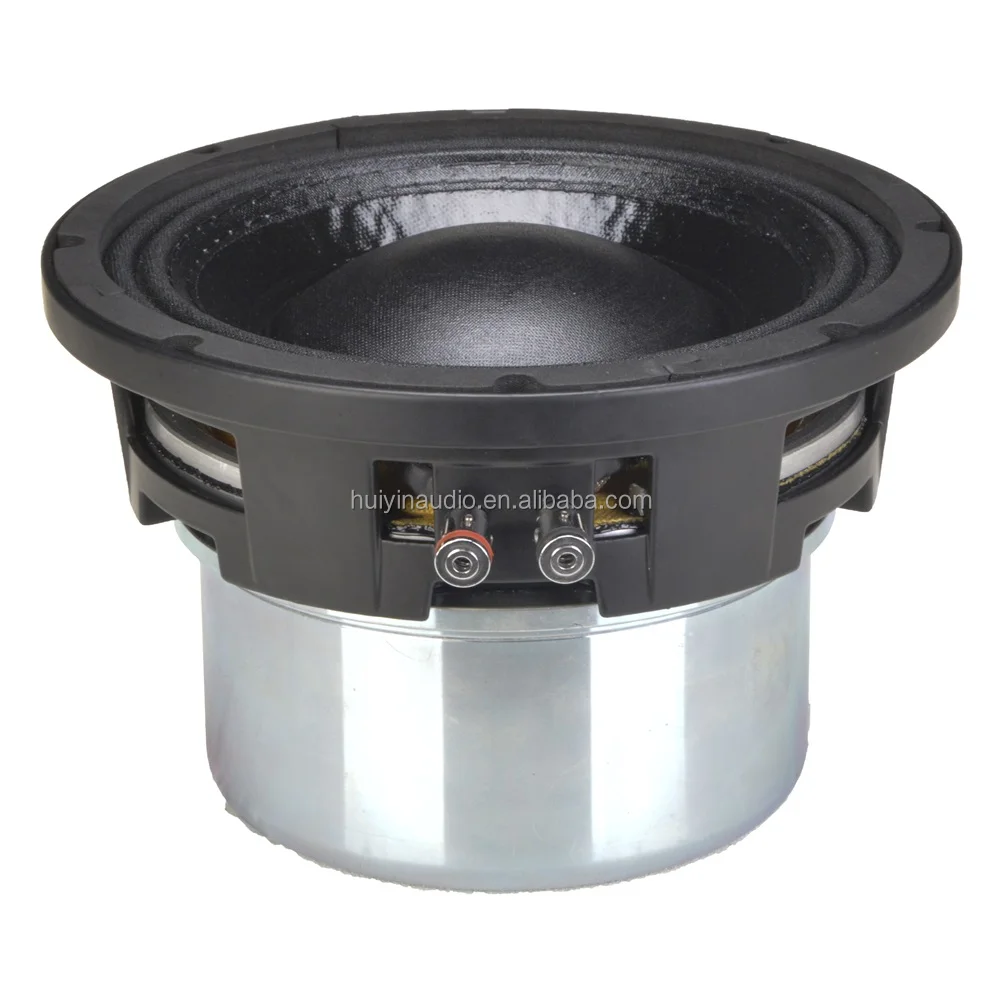

Neo 8 Inch High End Bass Speaker 2400W MAX New Design 8100-001N Line Array 4 Inch Voice Coil Professional Audio Video Lighting

Spu:

1601320203655

General Information

8 inch speaker

8 inch subwoofer
8 inch mid speaker
8 inch bass speaker

8 inch mid range speaker
110Hz-5500Hz
4 inch voice coil
1200w rms power
2400w max power
neodymium magnet

neo

N40SH

N4OSH

paper cone
2 ohm, 4 ohm, 8 ohm, 16 ohm
professional audio sound system

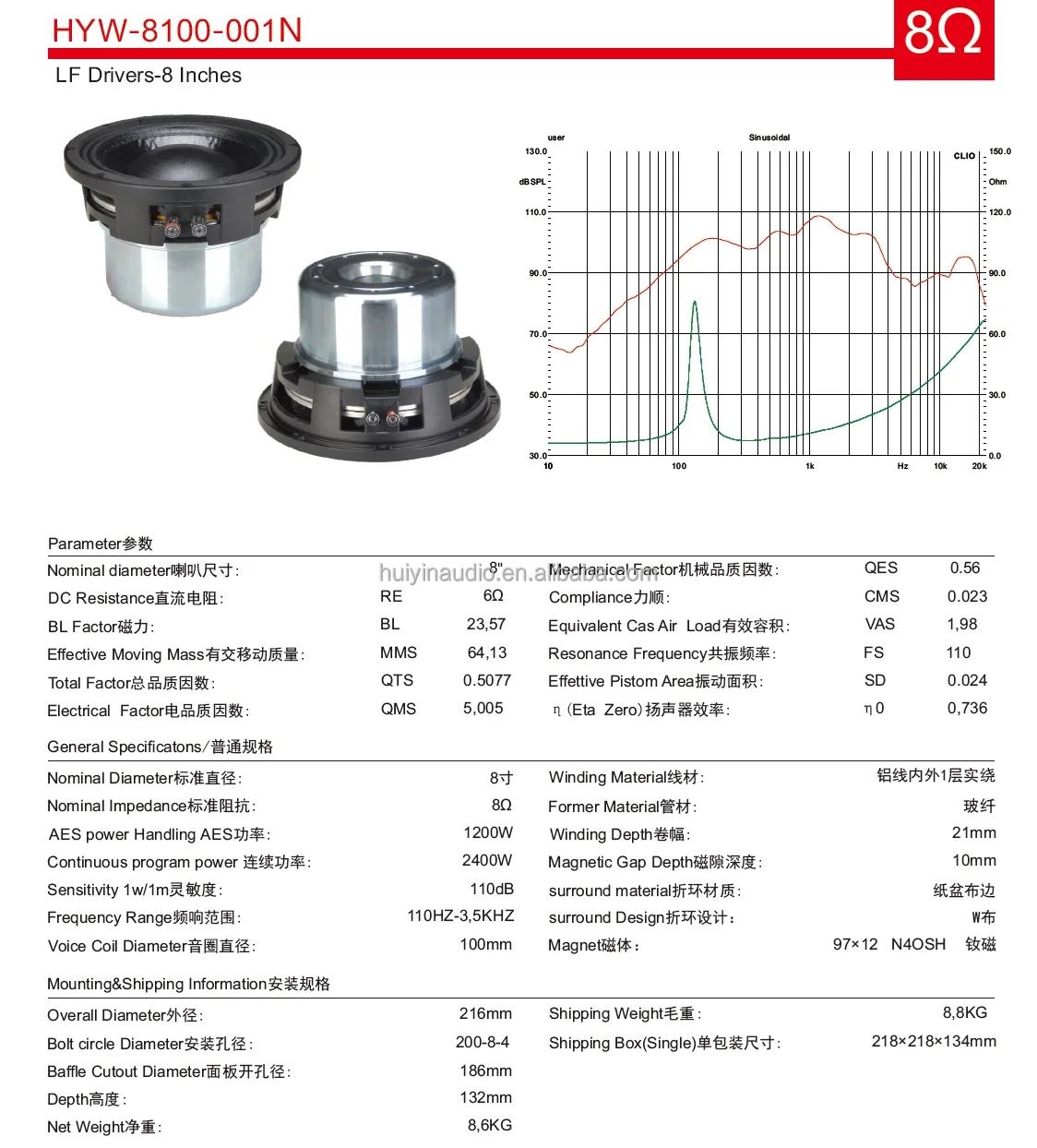

Product Paramenters

*Model Number*	*HYW-8100-001N*
*Parameters*
Nominal diameter	8"
DC Resistance/ RE	6Ω
BL Factor/ BL	23.57
Effective Moving Mass/ MMS	64.13
Total Factor/ QTS	0.5077
Electrical Factor/ QMS	5.005
Mechanical Factor/ QES	0.56
Compliance/ CMS	0.023
Equivalent Cas Air Load/ VAS	1.98
Resonance Frequency/ FS	110
Effettive Pistom Area/ SD	0.024
Eta Zero/ η0	0.736
*General Specificatons*
Nominal Diameter	8 inch
Nominal Impedance	8 ohm
AES power Handling	1200W RMS
Continuous program power	2400W MAX
Sensitivity 1w/1m	110dB
Frequency Range	110Hz-3500Hz
Voice Coil Diameter	100mm / 4 inch voice coil
Winding Material	Inner and outer aluminium wire 1 layer
Former Material	Glass fibre
Winding Depth	21mm
Magnetic Gap Depth	10mm
Surround material	Paper cone + Cloth edge
Surround Design	W type
Magnet	97x12MM N40SH Neodymium Magnets
*Mounting & Shipping Information*
Overall Diameter	216mm
Bolt circle Diameter	200-8-4
Baffle Cutout Diameter	186mm
Depth	132mm
Net Weight	9kgs
Shipping Weight	10kgs
Shipping Box	22X22X15CM
