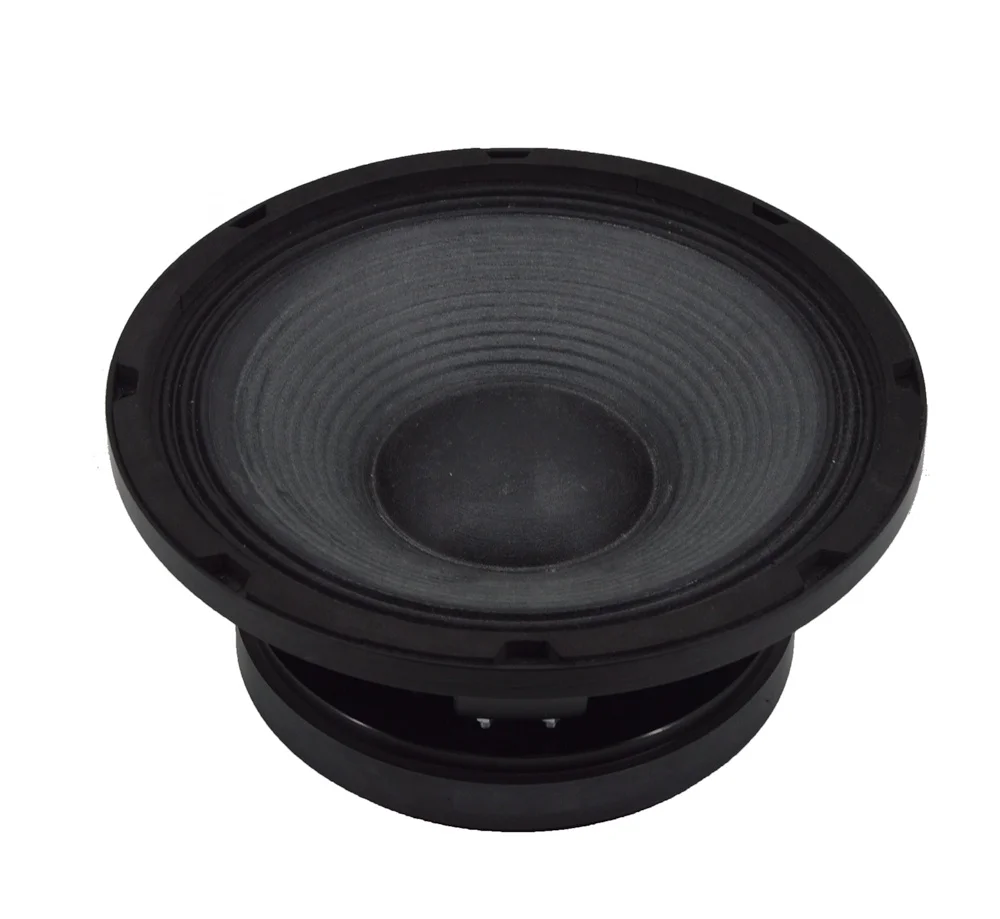

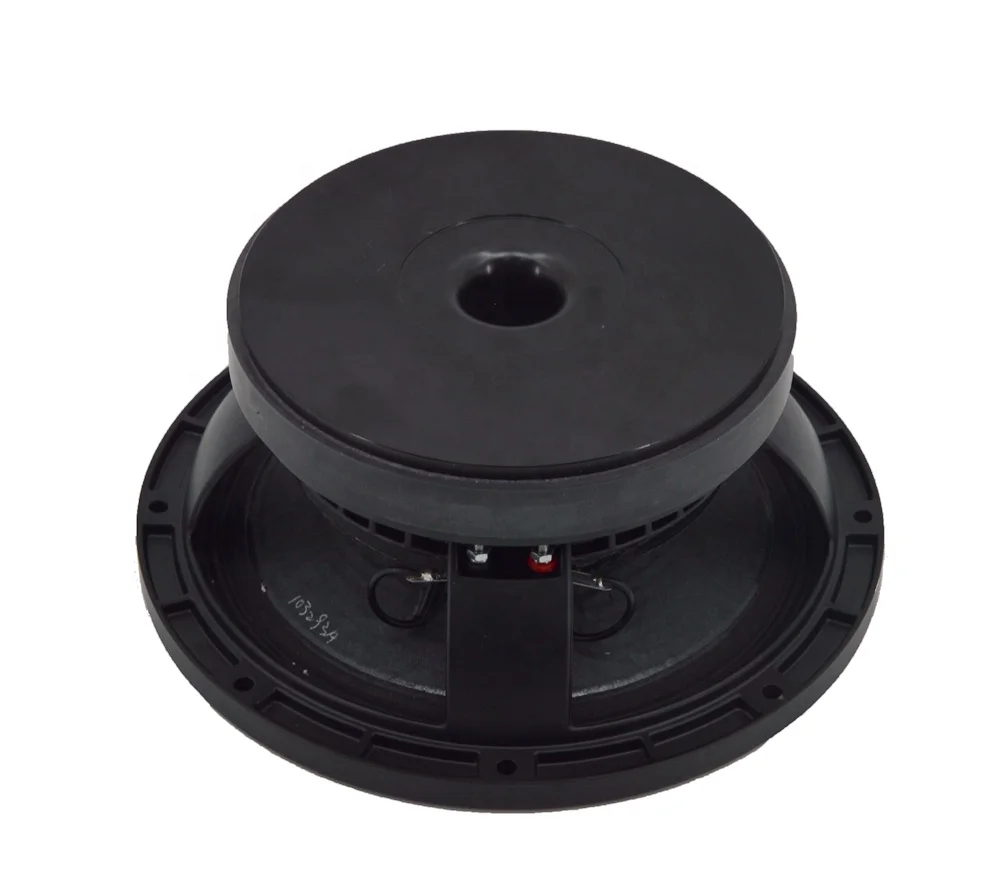

Professional 10-Inch Midbass Woofer 1075 Big Power Sound System with Paper Cone Line Array Speaker 10-Inch Mid Speaker
Spu:
62083073093
- Overview
- Recommended Products
Product Description
Specification
Features :
- 10 inch midbass speaker with big power design
- 97dB sensitivity 1W/1M
- 50hz-3khz frequency response
- 3 inch copper voice coil
- 450WRMS big power design
Speccification :
Specification |
||||
Nominal diameter |
260/10 |
mm/inch |
||
Nominal impedance |
8 |
ohm |
||
Min impedance |
5.8 |
ohm |
||

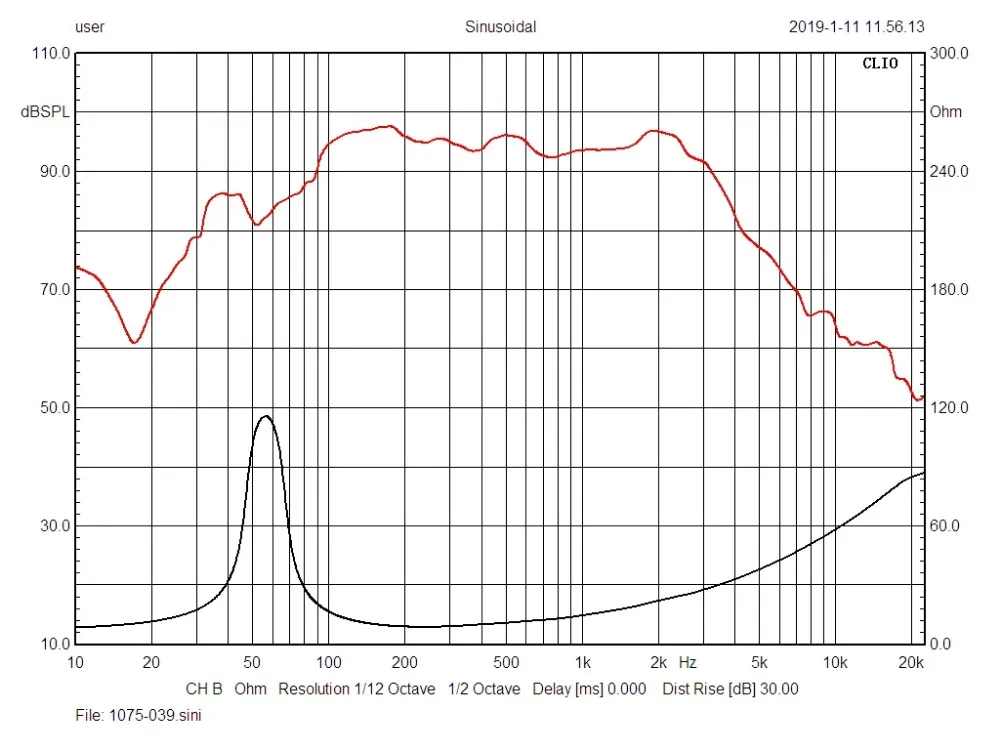

Frequency response |
50-3k |
Hz |
||
Magnet material |
Ferrite |
|||
Sensitivity (1w/1m) |
97 |
dB |
||
RMS power handling |
450 |
Watts |
||
Continuous power handling |
900 |
Watts |
||
Voice coil diameter |
75/3 |
mm/ inch |
||
Winding material |
Copper |
|||
Cone material |
Paper |
|||
Surround material |
Cloth |
|||
Dust cap material |
Paper |
|||
T/S Parameter |
||||
Fs |
56 |
Hz |
||
Re |
5.8 |
Ω |
||
Qes |
0.28 |
|||
Qts |
0.27 |
|||
Qms |
5.7 |
|||
Vas |
25.8 |
L |
||
Rms |
3.4 |
kg/s |
||
Cms |
0.14 |
mm/N |
||
Mms |
54.9 |
gr |
||
BL |
19.4 |
N/A |
||
Mounting information |
||||
Overall diameter |
261/10.3 |
mm/inch |
||
Bolt Circle diameter |
245/9.6 |
mm/inch |
||
Baffle Cutout diameter |
234/9.2 |
mm/inch |
||
Depth |
111/4.4 |
mm/inch |
||
Shipping information |
||||
Net weight |
6.2 |
KG |
||
Shipping weight |
6.7 |
KG |
||
Shipping box |
300x300x200 |
mm |
||
