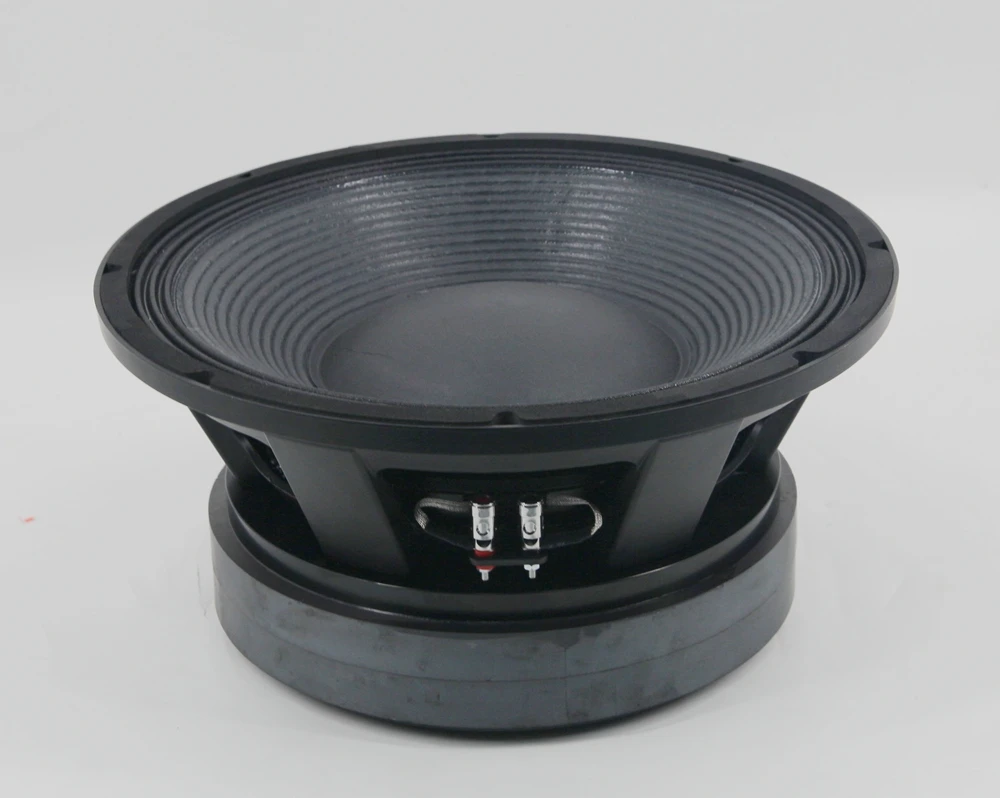

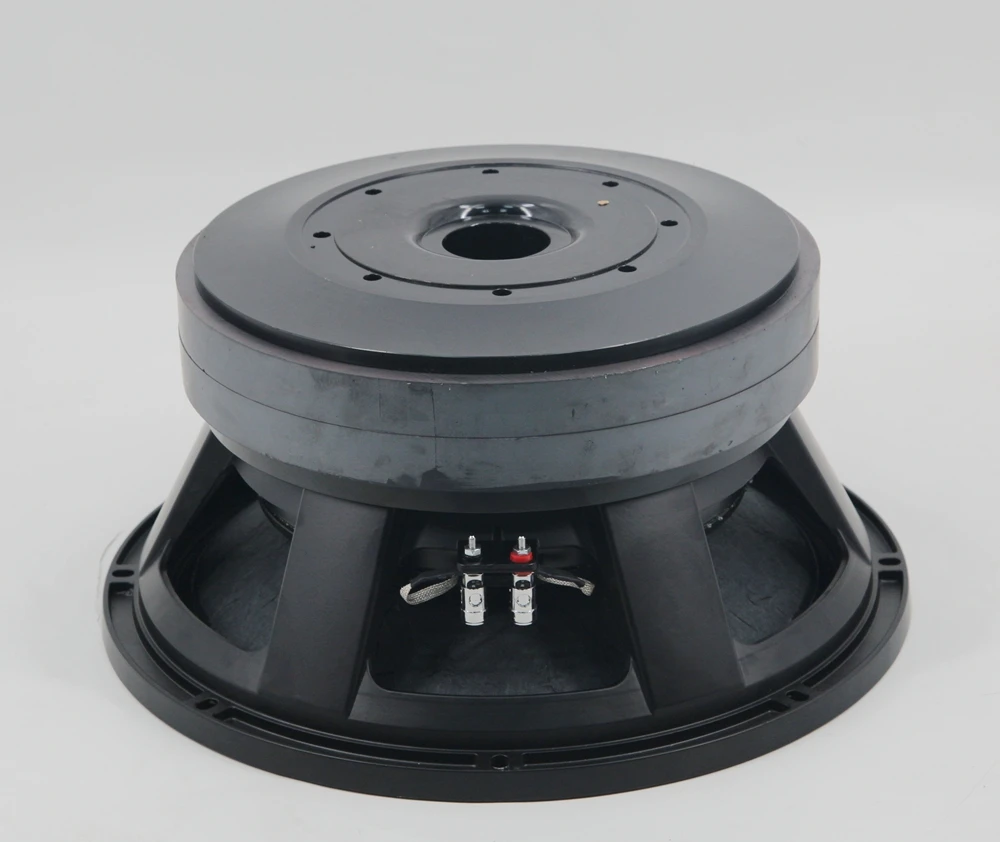

Professional 15 Inch Subwoofer with 6 Inch Voice Coil Subwoofer Speakers Paper Cone Material of Sound System
Spu:
1600153287522
- Overview
- Recommended Products
Product Description
Features :
- High-power 15 inch sub woofer with 6 inch voice coil
- Big magnet size 300x25mm, Double or triple magnet
- Aluminium spiders rings to hold the spiders well
- 50hz-3khz frequency response
Specification |
||||
Nominal diameter |
380/15 |
mm/inch |
||
Nominal impedance |
8 |
ohm |
||
Min impedance LF |
5.2 |
ohm |
||
Frequency response |
50-3k |
Hz |
||
Magnet size |
300x50 |
mm |
||
Magnet material |
Ferrite Y30 |
|||
Sensitivity (1w/1m) |
98 |
dB |
||
RMS power handling |
2000 |
Watts |
||
Continuous power handling |
4000 |
Watts |
||
Voice coil diameter |
150/6 |
mm/ inch |
||
Winding material |
Copper |
|||
Cone material |
Strong Paper |
|||
Surround material |
Cloth |
|||
T/S Parameter |
||||
Fs |
50.8 |
Hz |
||
Re |
5.8 |
Ω |
||
Qes |
0.73 |
|||
Qts |
0.70 |
|||
Qms |
14.78 |
|||
Vas |
15.74 |
L |
||
Cms |
0.0145 |
mm/N |
||
Mms |
340 |
gr |
||
BL |
34.6 |
N/A |
||
Mounting information |
||||
Overall diameter |
389 |
mm/inch |
||
Bolt Circle diameter |
370 |
mm/inch |
||
Baffle Cutout diameter |
353 |
mm/inch |
||
Total Depth |
190 |
mm/inch |
||
Shipping information |
||||
Net weight |
32.6 |
KG |
||
Shipping weight |
35 |
KG |
||
Shipping box |
440x440x260 |
mm |
||
