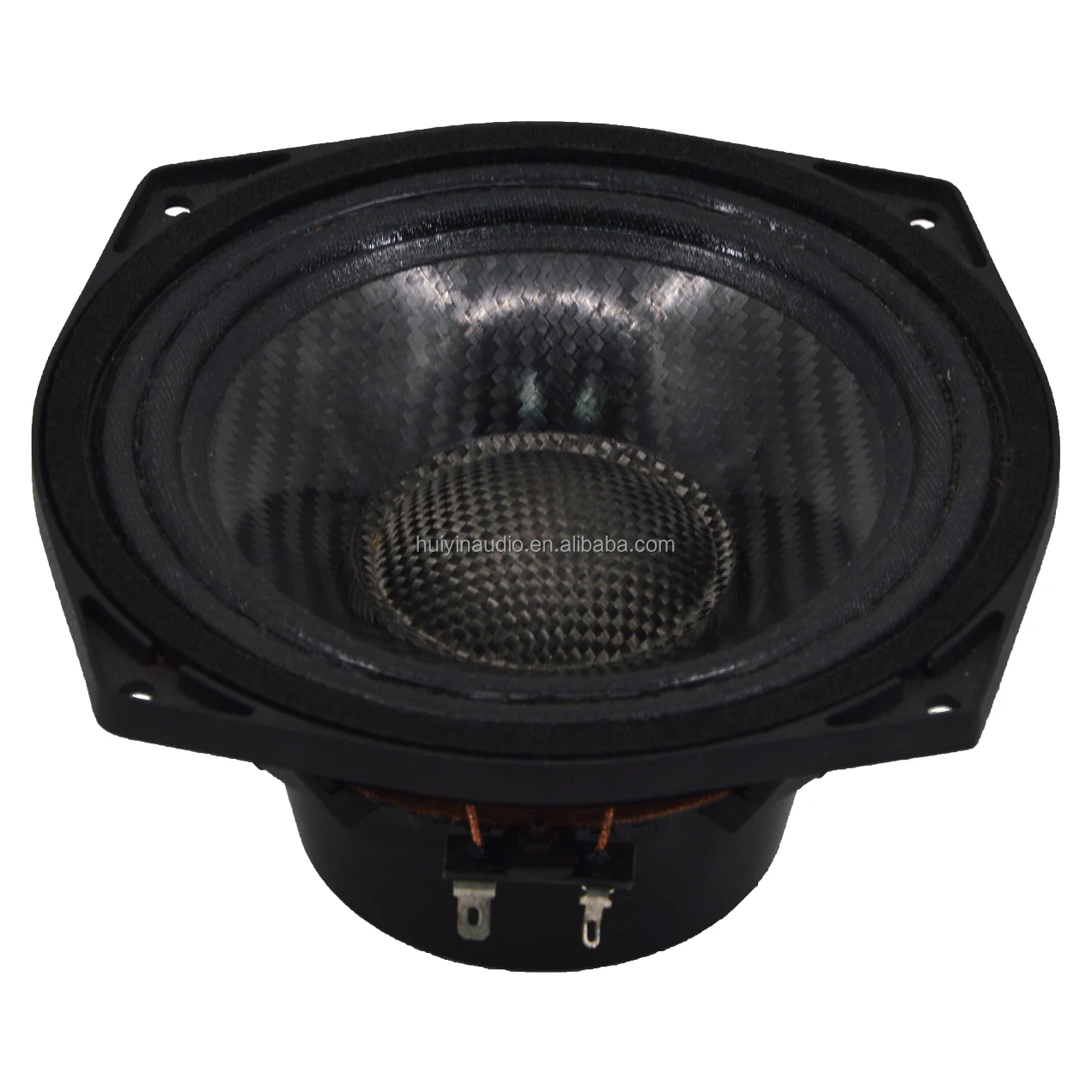

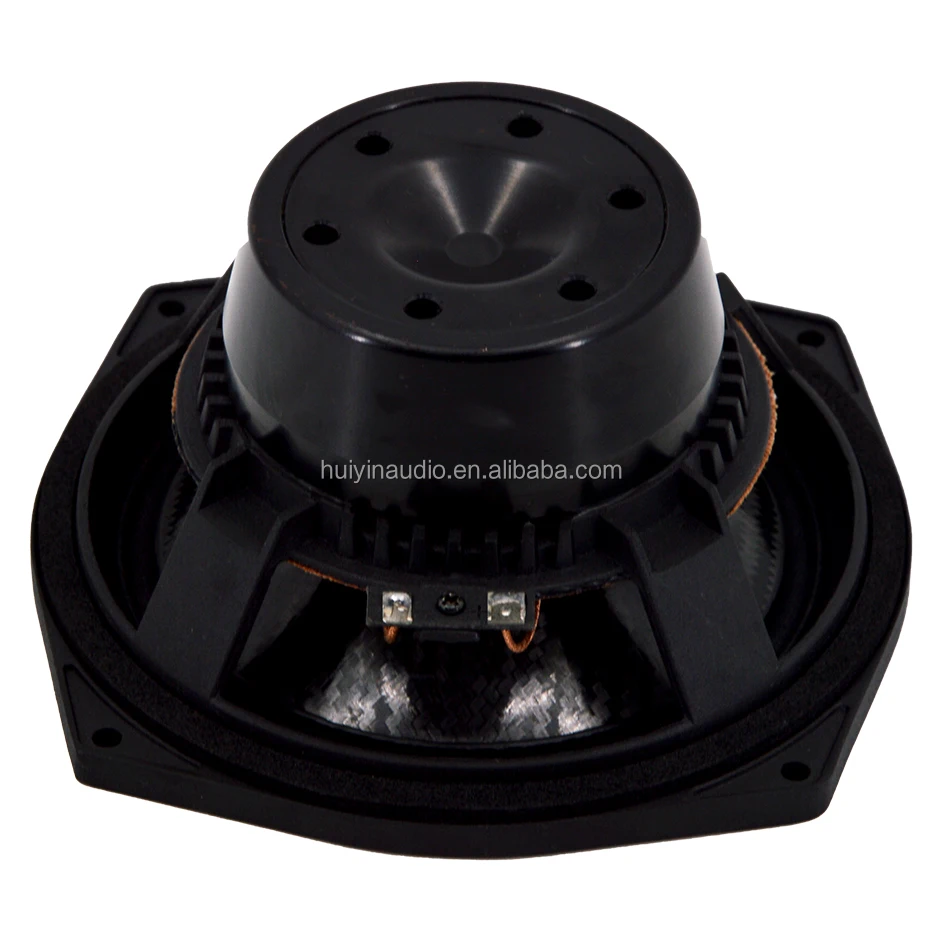

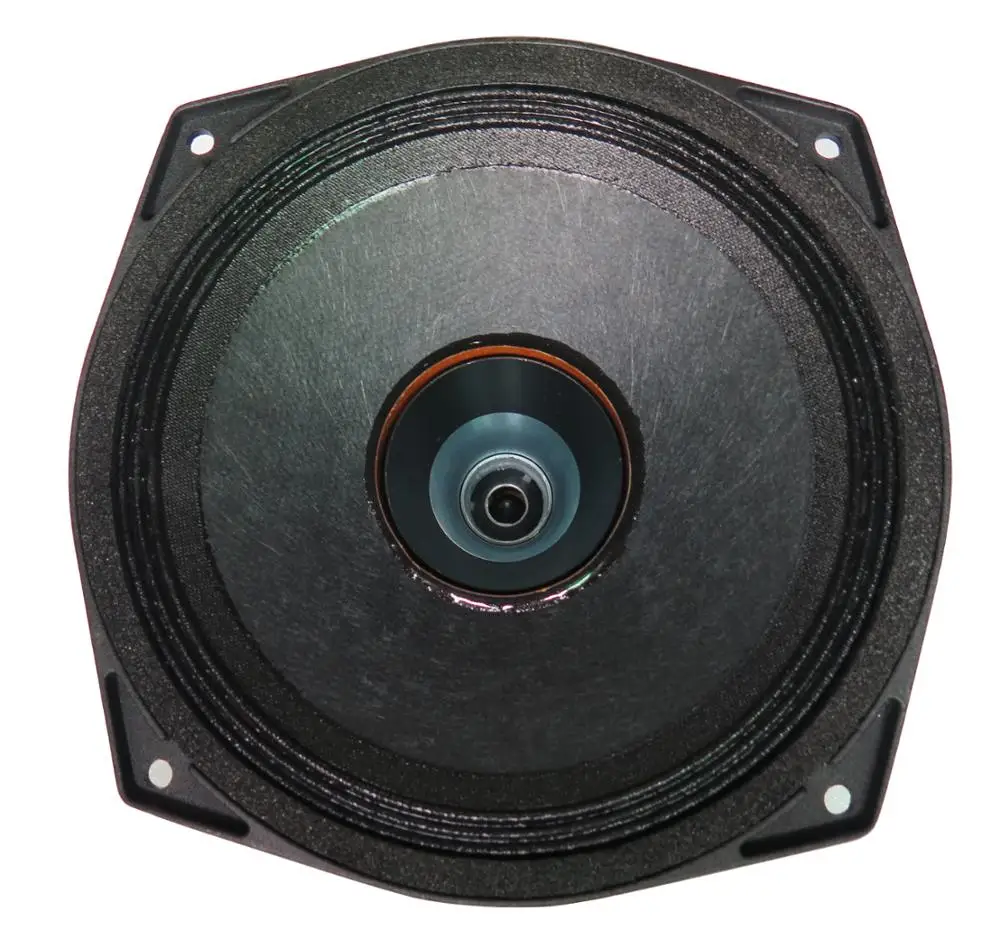

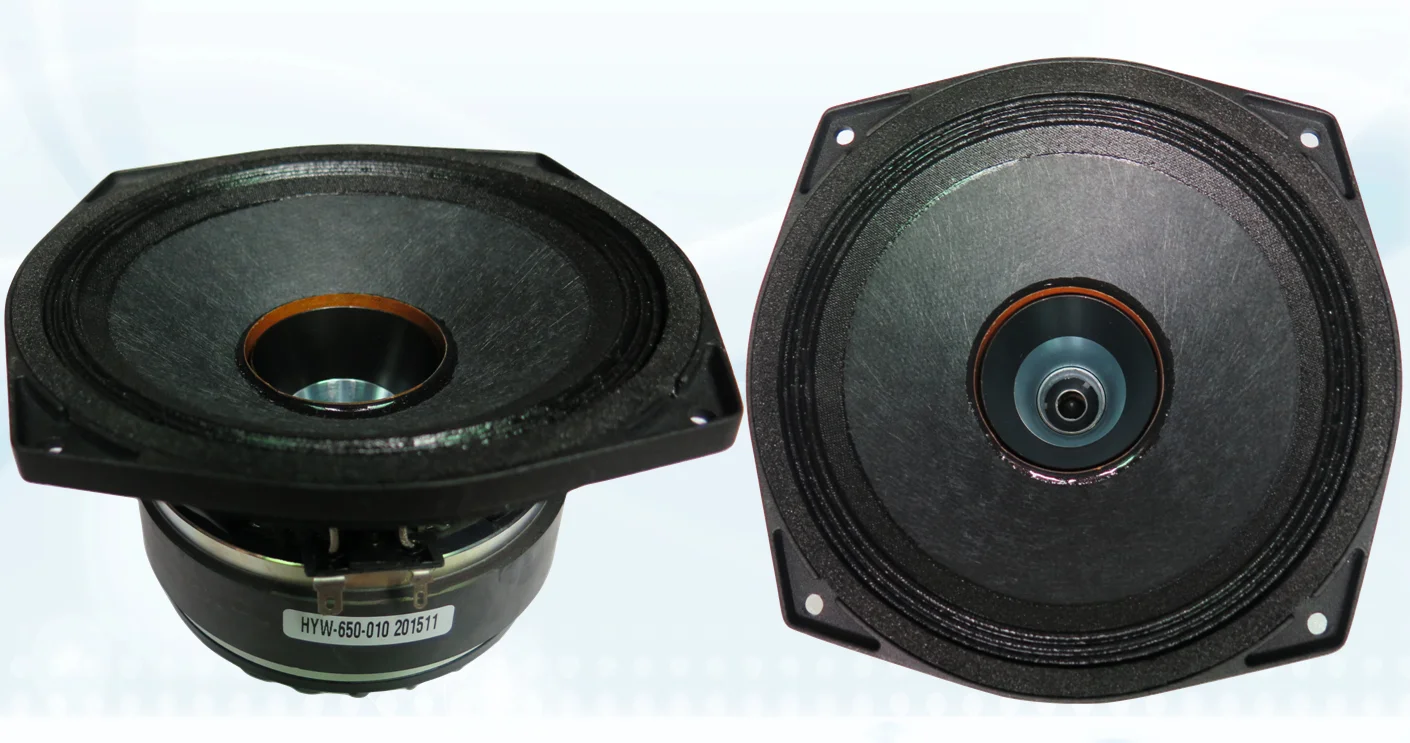

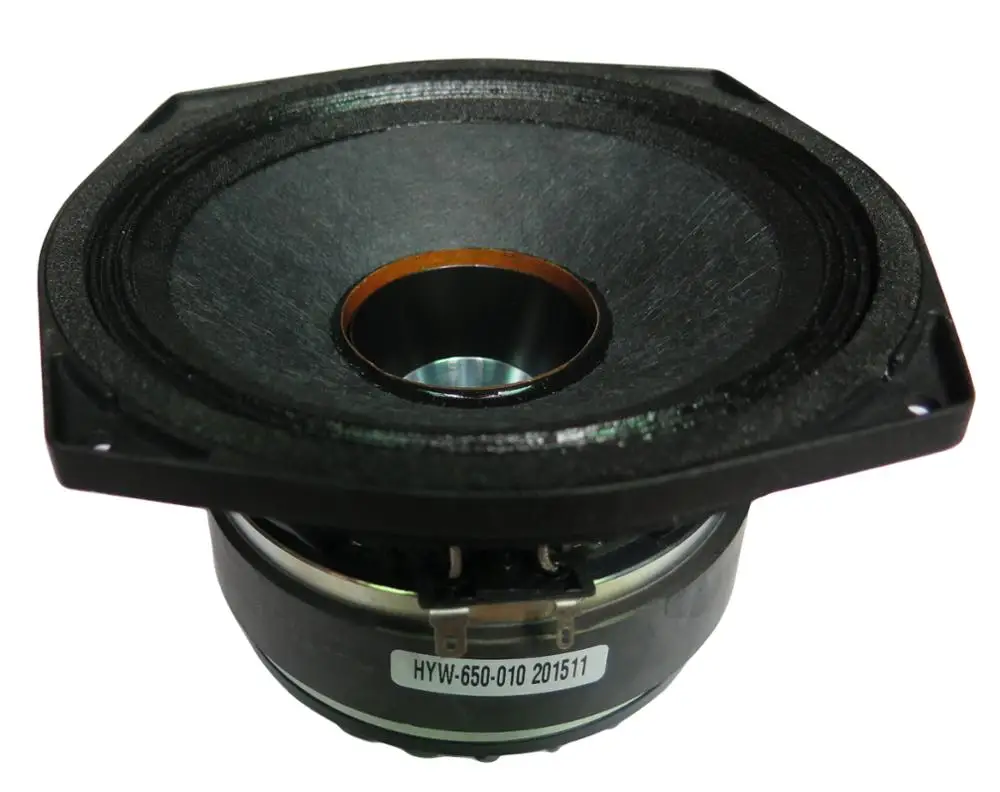

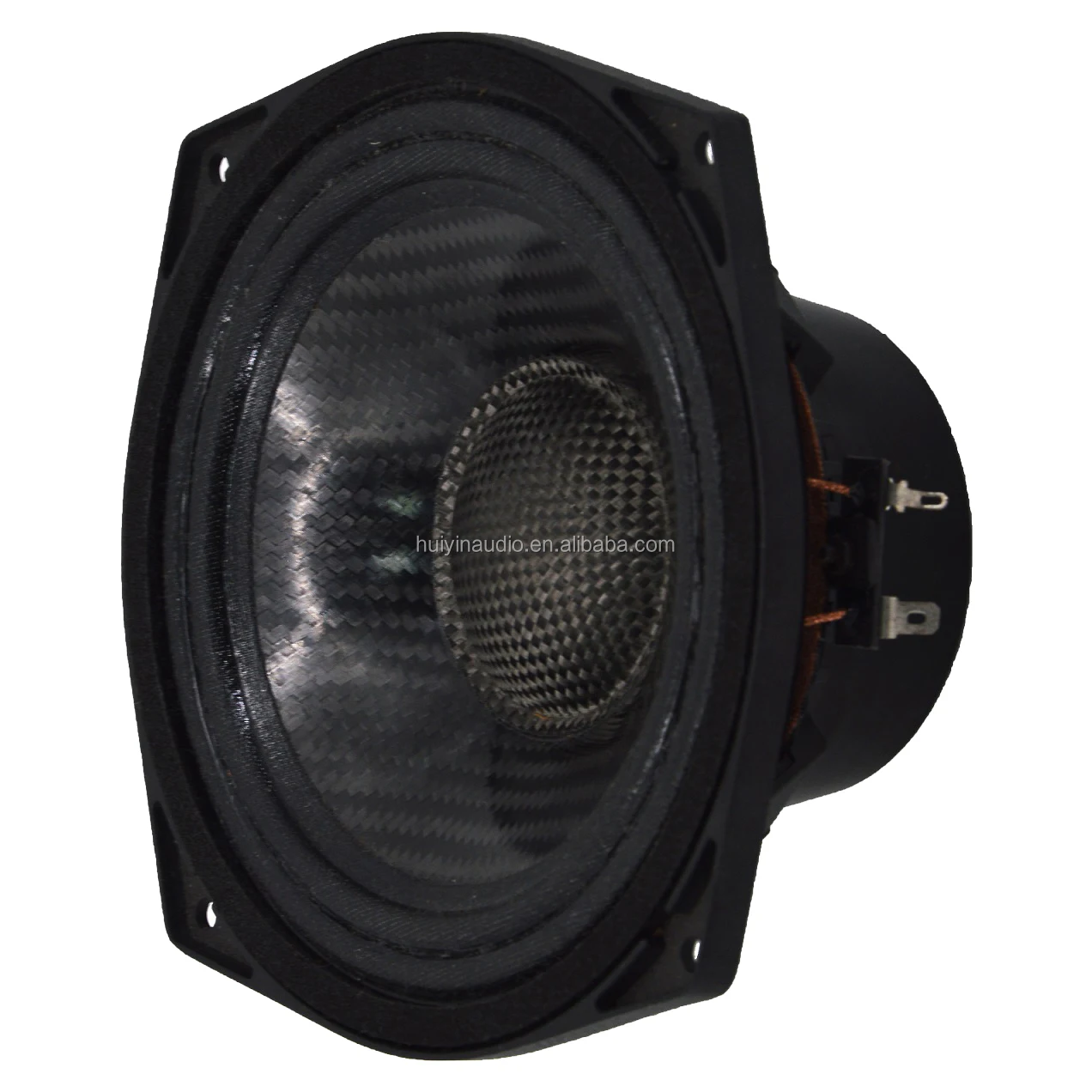

Professional 6.5 Inch Coaxial Line Array Speakers 650-028 Aluminium Metal Shell Passive Type 650-028
Professional 6.5 Inch Coaxial Line Array Speakers 650-028 Aluminium Metal Shell Passive Type 650-028
Professional 6.5 Inch Coaxial Line Array Speakers 650-028 Aluminium Metal Shell Passive Type 650-028
Professional 6.5 Inch Coaxial Line Array Speakers 650-028 Aluminium Metal Shell Passive Type 650-028
Professional 6.5 Inch Coaxial Line Array Speakers 650-028 Aluminium Metal Shell Passive Type 650-028
Professional 6.5 Inch Coaxial Line Array Speakers 650-028 Aluminium Metal Shell Passive Type 650-028
Professional 6.5 Inch Coaxial Line Array Speakers 650-028 Aluminium Metal Shell Passive Type 650-028
Professional 6.5 Inch Coaxial Line Array Speakers 650-028 Aluminium Metal Shell Passive Type 650-028
Professional 6.5 Inch Coaxial Line Array Speakers 650-028 Aluminium Metal Shell Passive Type 650-028
Professional 6.5 Inch Coaxial Line Array Speakers 650-028 Aluminium Metal Shell Passive Type 650-028
Professional 6.5 Inch Coaxial Line Array Speakers 650-028 Aluminium Metal Shell Passive Type 650-028
Professional 6.5 Inch Coaxial Line Array Speakers 650-028 Aluminium Metal Shell Passive Type 650-028

Professional 6.5 Inch Coaxial Line Array Speakers 650-028 Aluminium Metal Shell Passive Type 650-028

Spu:
60770763960
Inquiry
  • Overview
  • Recommended Products

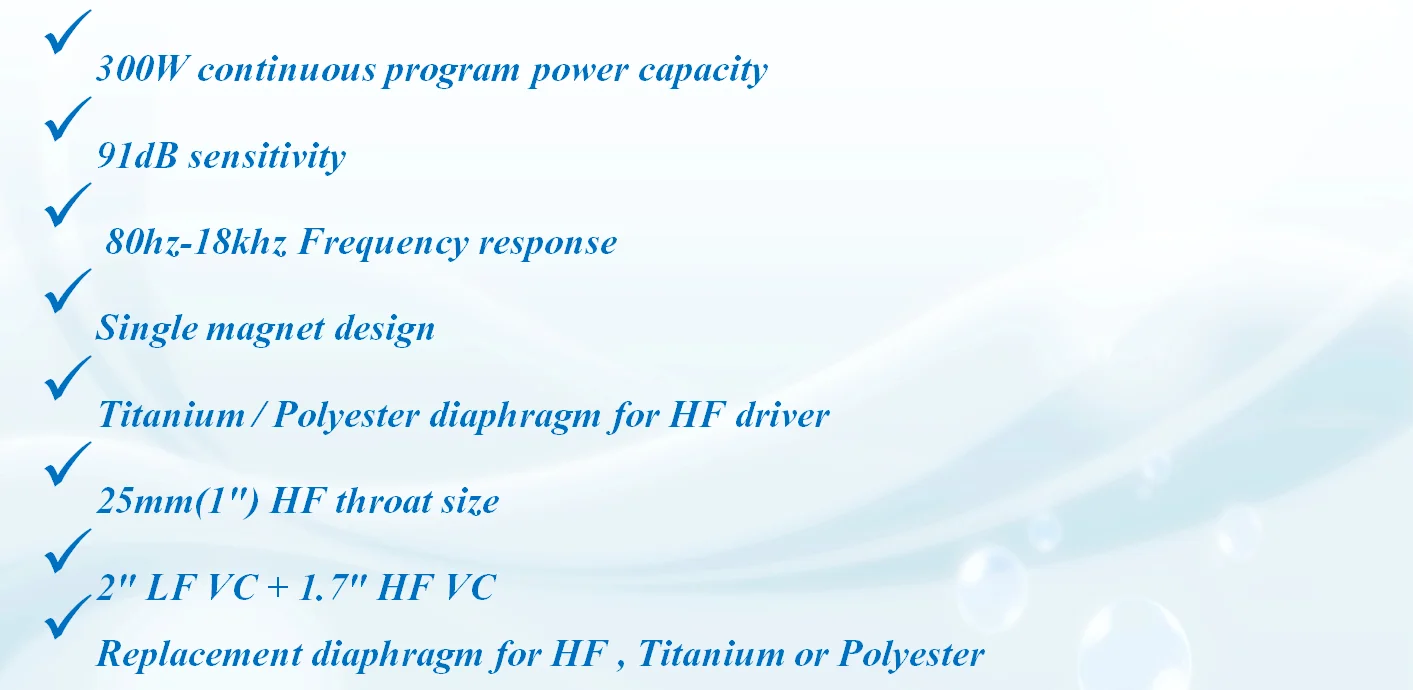

Product Description


.png


Specification
Nominal diameter
170/6.5
mm/inch
Nominal impedance
8
ohm
Min impedance LF
5.2
ohm
Min impedance HF
6
ohm
Frequency response
80-18k
Hz
Dispersion angle
70

Magnet size
145x25
mm
Magnet material
Ferrite

Specification LF
Sensitivity (1w/1m)
91
dB
Nominal power handling
150
Watts
Continuous power handling
300
Watts
Voice coil diameter
50/2 "
mm/ inch
Winding material
Copper

Cone material
Paper

Surround material
Cloth

Specification HF
Throat size
25/1
mm/inch
Sensitivity (1w/1m)
106
dB
Nominal power handling
50
Watts
Continuous power handling
100
Watts
Voice coil diameter
44/1.7
mm/inch
Diaphragm
Titanium / Polyester

Company Information


Packaging & Shipping

 .png
