Professional Audio 3-Way Line Array Speakers LA3212 Double 12-Inch Passive Loudspeakers for Indoor & Outdoor Line Array Speakers
- Overview
- Recommended Products
- Main amplification of medium sound reinforcement system
- Touring concert, live show
- Theater/Church/ Auditorium/ Gymnasium
- 3-way passive full range line array loudspeakers

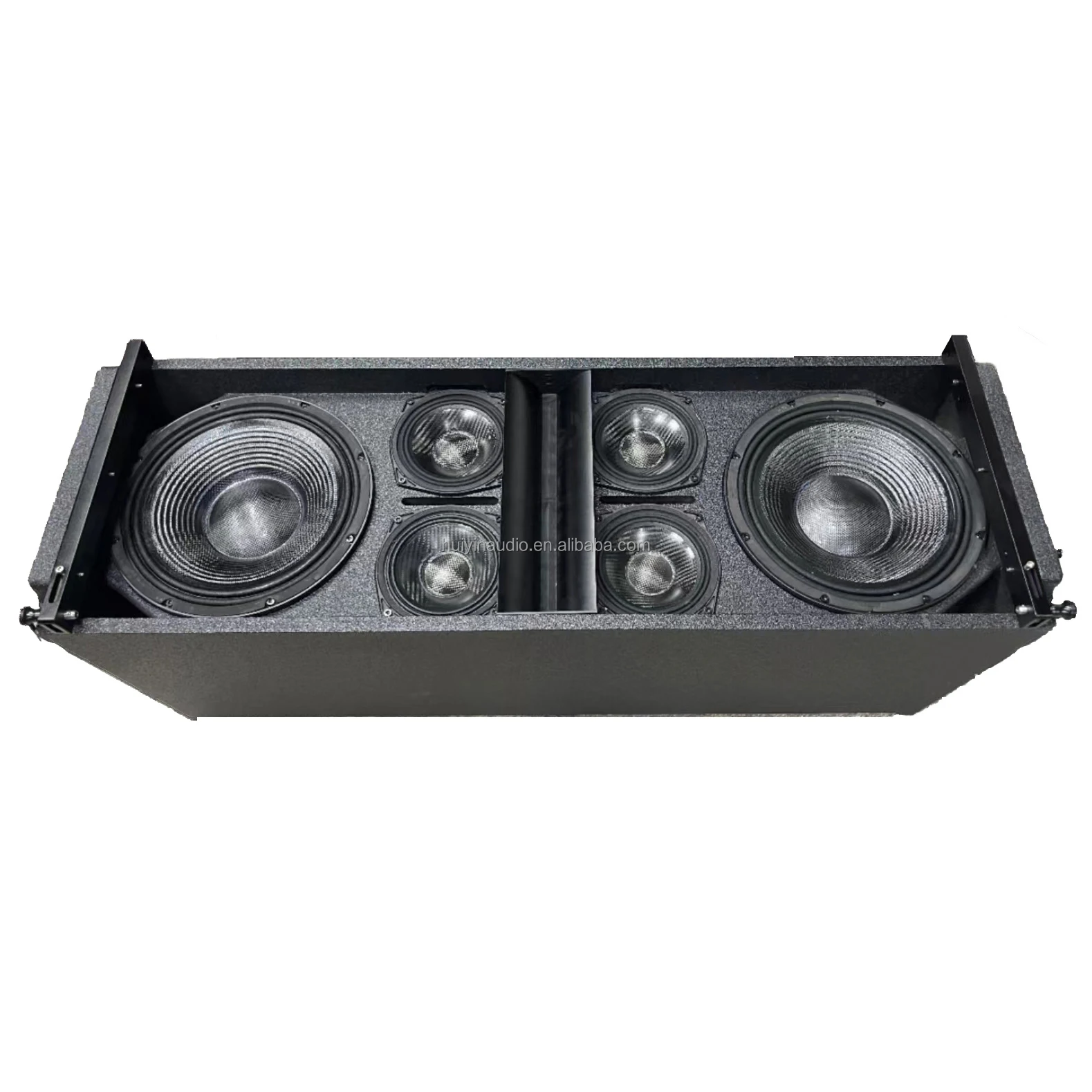

- 2x12”midbass + 2x3” neodymium HF driver+4x6.5 inch mid
- The problem of energy balance ratio between LF driver and HF driver is solved by using Dumbbell Type direct alignment
- Easy installing

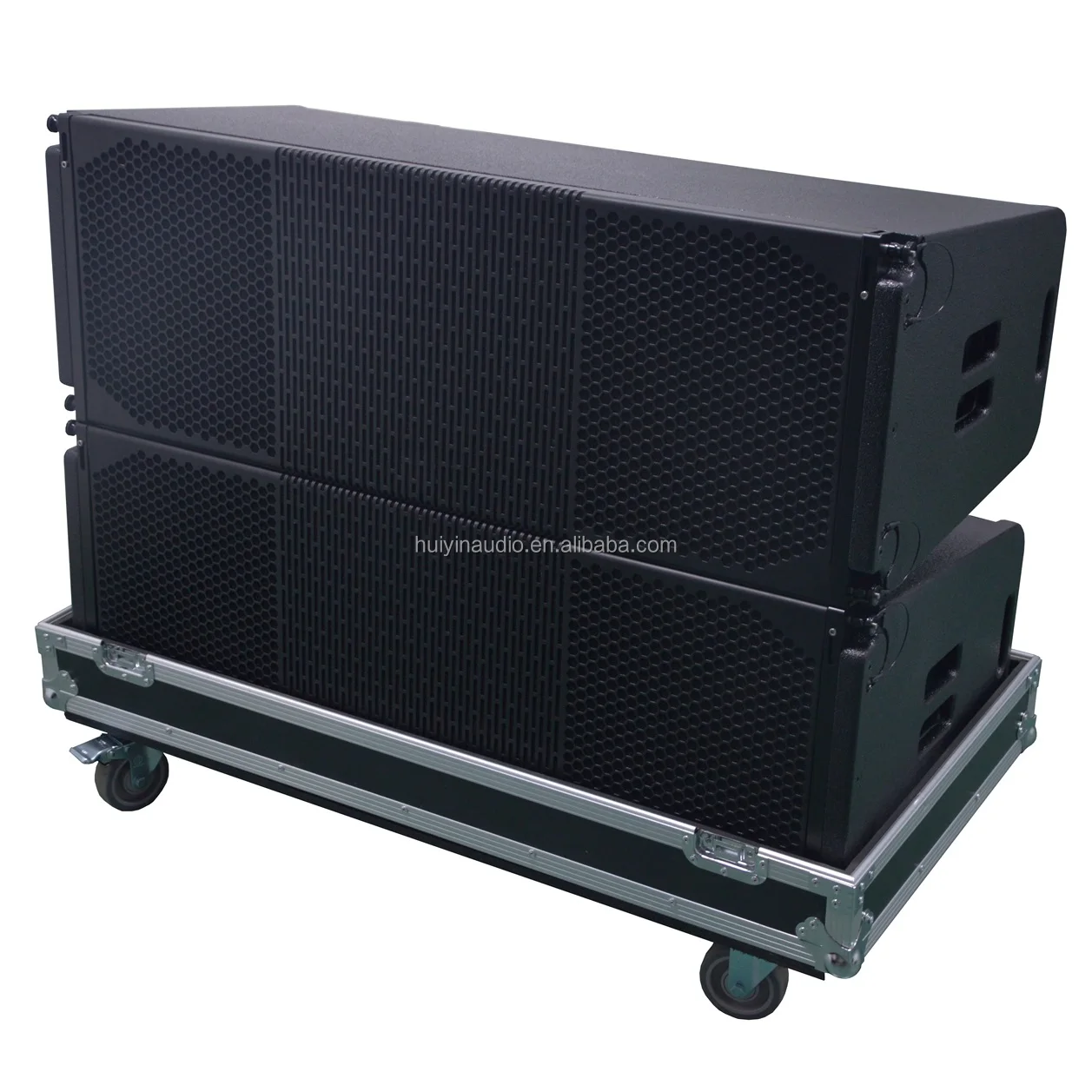

LA3212 Double 12 inch 3-way Passive line array loudspeaker
Application:
Features :
Specification :
|
Specification |
|
|
Model No. |
LA3212 |
|
Frequency response: |
55-18KHz (±3) |
|
Sensitivity ( 1W/1m ) : |
HF:108dB LF:98dB MID: 100dB |
|
Nominal Impedance: |
HF:16Ω LF:16Ω |
|
Power Rating: |
HF:160W LF:800W MID: 480W |
|
LF speaker driver : |
2×12" Mid bass with 3 inch voice coil |
|
HF speaker driver : |
2×3" HF driver with 3 inch Voice coil |
|
MD speaker driver |
4x6.5" MID driver with 2 inch vc |
|
Nominal coverage(HxV): |
100°×10° |
|
Max SPL: |
HF:129/135 dB LF:129/135 dB |
|
Suspension Hardware: |
Three points hanging 0° to 10° adjustable |
|
Connectors: |
2 NL4MP connector 2+2-HF,1+1-LF |
|
Dimensions (W×D×H) : |
1105×597×383(mm) |
|
Net weight: |
65 kg |
Dimension :
3-way line array LA3212
