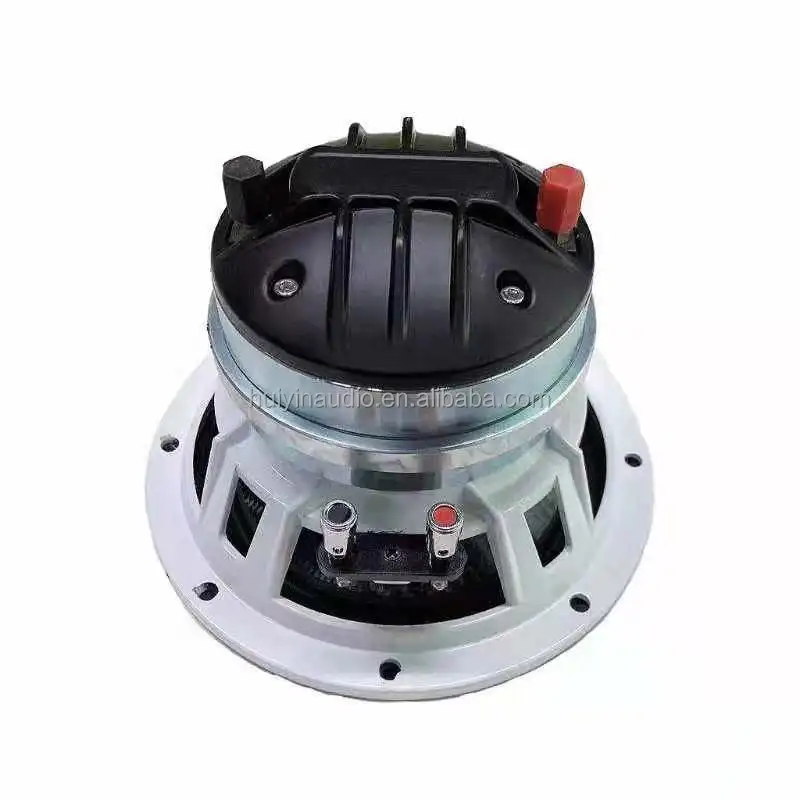

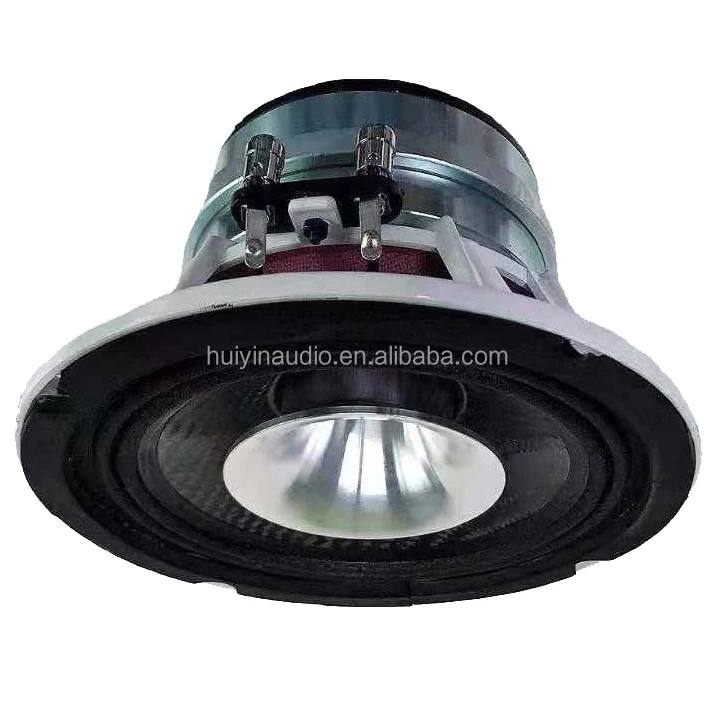

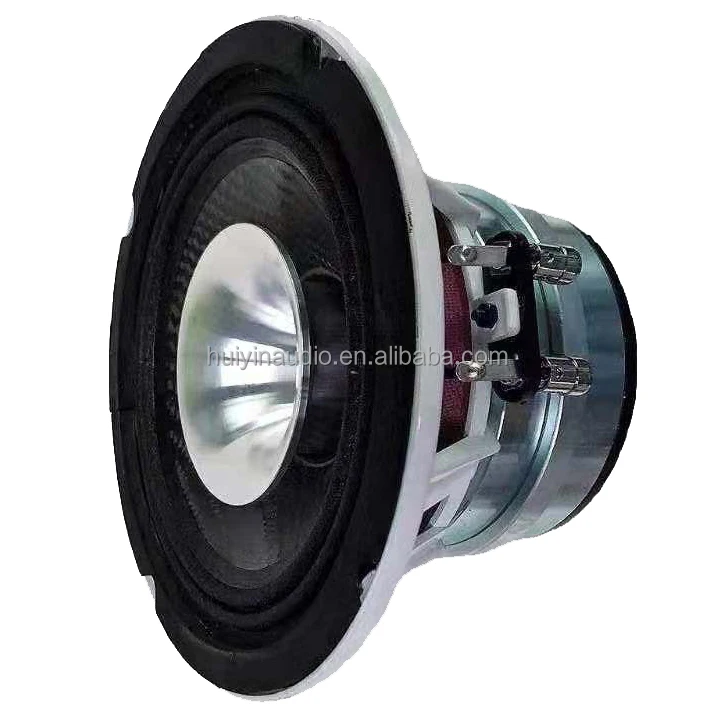

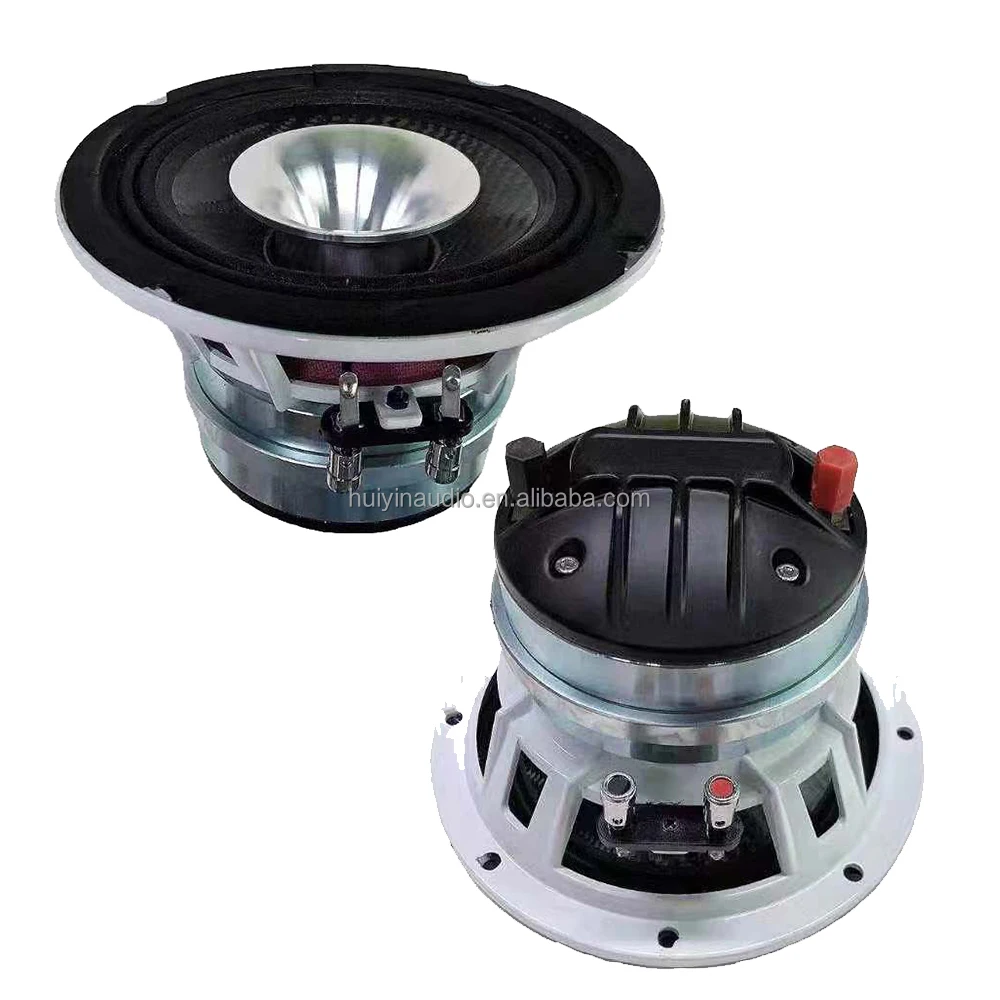

Professional Pro Audio Sound System 6.5 Inch Coaxial Speaker 650-040 with Neodymium Magnet 100W RMS 8ohm Impedance Horn Speakers

Spu:
1601398563851
  • Overview
  • Recommended Products



Product Description



Features:

  • 6.5 inch Coaxial speaker with big horn
  • 100Wrms power handling, 200W max power
  • 45hz- 20kHz frequency response
  • Single ferrite magnet assembly
  • Inside/Outside copper voice coil



Specification
Nominal diameter
160/6.5
mm/inch
Nominal impedance
8
ohm
Min impedance LF
7.2
ohm
Min impedance HF
6
ohm
Frequency response
45-20k
Hz
  RMS Power
100

Magnet material
   Ferrite
Specification LF
Sensitivity (1w/1m)
   91
dB
Nominal power handling
100
Watts
Continuous power handling
200
Watts
Voice coil diameter
35/1.7
mm/ inch
Winding material
Copper

Cone material
Paper

Surround material
Cloth

Specification HF
Sensitivity (1w/1m)
95
dB
Nominal power handling
   35
Watts
Continuous power handling
70
Watts
Voice coil diameter
34/1.4
mm/inch
Diaphragm
Titanium

T/S Parameter
Fs
110
Hz
Re
6.2

Qes
1.56
Qts
1.11
Qms
3.89
Vas
5.84
L
Rms
1.8
kg/s
Cms
0.2
mm/N
Mms
10
gr
BL
5.22
N/A
Mounting information
Overall diameter
167/6.57
mm/inch
Bolt Circle diameter
157/6.18
mm/inch
Baffle Cutout diameter
142/5.6
mm/inch
Total Depth
107/4.2
mm/inch
Shipping information
Net weight
1.6
KG
Shipping weight
2
KG
Shipping box
200x200x135
mm
