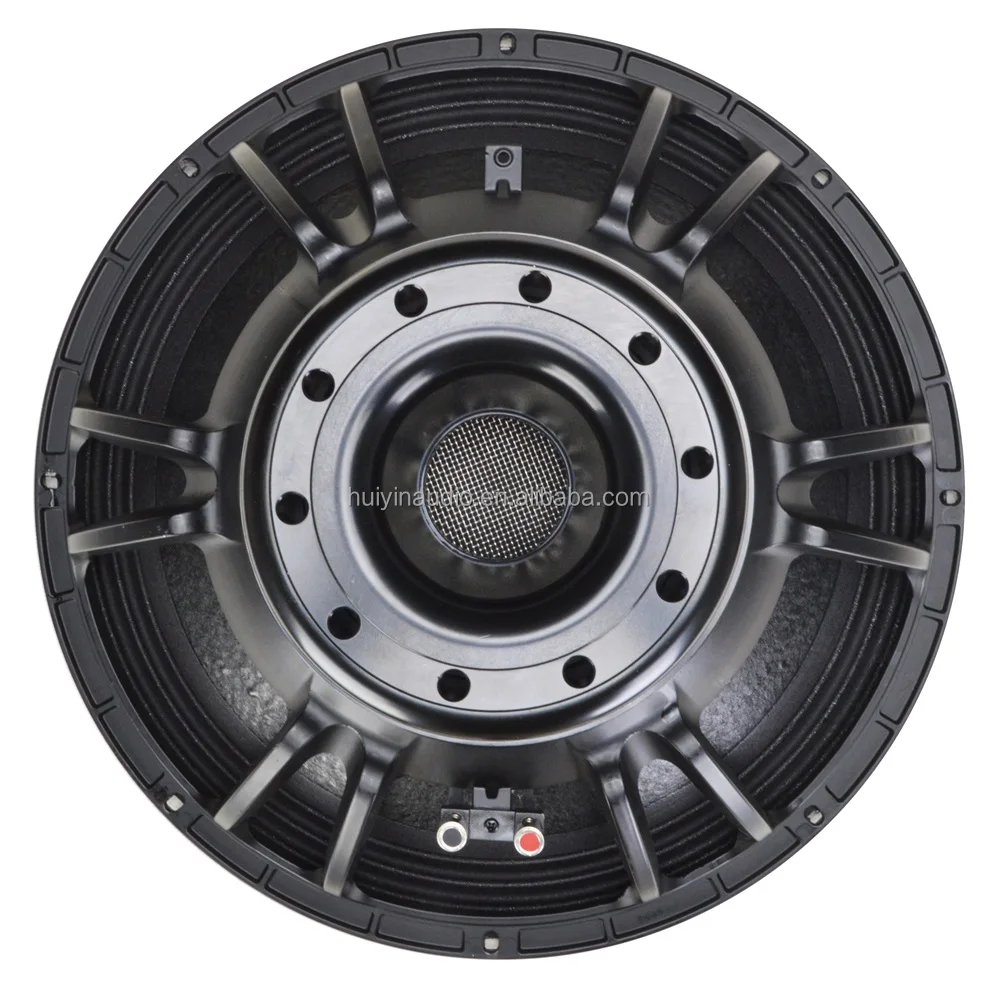

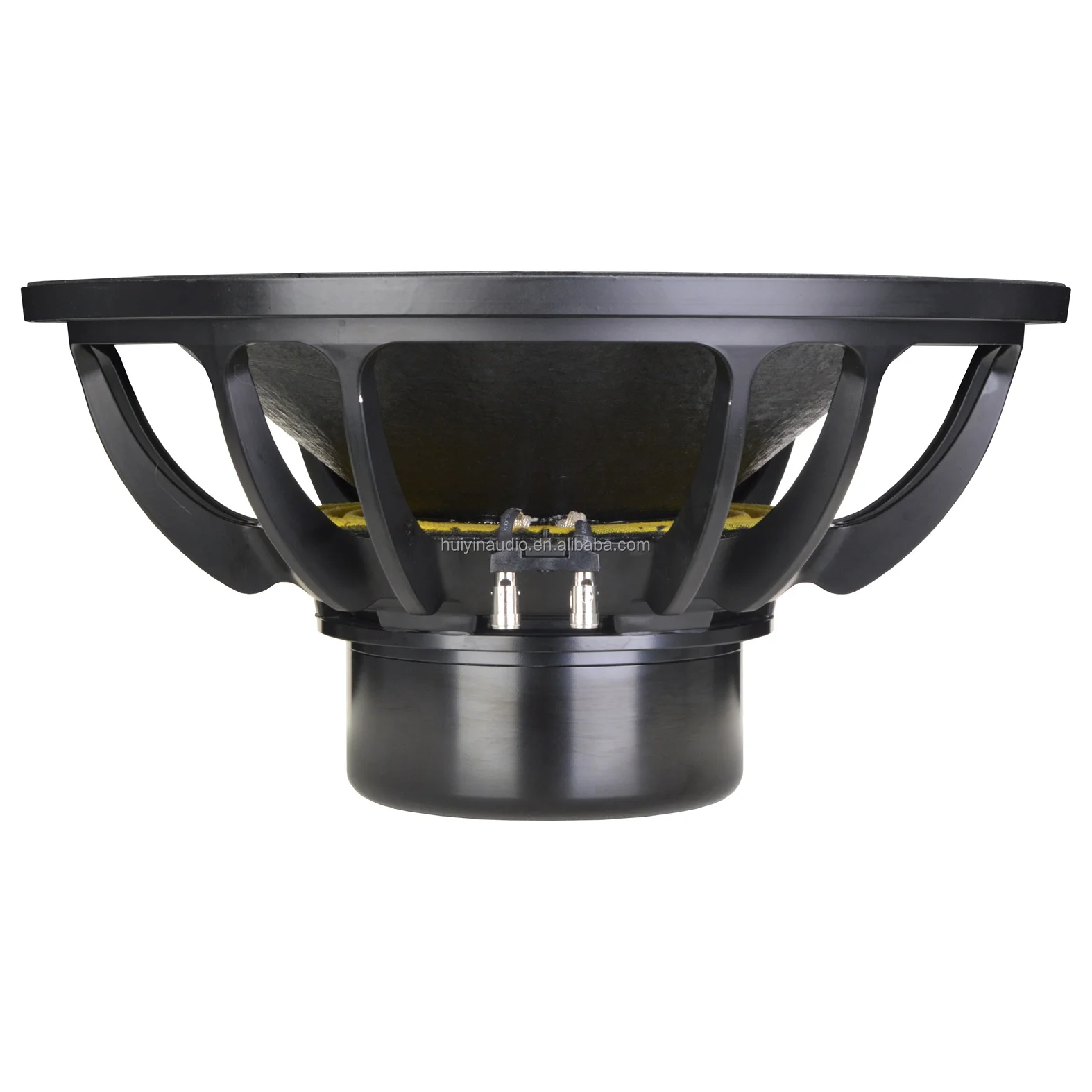

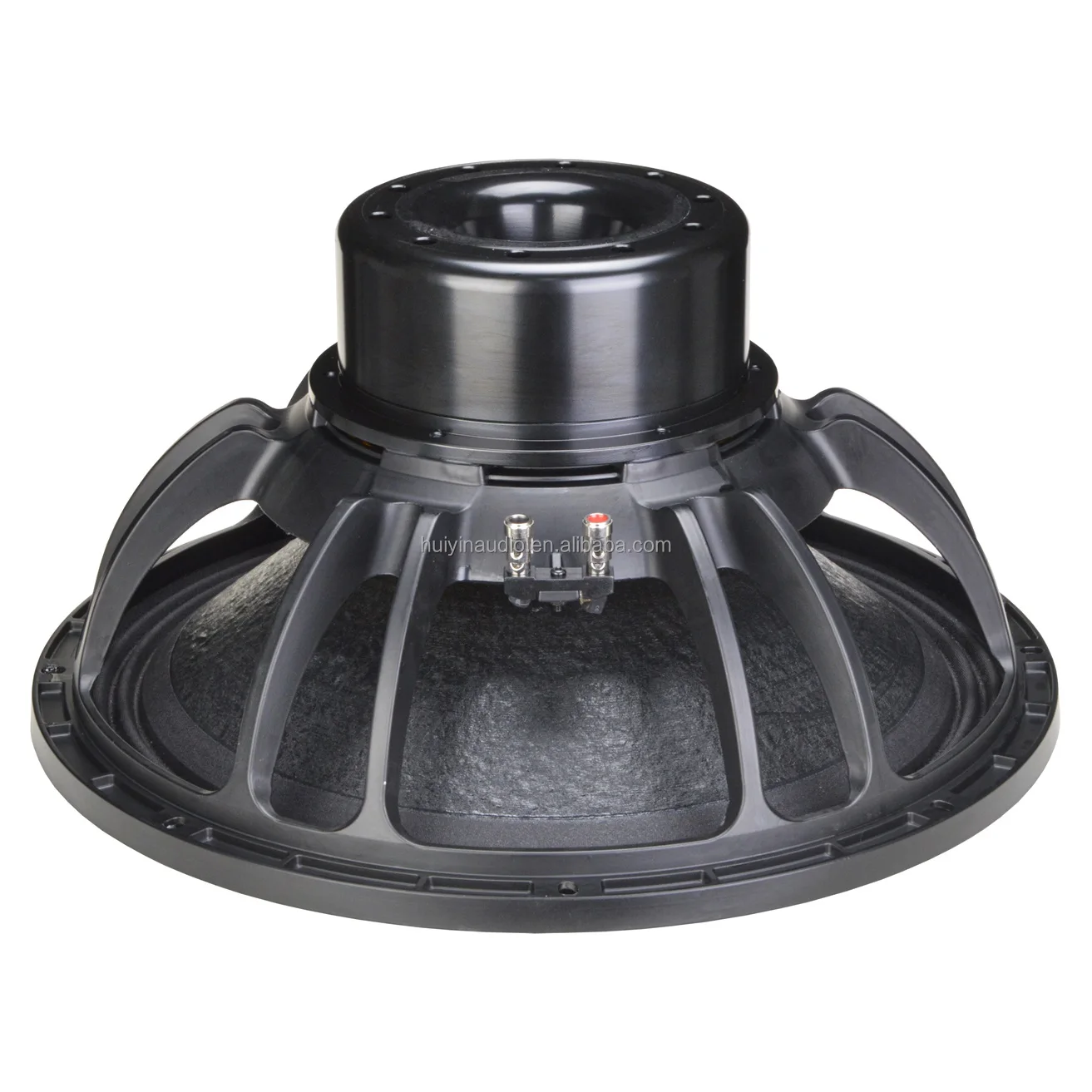

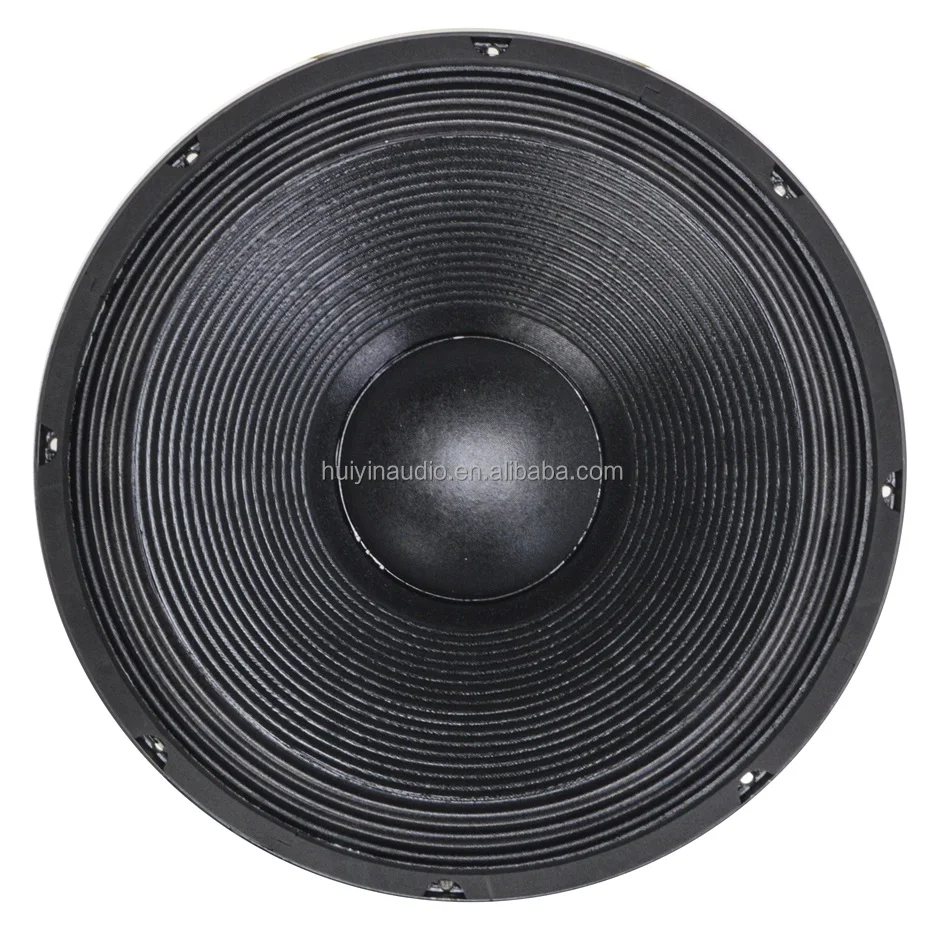

Upgrade 18 Inch Subwoofer, 2000W RMS High Power 18 Inch Neodymium Speaker for Line Array Audio, 18135-003N
Spu:
1601354345465
- Overview
- Recommended Products
General Information
All About This Item
18 inch speaker
18 inch subwoofer
18 inch mid speaker
18 inch bass speaker
18 inch mid range speaker
38HZ-2KHZ
100dB
5 inch voice coil
1800w rms power
3600w max power
neodymium magnet
N38H
paper cone
2 ohm, 4 ohm, 8 ohm, 16 ohm
professional audio sound system
8 inch, 10 inch, 12 inch, 15 inch, 18 inch etc are all available

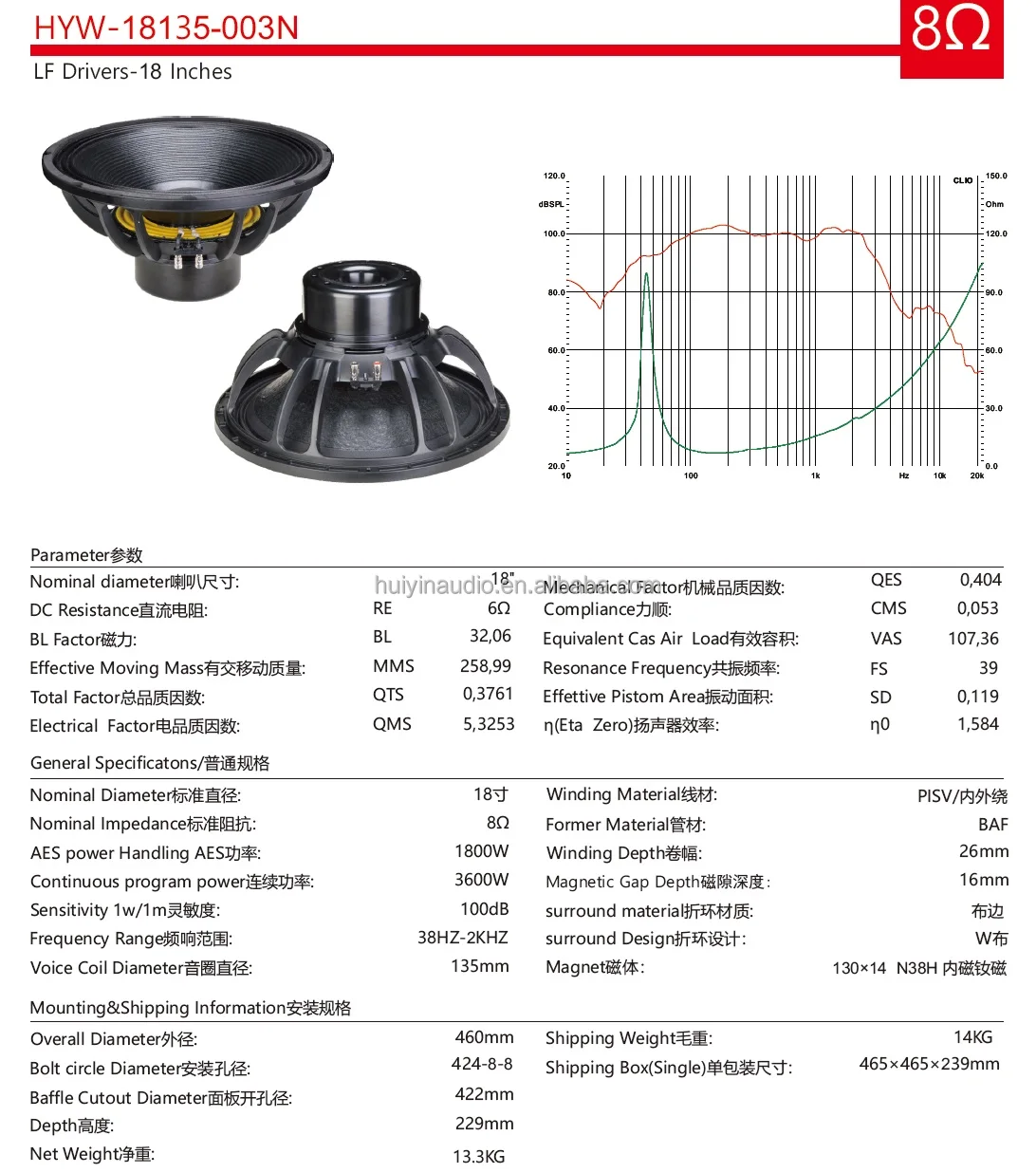

Product Paramenters
Model Number |
HYW-18135-003N |
|
Parameters |
||
Nominal diameter |
18" |
|
DC Resistance/ RE |
6Ω |
|
BL Factor/ BL |
32.06 |
|
Effective Moving Mass/ MMS |
258.99 |
|
Total Factor/ QTS |
0.3761 |
|
Electrical Factor/ QMS |
5.3253 |
|
Mechanical Factor/ QES |
0.404 |
|
Compliance/ CMS |
0.053 |
|
Equivalent Cas Air Load/ VAS |
107.36 |
|
Resonance Frequency/ FS |
39 |
|
Effettive Pistom Area/ SD |
0.119 |
|
Eta Zero/ η0 |
1.584 |
|
General Specificatons |
||
Nominal Diameter |
18 inch |
|
Nominal Impedance |
8 Ohm |
|
AES power Handling |
1800W RMS |
|
Continuous program power |
3600W MAX |
|
Sensitivity 1w/1m |
100dB |
|
Frequency Range |
38HZ-2KHZ |
|
Voice Coil Diameter |
135mm / 5 inch voice coil |
|
Winding Material |
Inner and outer PISV |
|
Former Material |
BAF |
|
Winding Depth |
26mm |
|
Magnetic Gap Depth |
16mm |
|
Surround material |
Paper cone + Cloth edge |
|
Surround Design |
W type |
|
Magnet |
130X14MM N38H Neodymium Magnet |
|
Mounting & Shipping Information |
||
Overall Diameter |
160mm |
|
Bolt circle Diameter |
424-8-8 |
|
Baffle Cutout Diameter |
422mm |
|
Depth |
229mm |
|
Net Weight |
13.3kg |
|
Shipping Weight |
14.0kg |
|
Shipping Box |
47X47X23CM |
|
