Product Description

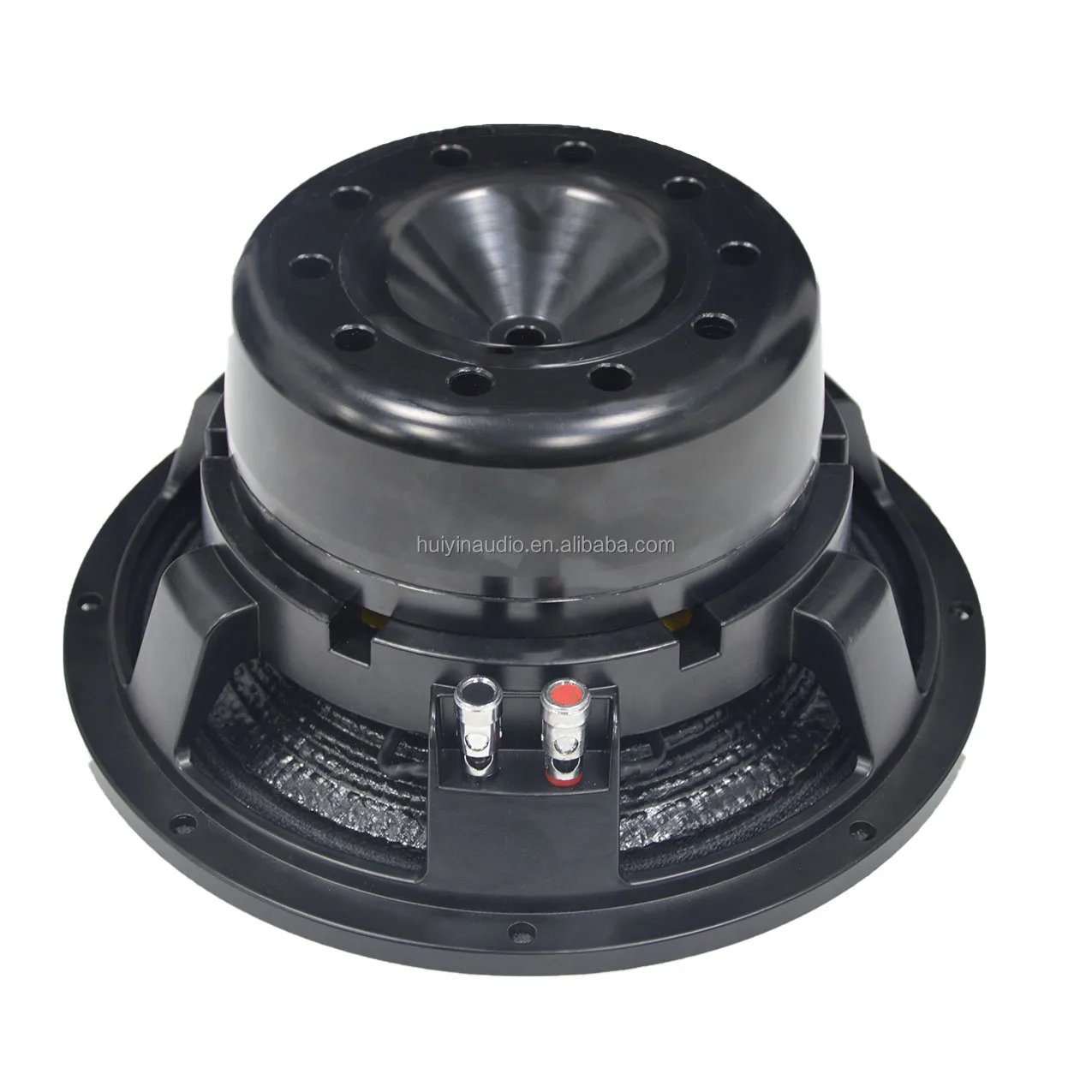

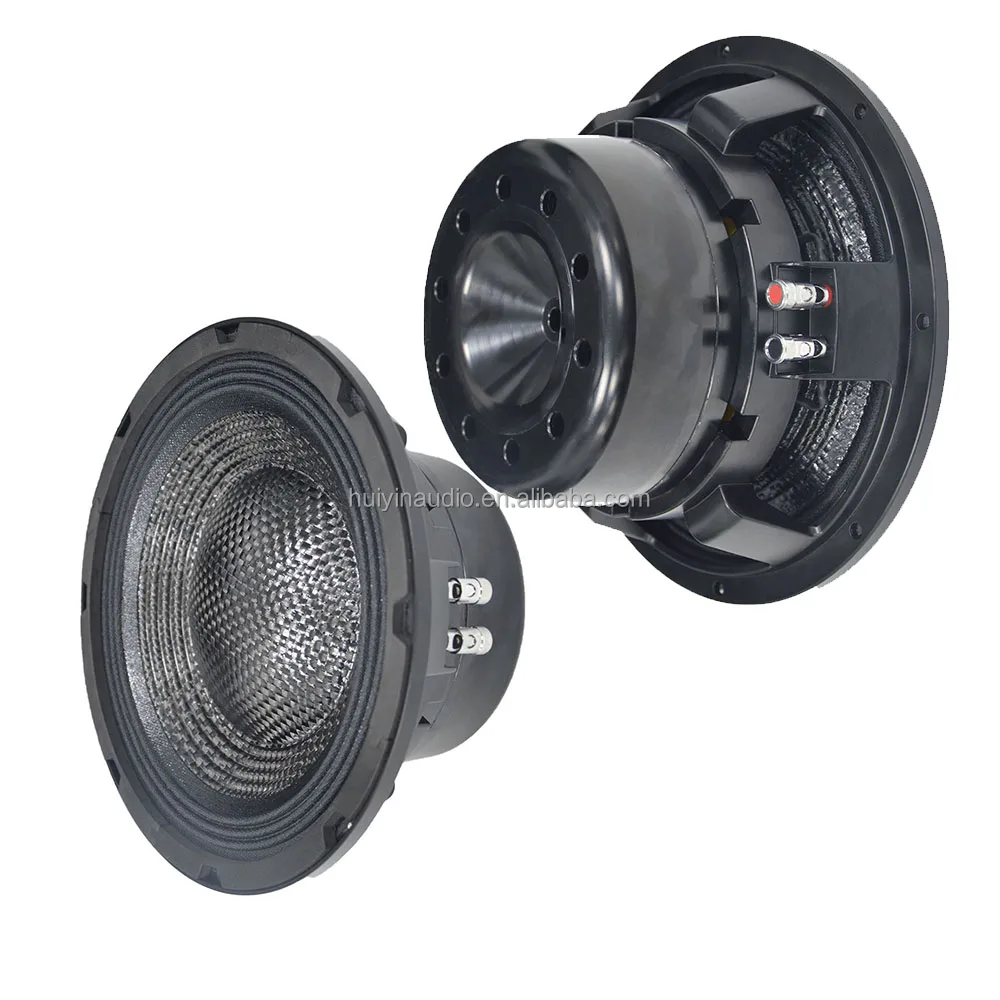

This 10 inch neodymium bass speakers offers outstanding efficiency , high sensitivity 96dB. Its very high power handling(800W RMS)
Specification
Features :
- 10 inch woofer speaker with neodymium magnet
- 800W max power capacity / 1600WRMS
- 96dB sensitivity 1W/1M
- 107hz-2khz Frequency response
- Neodymium magnet
- 4 inch/100mm copper voice coil
Specification :
Specification |
||||
Nominal diameter |
261/10 |
mm/inch |
||
Nominal impedance |
8 |
ohm |
||
Min impedance |
5.8 |
ohm |
||
Frequency response |
107-2k |
Hz |
||
Magnet material |
Neodymium |
|||
Sensitivity (1w/1m) |
96 |
dB |
||
RMS power handling |
800 |
Watts |
||
Continuous power handling |
1600 |
Watts |
||
Voice coil diameter |
100/4 |
mm/ inch |
||
Winding material |
Copper |
|||
Cone material |
Carbon fiber |
|||
Surround material |
Cloth |
|||
T/S Parameter |
||||
Fs |
107 |
Hz |
||
Re |
5.8 |
Ω |
||
Qes |
0.56 |
|||
Qts |
0.52 |
|||
Qms |
6.94 |
|||
Vas |
14.72 |
L |
||
Cms |
0.02 |
mm/N |
||
BL |
26.32 |
N/A |
||
Mounting information |
||||
Overall diameter |
261 |
mm |
||
Bolt Circle diameter |
245 |
mm |
||
Baffle Cutout diameter |
234 |
mm |
||
Depth |
128 |
mm |
||
Shipping information |
||||
Net weight |
7.9 |
KG |
||
Shipping weight |
10 |
KG |
||
Shipping box |
28x28x15 |
cm |
||
