10 Inch Pa Neodymium Woofer Speaker High Powerful Speaker 10
10 Inch Pa Neodymium Woofer Speaker High Powerful Speaker 10
10 Inch Pa Neodymium Woofer Speaker High Powerful Speaker 10
10 Inch Pa Neodymium Woofer Speaker High Powerful Speaker 10
10 Inch Pa Neodymium Woofer Speaker High Powerful Speaker 10
10 Inch Pa Neodymium Woofer Speaker High Powerful Speaker 10
10 Inch Pa Neodymium Woofer Speaker High Powerful Speaker 10
10 Inch Pa Neodymium Woofer Speaker High Powerful Speaker 10

10 Inch Pa Neodymium Woofer Speaker High Powerful Speaker 10" for Pro Audio

Spu:
60615617557
Inquiry
  • Overview
  • Recommended Products
Product Description

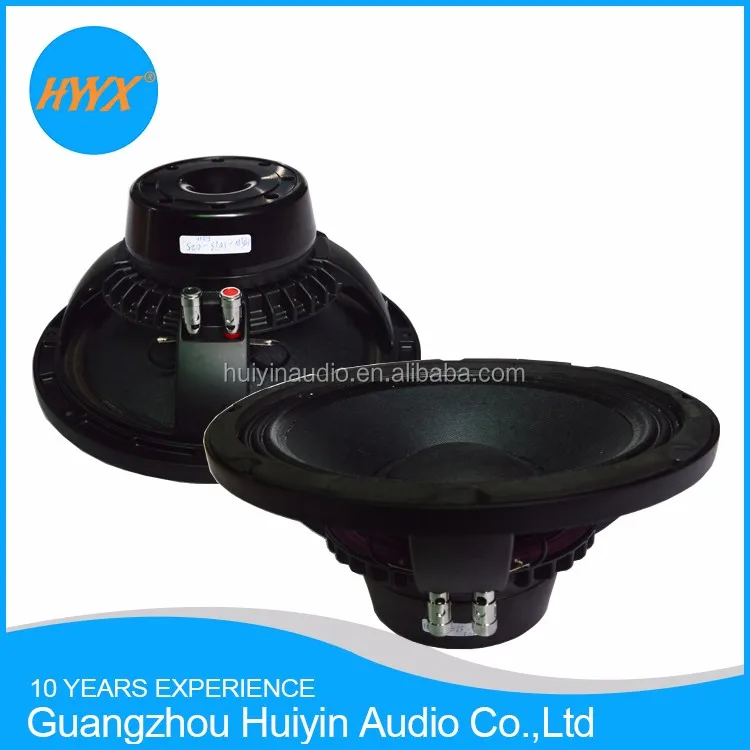

product 10 inch pa neodymium woofer speaker high powerful speaker 10 for pro audio-0

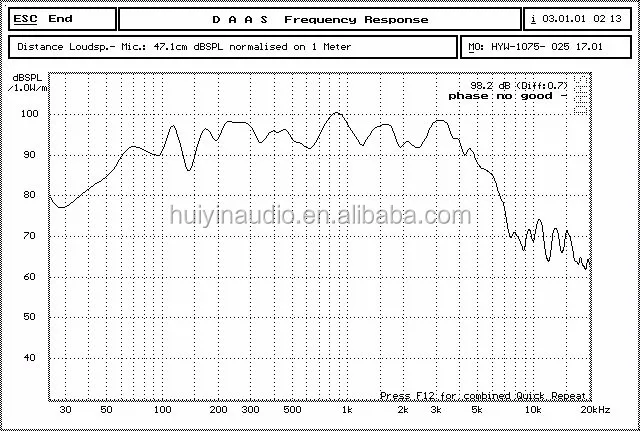

product 10 inch pa neodymium woofer speaker high powerful speaker 10 for pro audio-1

This 10 inch Neodymium woofer Speakers offers outstanding efficiency , high sensitivity 97dB. Its very high power handling(400W RMS ) and Xmax capabilities(12mm) make it suitable for any pro audio speaker enclosure, including LINE ARRAY SPEAKER SYSTEM.

Specification


Features :


- 1600W continuous program power capacity / 400W RMS
- 97dB sensitivity 1W/1M
- 40hz-5khz Frequency response
- Neodymium magnet
- 3 inch/75mm copper voice coil

Speccification :

Specification
Nominal diameter
260/10
mm/inch
Nominal impedance
8
ohm
Min impedance
5.2
ohm
Frequency response
40-5k
Hz
Magnet material
Neodymium
Sensitivity (1w/1m)
97
dB
RMS power handling
400
Watts
Continuous power handling
1600
Watts
Voice coil diameter
75/3
mm/ inch
Winding material
Copper
Cone material
Paper
Surround material
Cloth
T/S Parameter
Fs
69.6
Hz
Re
5.2
Ω
Qes
0.39
Qts
0.38
Qms
10.00
Vas
20.6
L
Rms
1.9
kg/s
Cms
0.12
mm/N
Mms
44.3
gr
BI
16.0
N/A
Rp
115.3
Ω
Lp
30.1
mH
Cp
324.0
uF
Le
0.6
mH
Xmax
7
mm
Mounting information
Overall diameter
261/10.3
mm/inch
Bolt Circle diameter
247/9.72
mm/inch
Baffle Cutout diameter
230/9
mm/inch
Depth
122/4.8
mm/inch
Flange thickness
12/0.47
mm/inch
Shipping information
Net weight
3.58
KG
Shipping weight
4.5
KG
Shipping box
300x300x200
mm
