Product Description

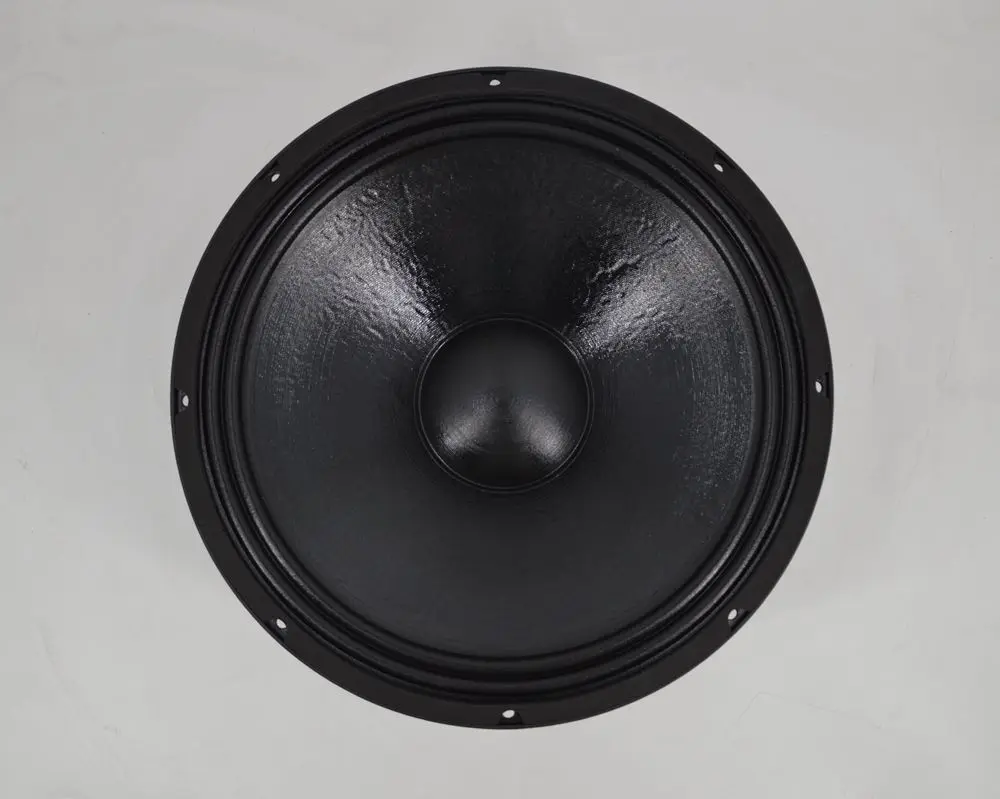

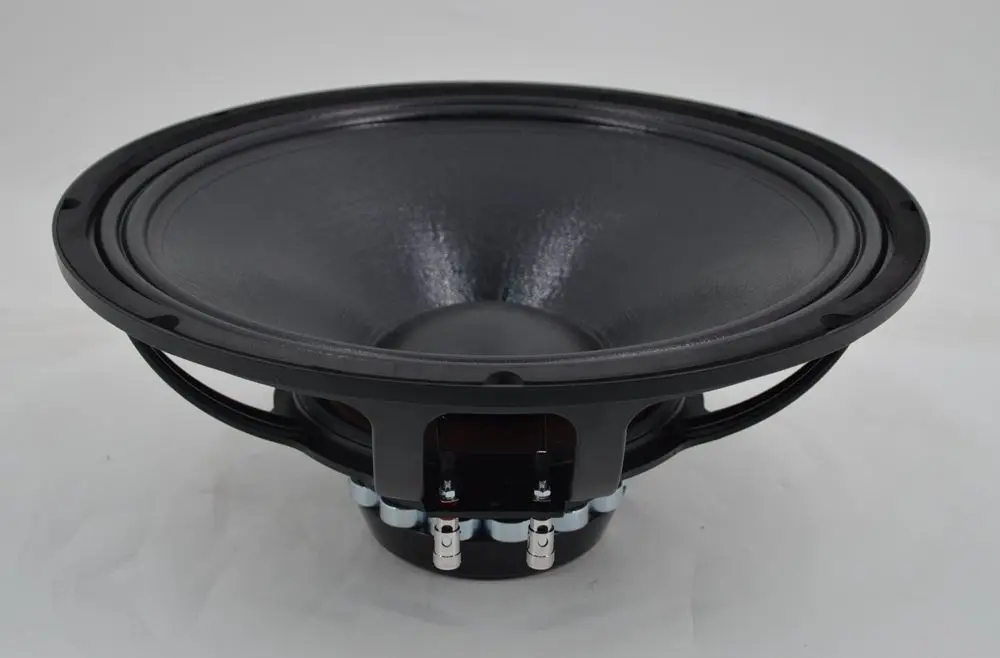

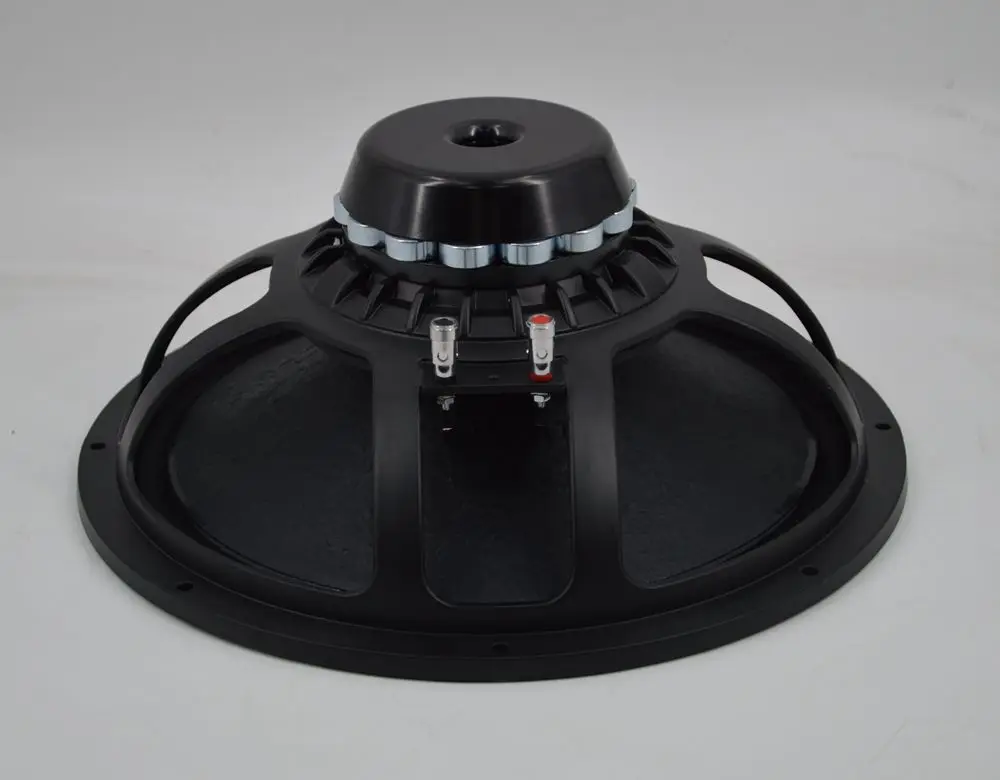

This 15 inch neodymium Midbass Speakers offers outstanding efficiency , high sensitivity 100dB.
Specification
Features :
- 15 inch midbass speaker with neodymium magnet
- 900W max power capacity / 450W RMS
- 100dB sensitivity 1W/1M
- 38hz-4.5khz Frequency response
- Neodymium magnet
- 3 inch/75mm copper voice coil
Speccification :
Specification |
||||
Nominal diameter |
380/15 |
mm/inch |
||
Nominal impedance |
8 |
ohm |
||
Min impedance |
5.6 |
ohm |
||
Frequency response |
38-4.5k |
Hz |
||
Magnet material |
Neodymium |
|||
Sensitivity (1w/1m) |
100 |
dB |
||
RMS power handling |
450 |
Watts |
||
Max power handling |
900 |
Watts |
||
Voice coil diameter |
75/3 |
mm/ inch |
||
Winding material |
Copper |
|||
Cone material |
Paper |
|||
Surround material |
Cloth |
|||
T/S Parameter |
||||
Fs |
37.2 |
Hz |
||
Re |
5.8 |
Ω |
||
Qes |
0.3477 |
|||
Qts |
0.3355 |
|||
Qms |
9.6202 |
|||
Vas |
228.6 |
L |
||
Rms |
1.9867 |
kg/s |
||
Cms |
0.2238 |
mm/N |
||
Mms |
81.76 |
gr |
||
BL |
17.85 |
N/A |
||
Mounting information |
||||
Overall diameter |
390/15.35 |
mm/inch |
||
Bolt Circle diameter |
371/14.6 |
mm/inch |
||
Baffle Cutout diameter |
358/14.1 |
mm/inch |
||
Depth |
162/6.37 |
mm/inch |
||
Shipping information |
||||
Net weight |
4.9 |
KG |
||
Shipping weight |
6 |
KG |
||
Shipping box |
420x420x200 |
mm |
||
