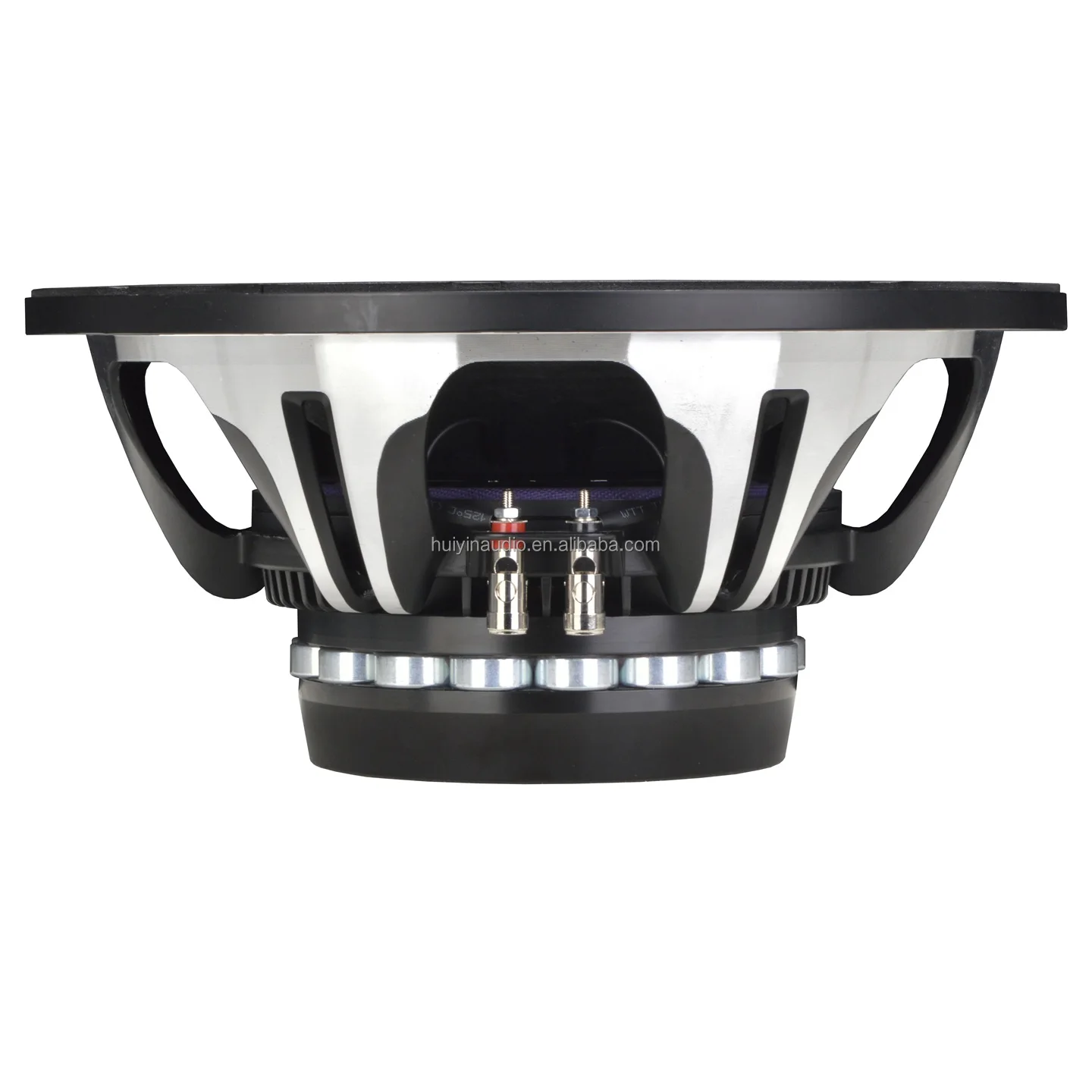

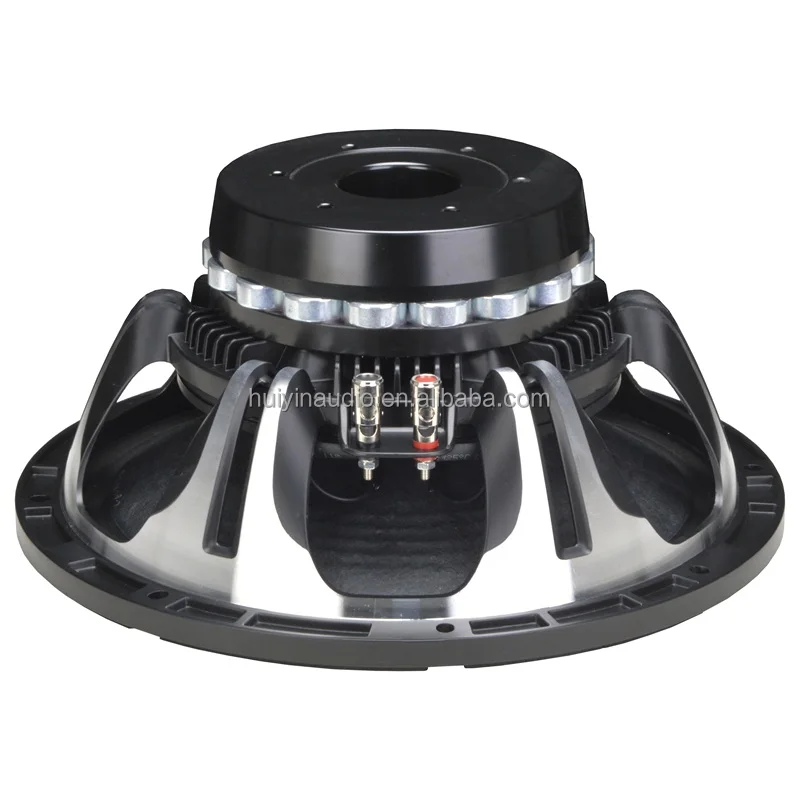

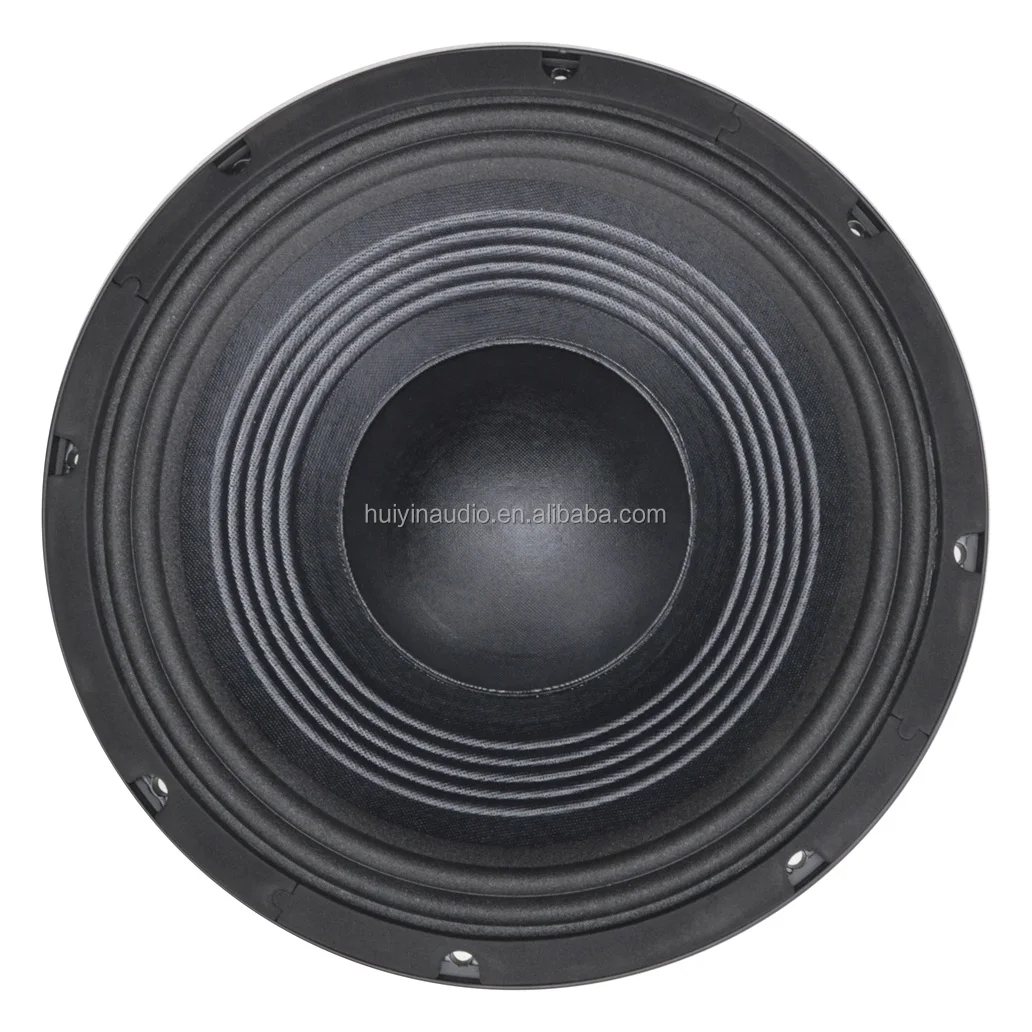

600WRMS 12 Inch Neodymium Subwoofer Speaker 4Inch Voice Coil Treated Paper Cone 12Inch Midbass Speaker for Line Array 12100-030N

Spu:

1601607499240

General Information

12 inch subwoofer speaker

12 inch woofer speaker

12 inch subwoofers

12 inch bass speaker

12 inch neodymium woofer speaker

4 inch voice coil

600W RMS POWER

1200W MAX POWER

102dB Sensitivity

Frequency Range 43Hz-2.5KHz

Xmax 6mm

Aluminium round wire inside and outside 1 layer

10 inch/ 12 inch/ 15 inch/ 18 inch are all available

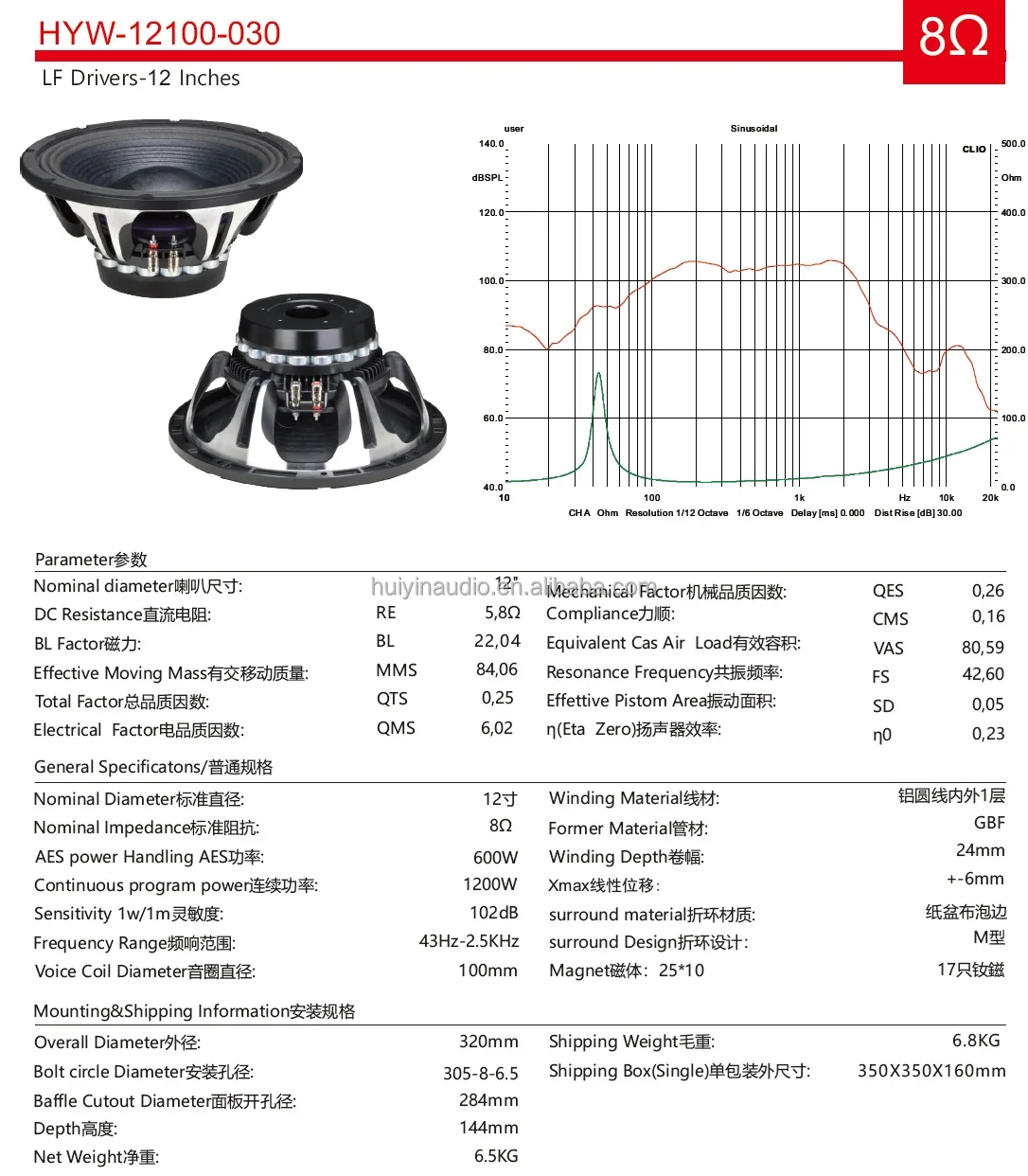

Product Paramenters

*Model Number*	*HYW-12100-030N*
*Parameters*
Nominal diameter	12"
DC Resistance/ RE	5.8Ω
BL Factor/ BL	22,04
Effective Moving Mass/ MMS	84,06
Total Factor/ QTS	0,25
Electrical Factor/ QMS	6,02
Mechanical Factor/ QES	0,26
Compliance/ CMS	0,16
Equivalent Cas Air Load/ VAS	80,59
Resonance Frequency/ FS	42,60
Effettive Pistom Area/ SD	0,05
Eta Zero/ η0	0,23
*General Specificatons*
Nominal Diameter	12 Inch
Nominal Impedance	8Ω
AES power Handling	600W
Continuous program power	1200W
Sensitivity 1w/1m	102dB
Frequency Range	43Hz-2.5KHz
Voice Coil Diameter	100mm voice coil / 4inch voice coil
Winding Material	Aluminium round wire inside and outside 1 layer
Former Material	GBF
Winding Depth	24mm
Magnetic Gap Depth	6mm
Surround material	Paper Cone + Cloth Surround
Surround Design	M
Magnet	251017pcs Neodymium Magnets
*Mounting & Shipping Information*
Overall Diameter	320mm
Bolt circle Diameter	305-8-6.5
Baffle Cutout Diameter	284mm
Depth	144mm
Net Weight	6.5KG
Shipping Weight	6.8KG
Shipping Box	35X35X17CM
