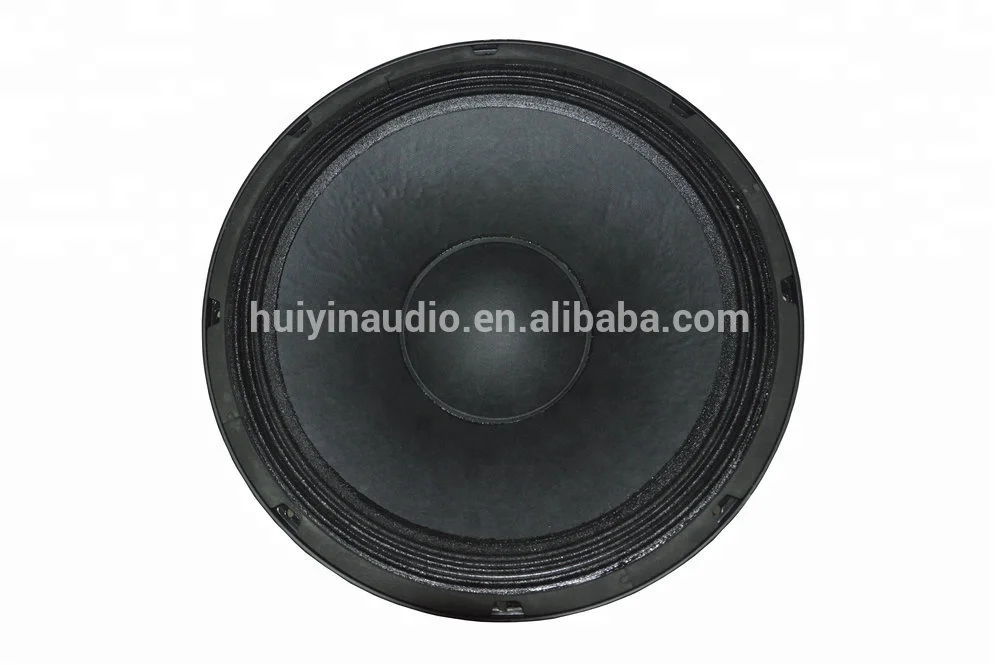

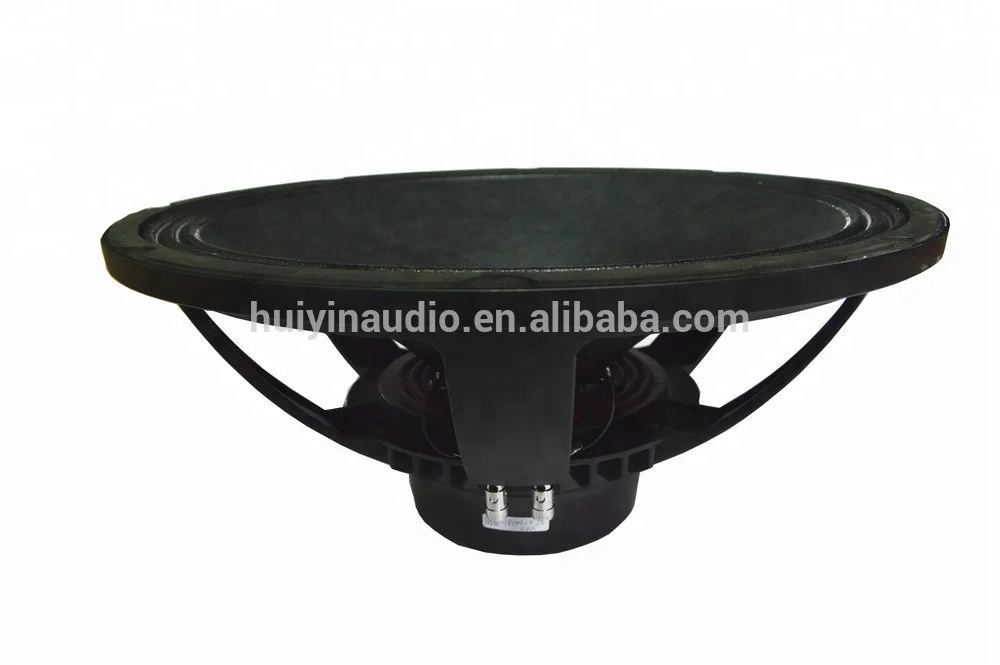

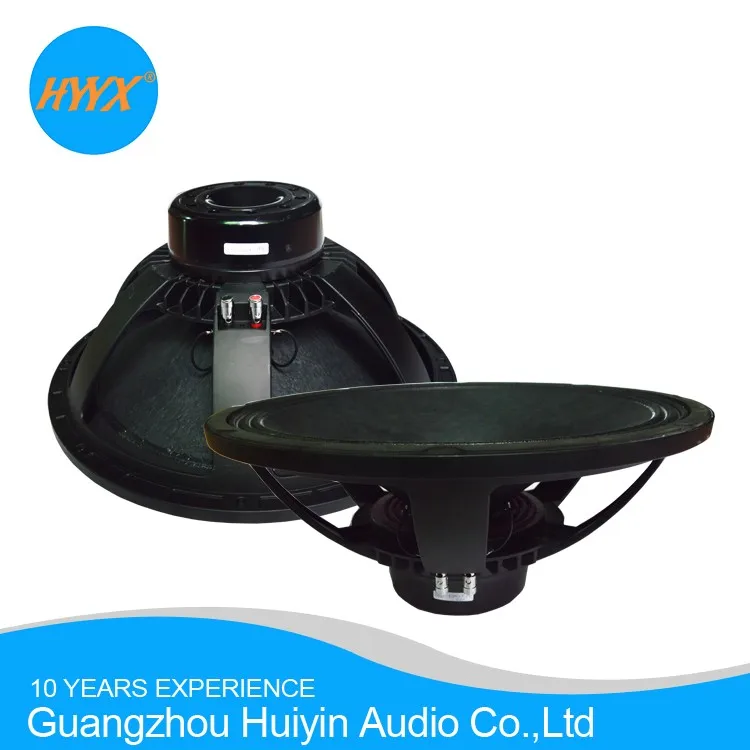

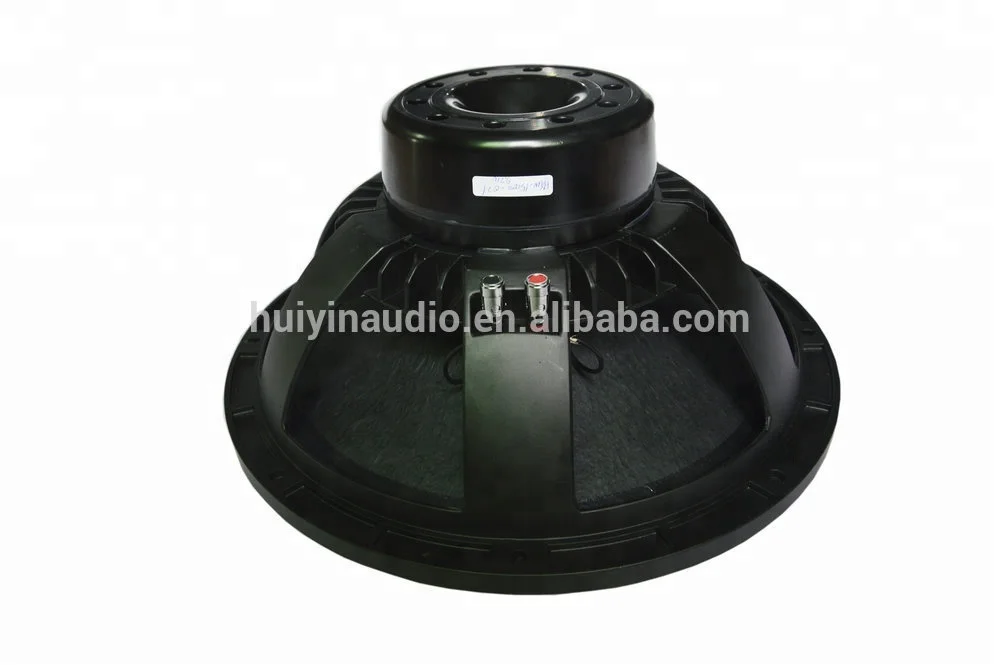

15 Inch Neodymium Woofer Speaker for Line Array Speaker Top Quality Pro Neo Speaker 15 Inch

15 Inch Neodymium Woofer Speaker for Line Array Speaker Top Quality Pro Neo Speaker 15 Inch

Spu:

60635481627

Overview
Recommended Products

Product Description

product 15 inch neodymium woofer speaker for line array speaker top quality pro neo speaker 15 inch-0

This 15inch Neodymium woofer Speakers offers outstanding efficiency , high sensitivity 99dB. Its very high power handling(600W RMS ) and Xmax capabilities make it suitable for any pro audio speaker enclosure, including LINE ARRAY SPEAKER SYSTEM.

Specification

Features :

_{- 15 inch woofer speaker with neodymium magnet}

_{- 2000W continuous program power capacity / 600W RMS}

_{- 99dB sensitivity 1W/1M}

_{- 30hz-4khz Frequency response}

_{- Neodymium magnet}

_{- 4inch/100mm copper voice coil}

Speccification :

Specification
Nominal diameter	380/15	mm/inch
Nominal impedance	8	ohm
Min impedance	5.2	ohm
Frequency response	30-4k	Hz
Magnet material	Neodymium
Sensitivity (1w/1m)	99	dB
RMS power handling	600	Watts
Continuous power handling	2000	Watts
Voice coil diameter	100/4	mm/ inch
Winding material	Copper
Cone material	Paper
Surround material	Cloth
T/S Parameter
Fs	45.8	Hz
Re	5.2	Ω
Qes	0.24
Qts	0.23
Qms	8.93
Vas	97.4	L
Rms	4.4	kg/s
Cms	0.09	mm/N
Mms	136.2	gr
BI	29.1	N/A
Rp	146.3	Ω
Lp	65.9	mH
Cp	345.5	uF
Le	1.2	mH
Xmax	7	mm
Mounting information
Overall diameter	393/15.47	mm/inch
Bolt Circle diameter	374/14.7	mm/inch
Baffle Cutout diameter	355/14	mm/inch
Depth	182/7.16	mm/inch
Flange thickness	14/0.55	mm/inch
Shipping information
Net weight	5.2	KG
Shipping weight	6.5	KG
Shipping box	420x420x220	mm
