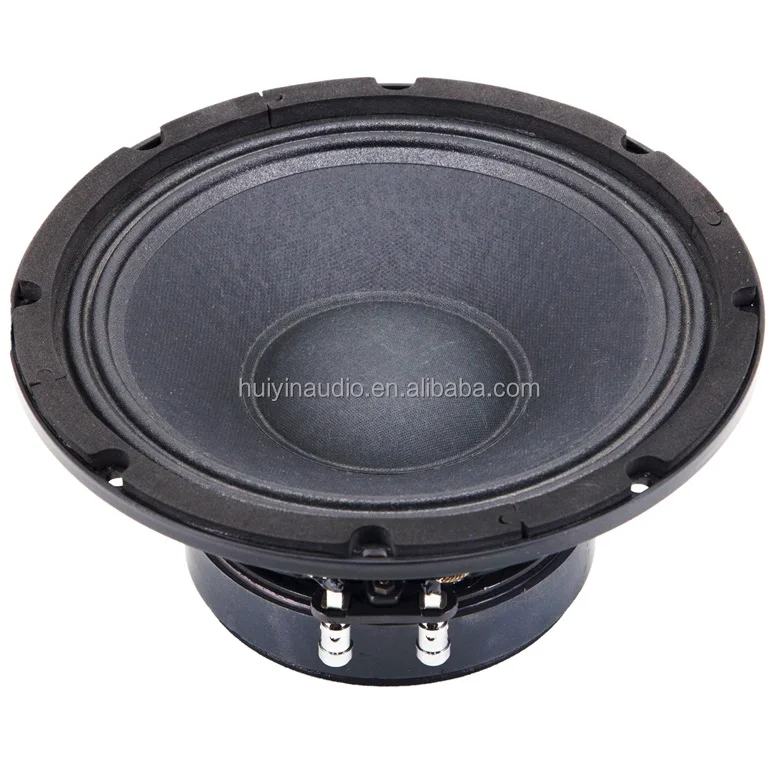

Midrange 8-Inch Pro Audio Speakers 850-054 for Car & Church Audio Equipment Passive Metal Aluminium Shell 8 & 4 Ohm Impedance
- Overview
- Recommended Products
Product Description


This 8 inch midrange Speakers offers outstanding efficiency , high sensitivity 95dB. Its very high power handling(250W RMS ) and Xmax capabilities(6mm) make it suitable for any pro audio speaker enclosure.
Specification
Features :
- 8 inch midrange speakers for professional audio
- 95dB sensitivity 1W/1M
- 250W RMS , 500W Max power handling

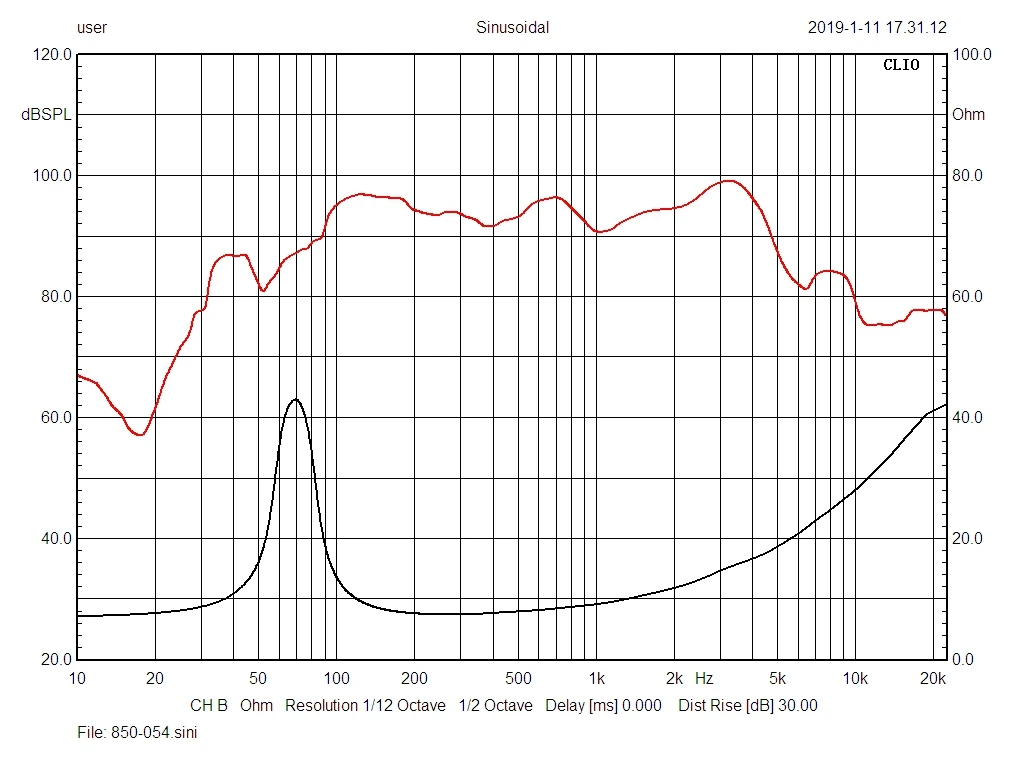

- 90hz-4khz Frequency response
- Ferrite magnet
- 2 inch/ 50mm copper voice coil
Specification :
Specification |
||||
Nominal diameter |
200/8 |
mm/inch |
||
Nominal impedance |
8/4 |
ohm |
||
Min impedance |
5.2/3.6 |
ohm |
||
Frequency response |
90-4k |
Hz |
||
Magnet material |
Ferrite |
|||
Sensitivity (1w/1m) |
95 |
dB |
||
RMS power handling |
250 |
Watts |
||
Continuous power handling |
500 |
Watts |
||
Voice coil diameter |
50/2 |
mm/ inch |
||
Winding material |
Copper |
|||
Cone material |
Paper |
|||
Surround material |
Cloth |
|||
T/S Parameter |
||||
Fs |
81 |
Hz |
||
Re |
5.2 |
Ω |
||
Qes |
0.93 |
|||
Qts |
0.86 |
|||
Qms |
11 |
|||
Vas |
12.1 |
L |
||
Rms |
1.0 |
kg/s |
||
Cms |
0.18 |
mm/N |
||
Mms |
21.5 |
gr |
||
BI |
8.3 |
N/A |
||
Rp |
39.2 |
Ω |
||
Lp |
13.8 |
mH |
||
Cp |
603.5 |
uF |
||
Le |
0.5 |
mH |
||
Xmax |
6 |
mm |
||
Mounting information |
||||
Overall diameter |
210/8.26 |
mm/inch |
||
Bolt Circle diameter |
197/7.75 |
mm/inch |
||
Baffle Cutout diameter |
186/7.3 |
mm/inch |
||
Depth |
92/3.6 |
mm/inch |
||
Flange thickness |
8/0.31 |
mm/inch |
||
Shipping information |
||||
Net weight |
3KG |
KG |
||
Shipping weight |
4KG |
KG |
||
Shipping box |
240x240x130 |
mm |
||
