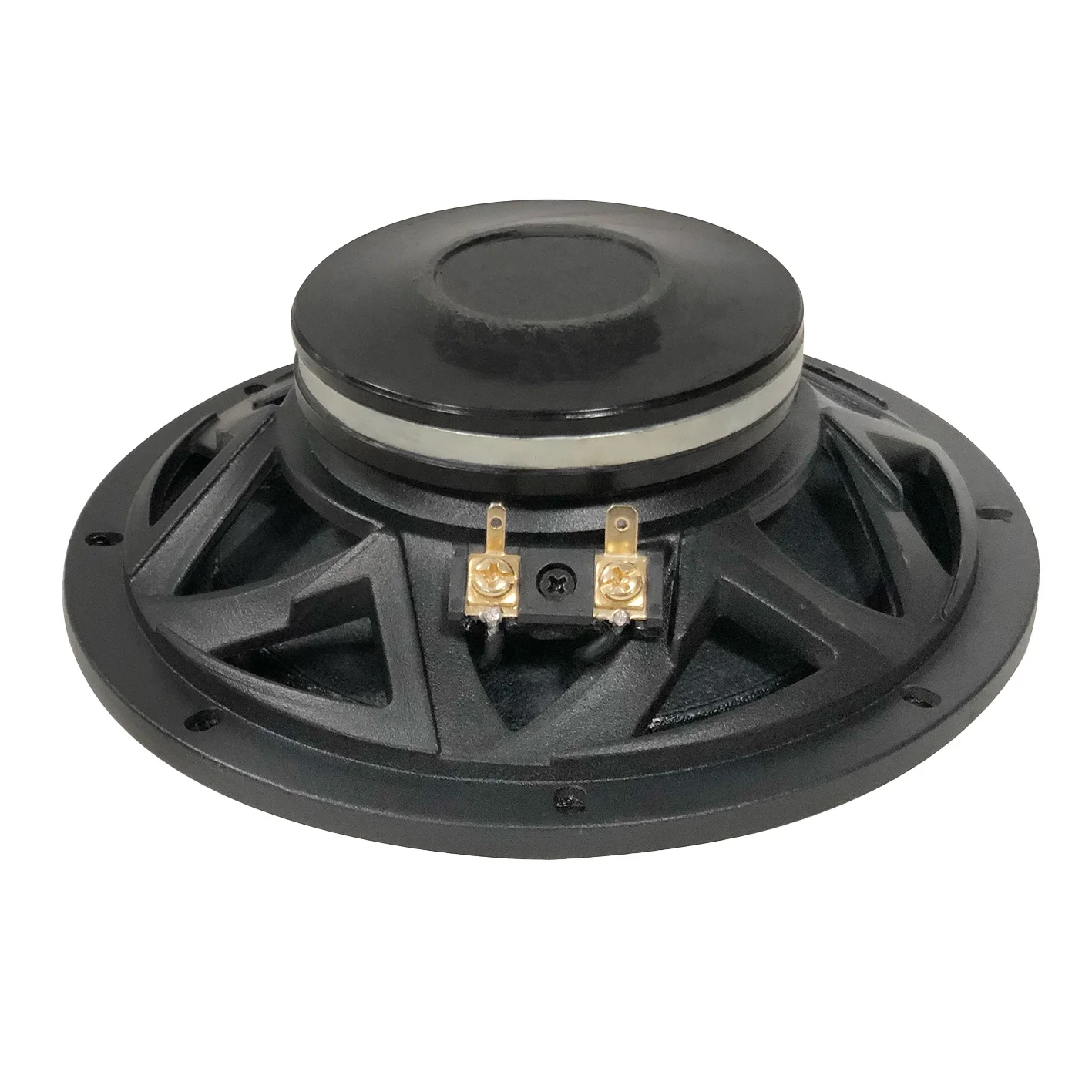

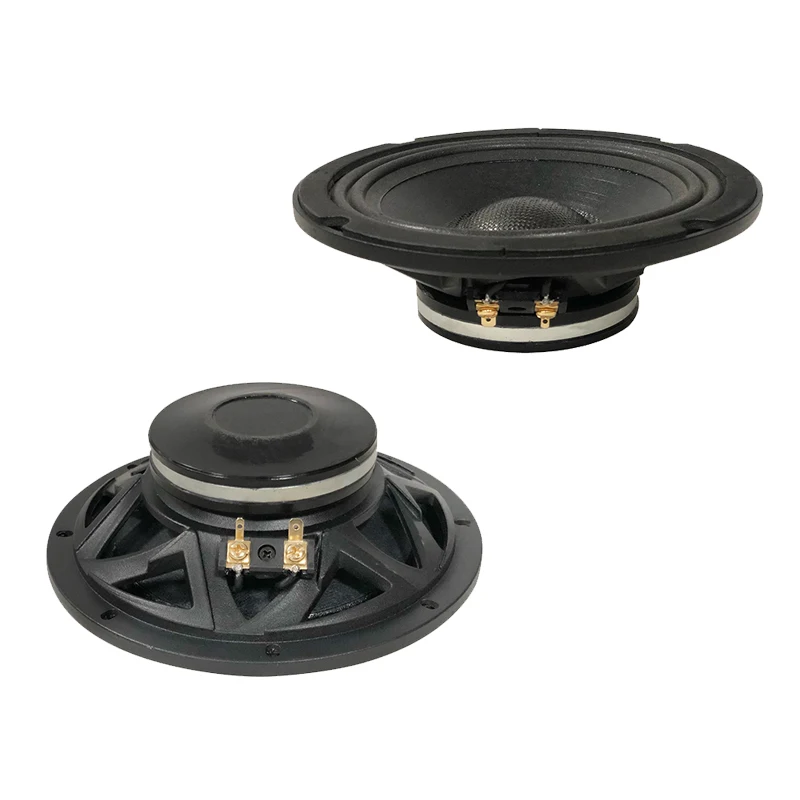

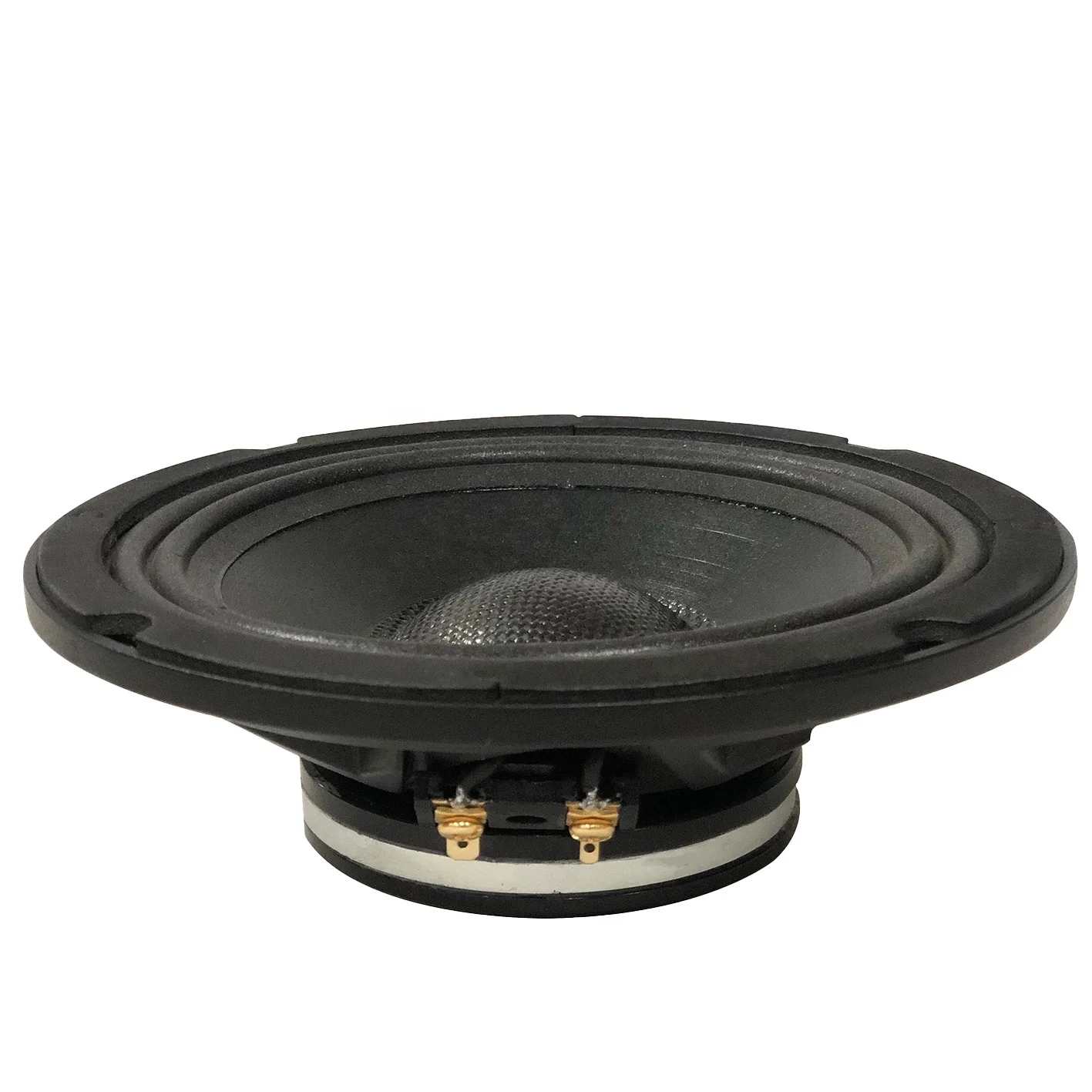

6.5 Inch Paper Cone Two-Way 92dB Sensitivity Woofer Car Audio Speaker 635-136 Mid 55mm Depth 150W DC/300W AC Wood Cabinet Home
Spu:
1601114877101
- Overview
- Recommended Products
Product Description
Specification
Features :
1,6.5 inch neodymium magnet midrange speaker
2, 92dB sensitivity 1w/1m
3, 150wrms, 300wmax power handling
4, 90hz-6khz frequency response
5, Neodymium magnet
6, 1.5 inch/35 mm voice coil
Specification :
Specification |
||||
Nominal diameter |
160/6.5 |
mm/inch |
||
Nominal impedance |
4 |
ohm |
||
Min impedance |
3.6 |
ohm |
||
Frequency response |
90-6k |
Hz |
||
Magnet material |
Neodymium |
|||
Sensitivity (1w/1m) |
92 |
dB |
||
RMS power handling |
150 |
Watts |
||
Continuous power handling |
300 |
Watts |
||
Voice coil diameter |
35/1.5 |
mm/ inch |
||
Winding material |
Aluminum |
|||
Cone material |
Paper |
|||
Surround material |
Cloth |
|||
T/S Parameter |
||||
Fs |
89 |
Hz |
||
Re |
3.6 |
Ω |
||
Qes |
0.72 |
|||
Qts |
0.63 |
|||
Qms |
5.3 |
|||
Vas |
8.99 |
L |
||
Cms |
0.36 |
mm/N |
||
Mms |
8.65 |
gr |
||
BL |
5.9 |
N/A |
||
dBSPL |
91.5 |
dB |
||
Mounting information |
||||
Overall diameter |
170 |
mm/inch |
||
Bolt Circle diameter |
157 |
mm/inch |
||
Baffle Cutout diameter |
148 |
mm/inch |
||
Depth |
55 |
mm/inch |
||
Shipping information |
||||
Net weight |
0.8KG |
KG |
||
Shipping weight |
1.2 KG |
KG |
||
Shipping box |
200x200x110 |
mm |
||
