Double 8 inch Coaxial speaker professional sound speaker full range loudspeaker
- Overview
- Recommended Products
- Classroom, Meeting Room, Music Bar, Home Theater
- Surround speaker, Small Wedge fill Speakers, Assist Speakers, Forestage

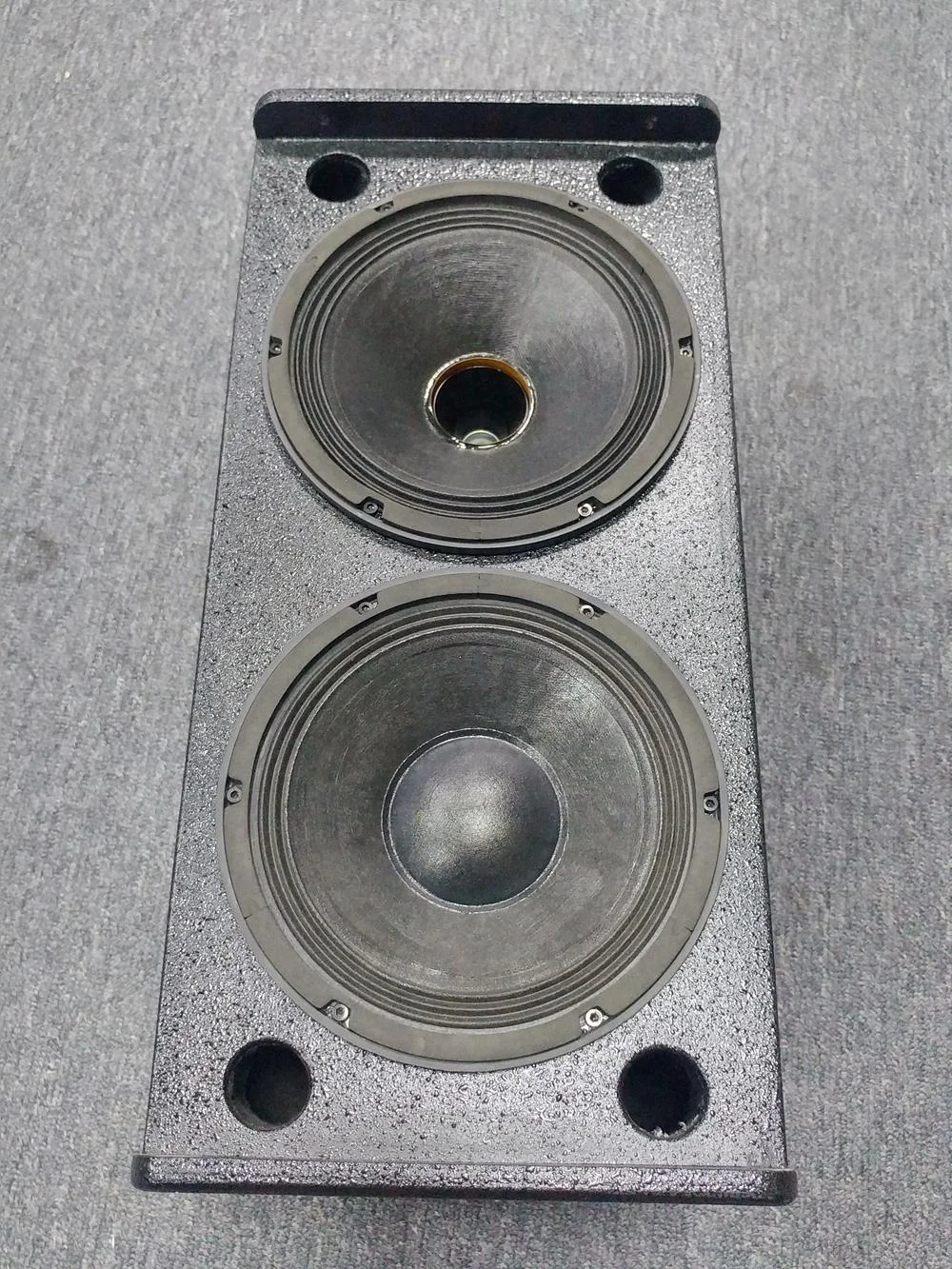

- CA208 is with 2-way coaxial speaker inside, effectively solves the problem of the transmission path difference between the conventional speaker units, make the near-field listening timbre is uniform and consistent.
- 8” Paper cone woofer together with 1” titanium compression driver, high sound quality
- Aluminium horn and paper cone woofer , make a near-field , wide angle tweeter horn, get Nominal coverage 80°(H)×80°(V)
- Improved, skilled crossover make the high frequency and low frequency sound come to ears together.
6.5/8 inch 2-way coaxial loudspeaker
Application:
Features :
Specification :
Specification | |
Model No. |
CA208 |
Frequency response: |
65Hz-20KHz |
Sensitivity ( 1W/1m ) : |
95 dB |
Nominal Impedance: |
8 Ω |
Power Rating: |
350W RMS |
LF speaker driver : |
2×8" LF with 2 inch voice coil |
HF speaker driver : |
1×1" HF driver with 1.7 inch Voice coil |
Nominal coverage(HxV): |
80°×80° |
Max SPL: |
120dB( Continuous) / 126dB(Peak) |
Suspension Hardware: |
10×M8 Fittings, Base |
Connectors: |
2 NL4MP connector 1+1 |
Dimensions (W×D×H) : |
245 x 270 x 520(mm) |
Net weight: |
14 kg |

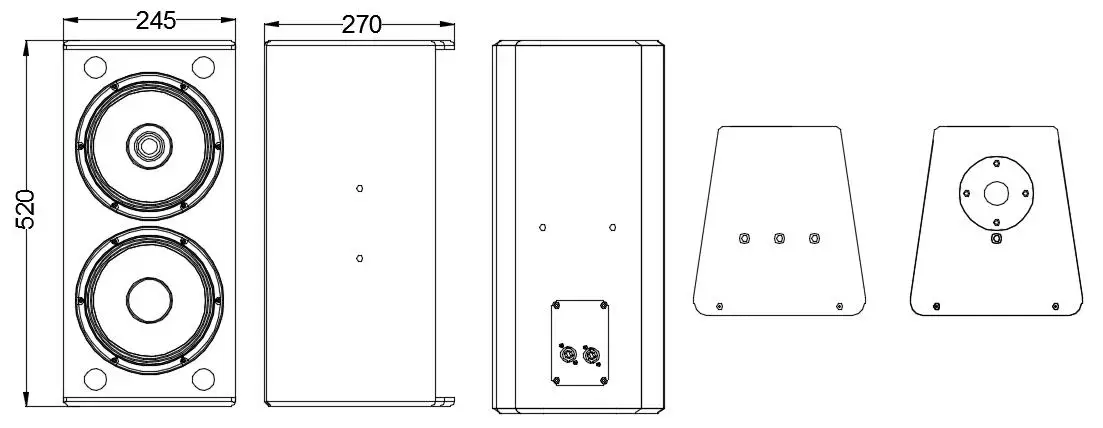

Dimension :
6.5/8 inch 2-way coaxial loudspeaker CA208
