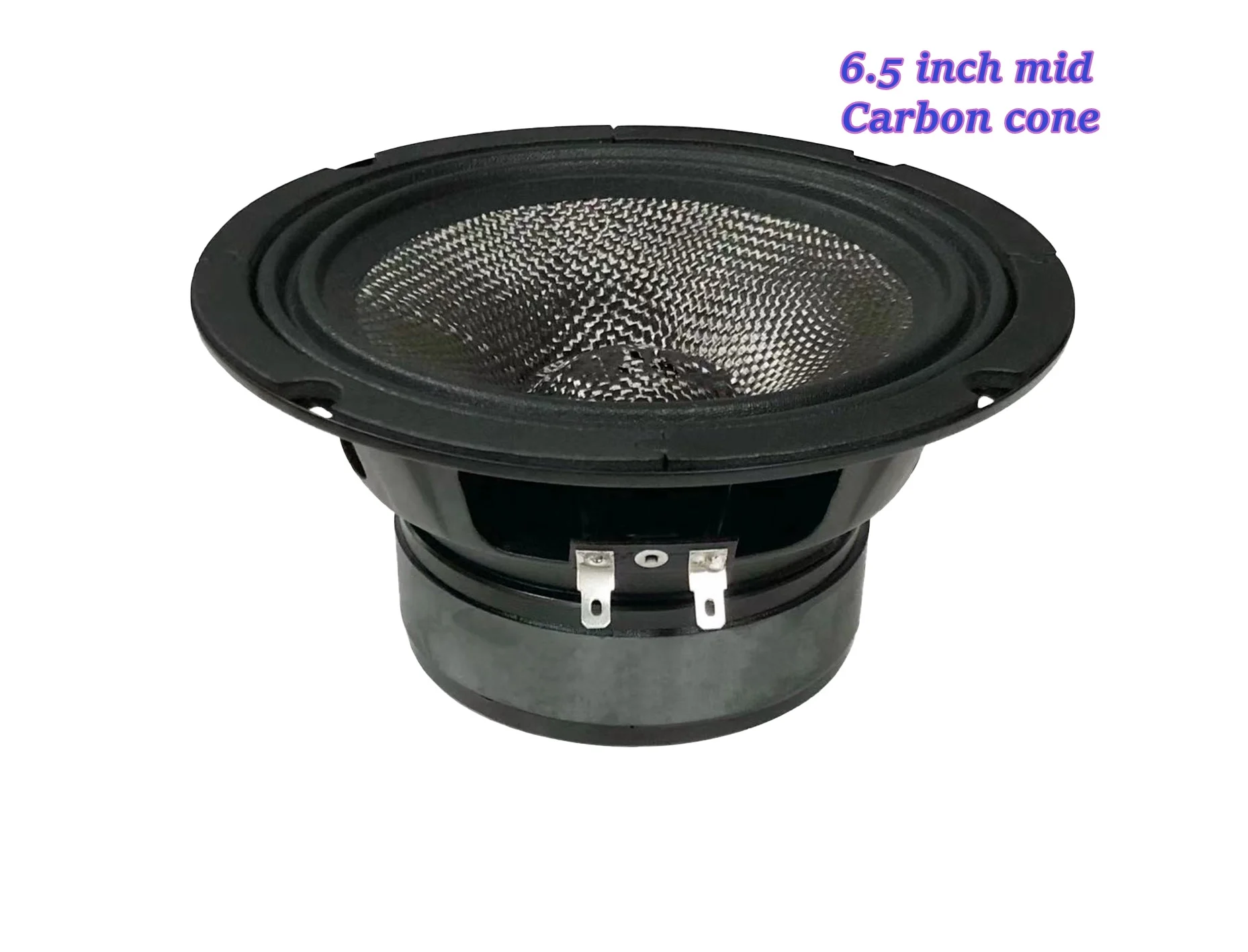

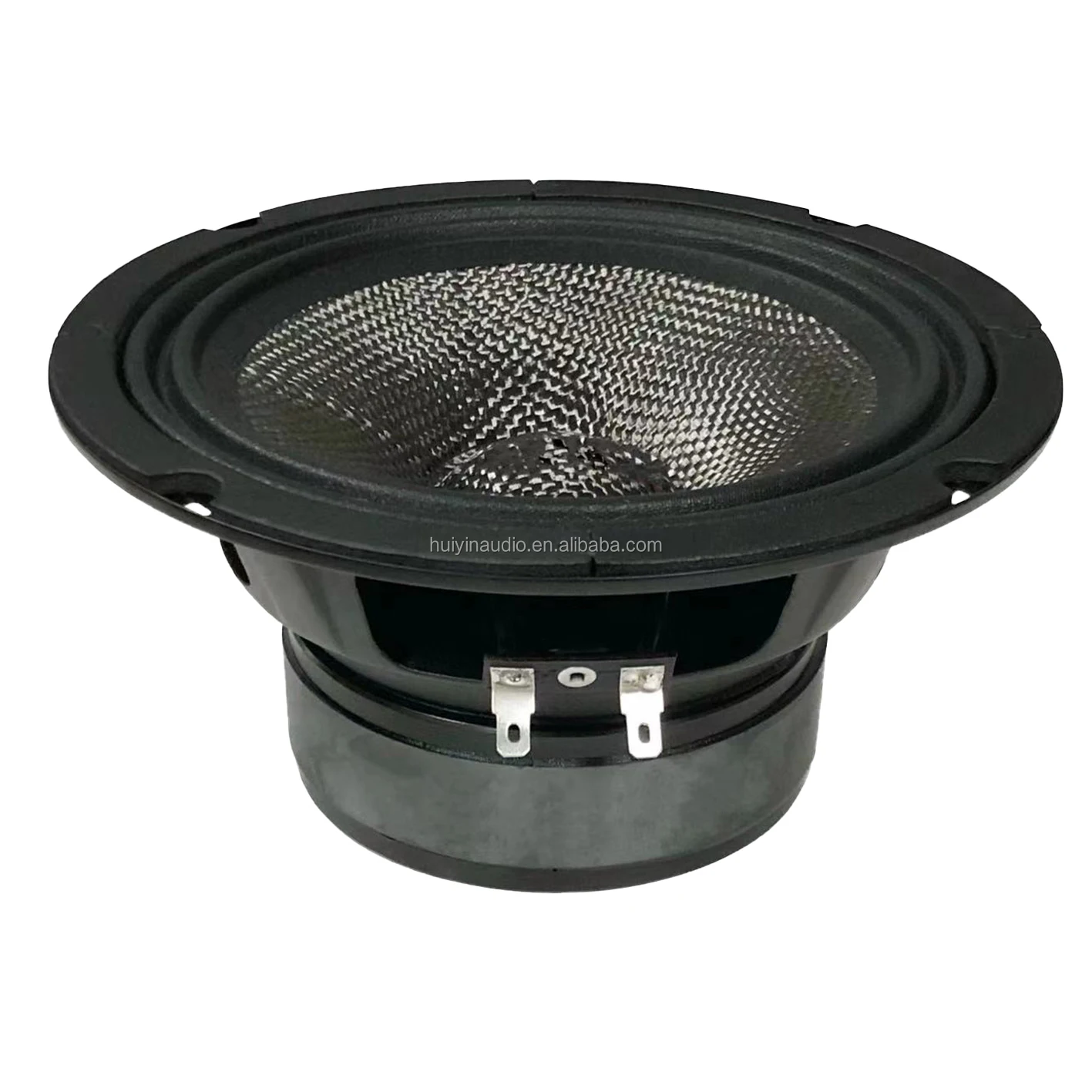

Factory Outlet 6.5 Inch Midrange Car Audio Speaker 635-119 4ohm Passive Midbass Speakers with Metal Shell
- Overview
- Recommended Products
Product Description
This 6.5 inch mid range Speaker is designed for pure mid range requirements, high sensitivity 94dB 1w/1m.
Specification
Features :
- 6.5 inch mid range speakers for professional audio or car audio
- Carbon cone for high efficiency requested usage
- 94dB sensitivity 1W/1M
- 120WRMS, 240W Max power handling
- 100hz-8khz Frequency response
- Ferrite magnet
- 1.4 inch/ 35mm copper voice coil
- Steel basket for economical speakers demand
Specification :
Specification |
||||
Nominal diameter |
160/6.5 |
mm/inch |
||
Nominal impedance |
8 |
ohm |
||
Min impedance |
5.2 |
ohm |
||
Frequency response |
100-8k |
Hz |
||
Magnet material |
Ferrite |
|||
Sensitivity (1w/1m) |
94 |
dB |
||
RMS power handling |
120 |
Watts |
||
Continuous power handling |
240 |
Watts |
||
Voice coil diameter |
35/1.4 |
mm/ inch |
||
Winding material |
Copper |
|||
Cone material |
Carbon |
|||
Surround material |
Cloth |
|||
T/S Parameter |
||||
Fs |
102 |
Hz |
||
Re |
3.6 |
Ω |
||
Qes |
0.59 |
|||
Qts |
0.54 |
|||
Qms |
7.0 |
|||
Vas |
4.72 |
L |
||
Rms |
1.22 |
kg/s |
||
Cms |
0.18 |
mm/N |
||
BI |
7.2 |
N/A |
||
Shipping information |
||||
Net weight |
1.46 KG |
KG |
||
Shipping weight |
2 KG |
KG |
||
Shipping box |
200x200x100 |
mm |
||
