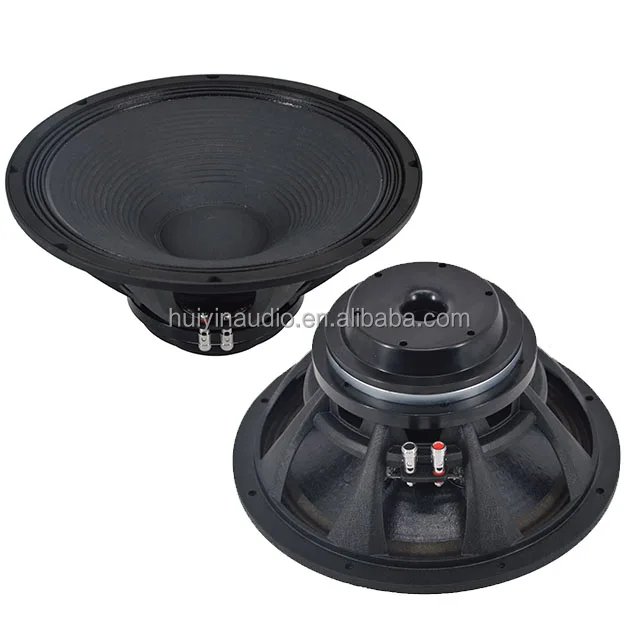

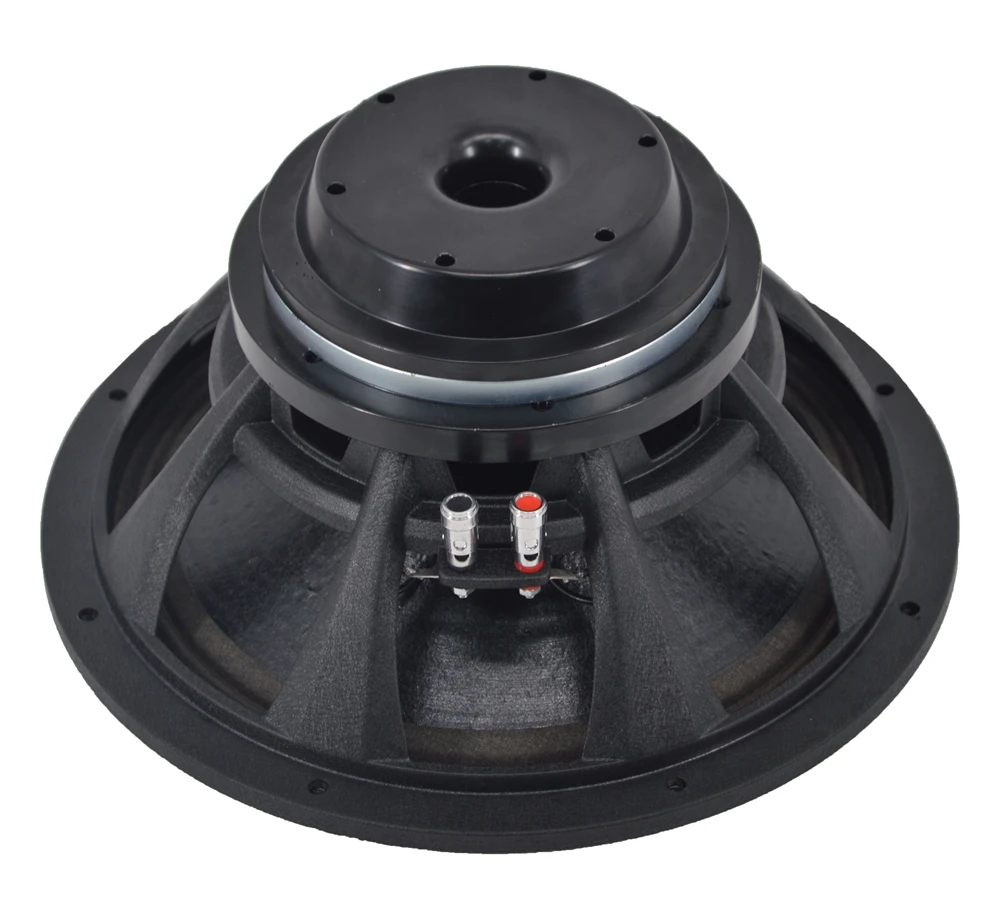

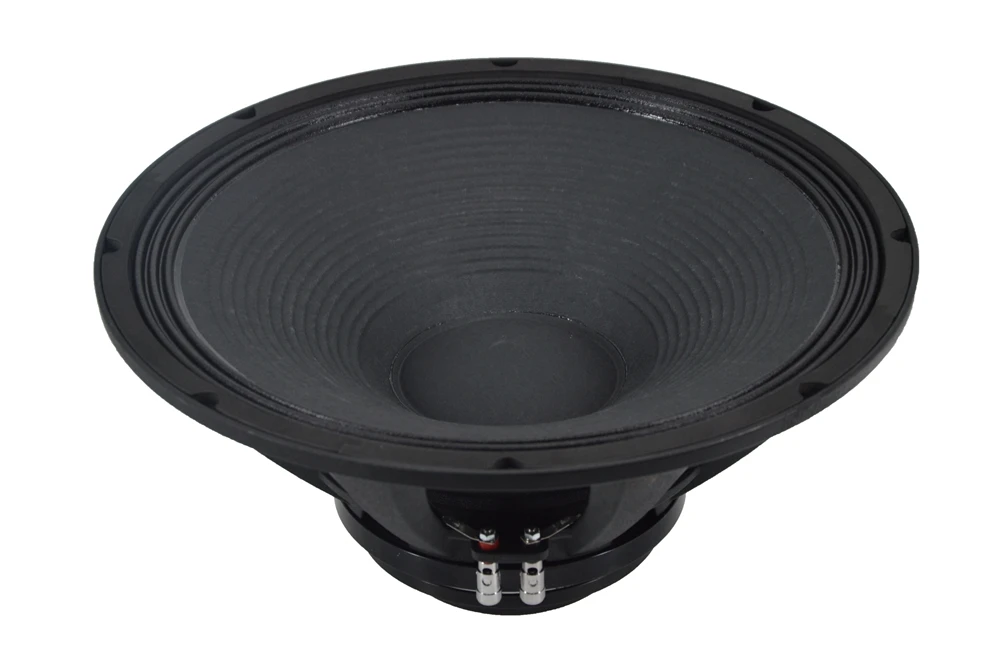

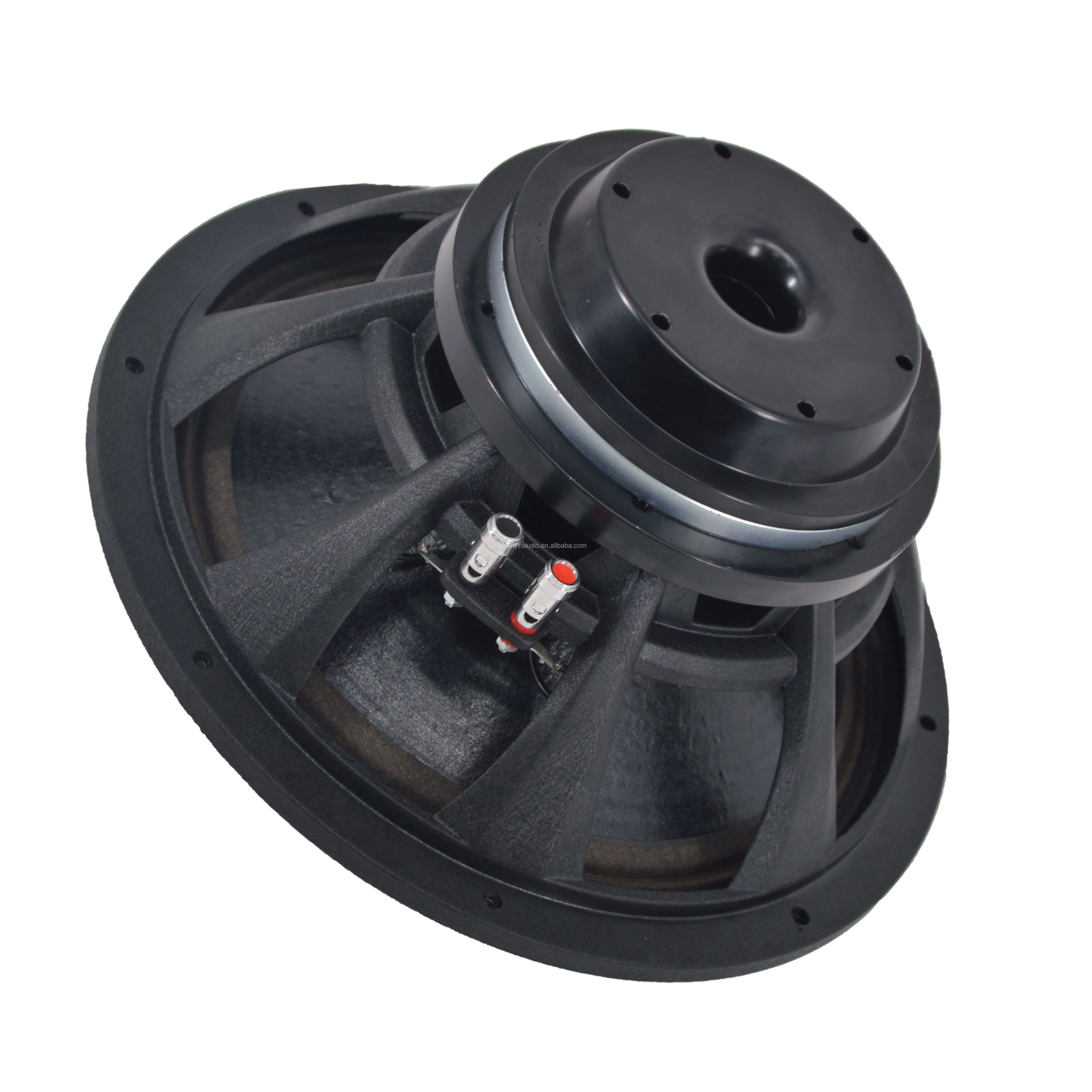

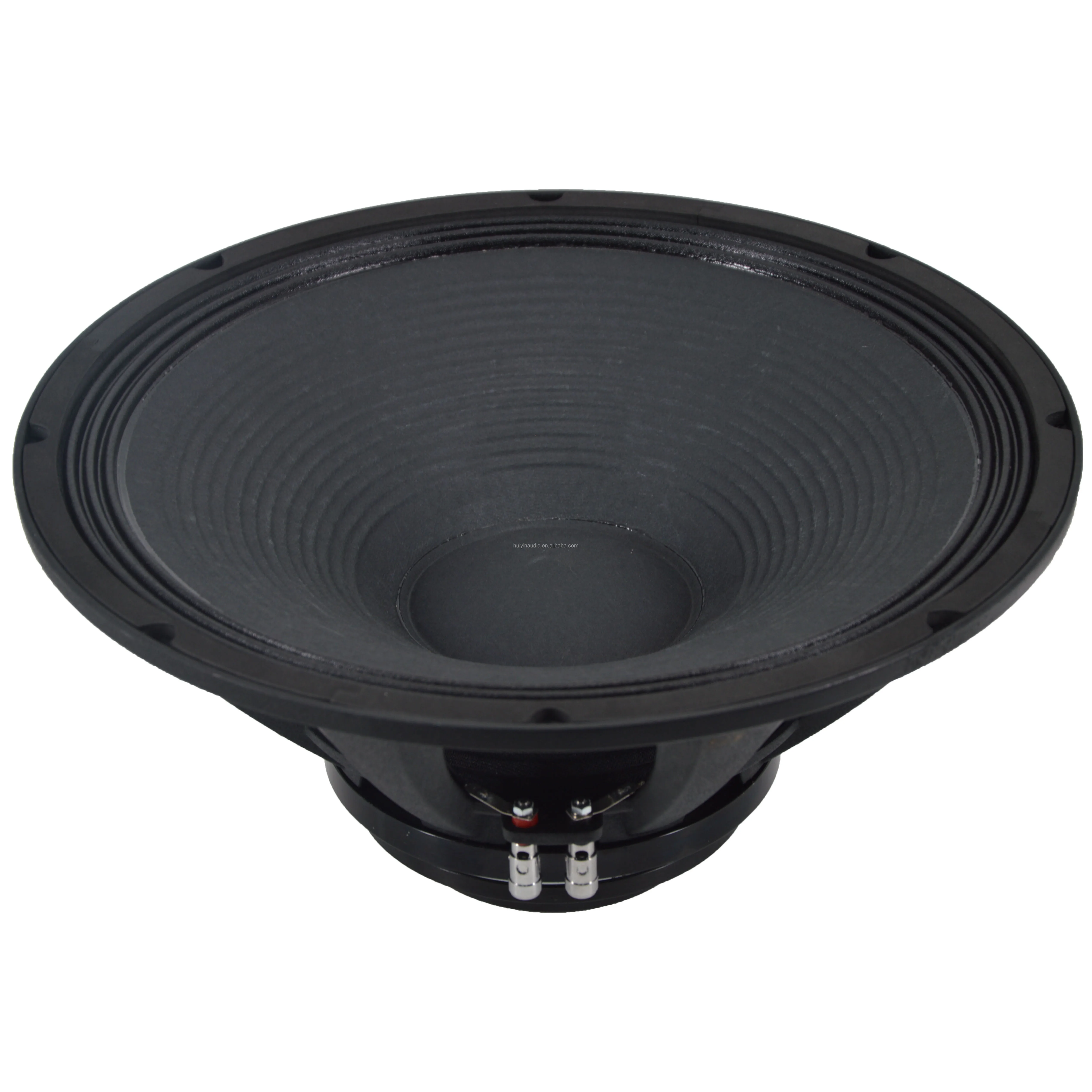

High Sensitivity 15-Inch Neodymium Woofer Speaker 15100-040 with Single Spider 102dB Sound Quality for Line Array Speakers
High Sensitivity 15-Inch Neodymium Woofer Speaker 15100-040 with Single Spider 102dB Sound Quality for Line Array Speakers
High Sensitivity 15-Inch Neodymium Woofer Speaker 15100-040 with Single Spider 102dB Sound Quality for Line Array Speakers
High Sensitivity 15-Inch Neodymium Woofer Speaker 15100-040 with Single Spider 102dB Sound Quality for Line Array Speakers
High Sensitivity 15-Inch Neodymium Woofer Speaker 15100-040 with Single Spider 102dB Sound Quality for Line Array Speakers
High Sensitivity 15-Inch Neodymium Woofer Speaker 15100-040 with Single Spider 102dB Sound Quality for Line Array Speakers
High Sensitivity 15-Inch Neodymium Woofer Speaker 15100-040 with Single Spider 102dB Sound Quality for Line Array Speakers
High Sensitivity 15-Inch Neodymium Woofer Speaker 15100-040 with Single Spider 102dB Sound Quality for Line Array Speakers
High Sensitivity 15-Inch Neodymium Woofer Speaker 15100-040 with Single Spider 102dB Sound Quality for Line Array Speakers
High Sensitivity 15-Inch Neodymium Woofer Speaker 15100-040 with Single Spider 102dB Sound Quality for Line Array Speakers
High Sensitivity 15-Inch Neodymium Woofer Speaker 15100-040 with Single Spider 102dB Sound Quality for Line Array Speakers
High Sensitivity 15-Inch Neodymium Woofer Speaker 15100-040 with Single Spider 102dB Sound Quality for Line Array Speakers

High Sensitivity 15-Inch Neodymium Woofer Speaker 15100-040 with Single Spider 102dB Sound Quality for Line Array Speakers

Spu:
62071769106
Inquiry
  • Overview
  • Recommended Products
Product Description

This 15 inch Neodymium woofer Speakers offers outstanding efficiency , high sensitivity 102dB. Its very high power handling(600W RMS)

Specification
product high sensitivity 15 inch neodymium woofer speaker 15100 040 with single spider 102db sound quality for line array speakers-0


Features :


- 15 inch midbass speaker with neodymium magnet
- 1200W continuous program power capacity / 600W RMS
- 102dB sensitivity 1W/1M
- 44hz-3khz Frequency response
- Neodymium magnet
- 4 inch/100mm copper voice coil

Speccification :

product high sensitivity 15 inch neodymium woofer speaker 15100 040 with single spider 102db sound quality for line array speakers-1
Specification
Nominal diameter
360/15
mm/inch
Nominal impedance
8
ohm
Min impedance
5.6
ohm

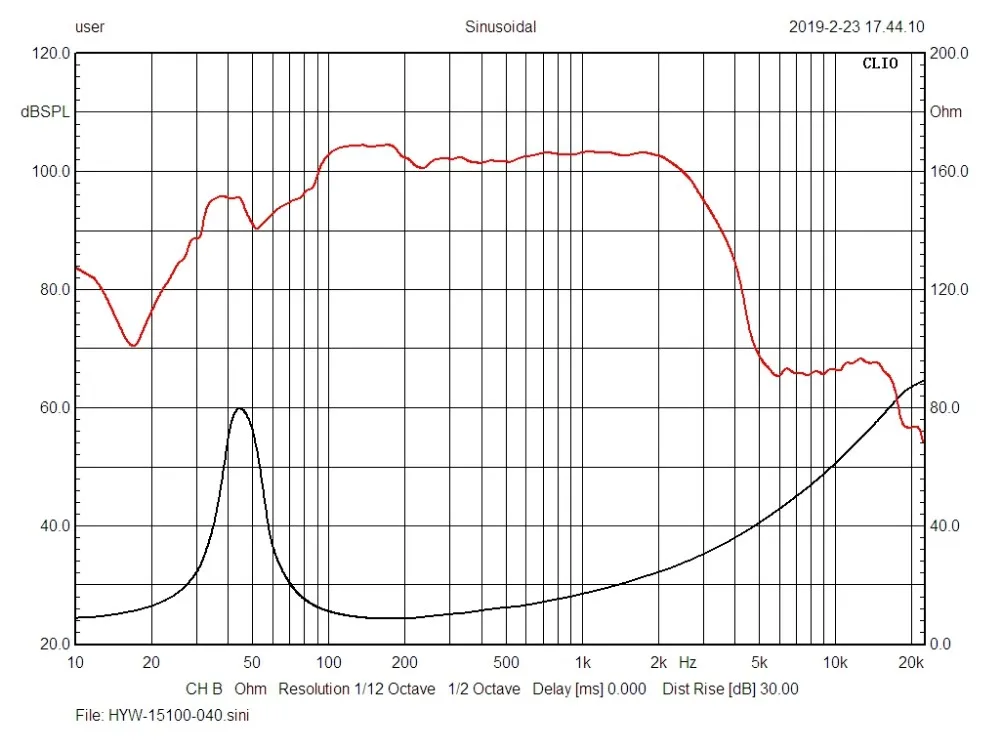

Frequency response
40-4k
Hz
Magnet material
Neodymium
Sensitivity (1w/1m)
102
dB
RMS power handling
600
Watts
Continuous power handling
1200
Watts
Voice coil diameter
100/4
mm/ inch
Winding material
Copper
Cone material
Paper
Surround material
Cloth
T/S Parameter
Fs
44.5
Hz
Re
5.8
Ω
Qes
0.32
Qts
0.30
Qms
4.1
Vas
117.2
L
Rms
8.0
kg/s
Cms
0.11
mm/N
Mms
116.6
gr
BL
24.3
N/A
Mounting information
Overall diameter
391/15.4
mm/inch
Bolt Circle diameter
372/14.6
mm/inch
Baffle Cutout diameter
358/14.1
mm/inch
Depth
188/7.4
mm/inch
Shipping information
Net weight
7.72
KG
Shipping weight
8.3
KG
Shipping box
410x410x200
mm
product high sensitivity 15 inch neodymium woofer speaker 15100 040 with single spider 102db sound quality for line array speakers-2
