PH1000-2 Class D Two Channel DSP Amplifier Module With 2CH X 1000W 8Ohm Amp Active Dual Speaker Amplifier for Audio Sound System
PH1000-2 Class D Two Channel DSP Amplifier Module With 2CH X 1000W 8Ohm Amp Active Dual Speaker Amplifier for Audio Sound System
PH1000-2 Class D Two Channel DSP Amplifier Module With 2CH X 1000W 8Ohm Amp Active Dual Speaker Amplifier for Audio Sound System
PH1000-2 Class D Two Channel DSP Amplifier Module With 2CH X 1000W 8Ohm Amp Active Dual Speaker Amplifier for Audio Sound System
PH1000-2 Class D Two Channel DSP Amplifier Module With 2CH X 1000W 8Ohm Amp Active Dual Speaker Amplifier for Audio Sound System
PH1000-2 Class D Two Channel DSP Amplifier Module With 2CH X 1000W 8Ohm Amp Active Dual Speaker Amplifier for Audio Sound System
PH1000-2 Class D Two Channel DSP Amplifier Module With 2CH X 1000W 8Ohm Amp Active Dual Speaker Amplifier for Audio Sound System
PH1000-2 Class D Two Channel DSP Amplifier Module With 2CH X 1000W 8Ohm Amp Active Dual Speaker Amplifier for Audio Sound System
PH1000-2 Class D Two Channel DSP Amplifier Module With 2CH X 1000W 8Ohm Amp Active Dual Speaker Amplifier for Audio Sound System
PH1000-2 Class D Two Channel DSP Amplifier Module With 2CH X 1000W 8Ohm Amp Active Dual Speaker Amplifier for Audio Sound System
PH1000-2 Class D Two Channel DSP Amplifier Module With 2CH X 1000W 8Ohm Amp Active Dual Speaker Amplifier for Audio Sound System
PH1000-2 Class D Two Channel DSP Amplifier Module With 2CH X 1000W 8Ohm Amp Active Dual Speaker Amplifier for Audio Sound System

PH1000-2 Class D Two Channel DSP Amplifier Module With 2CH X 1000W 8Ohm Amp Active Dual Speaker Amplifier for Audio Sound System

Inquiry
  • Overview
  • Recommended Products

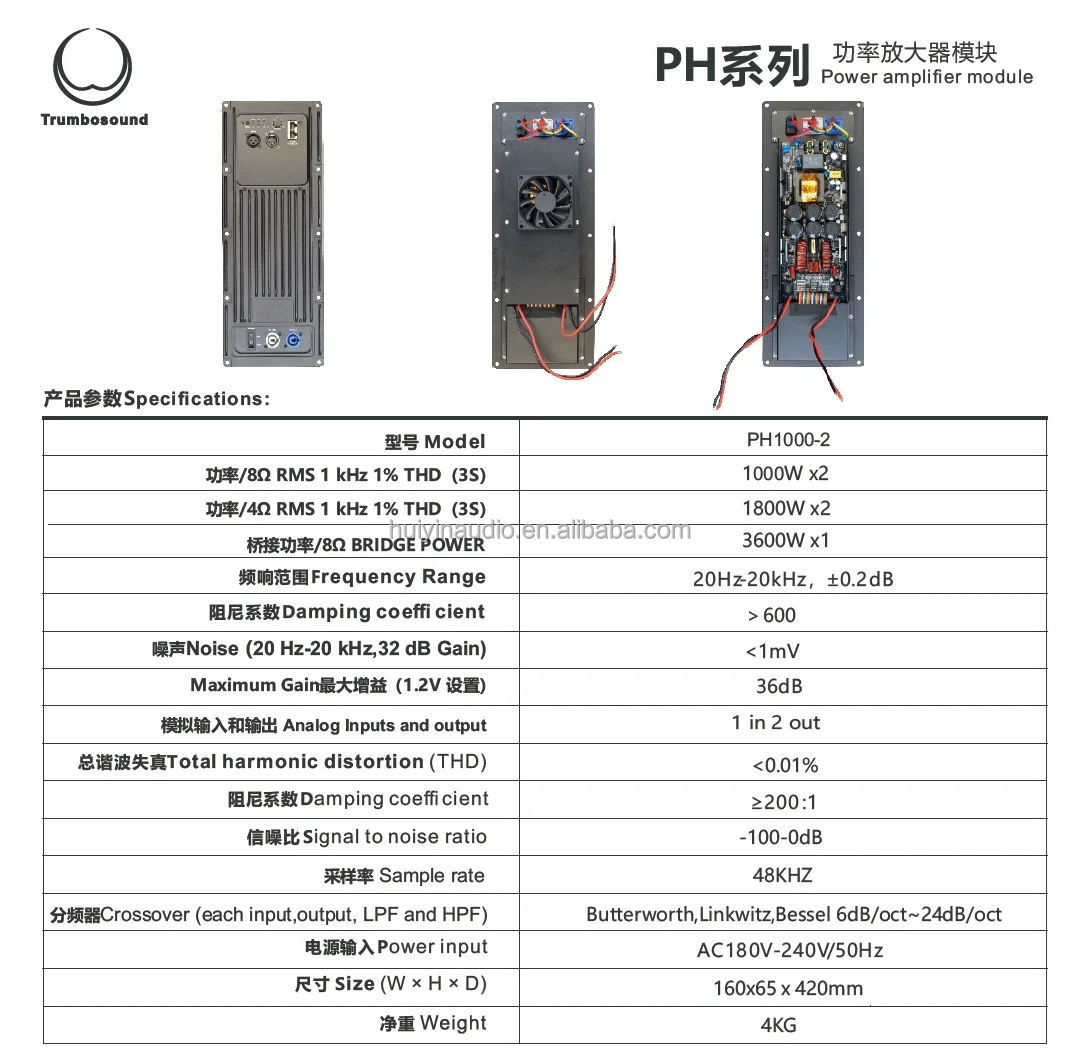

Specification
Item
Specs
Warranty
1 Year
Place of Origin
China
Guangdong
Brand Name
OEM
Model Number
PH1000-2
Customized
Yes
Dimension
42X16X7CM
Power Supply Mode
Other
Storage
No
SNR
-100-0dB
Output Power
1000W X 2
Connection Type
electric wire
Shell Material
Plastic
Format
Active
The body material
Metal
radio function
Yes
Product Name
Two Channel Power Amplifier Modules
RMS @ 8ohm
1000W X 2 Channels
RMS @ 4ohm
1800W X 2 Channels
BRIDGE POWER @ 8ohm
3600W X 1 Channels
Frequency Response
20Hz-20kHz
Sensitivity
96dB
Analog Inputs and output
1 in 2 out
Total harmonic distortion (THD)
<0.01%
Power input
AC180V -240V/50Hz
Crossover (LPF and HPF)
Butterworth,Linkwitz,Bessel 6dB/oct~24dB/oct
Product Description
product ph1000 2 class d two channel dsp amplifier module with 2ch x 1000w 8ohm amp active dual speaker amplifier for audio sound system-0
product ph1000 2 class d two channel dsp amplifier module with 2ch x 1000w 8ohm amp active dual speaker amplifier for audio sound system-1
product ph1000 2 class d two channel dsp amplifier module with 2ch x 1000w 8ohm amp active dual speaker amplifier for audio sound system-2
product ph1000 2 class d two channel dsp amplifier module with 2ch x 1000w 8ohm amp active dual speaker amplifier for audio sound system-3
product ph1000 2 class d two channel dsp amplifier module with 2ch x 1000w 8ohm amp active dual speaker amplifier for audio sound system-4
product ph1000 2 class d two channel dsp amplifier module with 2ch x 1000w 8ohm amp active dual speaker amplifier for audio sound system-5
product ph1000 2 class d two channel dsp amplifier module with 2ch x 1000w 8ohm amp active dual speaker amplifier for audio sound system-6
