15 Inch Coaxial Speaker Neo Speaker 1400W/2800W Big Power Speaker for Line Array System

Spu:
60748881743
  • Overview
  • Recommended Products



Product Description


Features:

  • 15“ Coaxial speaker with neodymium magnet copy speakers
  • 450Wrms power handling , 900W max power
  • 41hz- 20kHz frequency response
  • 98dB sensitivity
  • Single Neodymium magnet assembly
  • Inside/Outside copper voice coil





Specification
Nominal diameter
380/15
mm/inch
Nominal impedance
8
ohm
Min impedance LF
5.2
ohm
Min impedance HF
6
ohm
Frequency response
40-20k
Hz
  RMS Power
450

Magnet material
 Neodymium
Specification LF
Sensitivity (1w/1m)
98
dB
Nominal power handling
450
Watts
Continuous power handling
900
Watts
Voice coil diameter
75/3
mm/ inch
Winding material
Copper

Cone material
Paper

Surround material
Cloth

Specification HF
Sensitivity (1w/1m)
112
dB
Nominal power handling
100
Watts
Continuous power handling
200
Watts
Voice coil diameter
75/3
mm/inch
Diaphragm
Titanium

T/S Parameter
Fs
39.9
Hz
Re
5.2

Qes
0.59
Qts
0.53
Qms
6.02
Vas
163.7
L
Rms
4.6
kg/s
Cms
0.15
mm/N
Mms
109.4
gr
BI
18.3
N/A
Rp
61.4

Lp
39.6
mH
Cp
803
uF
Le
0.8
mH
Xmax(one-way)
12
mm

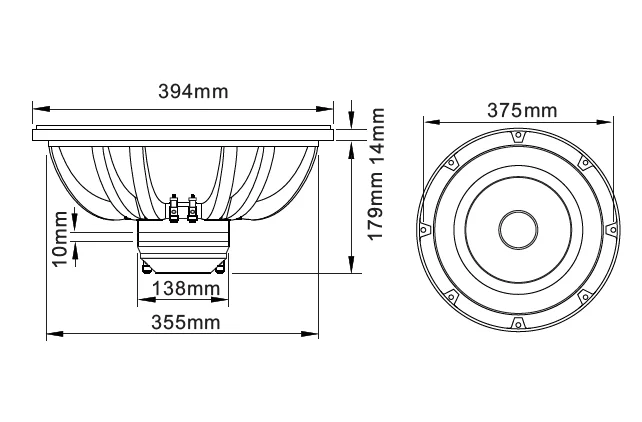

Mounting information
Overall diameter
394/15.5
mm/inch
Bolt Circle diameter
375/14.76
mm/inch
Baffle Cutout diameter
355/14
mm/inch
Total Depth
193/7.6
mm/inch
Flange thickness
14/0.55
mm/inch
Shipping information
Net weight
6
KG
Shipping weight
7
KG
Shipping box
420x420x220
mm
